EXHC THERMALEx-proof housing for thermal cameras

MARKETS

CERTIFICATIONS

DESCRIPTION

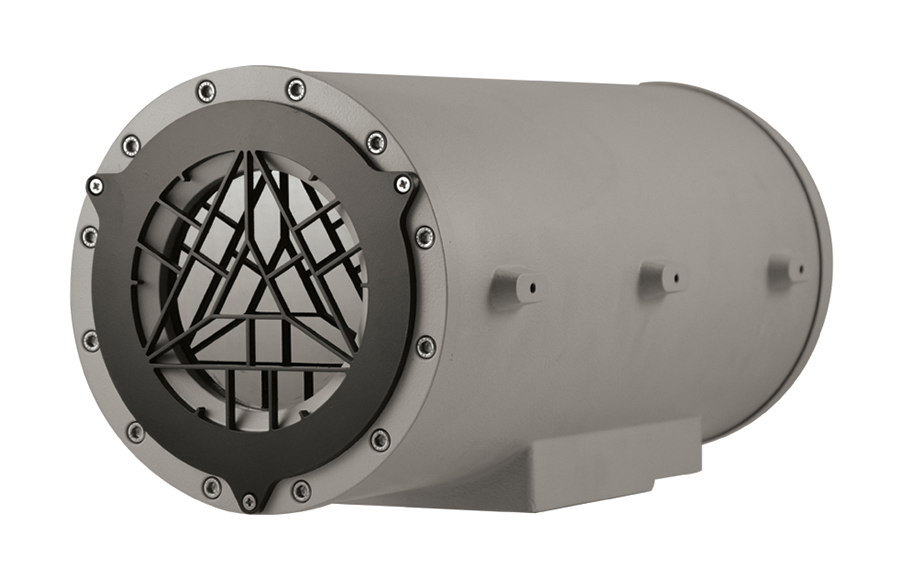

The EXHC housings are made of a heavy-duty Anticorodal aluminium alloy and are designed to house video cameras installed in explosion-proof environments.

All the external components are powder-painted and guarantee excellent resistance against UV rays, marine environments and any polluting substances in the area of installation.

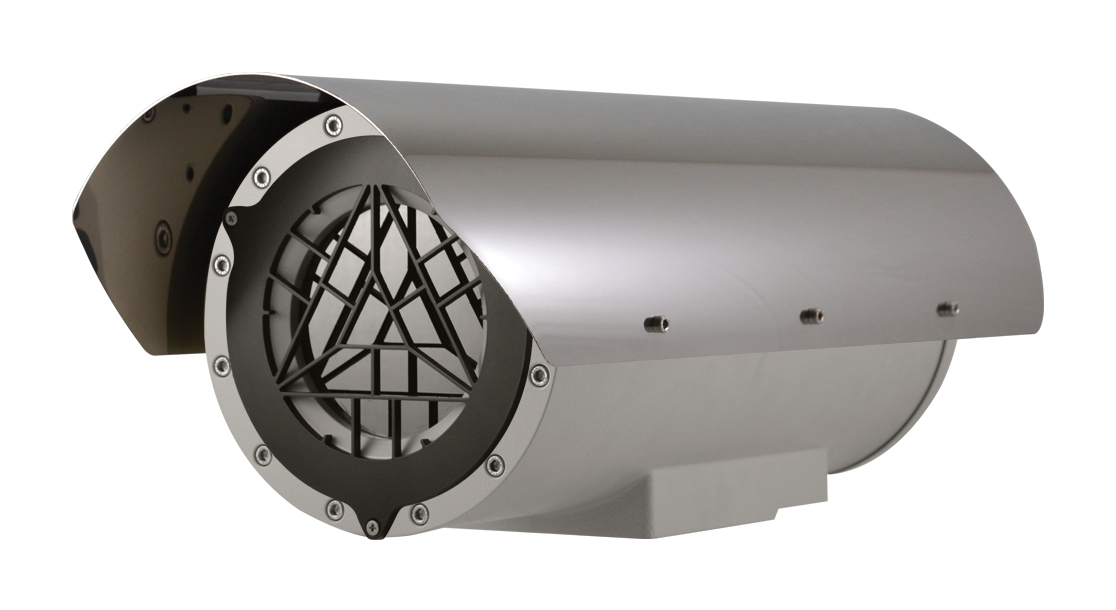

The cylindrical element of the housing is closed on opposite sides by two flanges and feature two holes for NPT 3/4” cable glands. The video camera housing is equipped with a triple heating element and an optional sunshield.

This housing features germanium glass and is designed for use with thermal video cameras. The renowned properties of the composition of the germanium glass ensure IR transmission with the highest quality lens.

KEY FEATURES

Designed to meet the strictest international standards and to operate in hazardous areas

Solid, non corrosive die-cast aluminium construction

2 holes for cable glands 3/4" NPT

Ambient temperature: -40°C/+50°C (-40°C/+122°F) with reinforced heater

TECHNICAL DATA

Mechanical
  • Non-corrosive die-cast aluminium (anticorodal)
  • Epoxy powder painted, RAL9002
  • Cable entry: 2 holes, 3/4" NPT
  • Internal dimensions: Ø 180x380mm (7.1x15in)
  • Internal usable dimensions: 100x100x280mm (3.9x3.9x11in)
  • Unit weight:
  • 15kg (33.5lb)
Housing's window
  • Germanium window
  • Usable diameter: 114mm (4.5in)
  • Thick: 11mm (0.43in)
  • External treatment: antiscratch (Hard Carbon Coating - DLC)
  • Internal treatment: antireflection
  • Spectral range: from 7.5μm up to 14μm
  • Medium transmittance (from 7.5μm up to 11.5μm): 87.5%
  • Medium transmittance (from 11.5μm up to 14μm): 72.1%
Electrical
  • Supply voltage/Current consumption (Ton 15°C±4°C (59°F±7°F), Toff 22°C±3°C (72°F±5°F)):
  • 230Vac, 0.3A, 50/60Hz
  • 24Vac, 2.5A, 50/60Hz
  • Power consumption
  • Heater: 60W
  • Installable camera: 20W max
Cameras
  • Characteristics of installable devices (cameras and lenses):
  • Power consumption (assembly, camera and lens): 20W max
  • Usable volume for camera/lens: 2800cm³
  • Minimum distance between the walls of the housing and the camera/lens: 12mm
Environment
  • For indoors and outdoors installation
  • Operating temperature with heating: from-40°C (-40°F) up to +50°C (122°F)
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN62368-1
  • Electromagnetic compatibility (CE): EN61000-6-3, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class B)
  • RoHS (CE): EN IEC 63000
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • IP protection degree (EN/IEC60529): IP66
Certifications - Explosion-proof applications
  • ATEX (EN IEC 60079-0, EN 60079-1, EN 60079-31)
  • IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31)
  • EAC Ex (TR CU 012/2011) (pending)
  • UK EX (EN IEC 60079-0: 2018, EN 60079-1: 2014, EN 60079-31: 2014)

For further details on certifications and markings, consult the relevant table.
