Videotec and Sony: integrated technology for top-performing surveillance
Videotec has announced that the new ULISSE EVO PTZ range will integrate the high-sensitivity SONY FCB-EV7520 camera. This camera will provide a new level of high performance and exceptional image quality for the external surveillance of airports, critical infrastructures, and traffic.
The new ULISSE EVO with the SONY FCB-EV7520 camera has a 30x optical zoom and a 1/2.8 Exmor R(TM) CMOS sensor with Full HD 1080/60p resolution that produces the highest image quality, even when surveilling moving objects or in poor lighting conditions.
The powerful image stabilization algorithm means even the smallest camera vibrations are detected and any blur in the footage is dynamically corrected. This results in a sharp image of the scene being surveilled. This is useful for traffic monitoring applications where the camera could be buffeted by wind or shaken by mechanical vibrations, especially if it installed on an unstable structure such as a bridge or pole.
With ULISSE EVO and the SONY camera, you can set up to 24 dynamic privacy zone masks. These masks change size based on the pan/tilt/zoom position so objects that shouldnt be seen remain hidden.
The advanced SONY technology brings the functions of Wide Dynamic Range and High Light Compensation that allow optimal management of contrasting light and dark conditions.
The cameras high sensitivity means you get a colour video with a minimum illumination of just 0.0013lx (0.0008lx in black and white). This guarantees surveillance coverage even when lighting at the scene is very poor. The LED illuminator integrated into the PTZ, which is available as an accessory, ensures continuous monitoring 24 hours a day.
The High Light Compensation (HLC) technology helps to improve, for example, the visibility of license plates when bright headlights are shot under low-light conditions. The bright parts in the image are masked and compensated for automatically to achieve better visibility.
The de-fog function provides a clear view even with fog or haze. When this function is activated, the camera will detect how hazy it is and compensates accordingly in the image.
This PTZ camera provides 3 Full HD streams with H.264/Avc digital compression. It can be connected to an Ethernet network easily and can send video streams to digital monitors and storage systems. It complies with ONVIF, Profile S and Profile Q protocols.
The ULISSE EVO with SONY camera can be 24Vac/24Vdc or 90W PoE powered, depending on installation requirements.
It can even be mounted upside down, in the typical speed domes position. The supports can be supplied with quick-fit connectors for Ethernet/PoE, power supply and I/O. This means the unit can be replaced quickly and easily in case of on-site intervention.
The wiper is supplied as standard, for optimum cleaning of the front glass. ULISSE EVO operates at maximum efficiency between -40°C and +65°C. It is IK10, IP66/IP67/IP68, NEMA Type 4X and Type 6P protected and is wind-resistant up to 230 km/h. This ensures maximum protection against dust and bad weather, strong impacts or gusts of wind, and acts of vandalism.
ULISSE EVO is also available in the versions with Super Low-Light camera and DELUX imaging and encoding technology.

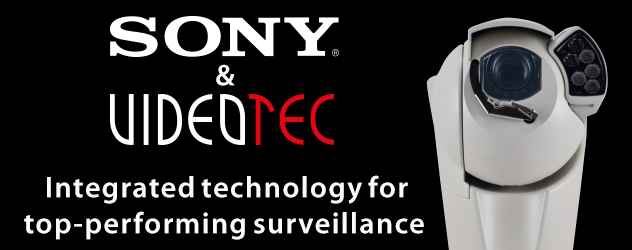

ULISSE EVO with SONY FCB-EV7520
