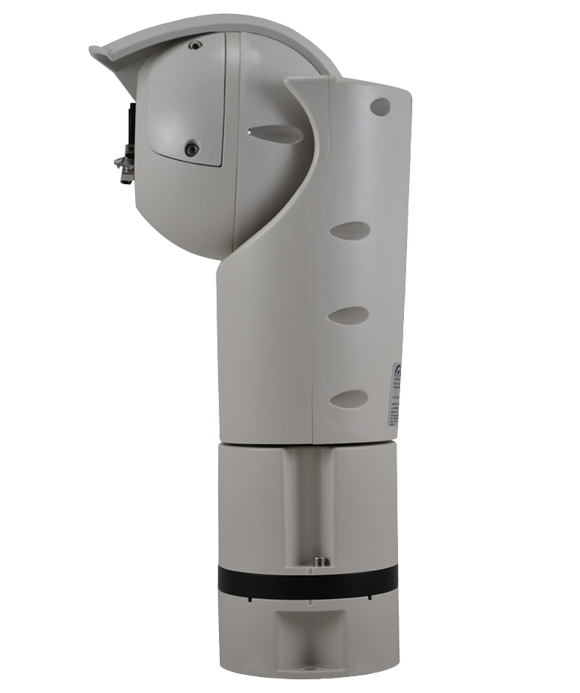

ULISSE EVO with SONY FCB-EV7520 cameraPTZ camera with image stabilizer and dynamic masking

Config link

ULISSE EVO - Witness the Evolution of video security

MARKETS

DESCRIPTION

ULISSE EVO with the SONY FCB-EV7520 camera has a 30x optical zoom and a 1/2.8” Exmor R™ CMOS sensor with Full HD 1080/60p resolution that produces the highest image quality, even when surveilling moving objects or in poor lighting conditions.

The powerful image stabilization algorithm means even the smallest camera vibrations are detected and any blur in the footage is dynamically corrected. This results in a sharp image of the scene being surveilled.

With ULISSE EVO and the SONY camera, you can set up to 24 dynamic privacy zone masks. These masks change size based on the pan/tilt/zoom position so objects that shouldn’t be seen remain hidden. The advanced SONY technology brings Wide Dynamic Range and a configurable High Light Compensation that allows optimal management of contrasting light and dark conditions.

The camera’s high sensitivity means you get colour video with a minimum illumination of just 0.0013lx (0.0008lx in black and white). This guarantees surveillance coverage even when lighting at the scene is very poor.

This PTZ camera provides 3 Full HD streams with H.264/Avc digital compression. It can be connected to an Ethernet network easily and can send video streams to digital monitors and storage systems. It complies with ONVIF, Profile T, Profile S and Profile Q protocols.

The ULISSE EVO with SONY camera can be 24Vac/24Vdc or 90W PoE powered, depending on installation requirements.

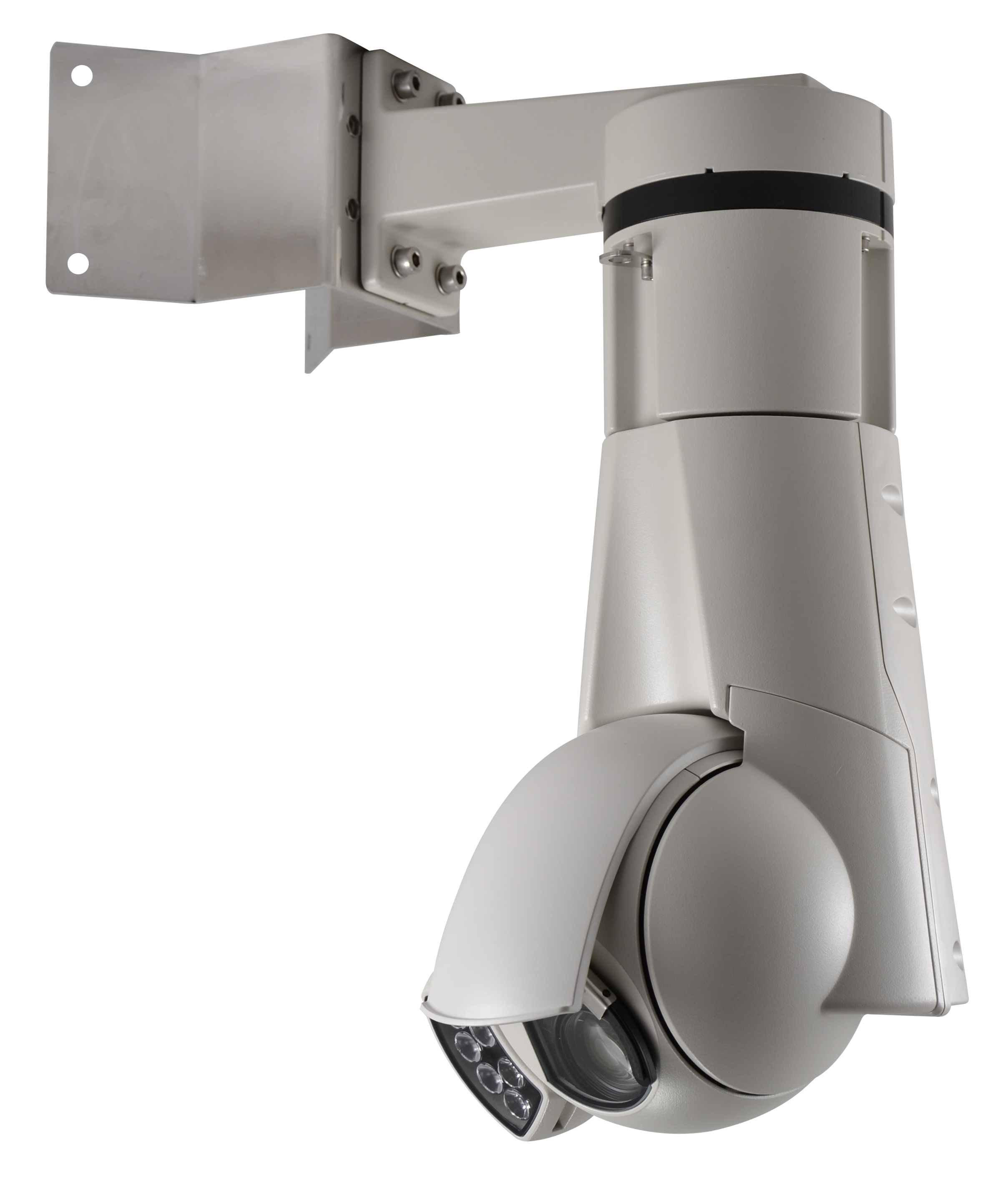

It can even be mounted upside down, in the typical speed domes position. The supports can be supplied with quick-fit connectors for Ethernet/PoE, power supply and I/O. This means the unit can be replaced quickly and easily in case of on-site intervention.

The wiper is supplied as standard, for optimum cleaning of the front glass. ULISSE EVO operates at maximum efficiency between -40°C and +65°C. It is IK10, IP66/IP67/IP68, NEMA Type 4X and Type 6P protected and is wind-resistant up to 230 km/h. This ensures maximum protection against dust and bad weather, strong impacts or gusts of wind, and acts of vandalism.

KEY FEATURES

  • SONY FCB-EV7520 camera, FULL HD 1080p, 30x
  • Dynamic masking of privacy zones: 24 masks settable (maximum 8 simultaneously displayable)
  • Image electronic stabilizer
  • HLC (High Light Compensation)
  • Power supply: 24Vac, 24Vdc, PoE 90W
  • Video compression H.264/AVC, MJPEG, JPEG and MPEG4
  • Up to 3 simultaneous video streams in FULL HD
  • Complies with ONVIF, Profile Q, Profile S and Profile T
  • Digitally signed firmware
  • Complies with ONVIF Security Service specifications
  • Day/Night (Auto ICR: automatic removal of IR filter)
  • De-fog function
  • Two alarm inputs and two relay outputs
  • Variable speed: from 0.1°/s up to 250°/s horizontal and vertical movement
  • Horizontal continuous rotation, vertical from -90° up to +90°
  • Position accuracy: 0.05°
  • Up to 250 Presets
  • Speed proportional to Zoom

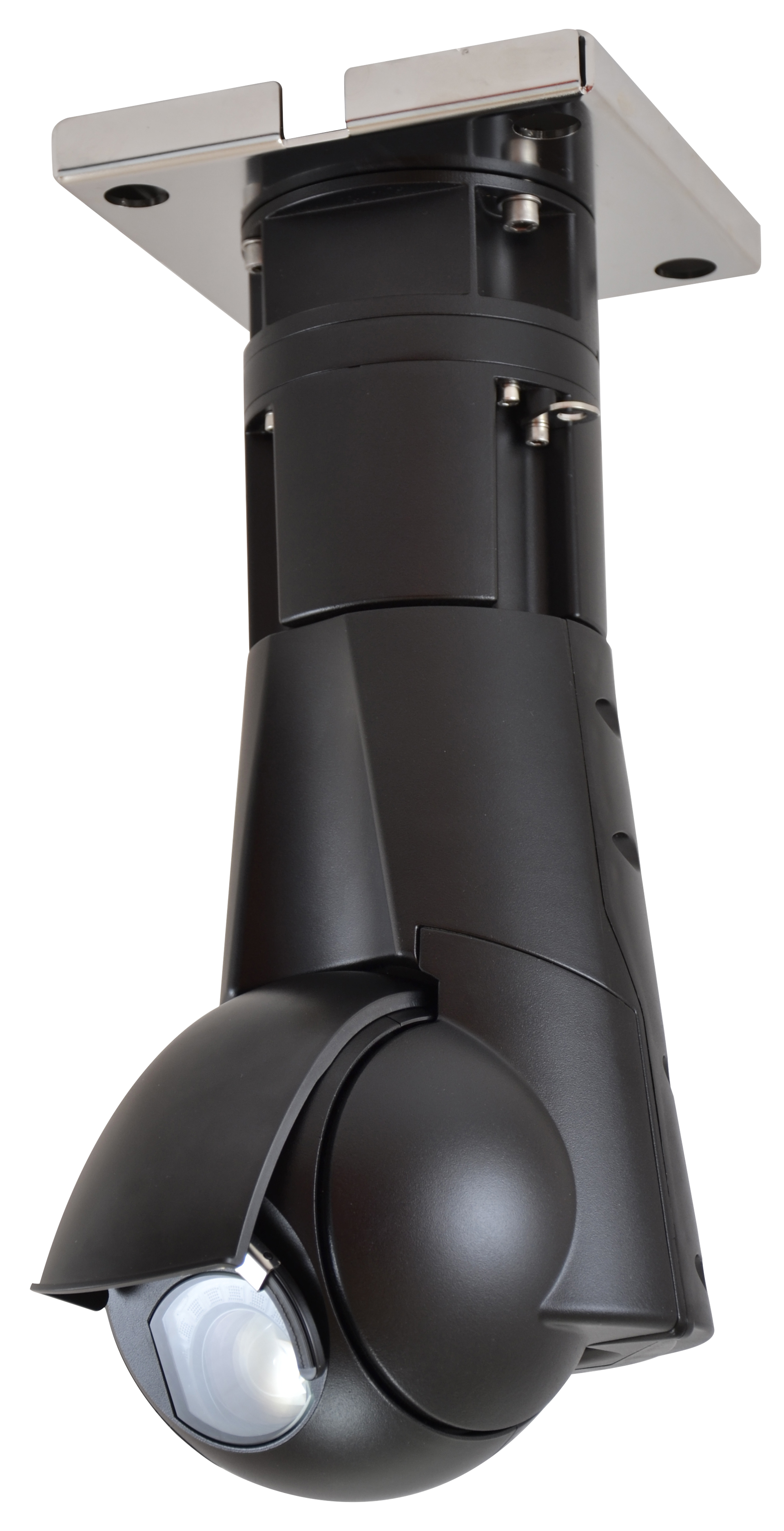

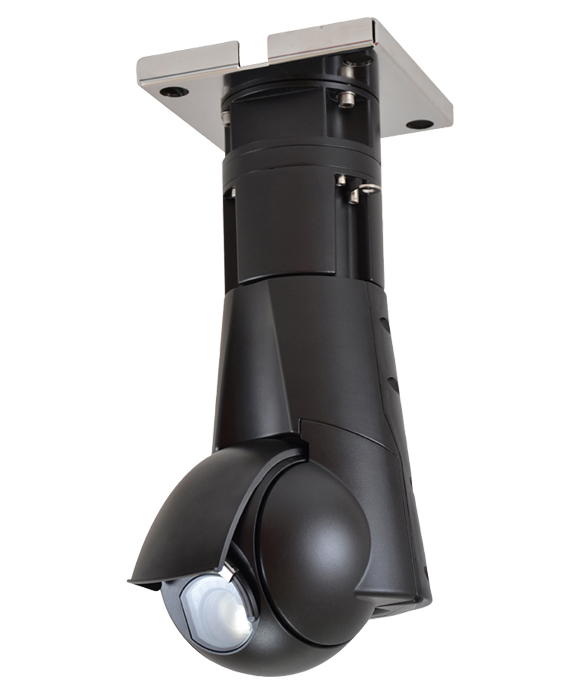

  • Can be also installed in upside-down position (in speed-dome mode)

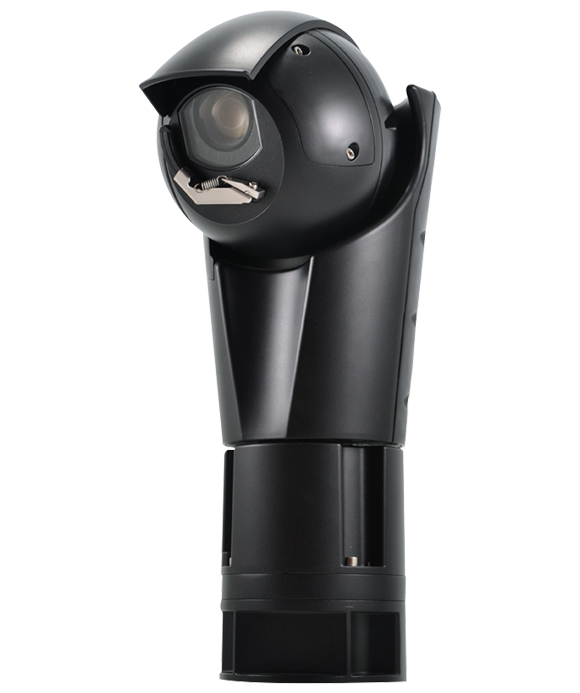

  • Integrated wiper
  • Optional washer system with pump for front window cleaning

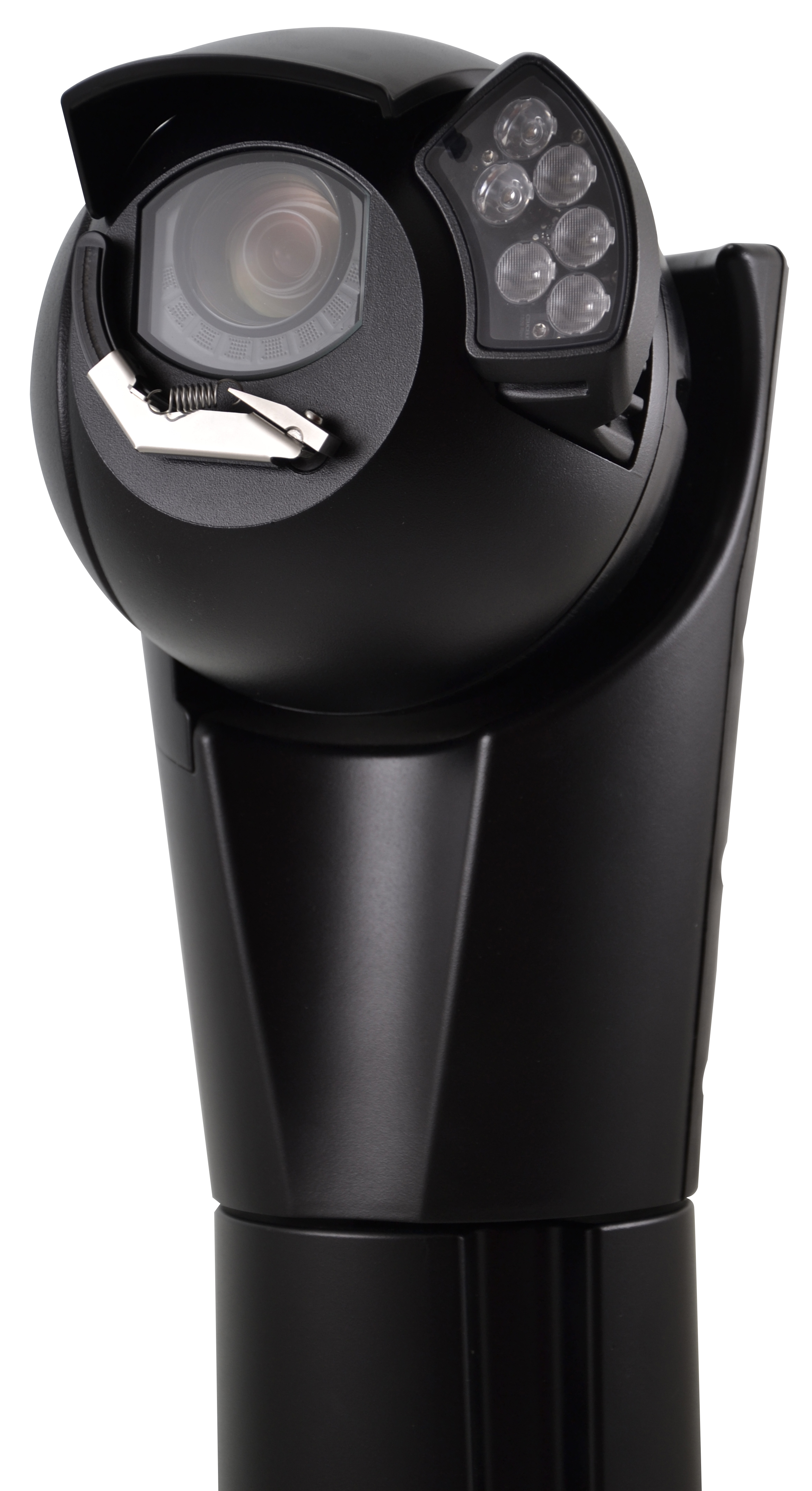

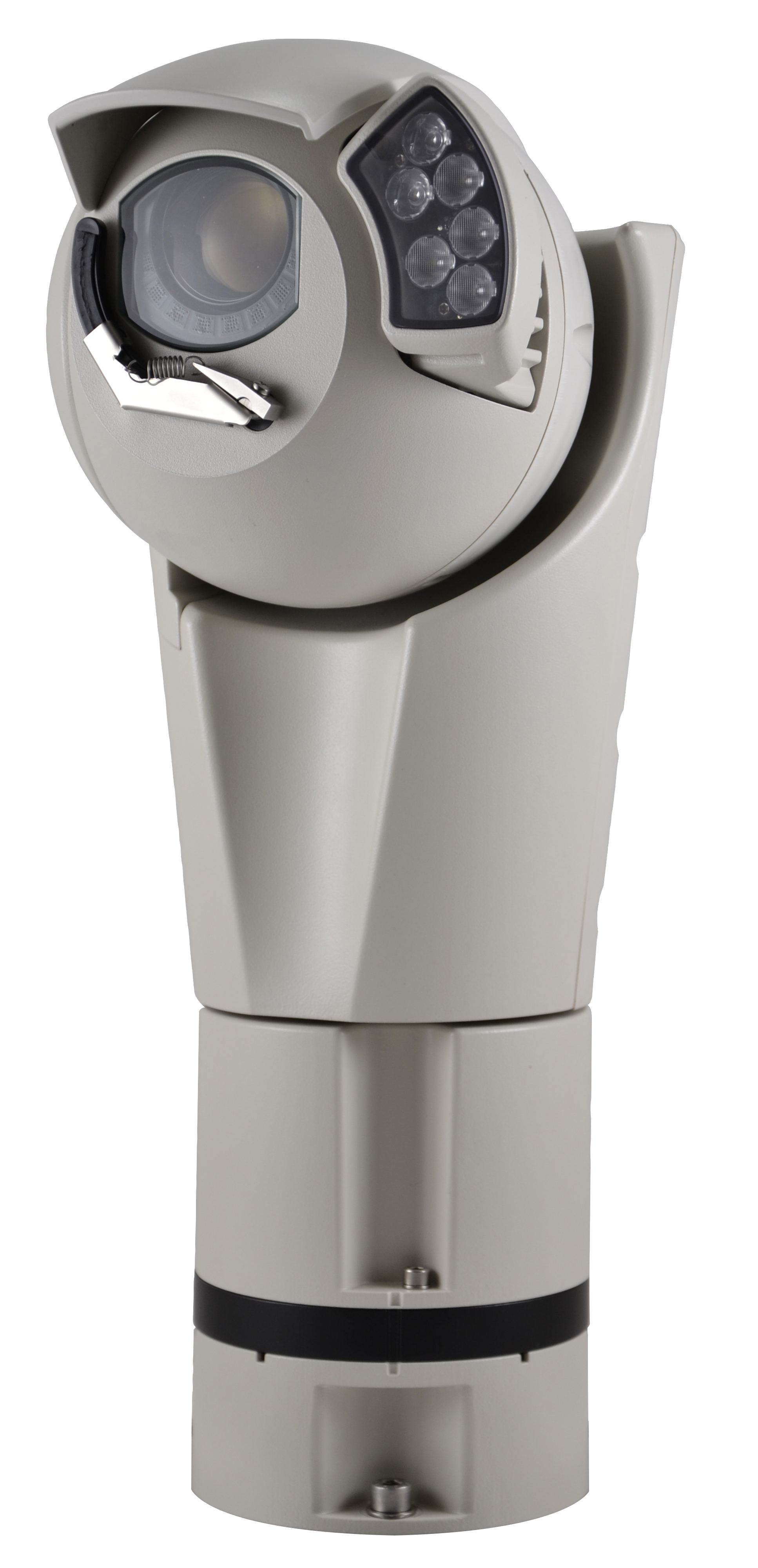

  • Optional illuminator chosen from 850nm, 940nm and white light
  • Compliance to railway applications standard EN50121-4

TECHNICAL DATA

General
  • Easy installation thanks to the self-centring connector
  • Zero backlash
  • Quick configuration and setup
  • Dynamic positioning control system
  • Functions: Preset, Preset Tour (Patrol), Autoflip, Autopan via Preset Tour
  • Maximum number of presets: 250
Mechanical
  • Constructed from aluminium and tecnopolymer

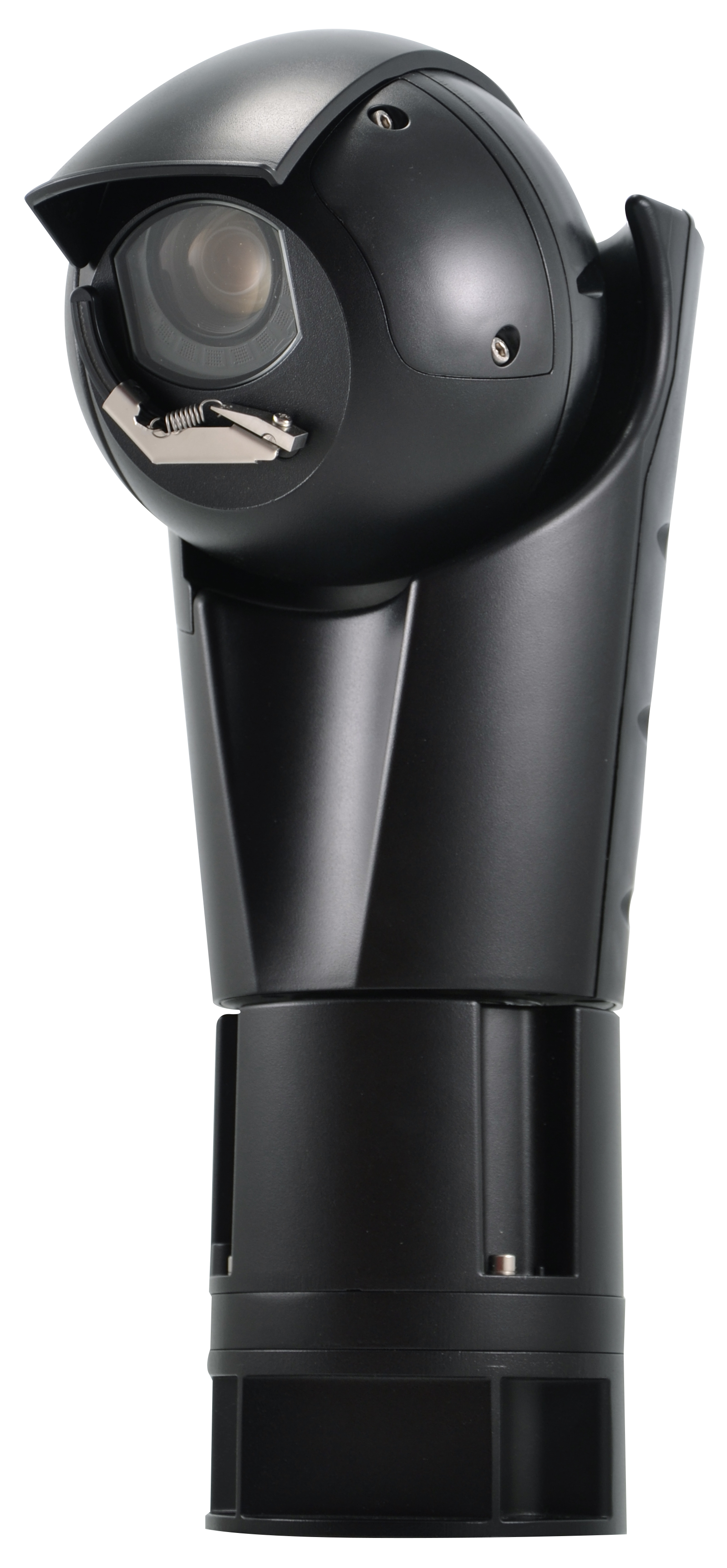

  • Epoxy-polyester powder painted, standard colours grey-white (RAL9002) or black (RAL9005)
  • Horizontal rotation: 360°, continuous rotation
  • Vertical rotation: from -90° up to +90° (with ceiling installation, from -40° up to +90°)
  • Horizontal speed (variable): from 0.1°/s up to 250°/s
  • Tilt speed (variable): from 0.1°/s up to 250°/s
  • Accuracy of preset positions: 0.05°
  • Cable glands: 2xM16 + 1xM20 + special gasket for RJ45 cables
  • Unit weight: 7.1kg (15.6lb) (7.4kg (16.3lb) with LED illuminator)
Electrical
  • Supply voltage/Current consumption:
  • 24Vac ±20%, 5A, 50/60Hz
  • 24Vdc ±10%, 5A
  • PoE 90W (only with OHEP90INJ or OHEP90INJO accessories)
  • ECO-MODE function for energy saving: 21W, P&T static
  • Power consumption:
  • 27W, P&T static, heating switched off
  • 27W, P&T in motion, heating switched off
  • 57W, peak at start-up, heating on and de-icing function
  • Power consumption with illuminator on:
  • 40W, P&T static, heating switched off
  • 40W, P&T in motion, heating switched off
  • 70W, peak at start-up, heating on and de-icing function
  • Cables input section: from 0.75mm² (18AWG) up to 2.5mm² (13AWG)
  • Cables signal section: from 0.14mm² (26AWG) up to 1mm² (17AWG)
  • Alarm inputs: 2 (auto-powered from 12Vdc up to 18Vdc)
  • Relay outputs: 2 (1A, 30Vac/30Vdc max)
Video
  • Video encoder
  • Communication protocol: ONVIF, Profile Q, Profile S and Profile T
  • Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
  • Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
  • Video compression: H.264/AVC, MJPEG, JPEG, MPEG4
  • 3 independent video streams Full HD
  • Image resolution: from 320x180pixel up to 1920x1080pixel in 6 steps
  • Selectable frame rate from 1 to 60 images per second (fps)
  • Web Server
  • Directional OSD (maximum 4 settable areas)
  • Motion Detection
  • QoS: Differentiated DSCPs for streaming and device management
  • SNMP and NTCIP protocols
Cybersecurity
  • Digitally signed firmware
  • Password restricted access (HTTP digest)
  • Support of various user access levels
  • Control of accesses IEEE 802.1X
  • HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3
  • Centralised certificate management
  • Complies with ONVIF Security Service specifications
Cameras

    SONY FCB-EV7520 Day/Night Full HD 30x

  • Resolution: Full HD 1080p (1920x1080)
  • Image Device: 1/2.8" Exmor™ R CMOS sensor
  • Effective Pixels: approx. 2.13 Megapixels
  • Minimum Illumination:
  • Colour: 0.0013lx (50 IRE, High sensitivity on)
  • B/W: 0.0008lx (30 IRE, High sensitivity on)
  • Focal length: from 4.3mm (wide) up to 129mm (tele)
  • Zoom: 30x (360x with digital zoom)
  • Iris: from F1.6 up to F14 (Auto, Manual)
  • Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end)
  • Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end)
  • Shutter speed: from 1/1s up to 1/10000s (Auto, Manual)
  • White balance: Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto)
  • Gain: from 0dB up to 50.0dB (Auto, Manual)
  • Wide Dynamic Range: 120dB
  • Focus System: Auto (PTZ Trigger, Full Auto), Manual
  • Picture Effects: E-flip
  • Noise removal (2D, 3D): Off, On (from level 1 up to level 5)
  • Exposure Control: Auto, Manual, Priority (Shutter priority, Iris priority, Brightness priority)
  • De-fog: Off, Low, Mid, High
  • Dynamic masking of privacy zones: maximum 24 masks settable, maximum 8 simultaneously displayable
  • Indoor Flicker Reduction
  • Gain Limit: from10.7dB up to 50dB
  • High sensitivity: On/Off
  • Backlight Compensation: On/Off
  • Auto Slowshutter: On/Off
  • Exposure compensation: Off, On (from -10.5dB up to +10.5dB)
  • Sharpness: from level 0 up to level 15
  • High Light Compensation (HLC): Off, Low, Mid, High, Masking Level (Off, On, from level 1 up to level 15)
  • Digital image stabilization: On/Off
Illuminators

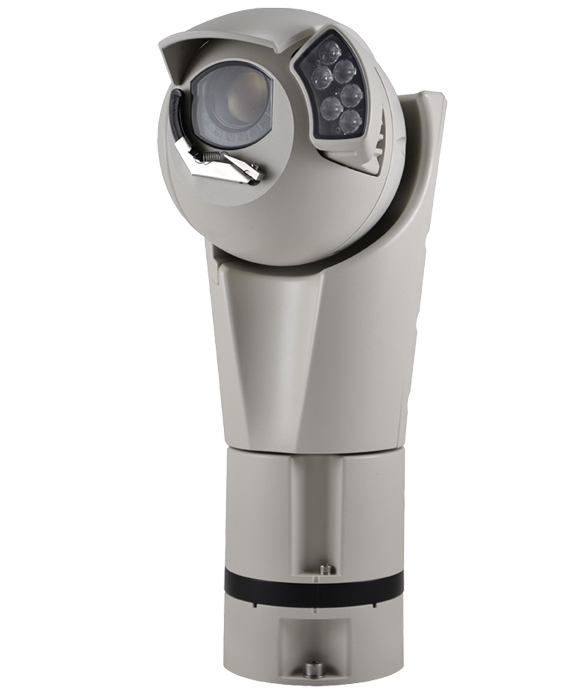

    LED illuminator

  • Wide beam: 40° (horizontal),16° (vertical)
  • Spot beam: 14° (horizontal), 14° (vertical)
  • Wavelength: 850nm, 940nm, white light
  • Wide beam activation: based on the scene brightness, from alarm input or manually
  • Spot beam activation (can be activated only when the wide beam is active): can be activated on preset, based on the zoom factor or with the wide beam
  • Automatic and remote switching on
  • No calibration required for light beam alignment with the camera
  • The illuminator does not slow down the P&T’s rotation speed
  • Automatic recognition of the type of illuminator installed
Environment
  • For indoors and outdoors installation
  • Operating temperature
  • Continuous functioning: from -40°C (-40°F) up to +65°C (149°F) (+50°C (122°F) for versions painted black)
  • Temperature test complies with NEMA-TS 2-2003 (R2008) par. 2.1.5.1, test profile fig. 2-1 (from -34°C (-29.2°F) to +74°C (165.2°F))
  • De-icing function intervention: from -40°C (-40°F) up to -10°C (14°F)
  • Wind resistance
  • PTZ static: 230km/h (143mph) max.
  • PTZ in motion at the maximum speed with LED illuminator: 230km/h (143mph) max.
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN61000-6-4, EN50130-4, EN55032 (Class A)
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • Photobiological safety (CE): EN62471, IEC62471
  • IP protection degree (EN60529): IP66, IP67, IP68
  • Salty fog resistance: EN50130-5, EN60068-2-52
  • IK protection degree: IK10
  • UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07,UL62368-1 CAN/CSA C22.2 No. 62368-1-14): cULus Listed
  • Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A)
  • Level of protection Type (UL50E): 4X, 6P
  • EAC certification
Certifications - Railway applications
  • Compliance to railway application standard: EN50121-4 (the product requires the filter accessory SURGEPR)
