General purpose camera housings, Brackets

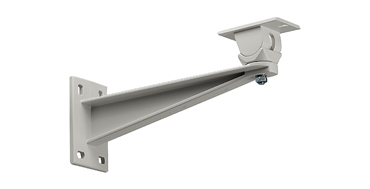

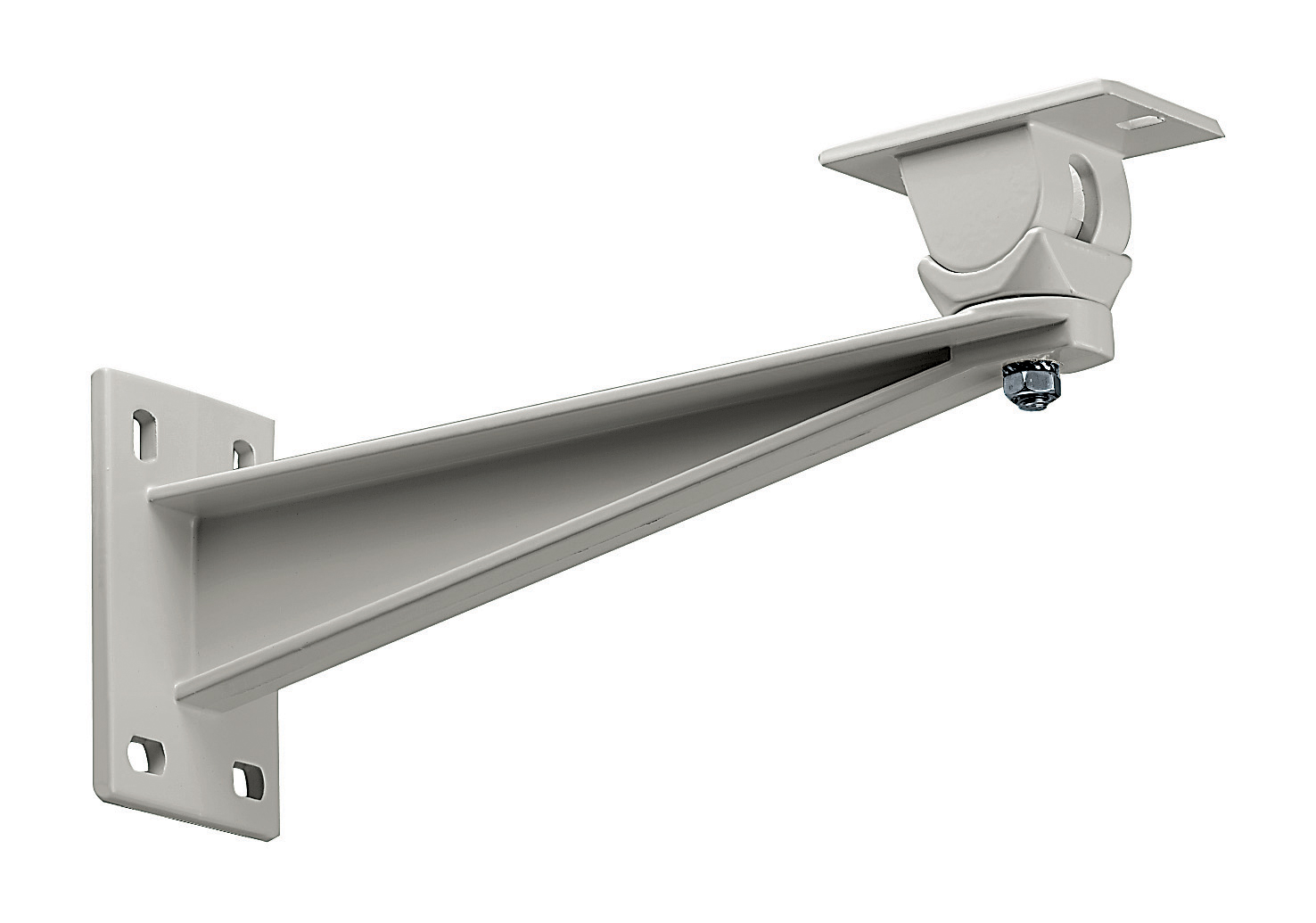

WBJA Wall mount bracket

  • Made of aluminium
  • Adjustable joint
  • Load rating: 25kg (55lb)
  • Length: 285mm (11.2in)

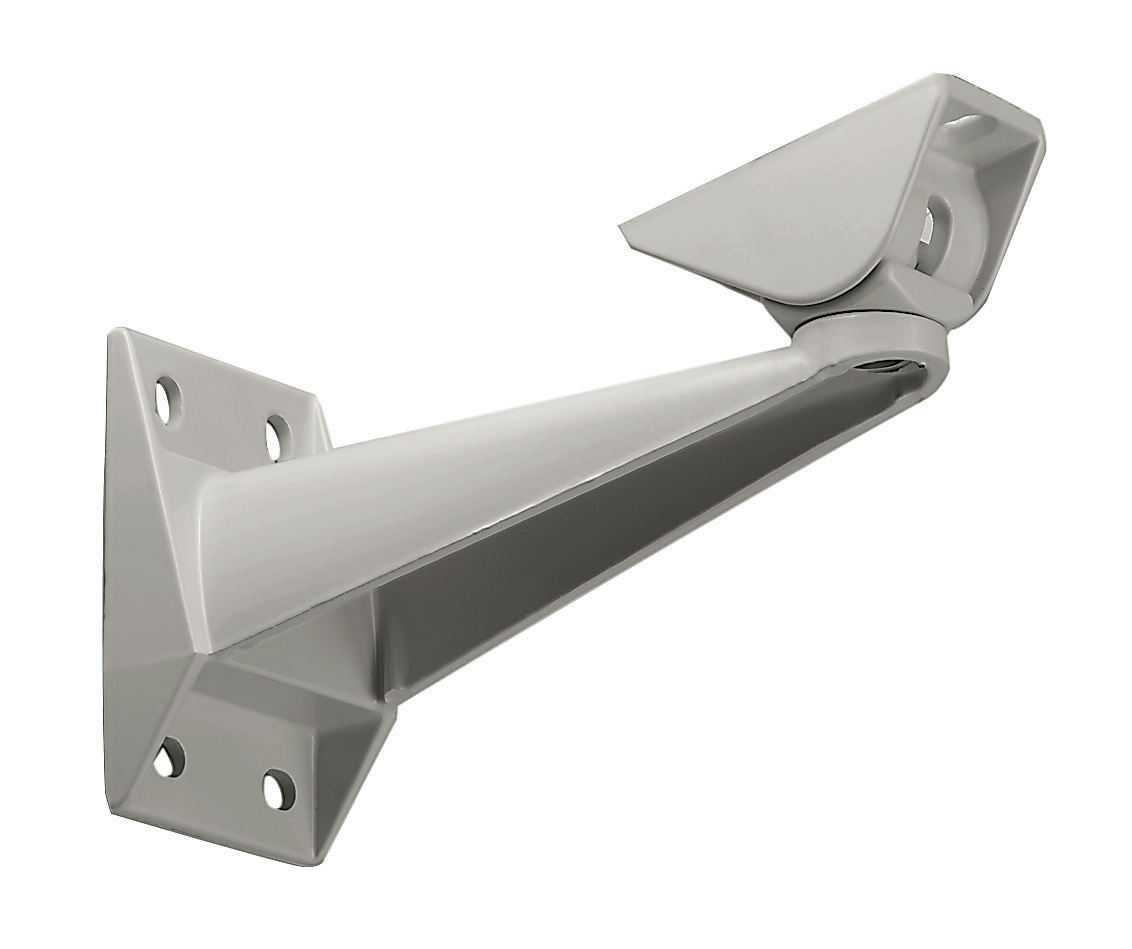

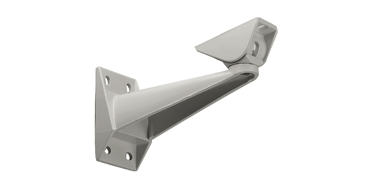

WBMA Wall mount bracket

  • Made of aluminium
  • Adjustable joint
  • Load rating: 25kg (55lb)
  • Length: 204mm (8in)

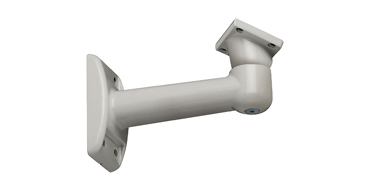

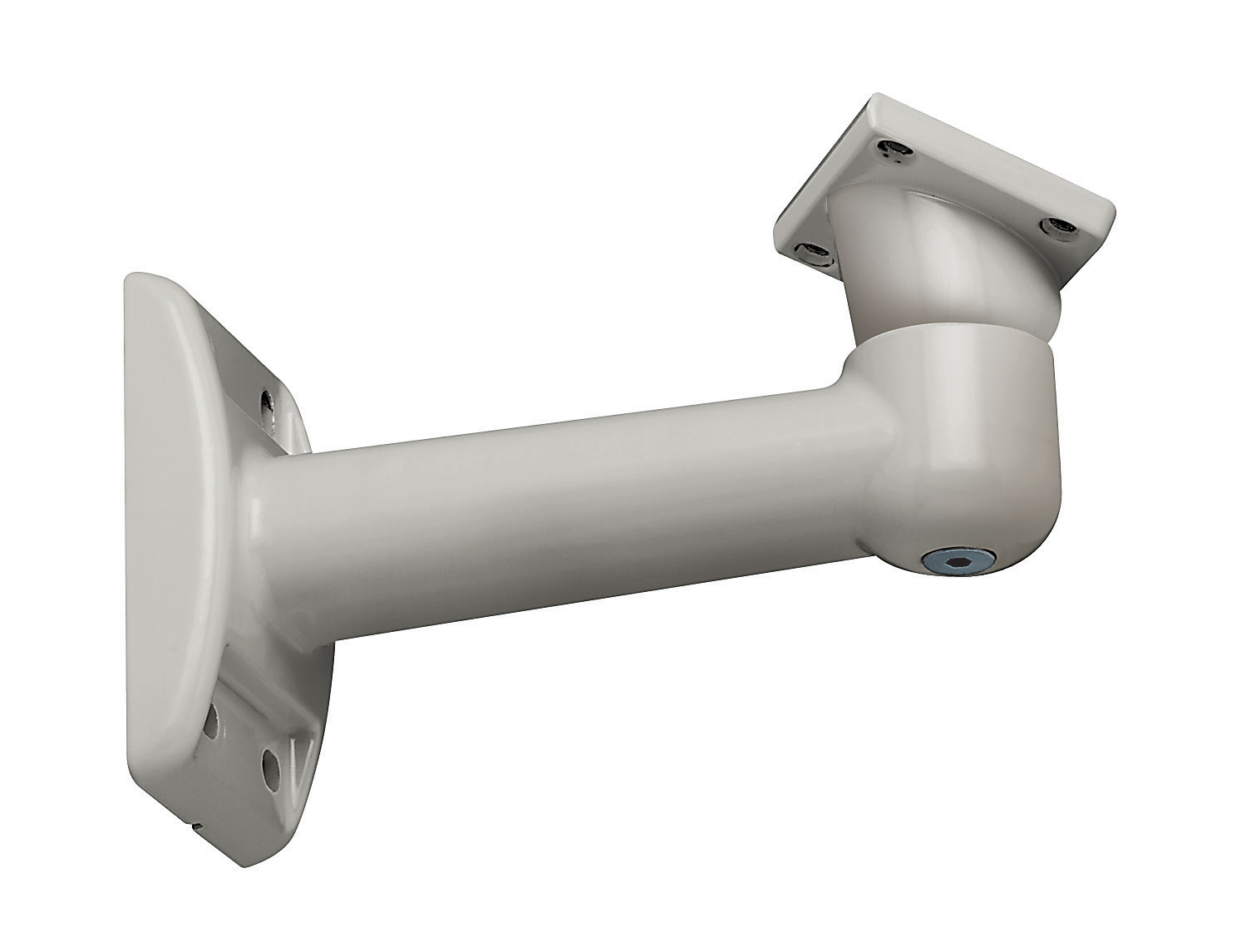

WBOVA2 Wall mount bracket

  • Made of aluminium
  • Adjustable joint
  • Internal cable management
  • Load rating: 25kg (55lb)
  • Length: 204mm (8in)
  • The sealing rings OWBIP2 or OWBIP3 ensure an IP66 protection to the housing
  • Unit weight: 0.6kg (1.3lb)

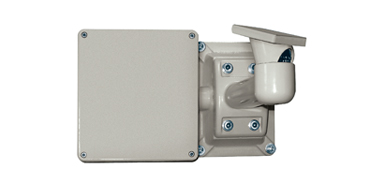

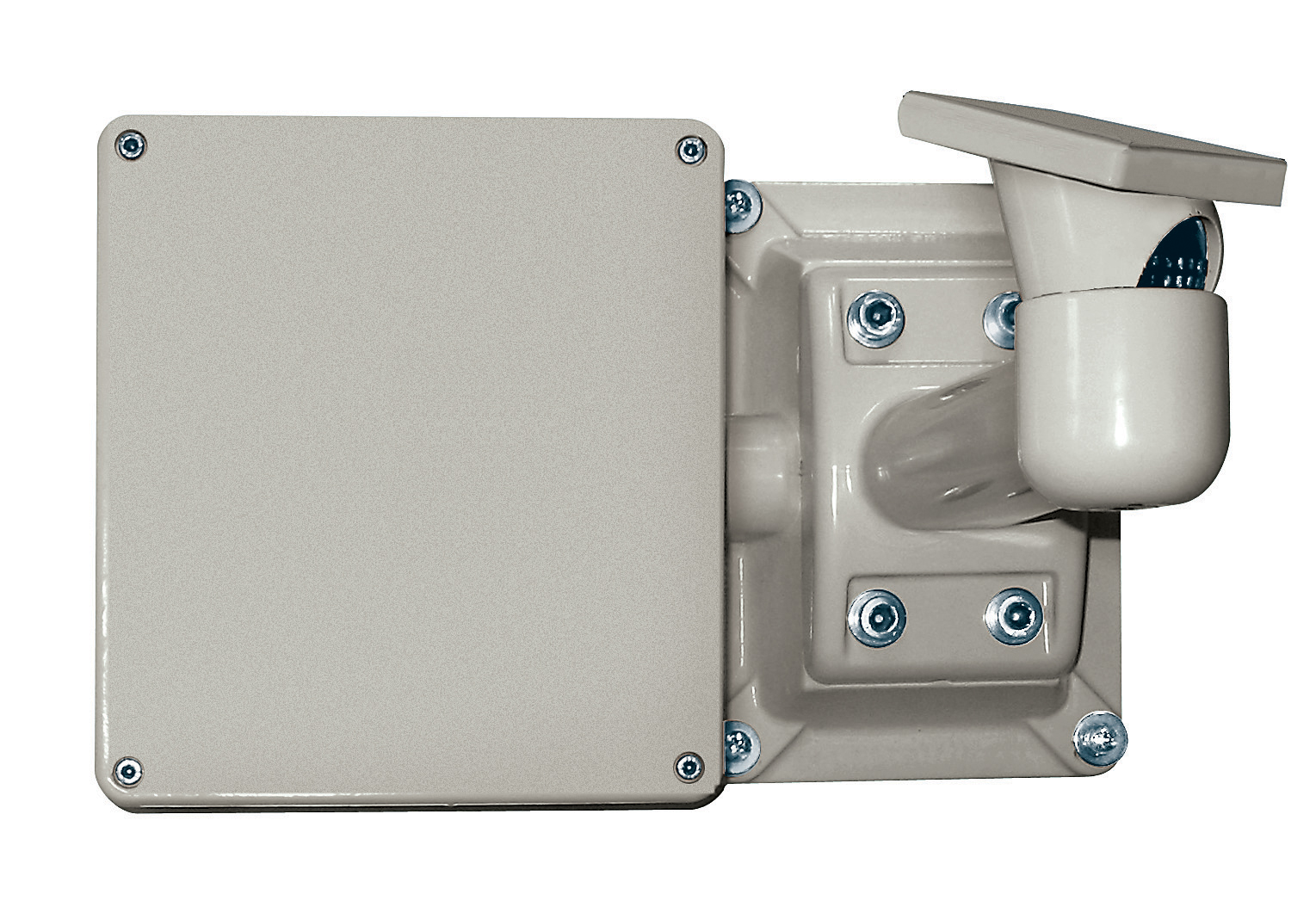

WBOV3A2 Wall bracket with support plate and weatherproof junction box

  • Made of aluminium
  • Internal cable management directly to the box
  • Load rating: 25kg (55lb)
  • Length: 204mm (8in)
  • The sealing rings OWBIP2 or OWBIP3 ensure an IP66 protection to the housing

WBLA Wall bracket with joint in solid anticorodal aluminum alloy

  • Solid, anticorodal aluminium construction
  • Load rating: 70kg (154lb)
  • Length: 457.5mm (18,7in)

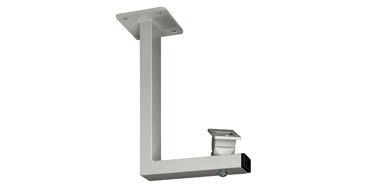

WCM3A Ceiling mount

  • Made of steel
  • Adjustable joint
  • Load rating: 15kg (33.5lb)
  • Length: 300mm (11.8in)

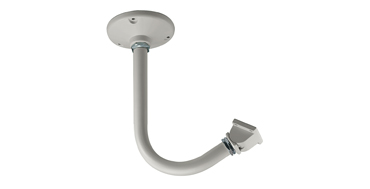

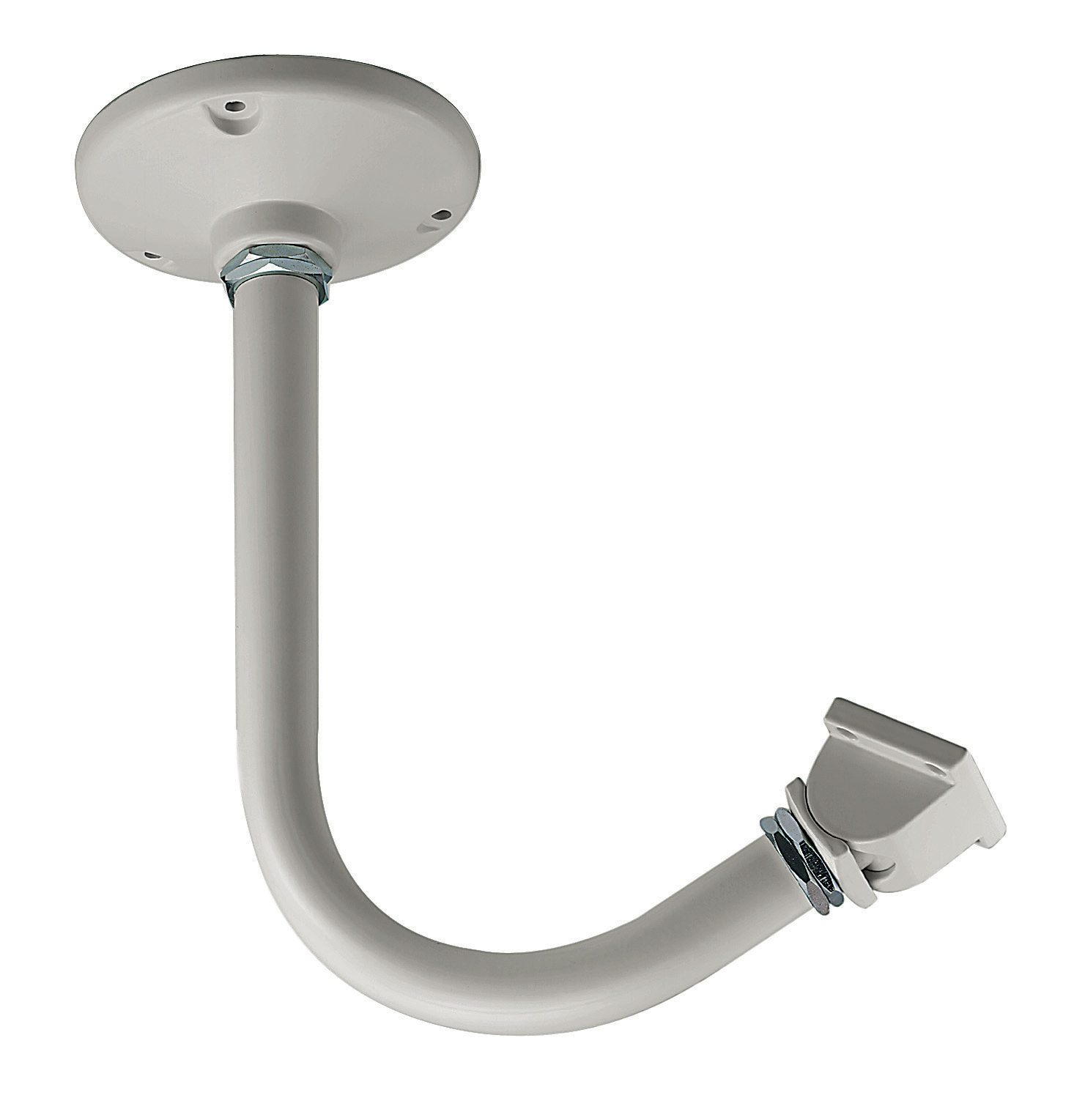

WCM4A2 Ceiling mount

  • Made of aluminium tube
  • Internal cable management
  • Load rating: 15kg (33.5lb)
  • Length: 412mm (16.2in)

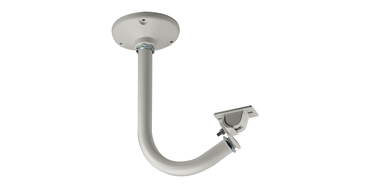

WCM5A Ceiling mount

  • Made of aluminium
  • Load rating: 15kg (33.5lb)
  • Length: 412mm (16.2in)
  • 500mm (19in) linear extension available with WCMPA
  • Unit weight: 1.4kg (3lb)

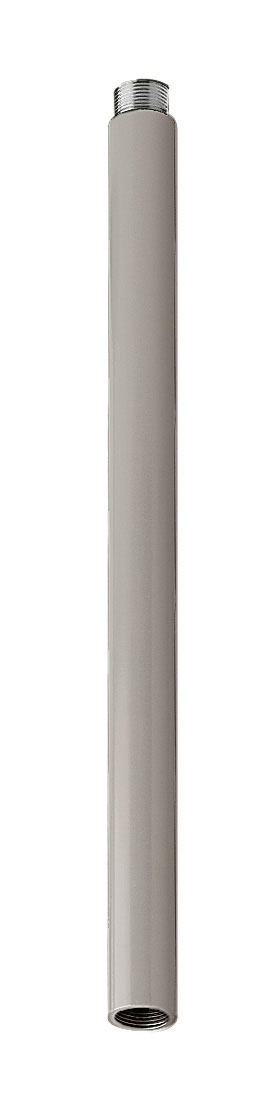

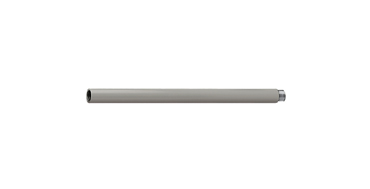

WCMPA Linear extension for WCM4A2 and WCM5A

  • It allows a 500mm (19in) extension

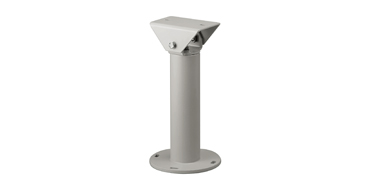

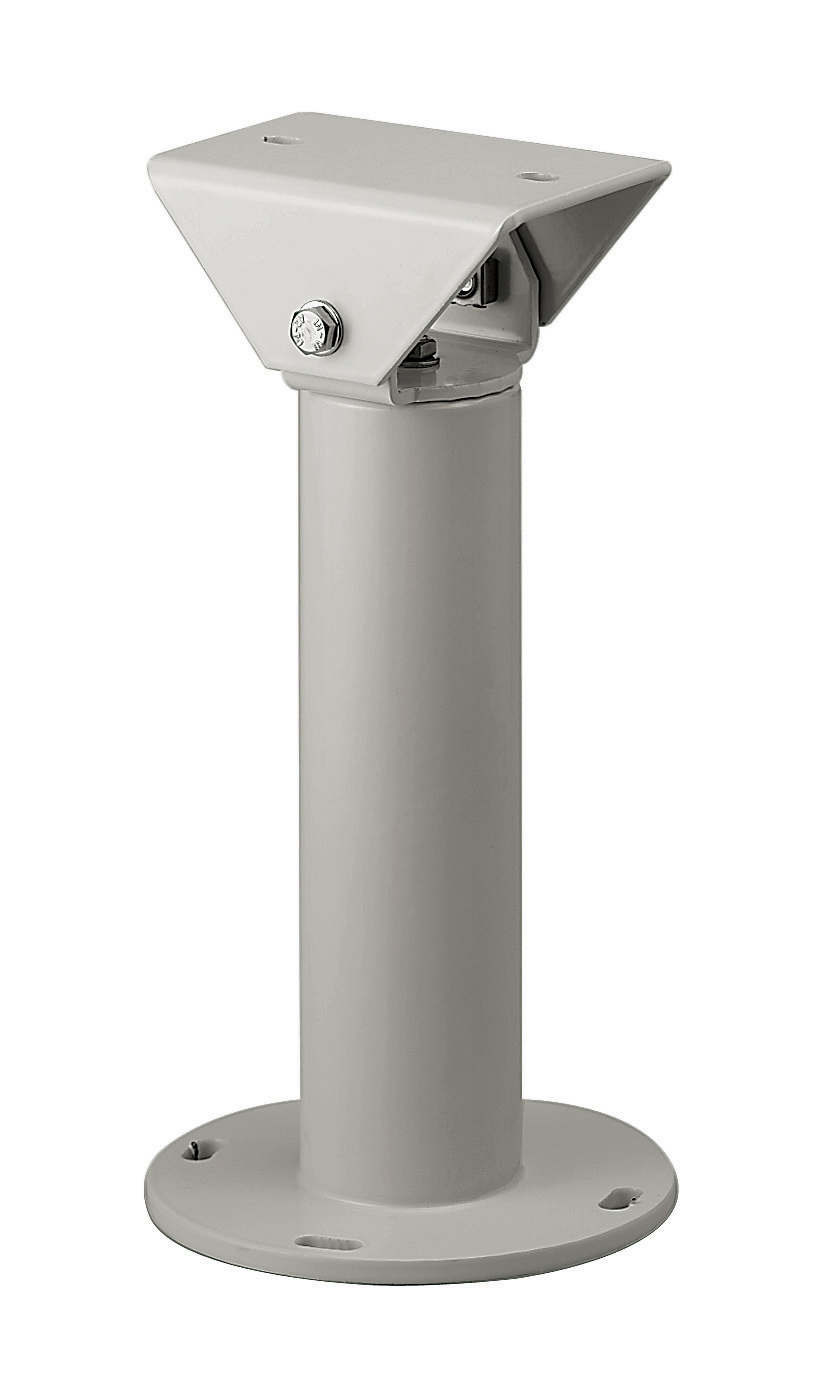

WFWCA Parapet bracket

  • Made of aluminium
  • Adjustable joint
  • Load rating: 15kg (33.5lb)
  • Length: 185mm (7.3in)

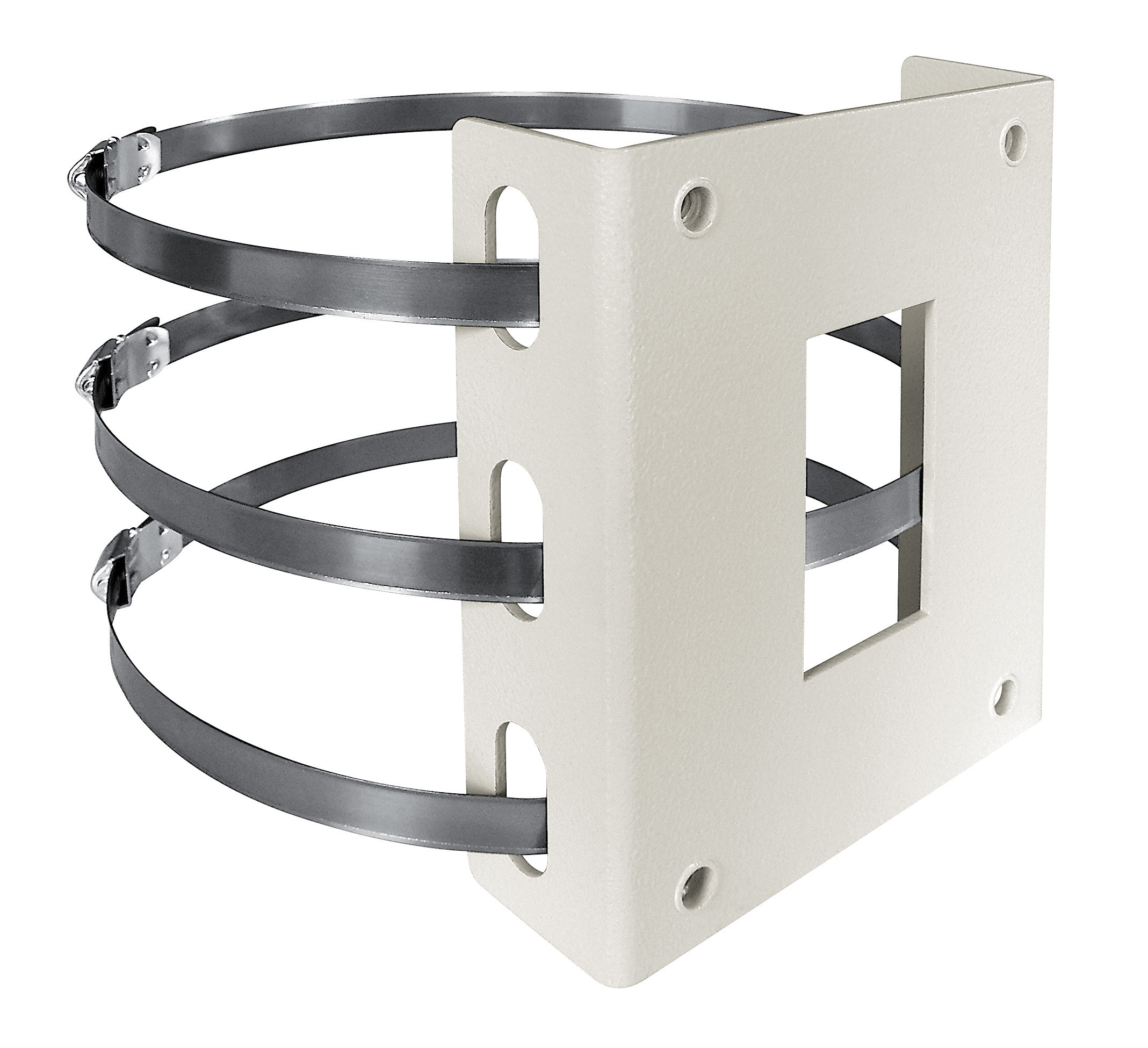

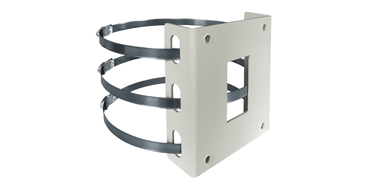

DBHWGC Pole mount adaptor

  • Made of steel
  • For pole diameters: from 210mm (8.3in) up to 225mm (8.8in)
  • To be combined with the reinforcing support plate WCPA
  • Load rating: 25kg (55lb) (static load)

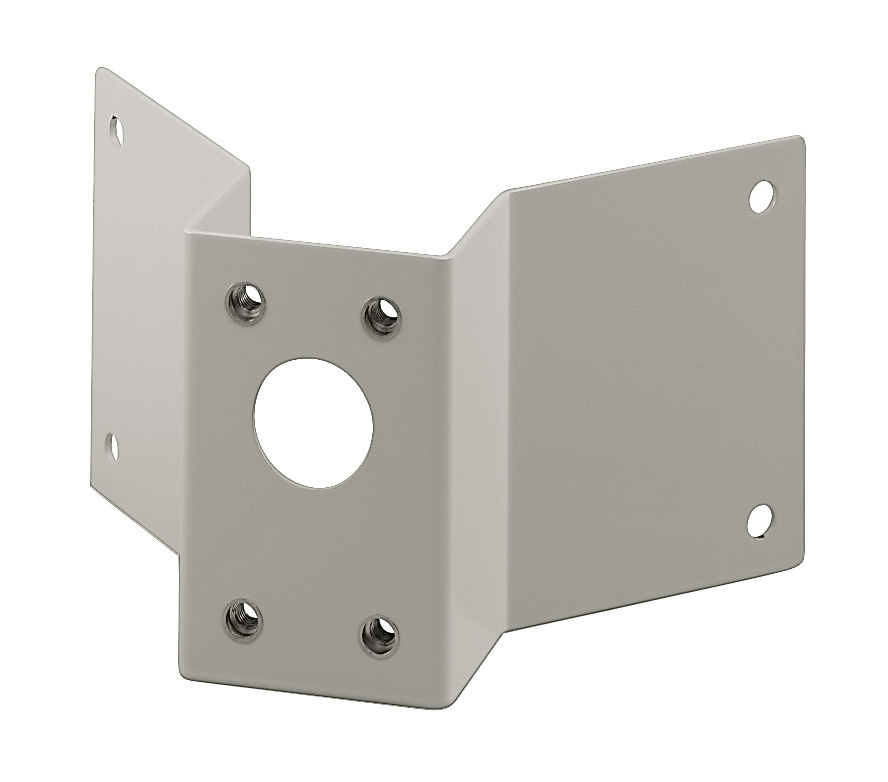

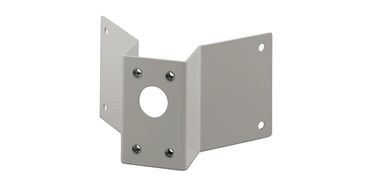

WCWA Corner mount adaptor

  • Made of steel
  • Load rating: 30kg (66lb)

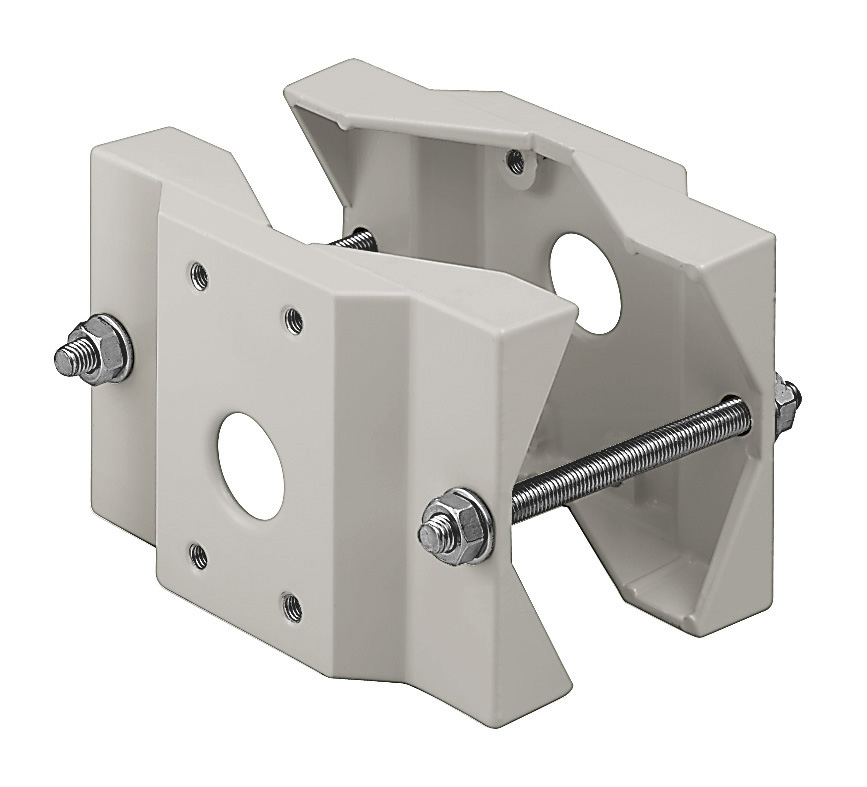

WSFPA Pole mount adaptor

  • Made of aluminium
  • Load rating: 30kg (66lb)
  • For pole diameters: from 65mm (2.6in) up to 140mm (5.5in)

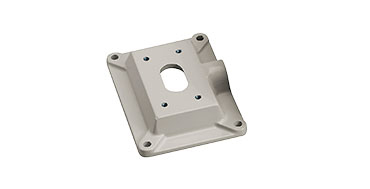

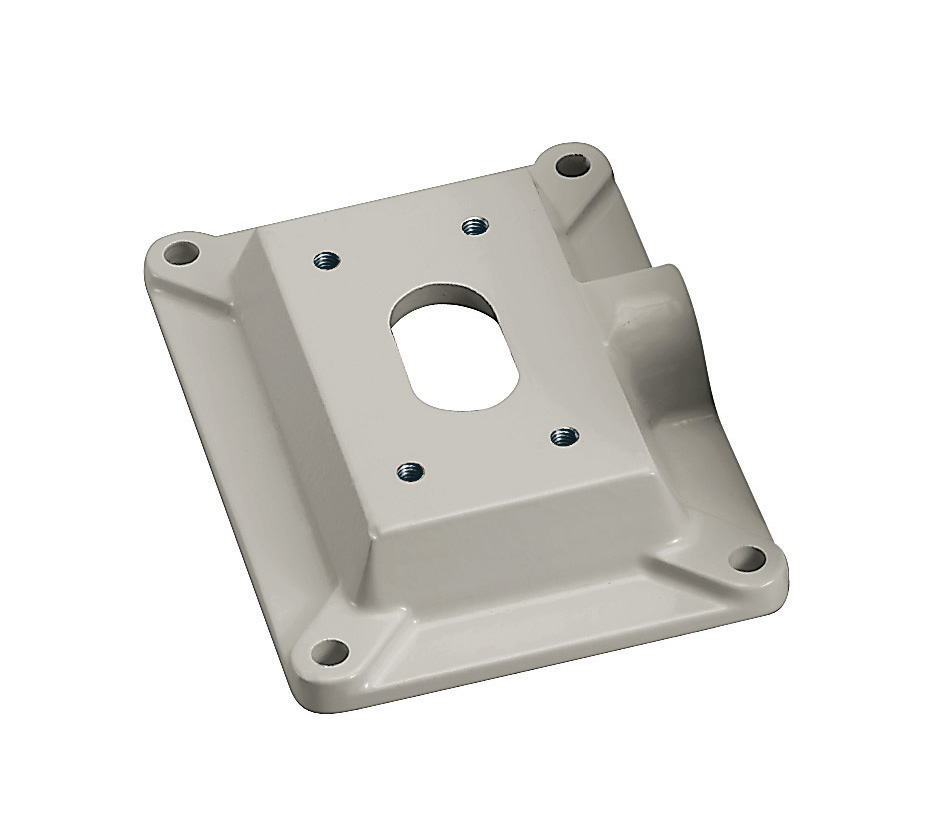

WCPA Reinforcing support plate for poor consistency walls

  • Made of aluminium
  • Available with a supporting box with internal cable channel
  • Load rating: 50kg (110lb)

NXWTU Adapter module for oblique surfaces

  • Made of AISI 316L electropolished stainless steel
  • Load rating: 20kg (44lb) (static load)
  • Dimensions: 168x234mm (6.6x9.2in)
  • Suitable for: NXWBS1, WBOVA2, WBJA, WBMA

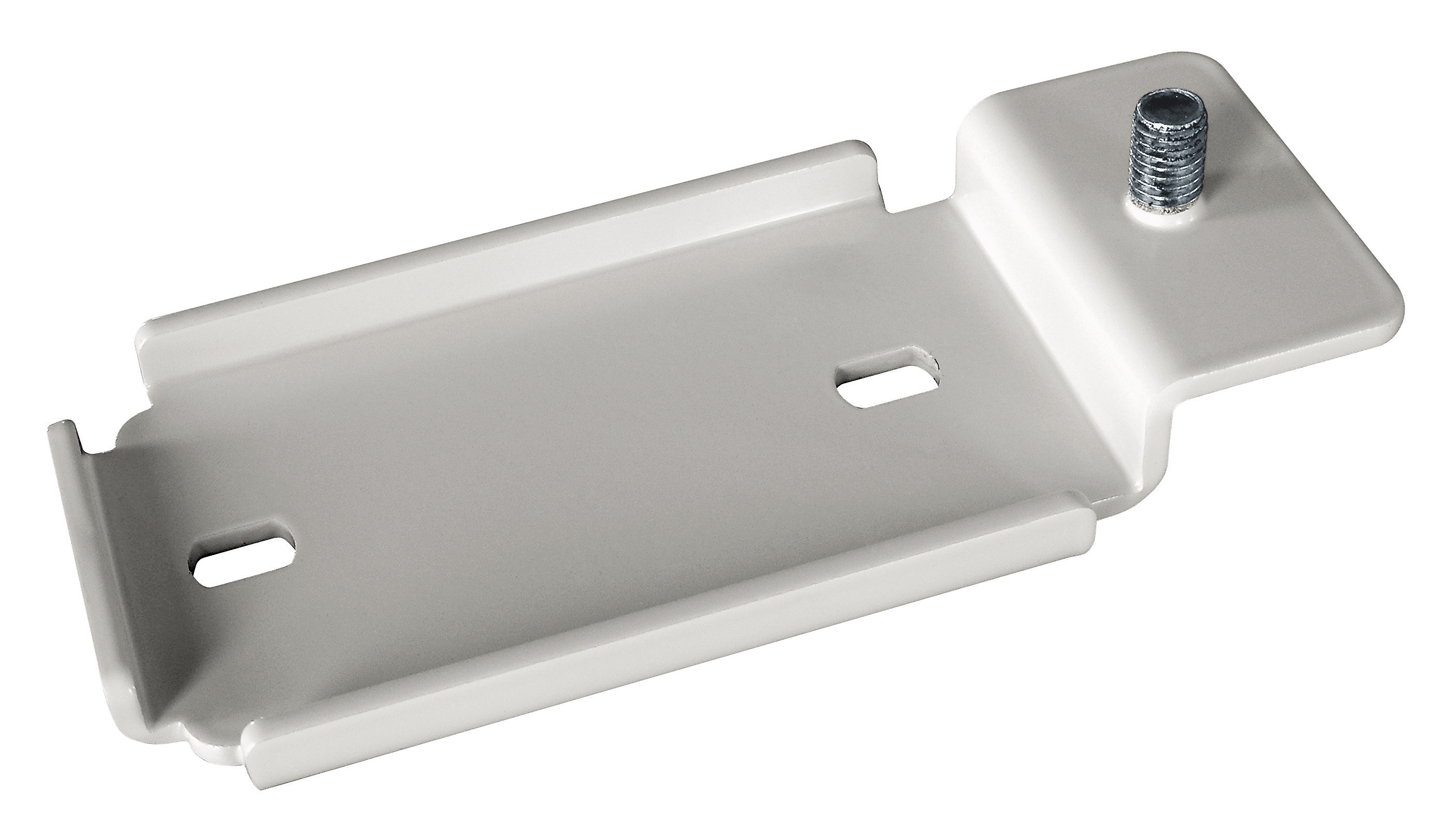

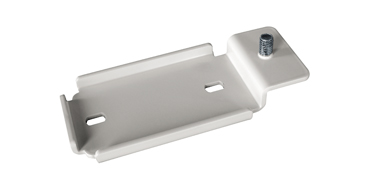

OSUPPIR Bracket for 1 illuminator

  • In aluminium, painted with epoxypolyester powder RAL9002
  • For PUNTO, VERSO, VERSO COMPACT, HOV and HEG housings
  • When installed under the PUNTO housing, this mount is compatible only in combination with WBJA or WBMA wall brackets
