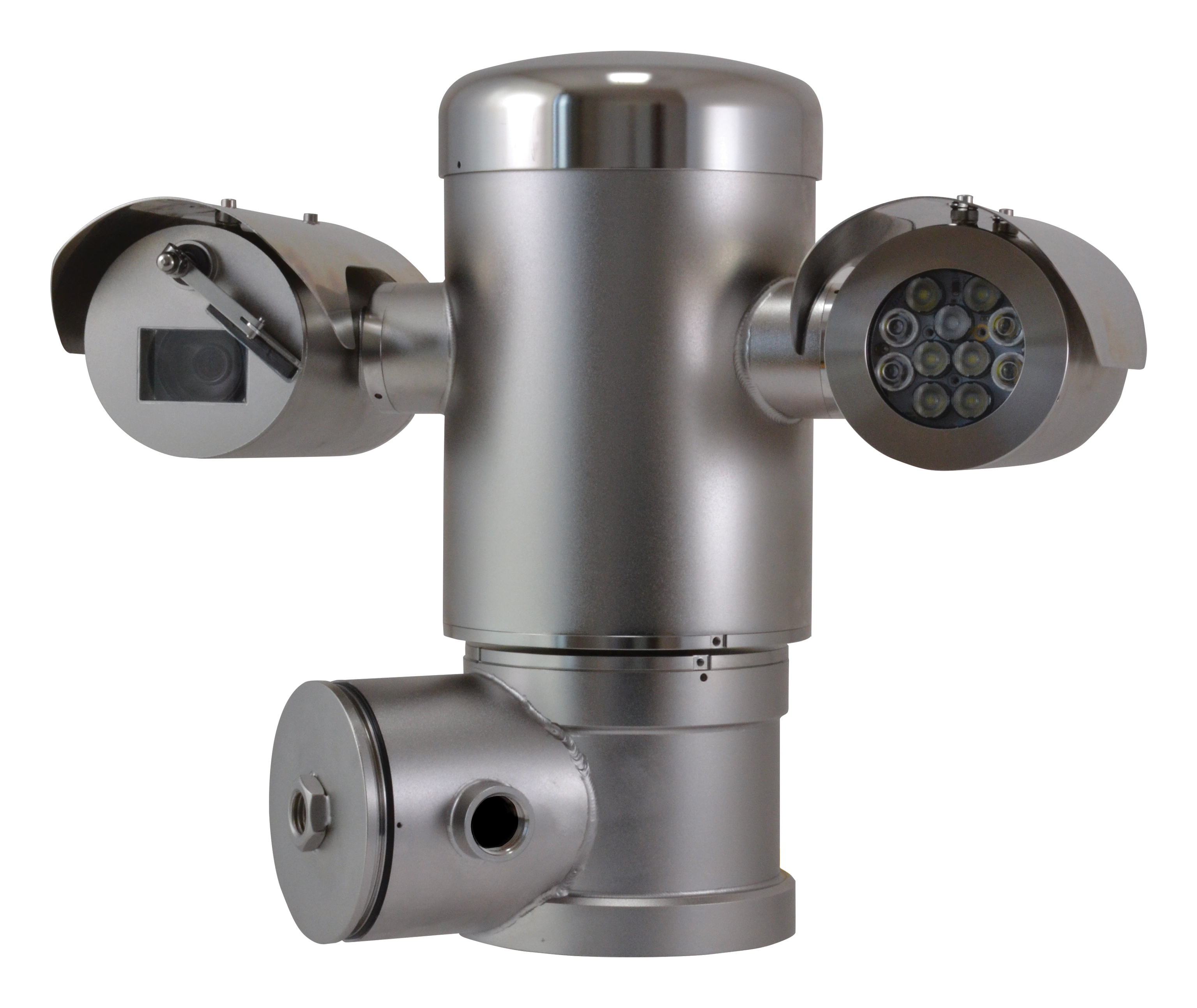

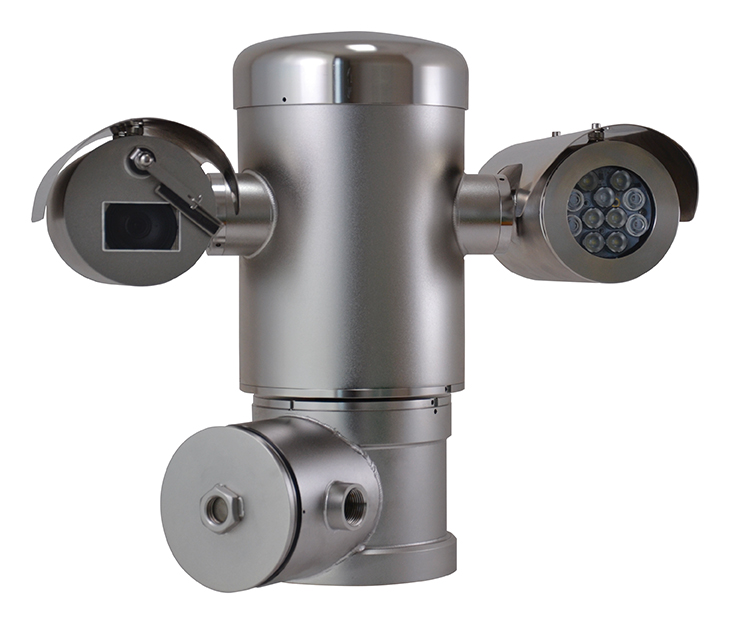

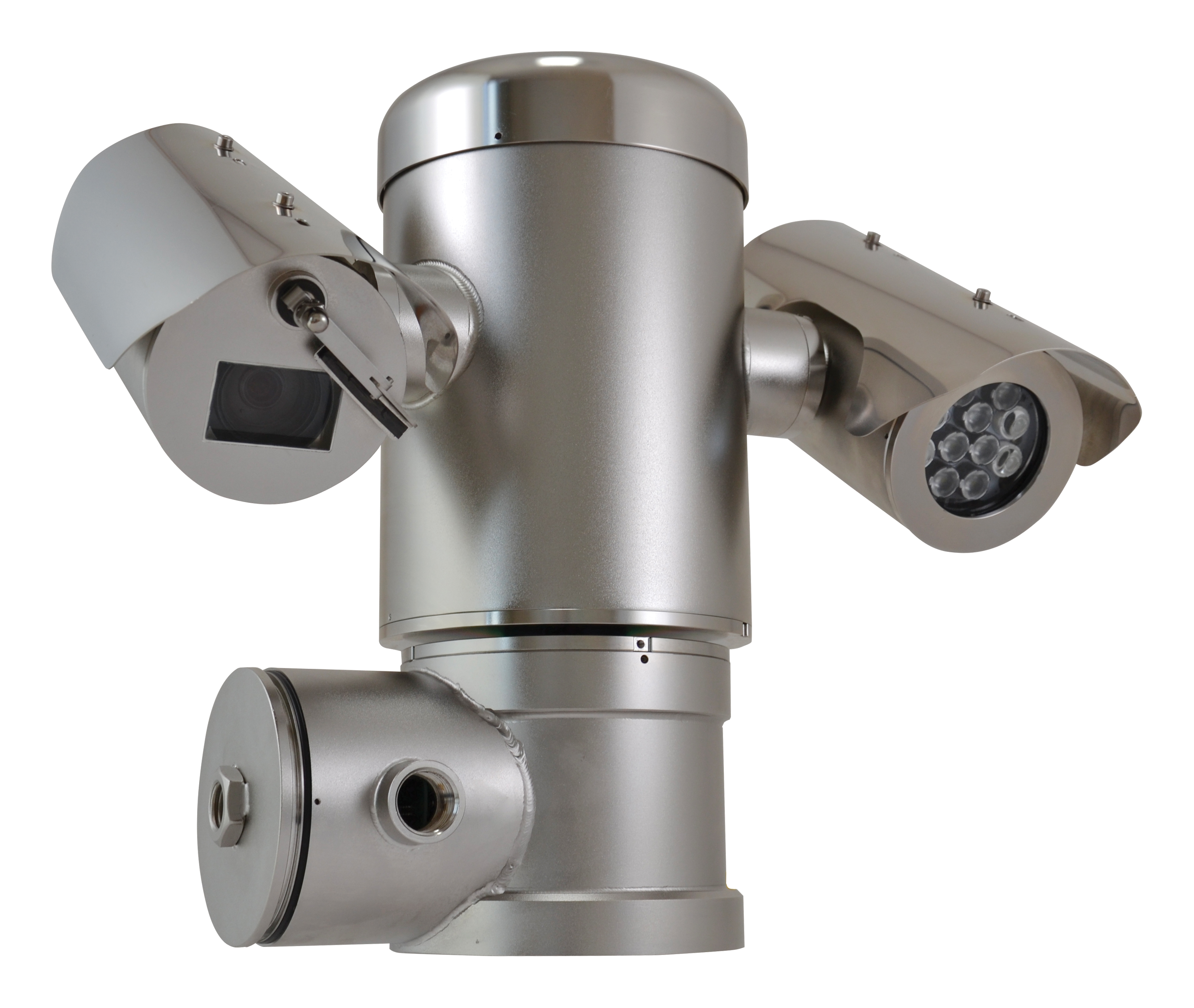

MAXIMUS MPXL SERIES2Explosion-proof PTZ with Day / Night camera and illuminator

Config link

MAXIMUS RANGE ... Drillereye

MARKETS

CERTIFICATIONS

DESCRIPTION

MAXIMUS MPXL SERIES2 is the new generation of ex-proof PTZ with a Day/Night camera and built-in LED illuminator.

This certified ex-proof PTZ camera is the optimum solution for effective video surveillance and process control in the Oil & Gas, Maritime and Industrial sectors and in environments where there is a risk of fire or explosion as a result of flammable gases or vapours, flammable liquids or combustible dust being present.

MAXIMUS MPXL SERIES2 offers maximum resistance in corrosive environments with industrial and marine environments, thanks to construction in AISI 316L stainless steel and micro-shot peened and electro-polished surfaces.Furthermore, the IP66/IP67/IP68/IP69, NEMA Type 4X and Type 6P certification guarantees complete protection against water and dust entry, even in difficult conditions.

KEY FEATURES

Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)

Maximum resistance in corrosive environments

Illuminator with lighting distance up to 200m

Junction box with integrated SFP slot to allow fiber optic connection

TECHNICAL DATA

General
  • AISI 316L stainless steel construction
  • External surfaces micro-shot peened and electro-polished
  • Dynamic positioning control system
  • Maximum number of presets: 250
Mechanical
  • Cable inputs: 2 x 3/4" NPT
  • Zero backlash
  • Horizontal rotation: 360°, continuous rotation
  • Vertical rotation: from -90° up to +90°
  • Horizontal speed (variable): from 0.1°/s to 100°/s
  • Tilt speed (variable): from 0.1°/s to 100°/s
  • Accuracy of preset positions: 0.02°
  • Integrated wiper
  • Window with extra clear tempered glass
  • Thick: 12mm (0.47in)
  • Unit weight: 31kg (68lb)
Electrical
  • Supply voltage/Current consumption:
  • from 220Vac up to 230Vac ±10%, 0.54A, 50/60Hz
  • 24Vac ±10%, 5A, 50/60Hz
  • 120Vac ±10%, 1A, 50/60Hz
  • 100Vac ±10%, 1.2A, 50/60Hz
  • Power consumption:
  • 120W max
Network
  • RJ45 port
  • Ethernet connection: 10BASE-T/100BASE-T
  • Slot SFP (SMALL FORM FACTOR PLUGGABLE)
  • Ethernet connection:100BASE-FX
  • Supply voltage: 3.3V
  • Standard: MSA compliant
  • The SFP module (not supplied by VIDEOTEC) must meet the following requirements:
  • Laser: Class 1, complies with EN60825-1
  • Certification: UL/IEC 60950-1 or UL/IEC 62368-1
Cybersecurity
  • Digitally signed firmware
  • Password restricted access (HTTP digest)
  • Support of various user access levels
  • Control of accesses IEEE 802.1X
  • HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3
  • Centralised certificate management
  • Complies with ONVIF Security Service specifications
Video
  • Video encoder
  • Communication protocol: ONVIF, Profile Q, Profile S and Profile T
  • Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
  • Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
  • Video compression: H.264/AVC, MJPEG, MPEG4, snapshot JPEG
  • 3 independent video streams Full HD
  • Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps
  • Selectable frame rate from 1 to 60 images per second (fps)
  • Web Server
  • Directional OSD (maximum 4 settable areas)
  • Motion Detection
  • Video analytics: VIDEOTEC ANALYTICS (optional)
  • QoS: Differentiated DSCPs for streaming and device management
  • SNMP and NTCIP protocols
  • Video encoder
  • Communication protocol: ONVIF, Profile Q, Profile S and Profile T, ONVIF Thermal Service
  • Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
  • Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
  • Video compression: H.264/AVC, MJPEG, MPEG4, snapshot JPEG
  • 3 independent video streams
  • Image resolution: from 160x120pixel up to 720x480pixel in 5 steps
  • Selectable frame rate from 1 to 30 images per second (fps)
  • Web Server
  • Directional OSD (maximum 4 settable areas)
  • Motion Detection
  • QoS: Differentiated DSCPs for streaming and device management
  • SNMP and NTCIP protocols
Video analytics
  • Ultra-robust detection algorithms and auto-tracking, specifically for outdoor perimeter control.
  • Targets Classification: People, vehicles, generic objects
  • Programmable rules for video analysis, VIDEOTEC ANALYTICS (it is possible to rapidly configure up to ten rules for every preset using an intuitive control management interface)
  • Line crossing: the target triggers an alarm if it crosses the line in one or both directions
  • Entering/leaving area: the target triggers an alarm if it leaves or enters the configured area
  • Appearing in area: the target triggers an alarm if it appears inside the configured area
  • Loitering: the target triggers an alarm if it stays inside the configured area over the set time
  • Detection Mask: disables the detection activity in a portion of the image to prevent false alarms
  • Video Tampering Detection: a specific ONVIF alarm is triggered if the video camera view is obstructed (e.g. spray)
I/O interface
  • Input for remote reset: 1
  • Alarm inputs: 1
  • Relay outputs: 1+1 (1A, 30Vac/60Vdc max, one relay reserved for washer pump and one configurable)
Cameras
Day/Night camera

    SONY FCB-EV7520 Day/Night Full HD 30x

  • Resolution: Full HD 1080p (1920x1080)
  • Image Sensor: 1/2.8" Exmor™ R CMOS sensor
  • Effective Pixels: approx. 2.13 Megapixels
  • Minimum Illumination:
  • Colour: 0.0013lx (50 IRE, High sensitivity on)
  • B/W: 0.0008lx (30 IRE, High sensitivity on)
  • Focal length: from 4.3mm (wide) up to 129mm (tele)
  • Zoom: 30x (360x with digital zoom)
  • Iris: from F1.6 up to F14 (Auto, Manual)
  • Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end)
  • Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end)
  • Shutter speed: from 1/1s up to 1/10000s (Auto, Manual)
  • White balance: Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto)
  • Gain: from 0dB up to 50.0dB (Auto, Manual)
  • Wide Dynamic Range: 120dB
  • Focus System: Auto (PTZ Trigger, Full Auto), Manual
  • Picture Effects: E-flip
  • Noise removal (2D, 3D): Off, On (from level 1 up to level 5)
  • Exposure Control: Auto, Manual, Priority (Shutter priority, Iris priority, Brightness priority)
  • De-fog: Off, Low, Mid, High
  • Dynamic masking of privacy zones: maximum 24 masks settable, maximum 8 simultaneously displayable
  • Indoor Flicker Reduction
  • Gain Limit: from10.7dB up to 50dB
  • High sensitivity: On/Off
  • Backlight Compensation: On/Off
  • Auto Slowshutter: On/Off
  • Exposure compensation: Off, On (from -10.5dB up to +10.5dB)
  • Sharpness: from level 0 up to level 15
  • High Light Compensation (HLC): Off, Low, Mid, High, Masking Level (Off, On, from level 1 up to level 15)
  • Digital image stabilization: On/Off
Thermal Cameras
  • Please refer to the relevant table.
Illuminators
  • The illuminator with IR or white LED
  • Number of LED groups selectable:2 (spot, wide)
  • Wide beam angle of dispersion: 40° (horizontal), 16° (vertical)
  • Spot beam angle of dispersion: 13° (horizontal), 13° (vertical)
  • Maximum viewing distance: 200m
  • Illuminator activation: configurable by software,can be activated via presets, can be activated according to the zoom factor, based on the scene brightness, from alarm input or manually
  • LECC: The "LED Energy Consumption Control" technology allows the illuminator to withstand high temperatures and so ensure the LEDs operate correctly for the entire life of the product.
  • Illuminator with IR type LED
  • Wavelength: 850nm
  • Number of LEDs: 11
  • Illuminator with white light LED
  • Light color temperature: 6500K
  • Number of LEDs: 10
Environment
  • For indoors and outdoors installation
  • Certification temperature: from -40°C (-40°F) up to +70°C (158°F)
  • De-icing function intervention (cold start): from -40°C (-40°F) up to -10°C (14°F)
  • Wind resistance
  • PTZ static: 230km/h (143mph) max.
  • PTZ operational at the maximum speed: 210km/h (130.5mph) max.
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN50130-4, EN55032 (Class A), EN61000-6-4, EN61000-3-2, EN61000-3-3
  • RoHS (CE): EN IEC 63000
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • Photobiological safety (CE): EN62471, IEC62471
  • Vibration test: EN50130-5, EN60068-2-6
  • UL certification (UL62368-1, CAN/CSA C22.2 No. 62368-1-14) (not available for 100Vac versions): cULus Listed
  • Electromagnetic compatibility (North America) (not available for 100Vac versions): FCC part 15 (Class A), ICES-003 (Class A)
  • IP protection degree (EN/IEC60529): IP66, IP67, IP68, IP69
  • Level of protection Type (UL50E) (not available for 100Vac versions): 4X, 6P
  • RCM (Australian and New Zealand Regulatory Compliance Mark)
  • NDAA-compliant
Certifications - Explosion-proof applications
  • ATEX (EN IEC 60079-0, EN 60079-1, EN 60079-31)
  • IECEX (IEC 60079-0, IEC 60079-1, IEC 60079-31)
  • UL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31) (not available for 100Vac versions)
  • UL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. 60079-1, CAN/CSA-C22.2 NO. 60079-31) (not available for 100Vac versions)
  • EAC Ex (TR CU 012/2011) (pending)
  • INMETRO (ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1, ABNT NBR IEC 60079-31)
  • KCs (Employment and labor department 2020-33)

For further details on certifications and markings, consult the relevant table.

Certifications - Marine applications
  • Lloyd's Register Marine Type Approval certification (with MAXIMUS MBX communication box or with FM1010 filter): Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
  • Electromagnetic compatibility: EN60945
  • Salty fog resistance: EN60068-2-52
