NTXStainless steel thermal camera with radiometric functions

MARKETS

CERTIFICATIONS

DESCRIPTION

NTX is an IP68 stainless steel thermal camera, developed to provide an efficient and preventative surveillance system in the most critical environmental conditions.

The NTX thermal camera offers temperature detection based on the 4 central pixels of the image, and with the advanced version, the temperature of a specific object can be measured at any point in the image by means of defining a specific area. As well as this, the radiometric functions offer the option to set a temperature limit, beyond which an alarm will be raised.

These functions are necessary where fire prevention is required or in applications such as monitoring industrial processes or critical equipment, where the ability to identify something quickly and accurately, thus preventing problems or failures and keeping intervention times to a minimum, is essential.

NTX can export all the data necessary for a centralised management of video feeds, data and alarms, and make it available to VMS via the ONVIF Profile S and Profile Q communication protocols.

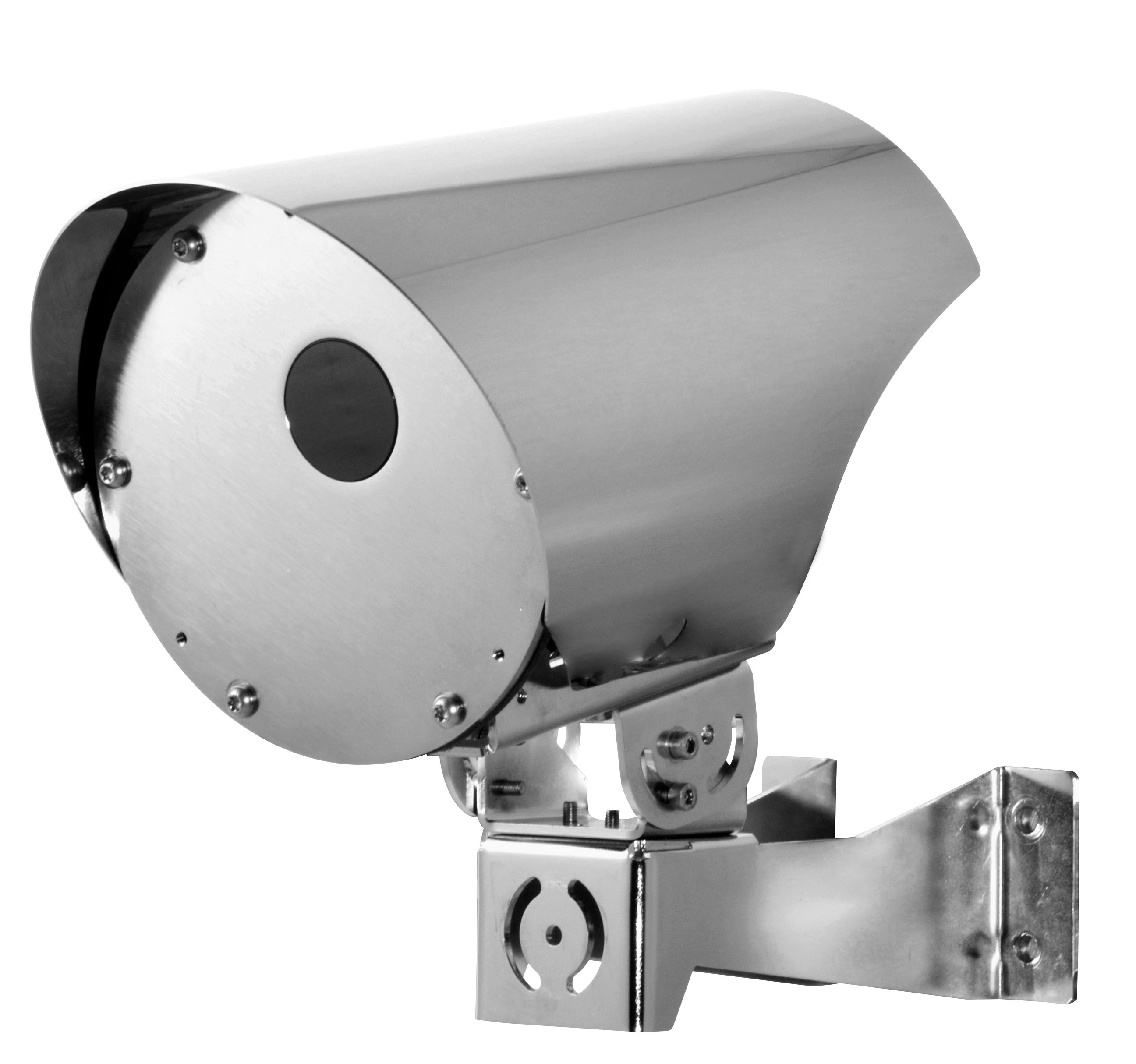

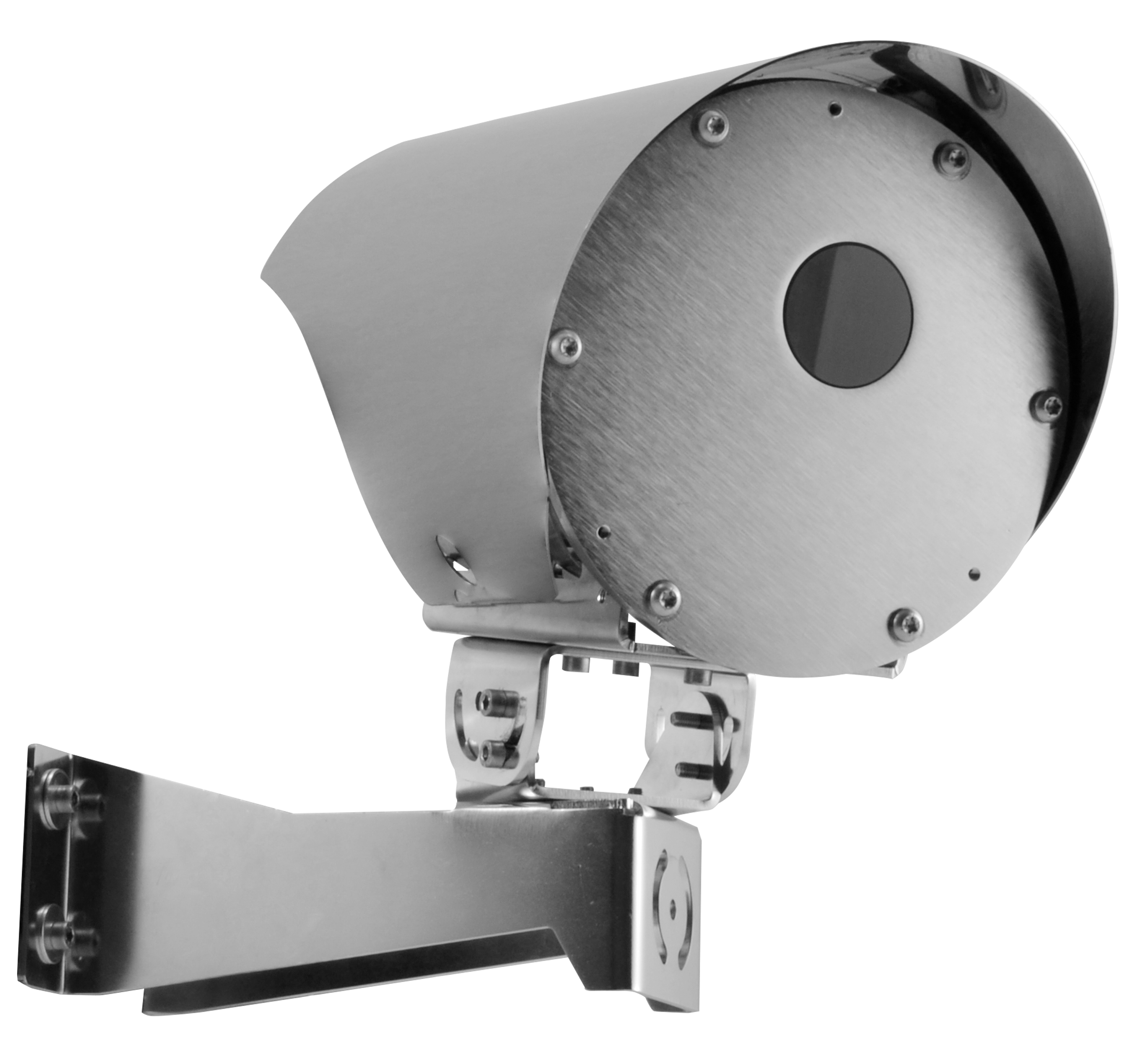

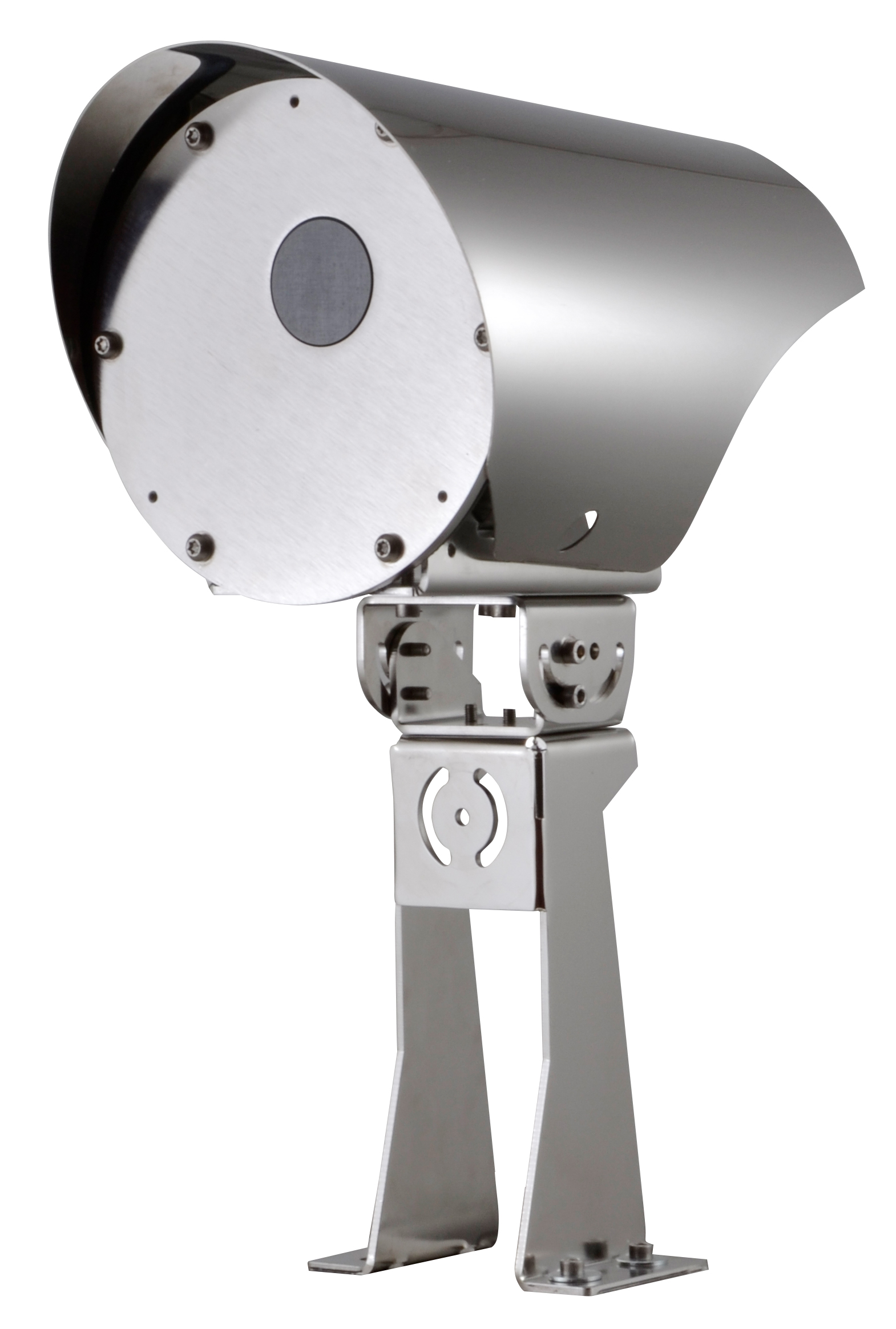

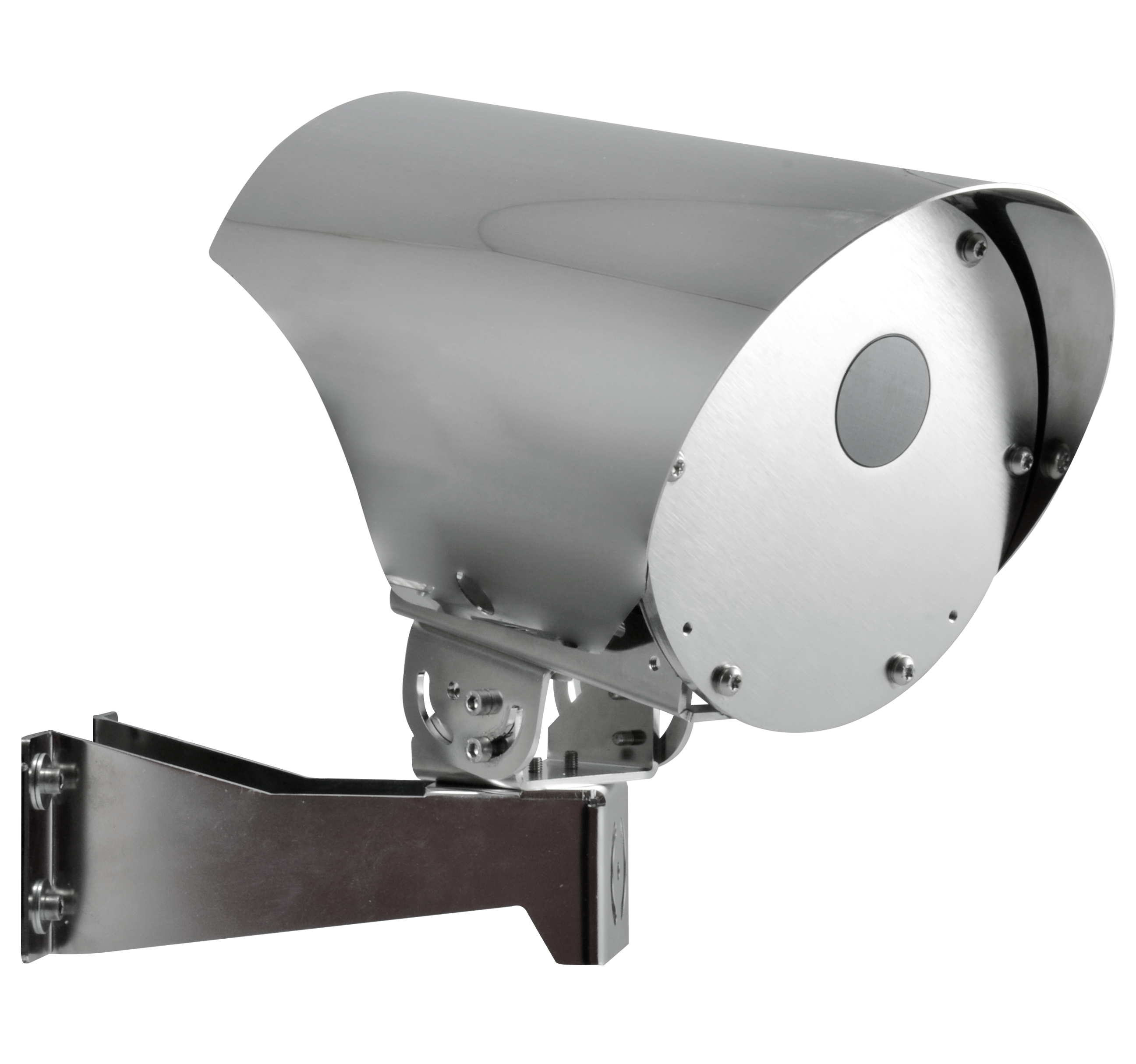

The NTX camera is made entirely from electropolished AISI316L stainless steel and stands out thanks to its compact design and light weight. This, and the fact that it can be connected quickly, makes installation and maintenance easier. The modular support for wall, ceiling or parapet is supplied as standard.

The NTX has obtained Lloyd’s Register Marine Type Approval certification for the maritime and naval sector and complies with the standard for railway applications. The fact that the NTX is extremely sturdy and of high quality means it is ideal for the most demanding applications in the marine and industrial sectors, in critical infrastructures, power plants and transport sector, including railways and motorway tunnels.

KEY FEATURES

  • Made of electro-polished stainless steel AISI 316L
  • Quick connectors
  • Thermal camera
  • Image Device: Uncooled VOx microbolometer

    Lenses: 35mm, 25mm, 19mm, 13mm, 9mm

    Resolution: 336x256 or 640x512

    Image update frequency: 7.5Hz or 30Hz

  • 1 input for remote reset and 1 relay output
  • Power supply: 24Vdc/24Vac, PoE+
  • Operating temperature: from -40°C (-40°F) up to +65°C (149°F)
  • Built-in modular support
  • Radiometric analysis

TECHNICAL DATA

General
  • Simple installation thanks to quick connectors
  • Quick configuration and setup
Mechanical
  • AISI 316L stainless steel construction
  • Slot for safety chain
  • Unit weight:
  • 4.9kg (10.8lb) (fastening support included)
  • 4kg (8.8lb) (fastening support not included)
Housing's window
  • Germanium window
  • Thick: 1.5mm (0,06in)
  • External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection
  • Internal treatment: antireflection
  • Spectral range: from 7.5μm up to 14μm
  • Medium transmittance (from 7.5μm up to 11.5μm): 91.2%
  • Medium transmittance (from 11.5μm up to 14μm): 80.9%
Electrical
  • Supply voltage/Current consumption:
  • 24Vac, 1.32A, 50/60Hz
  • 24Vdc, 0.9A
  • PoE+ (IEEE 802.3at)
  • Power consumption: 21W
Network
  • Ethernet connection: 100 Base-TX
  • Connector: RJ45
Video
  • Video encoder
  • Communication protocol: ONVIF, Profile S and Profile Q, ONVIF Thermal Service
  • Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
  • Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
  • Video compression: H.264/AVC, MJPEG, JPEG, MPEG4
  • 3 independent video streams
  • Image resolution: from 320x180pixel up to 720x480pixel in 4 steps
  • Selectable frame rate from 1 to 30 images per second (fps)
  • Web Server
  • Motion Detection
  • Cybersecurity: IEEE 802.1X
  • QoS: Differentiated DSCPs for streaming and device management
I/O interface
  • I/O alarm board
  • Input for remote reset: 1
  • Relay output: 1 (1A, 30Vac/60Vdc max)
Environment
  • For installation indoors and outdoors
  • Operating temperature
  • Version with 24Vac or 24Vdc power supply: from -40°C (-40°F) up to +65°C (149°F)
  • Version with PoE+ power supply: from -40°C (-40°F) up to +60°C (140°F)
  • Temperature test complies with NEMA-TS 2-2003 (R2008) par. 2.1.5.1, test profile fig. 2-1 (from -34°C (-29.2°F) to +74°C (165.2°F))
  • Surge immunity: up to 1kV line to line, up to 2kV line to earth (Class 3)
  • Relative humidity: from 10% up to 95% (no condensation)
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN610000-6-4, EN50130-4, EN55032 (Class A), FCC Part 15 (Class A), ICES003
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • IP protection degree (EN60529): IP66, IP67, IP68 (2h30min, 2m (6.56ft)), IP69
  • UL certification: cULus Listed, TYPE 4X, TYPE 6P
  • EAC certification
Certifications - Railway applications
  • Compliance to railway application standard: EN50121-4 (only with 24Vac or 24Vdc power supply)
Certifications - Marine applications
  • Lloyd's Register Marine Type Approval
  • Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
  • Electromagnetic compatibility: EN60945
  • Salty fog resistance: EN60068-2-52
  • Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2
Accessories
  • NVXTUB Dust protection frontal shield
  • OHEPOWINJ PoE+ Power Injector, 1 channel, for indoor installations
Brackets and adaptors
  • UEAP Pole adaptor in stainless steel AISI 316L
  • UEAC Corner adaptor in stainless steel AISI 316L
  • UEAW Counter-plate in stainless steel AISI 316L
