ULISSE EVO DUALPTZ network camera with dual sensor, thermal and Full HD

Config link

ULISSE EVO - Witness the Evolution of video security

MARKETS

DESCRIPTION

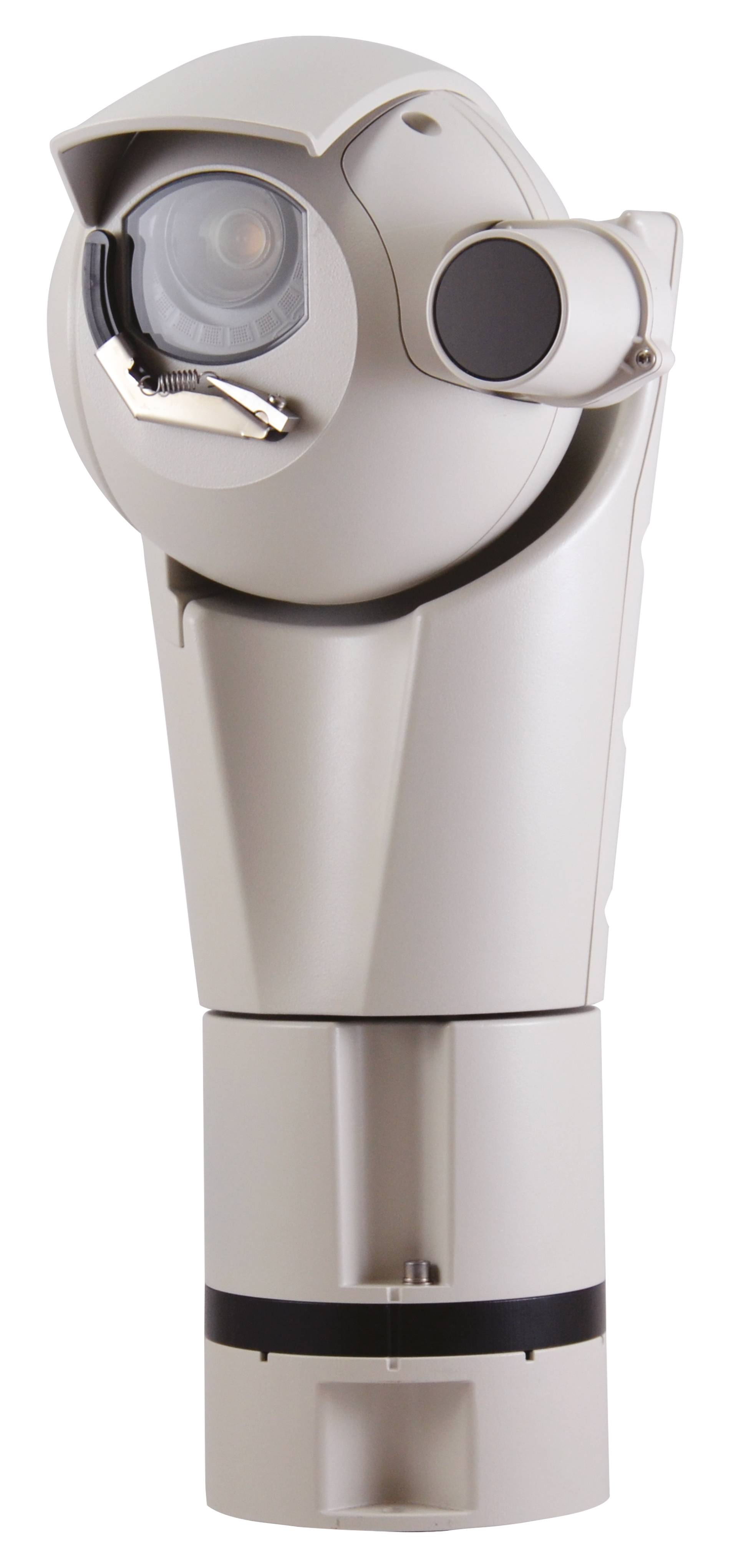

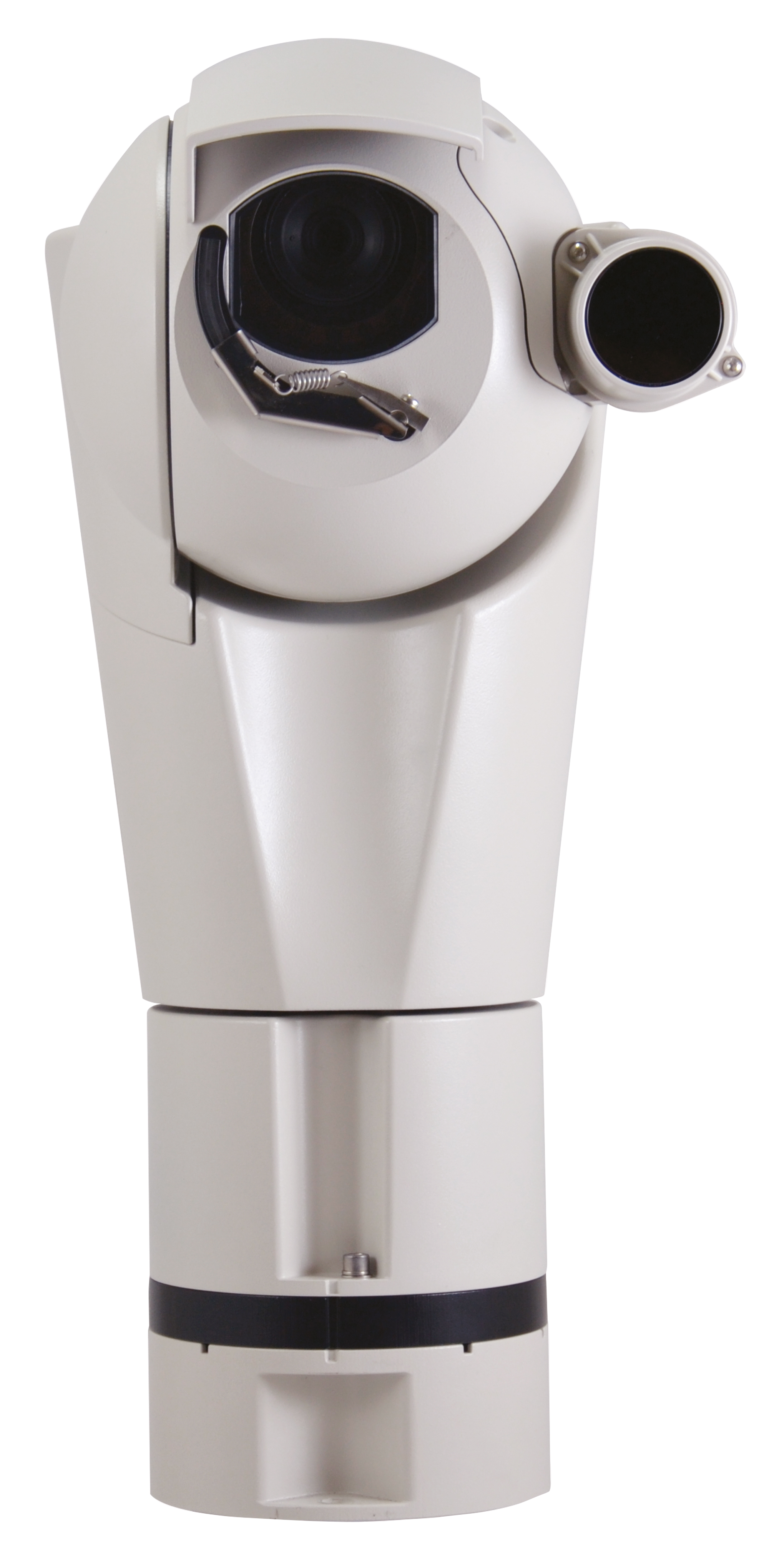

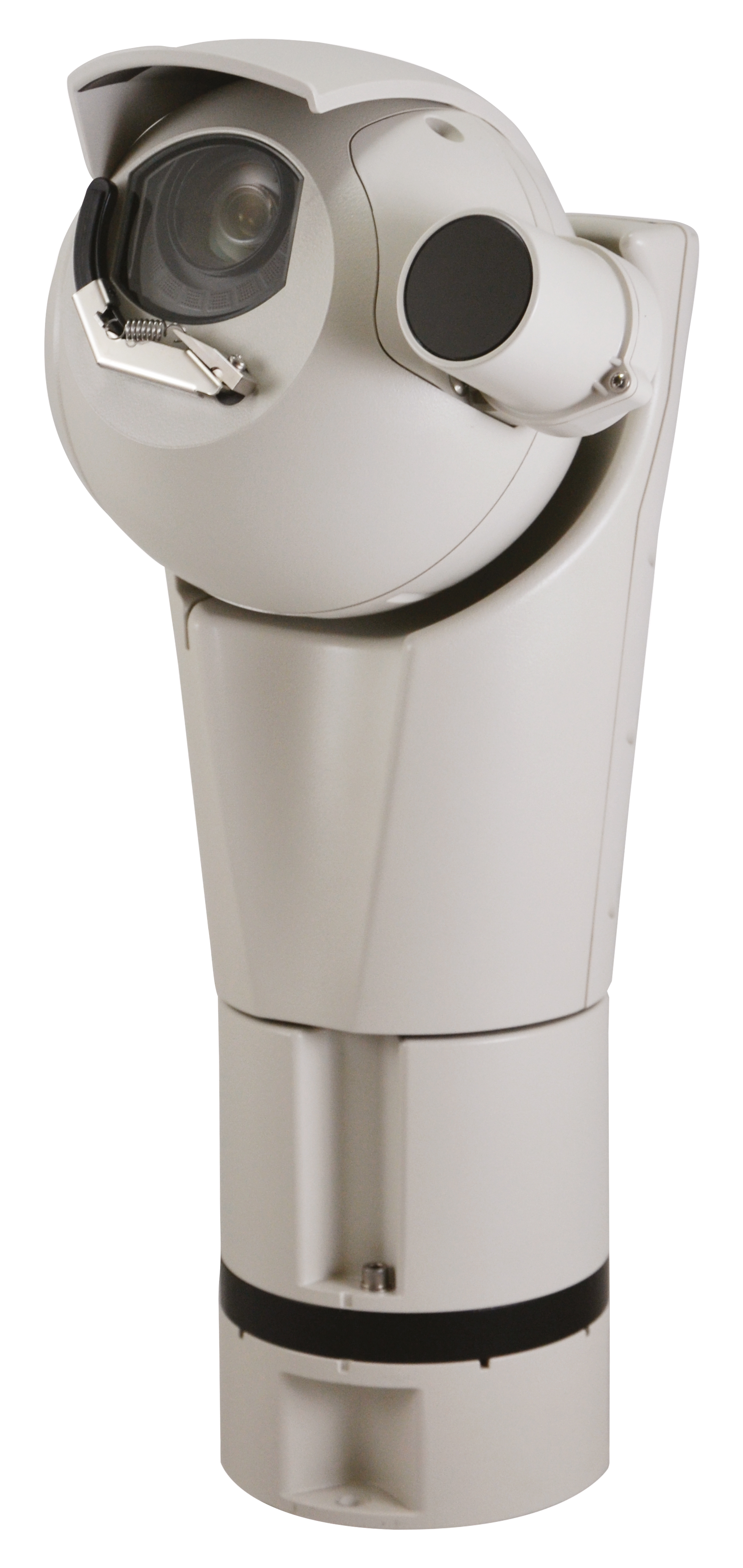

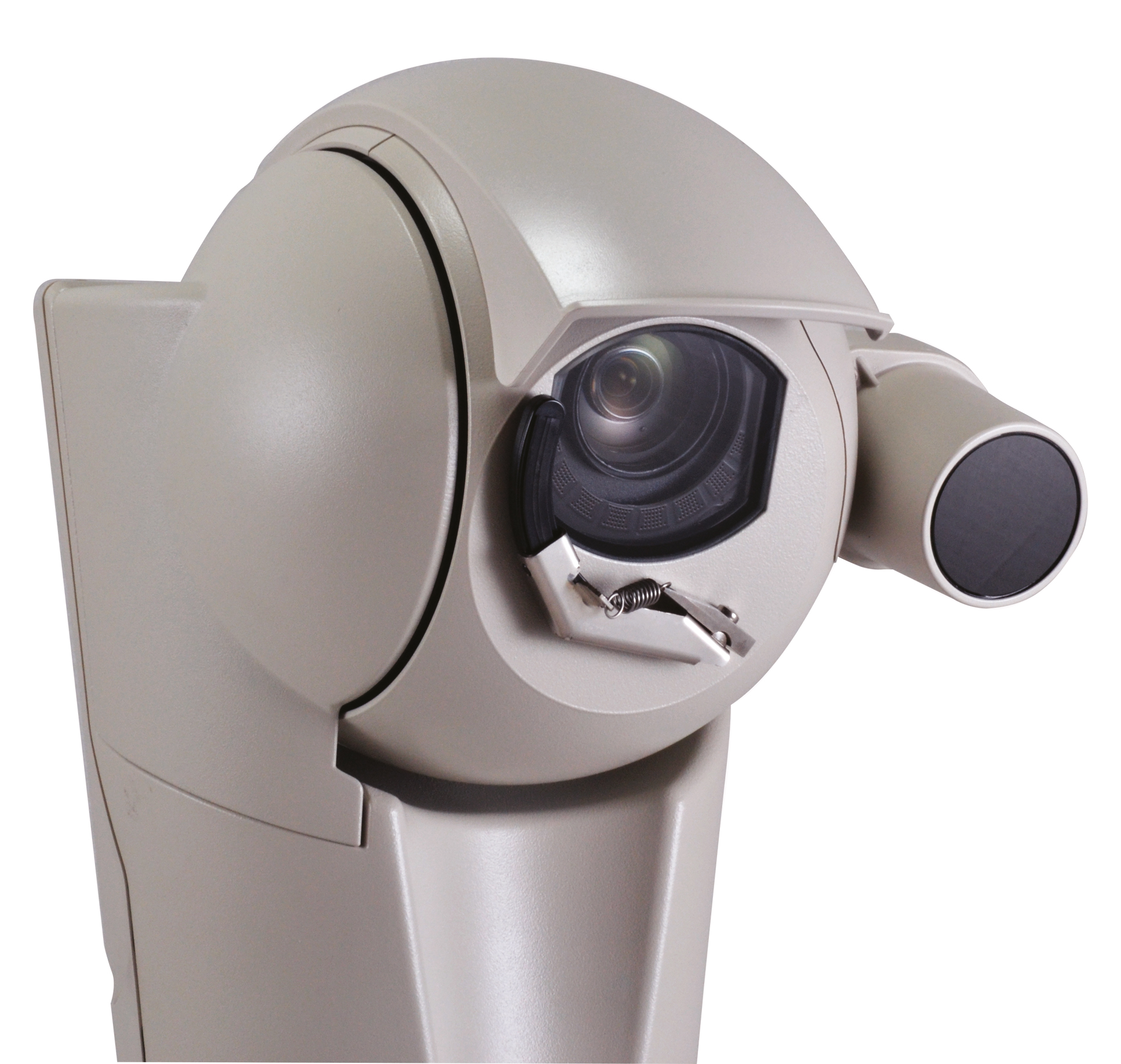

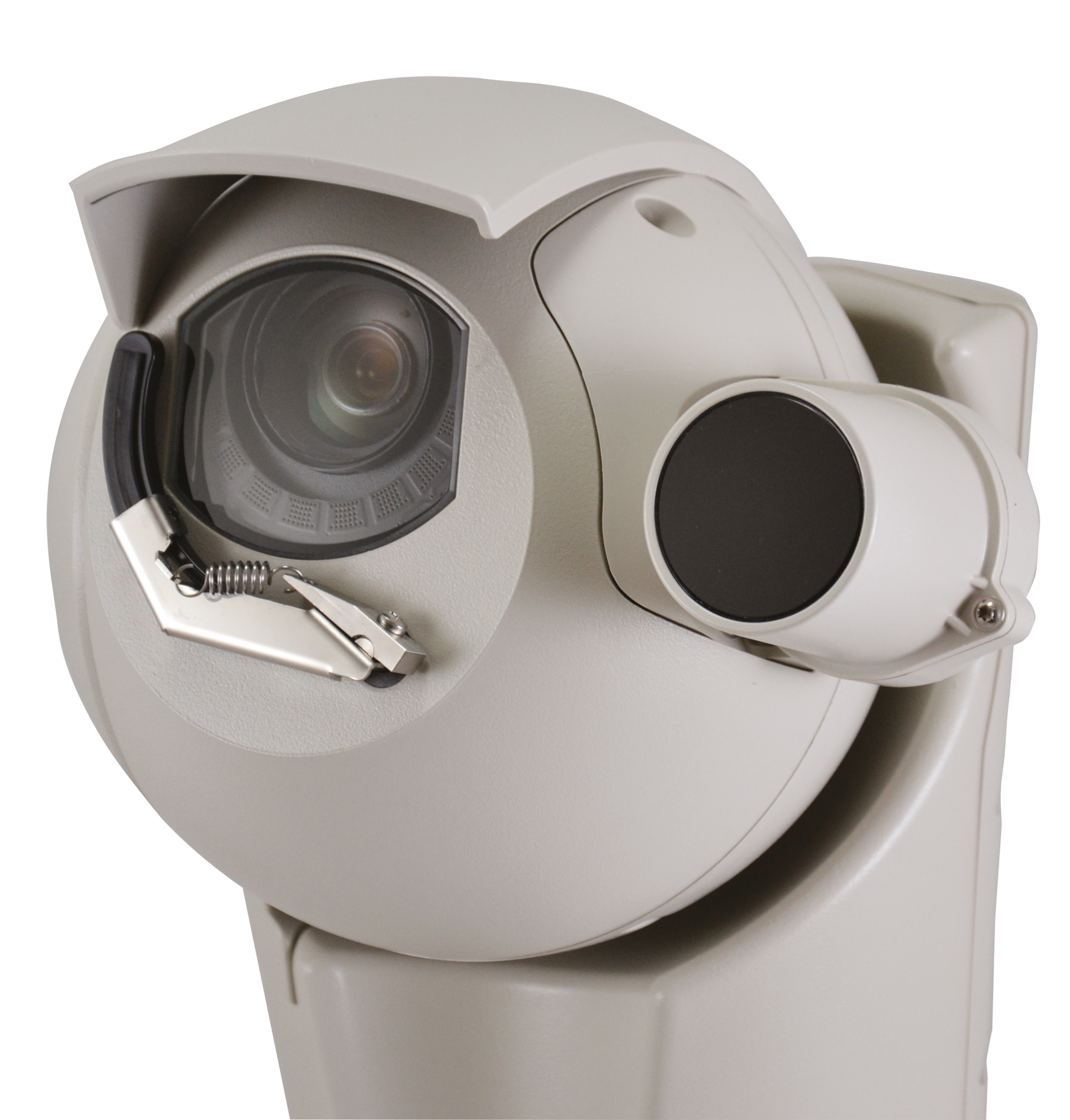

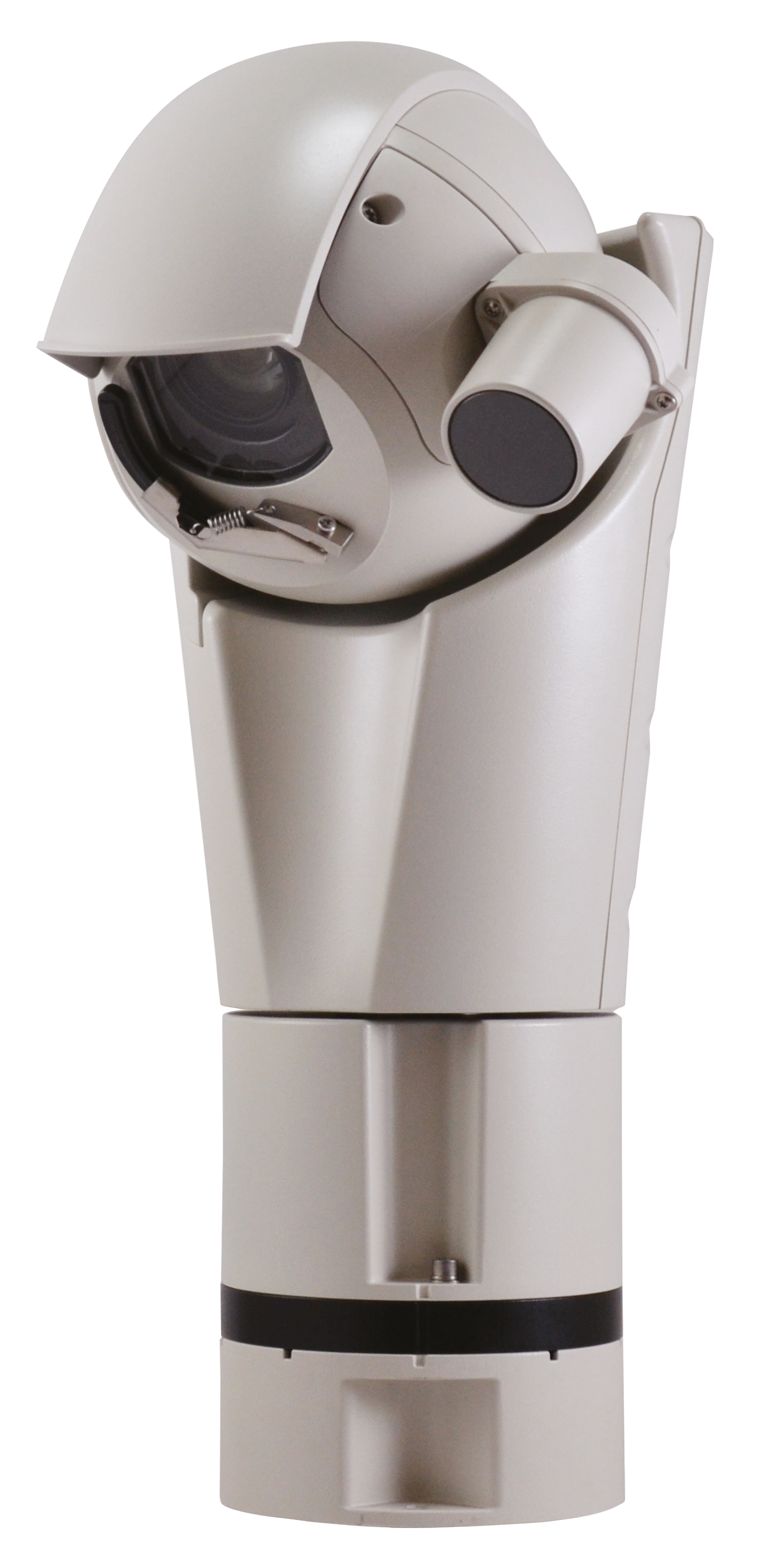

ULISSE EVO DUAL PTZ (UED) is a network positioning system equipped with advanced technology that provides two independent videos simultaneously from a high-sensitivity visual camera and a thermal camera. These are perfectly aligned with the movements of the PTZ.

ULISSE EVO DUAL (UED) is the ideal solution for effective and reliable day/night preventative outdoor video surveillance of perimeters and borders, critical infrastructures, traffic, railways and much more.

The combination of the two cameras in one unit has created an effective and powerful surveillance tool. The visible camera can recognize and identify a target while the thermal camera achieves better detection accuracy, even in total darkness or in extreme weather conditions.

The non-cooled long-wave thermal sensor (LWIR) with vanadium oxide (VOx) guarantees maximum detection accuracy even in total darkness and in extreme weather conditions. Available in 320x256 or 640x512 resolution with a wide choice of optics to create the optimum configuration for the application.

The visible camera is a SONY FCB-EV7520 with 30x optical zoom and a 1/2.8 "Exmor R ™ CMOS sensor, Full HD 1080/60p resolution. It is capable of producing impeccable image quality, even if objects are moving and in difficult lighting conditions.

It has an image stabilizer and dynamic masking areas for privacy. The advanced SONY technology offers configurable Wide Dynamic Range and High Light Compensation that allow you to optimally manage strong contrasts of light and shadow.

KEY FEATURES

Unbeatable solution for video surveillance of perimeters and critical areas

Designed to endure outdoor applications

Maximum detection accuracy

PoE compliant with the IEEE.802.3bt standard

Easy to install

TECHNICAL DATA

General
  • Easy installation thanks to the self-centring connector
  • Zero backlash
  • Quick configuration and setup
  • Dynamic positioning control system
  • Functions: Preset, Preset Tour (Patrol), Autoflip, Autopan via Preset Tour
  • Maximum number of presets: 250
Mechanical
  • Constructed from aluminium and tecnopolymer
  • Epoxy-polyester powder painted, standard colour grey-white (RAL9002)
  • Horizontal rotation: 360°, continuous rotation
  • Vertical rotation: from -90° up to +90° (with ceiling installation, from -40° up to +90°)
  • Horizontal speed (variable): from 0.1°/s up to 250°/s
  • Tilt speed (variable): from 0.1°/s up to 250°/s
  • Accuracy of preset positions: 0.05°
  • Cable glands: 2xM16 + 1xM20 + special gasket for pre-wired Ethernet cables
  • Unit weight: 7.4kg (16.3lb)
Housing's window
  • Window with extra clear tempered glass
  • Thick: 5mm (0.2in)
  • Germanium window
  • Thick: 1.5mm (0.06in)
  • Scratch-resistant treatment (Hard Carbon Coating - DLC)
  • Antireflection treatment
  • Spectral range: from 7.5μm up to 14μm
  • Medium transmittance (from 7.5μm up to 11.5μm): 91.2%
  • Medium transmittance (from 11.5μm up to 14μm): 80.9%
Electrical
  • Supply voltage/Current consumption:
  • 24Vac ±20%, 5A, 50/60Hz
  • 24Vdc ±10%, 5A
  • PoE 90W (in compliance with standard IEEE802.3bt CLASS 8 or in backward compatibility mode usable with accessory OHEP90INJ or OHEP90INJO)
  • Power consumption:
  • 23W, PTZ stopped, heating switched off (with the ECO-MODE function enabled, energy saving function that is activated only when the PTZ is stopped)
  • 29W, PTZ stopped, heating switched off (with the ECO-MODE function not enabled)
  • 29W, PTZ in motion, heating switched off
  • 59W, peak at start-up, heating on and de-icing function
  • Power supply cables section: from 0.75mm² (18AWG) up to 2.5mm² (13AWG)
  • Cables signal section: from 0.14mm² (26AWG) up to 1mm² (17AWG)
  • Multipolar cable sheath diameter:
  • Cable glands M16: from 4.5mm (0.2in) up to 10mm (0.4in)
  • Cable glands M20: from 8mm (0.3in) up to 13mm (0.5in)
  • Alarm inputs: 2 (auto-powered from 12Vdc up to 18Vdc)
  • Relay outputs: 2 (1A, 30Vac/30Vdc max)
Network
  • Ethernet connection: 100 Base-TX
  • Connector: RJ45
Cybersecurity
  • Digitally signed firmware
  • Password restricted access (HTTP digest)
  • Support of various user access levels
  • Control of accesses IEEE 802.1X
  • HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3
  • Centralised certificate management
  • Complies with ONVIF Security Service specifications
Video

    Day/Night camera

  • Video encoder
  • Communication protocol: ONVIF, Profile Q, Profile S and Profile T
  • Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
  • Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
  • Video compression: H.264/AVC, MJPEG, MPEG4, snapshot JPEG
  • 3 independent video streams Full HD
  • Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps
  • Selectable frame rate from 1 to 60 images per second (fps)
  • Web Server
  • Directional OSD (maximum 4 settable areas)
  • Motion Detection
  • Video analytics: VIDEOTEC ANALYTICS (optional)
  • QoS: Differentiated DSCPs for streaming and device management
  • SNMP and NTCIP protocols

    Thermal Camera

  • Video encoder
  • Communication protocol: ONVIF, Profile Q, Profile S and Profile T, ONVIF Thermal Service
  • Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
  • Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
  • Video compression: H.264/AVC, MJPEG, MPEG4, snapshot JPEG
  • 3 independent video streams
  • Image resolution: from 160x120pixel up to 720x480pixel in 5 steps
  • Selectable frame rate from 1 to 30 images per second (fps)
  • Web Server
  • Directional OSD (maximum 4 settable areas)
  • Motion Detection
  • QoS: Differentiated DSCPs for streaming and device management
  • SNMP and NTCIP protocols
Cameras
Day/Night camera

    SONY FCB-EV7520 Day/Night Full HD 30x

  • Resolution: Full HD 1080p (1920x1080)
  • Image Sensor: 1/2.8" Exmor™ R CMOS sensor
  • Effective Pixels: approx. 2.13 Megapixels
  • Minimum Illumination:
  • Colour: 0.0013lx (50 IRE, High sensitivity on)
  • B/W: 0.0008lx (30 IRE, High sensitivity on)
  • Focal length: from 4.3mm (wide) up to 129mm (tele)
  • Zoom: 30x (360x with digital zoom)
  • Iris: from F1.6 up to F14 (Auto, Manual)
  • Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end)
  • Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end)
  • Shutter speed: from 1/1s up to 1/10000s (Auto, Manual)
  • White balance: Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto)
  • Gain: from 0dB up to 50.0dB (Auto, Manual)
  • Wide Dynamic Range: 120dB
  • Focus System: Auto (PTZ Trigger, Full Auto), Manual
  • Picture Effects: E-flip
  • Noise removal (2D, 3D): Off, On (from level 1 up to level 5)
  • Exposure Control: Auto, Manual, Priority (Shutter priority, Iris priority, Brightness priority)
  • De-fog: Off, Low, Mid, High
  • Dynamic masking of privacy zones: maximum 24 masks settable, maximum 8 simultaneously displayable
  • Indoor Flicker Reduction
  • Gain Limit: from10.7dB up to 50dB
  • High sensitivity: On/Off
  • Backlight Compensation: On/Off
  • Auto Slowshutter: On/Off
  • Exposure compensation: Off, On (from -10.5dB up to +10.5dB)
  • Sharpness: from level 0 up to level 15
  • High Light Compensation (HLC): Off, Low, Mid, High, Masking Level (Off, On, from level 1 up to level 15)
  • Digital image stabilization: On/Off
Thermal Cameras
  • Please refer to the relevant table.
Environment
  • For indoors and outdoors installation
  • Operating temperature
  • Continuous functioning: from -40°C (-40°F) up to +60°C (140°F) (+65°C (149°F) for versions with 320x256 sensor)
  • Temperature test complies with NEMA-TS 2-2003 (R2008) par. 2.1.5.1, test profile fig. 2-1 (from -34°C (-29.2°F) to +74°C (165.2°F)) (only for versions with 320x256 sensor)
  • De-icing function intervention: from -40°C (-40°F) up to -10°C (14°F)
  • Wind resistance
  • PTZ static: 230km/h (143mph) max.
  • PTZ operational at the maximum speed: 230km/h (143mph) max.
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN61000-6-4, EN50130-4, EN55032 (Class A)
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • IP protection degree (EN60529): IP66, IP67, IP68
  • Vibration test: EN50130-5, EN60068-2-6
  • Salty fog resistance: EN50130-5, EN60068-2-52
  • IK protection degree: IK10 (except glass window and germanium window)
  • UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07,UL62368-1 CAN/CSA C22.2 No. 62368-1-14): cULus Listed
  • Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A)
  • Level of protection Type (UL50E): 4X, 6P
  • EAC certification (pending)
  • Restriction of Hazardous Substances (RoHS), Directive 2011/65/EU
  • Waste Electrical and Electronic Equipment (WEEE), Directive 2012/19/EU
  • NDAA-compliant
Certifications - Railway applications
  • Compliance to railway application standard: EN50121-4 (the product requires the filter accessory SURGEPR)
Certifications - Marine applications
  • Lloyd's Register Marine Type Approval certification (the product requires the filter accessory FM1010):
  • Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
  • Electromagnetic compatibility: EN60945
  • Salty fog resistance: EN60068-2-52
  • Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2
