ULISSE MAXIPTZ unit for dynamic monitoring of large outdoor areas

Config link

ULISSE MAXI Vs 1-G FORCE

MARKETS

DESCRIPTION

ULISSE MAXI is a robust and efficient PTZ camera unit designed to ensure dynamic, non-stop surveillance of large outdoor areas whilst withstanding harsh weather conditions..

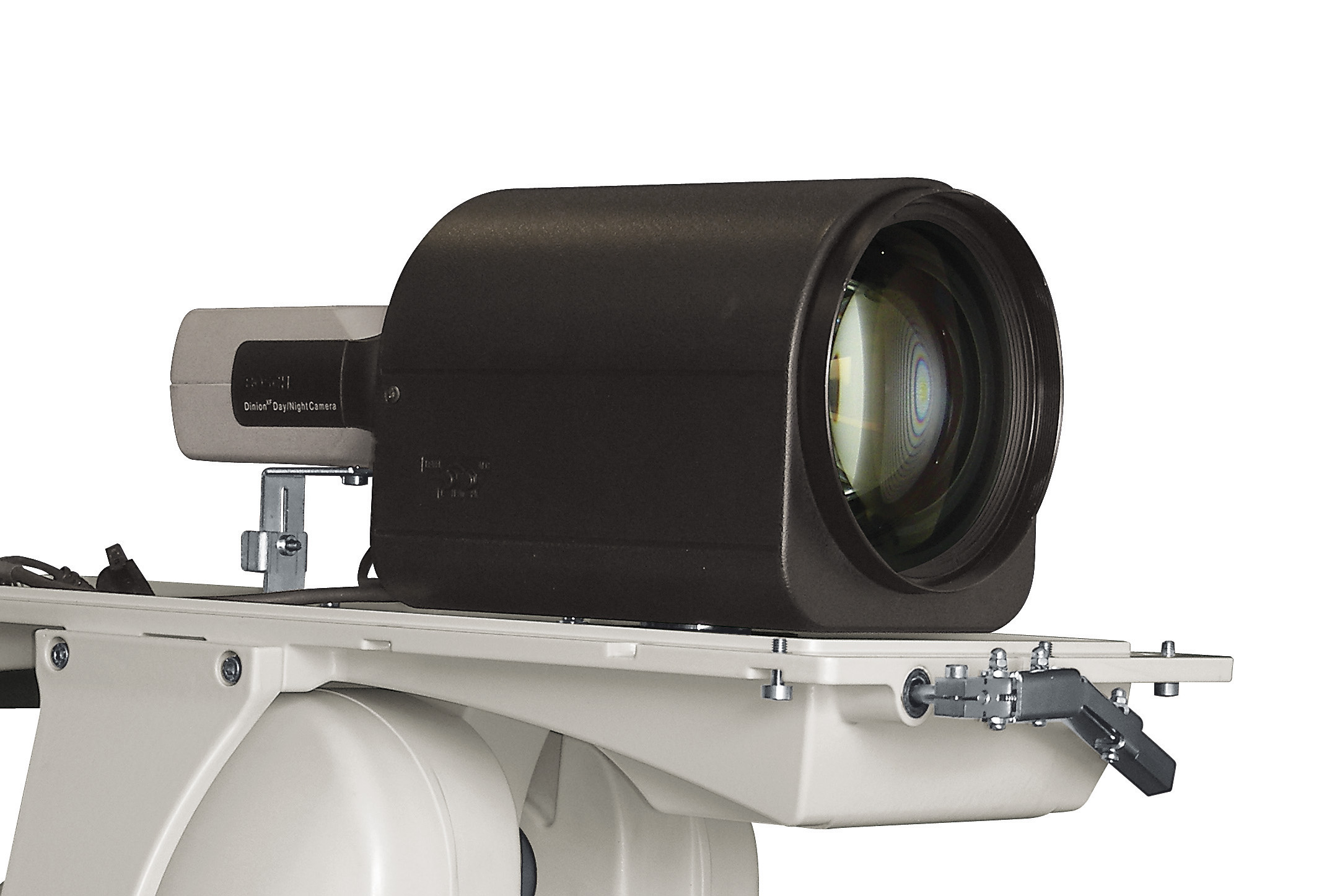

This model can house and manage the largest motorised lenses on the market, taking a total weight of up to almost 8 kilos.

KEY FEATURES

Optical sensors for absolute positioning feedback

Germanium window for thermal cameras

LED illuminators

Wiper

Operating temperature: -10°C / +60°C (14°F / 140°F)

TECHNICAL DATA

General
  • Top mount (OTT)
  • Electronic limit switches
  • Zero backlash
  • Max weight camera+lens: 7.6kg (17lb)
  • Optical sensors for absolute positioning feedback
  • Maximum number of presets: 250 (VIDEOTEC MACRO)
  • 15 characters string for Area and Preset titling
  • Configuration through OSM
  • Addressable up to 255 units through DIP-switch
Mechanical
  • Constructed from aluminium and tecnopolymer
  • Epoxypolyester powder painting, RAL9002 colour
  • Horizontal rotation: 360°, continuous rotation
  • Vertical rotation: from -20° up to +45°
  • Horizontal speed (variable): from 0.02°/s up to 20°/s
  • Tilt speed (variable): from 0.02°/s up to 20°/s
  • Transmission through toothed belt
  • Accuracy of preset positions: 0.02°
  • Internal usable area: See drawings
  • Cable glands: 3xM16
  • Unit weight: 30kg (66lb)
Housing's window
  • Glass window extra clear
  • Dimensions: 112mm (4.4in)x95mm (3.7in)
  • Germanium window
  • Usable diameter: 70mm (2.8in)
  • Thick: 2mm (0.08in)
  • External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection
  • Internal treatment: antireflection
  • Spectral range: from 7.5μm up to 14μm
  • Medium transmittance (from 7.5μm up to 11.5μm): 90%
  • Medium transmittance (from 11.5μm up to 14μm): 77%
Electrical
  • Supply voltage/Current consumption:
  • 230Vac, 0.4A, 50/60Hz
  • 24Vac, 4A (8A with LED illuminators), 50/60Hz
  • 120Vac, 0.8A, 50/60Hz
  • Power consumption:
  • 100W
  • 150-190W max with LED illuminators in 24Vac
  • 24W, P&T static, heating switched off
  • Camera power supply: 12Vdc, 800mA
  • Cables input section:
  • 0.75mm² (18AWG), 120Vac or 230Vac
  • 1.5mm² (16AWG), 24Vac
  • Cables signal section: from 0.14mm² (26AWG) up to 0.5mm² (20AWG)
Serial communications
  • RS-232 interface for firmware update
  • 2-ports RS-485 for daisy chain configuration
  • Configuration of telemetry protocol parameters via DIP-switch
  • Protocols supported:
  • AMERICAN DYNAMICS
  • PANASONIC
  • PELCO D
  • MACRO
  • VISTA
Video
  • Video line: coaxial cable (1Vpp, 75Ohm)
I/O interface
  • Alarm input:
  • 4 (standard version)
  • 2 (version with LED illuminators)
  • Control voltage: From 10Vdc up to 35Vdc
  • Dry contacts:
  • 2 (standard version)
  • 1 (version with LED illuminators)
  • Applicable voltage: 50Vdc max or 30Vac @ 1A
Lenses
  • Power supply: From 6Vdc up to 15Vdc, 200mA max
  • Control: Polarity inversion and common wire
Environment
  • For installation indoors and outdoors
  • Operating temperature (with heater): from -10°C (14°F) up to +60°C (140°F)
  • Relative humidity: from 10% up to 95% (no condensation)
Certifications
  • Electrical safety (CE): EN60950-1
  • Electromagnetic compatibility (CE): EN50130-4, EN55022 (Class B), FCC Part 15 (Class B)
  • Outdoor installation (CE): EN60950-22
  • IP protection degree: EN60529 (IP66)
  • Salty fog resistance: EN50130-5, EN60068-2-52
  • EAC certification
Accessories
  • UPTJBUL Junction weatherproof box for cables connexion (according UL norm)

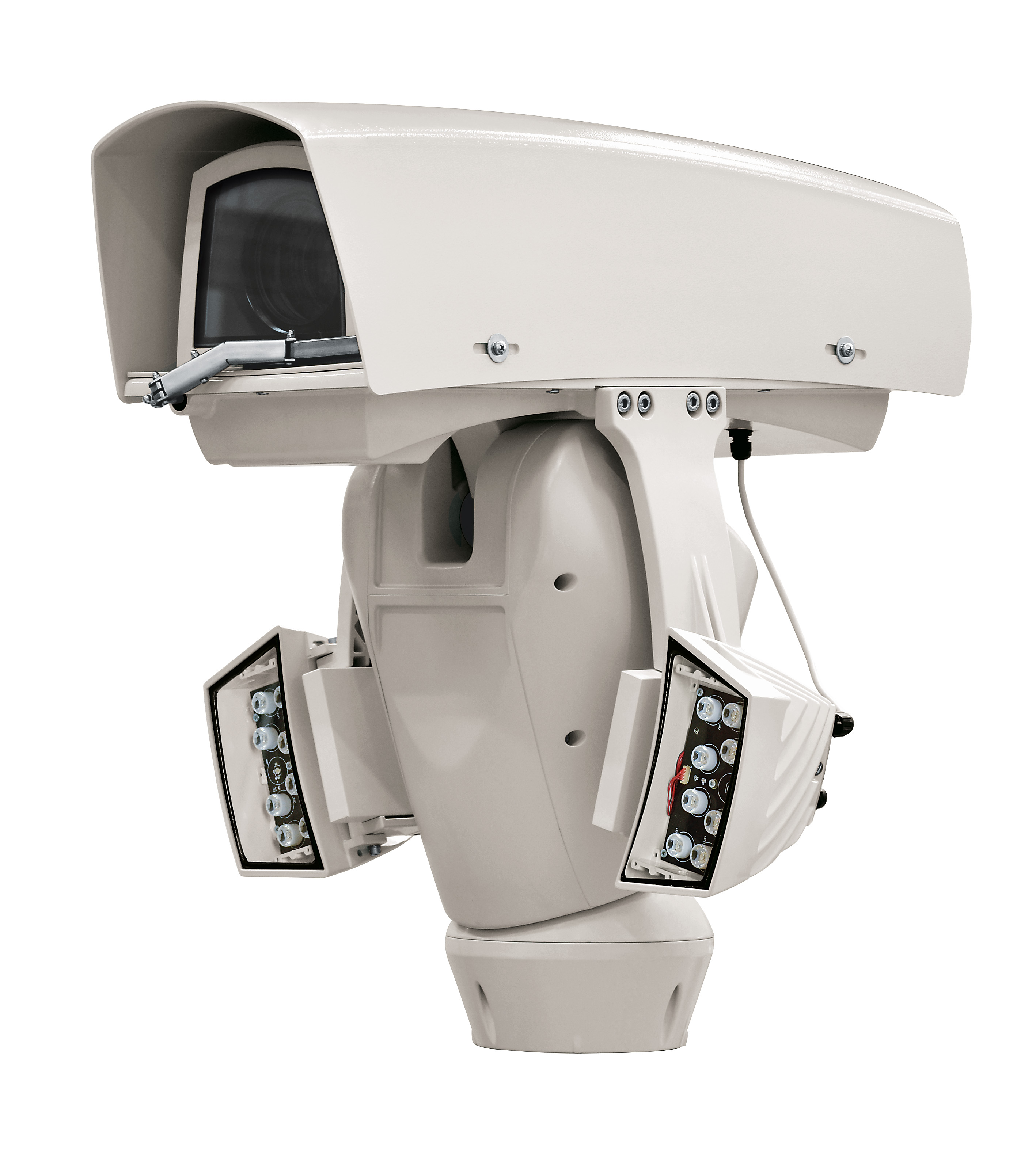

  • UPTIRN108A00 LED illuminator for ULISSE, 10°, 850nm, 24Vac - 12/24Vdc
  • UPTIRN308A00 LED illuminator for ULISSE, 30°, 850nm, 24Vac - 12/24Vdc
  • UPTIRN608A00 LED illuminator for ULISSE, 60°, 850nm, 24Vac - 12/24Vdc
  • UPTIRN109A00 LED illuminator for ULISSE, 10°, 940nm, 24Vac - 12/24Vdc
  • UPTIRN309A00 LED illuminator for ULISSE, 30°, 940nm, 24Vac - 12/24Vdc
  • UPTIRN10WA00 LED illuminator for ULISSE, 10°, white light, 24Vac - 12/24Vdc
  • UPTIRN30WA00 LED illuminator for ULISSE, 30°, white light, 24Vac - 12/24Vdc
  • UPTIRN60WA00 LED illuminator for ULISSE, 60°, white light, 24Vac - 12/24Vdc
  • UPTIRPS230N External power supply for ULISSE series, prearranged for two LED illuminators, and control to synchronize IR illuminators with camera Day/Night switching, IN 230Vac, in weatherproof box . Twilight sensor included .
  • UPTIRPS100N External power supply for ULISSE series, prearranged for two LED illuminators, and control to synchronize IR illuminators with camera Day/Night switching, IN 100Vac, in weatherproof box
  • UPTIRPS120UL External power supply for ULISSE series, prearranged for two LED illuminators, and control to synchronize IR illuminators with camera Day/Night switching, IN 120Vac, in weatherproof box . Twilight sensor included .
  • WASPT0V5L5M00 Water tank 5l (1.3gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L5M00 Water tank 23l (6 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L11M00 Water tank 23l (6 gal), pump with delivery up to 11m (36ft) with water floating, IN 230Vac-24Vac-120Vac
  • WASPT1V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
  • WASPT3V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
  • WASNX1V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 230Vac
  • WASNX2V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac
  • WASNX3V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 120Vac
  • Related products
  • ALBERT Encoder for video content analysis and smart system management
  • SM82A Video matrix 8 inputs and 2 outputs
  • SM164B Video matrix 16 inputs and 4 outputs
  • SM328B Matrix 32 inputs and 8 outputs
  • DCJ Keyboard for video and telemetry control
  • DCT Video and telemetry touch-screen control keyboard
  • DCZ Universal control keyboard for PC applications
  • Brackets and adaptors
  • UPTWBA Wall bracket with internal cable channel

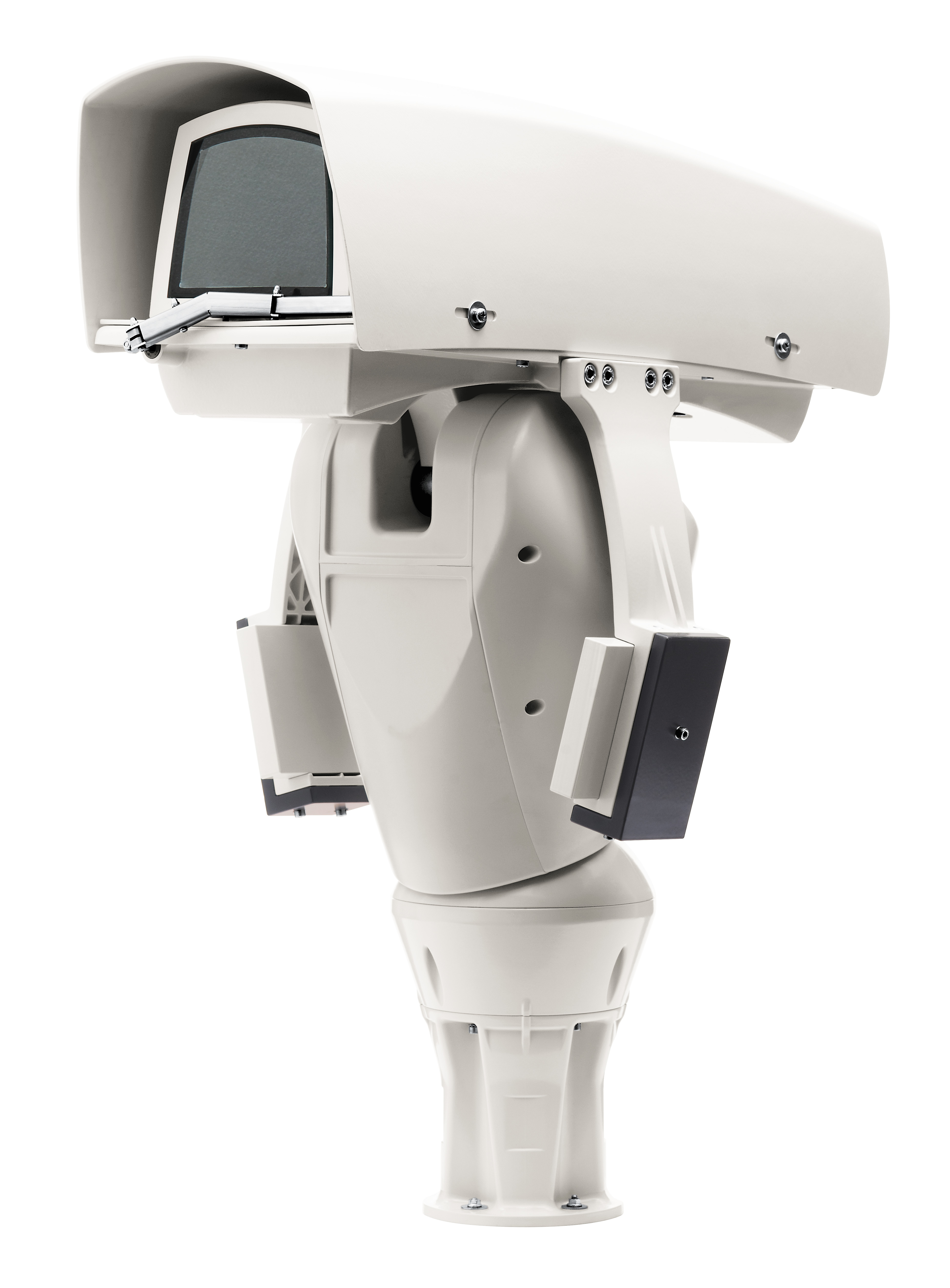

  • UPTWBTAB Parapet bracket with internal cable channel
