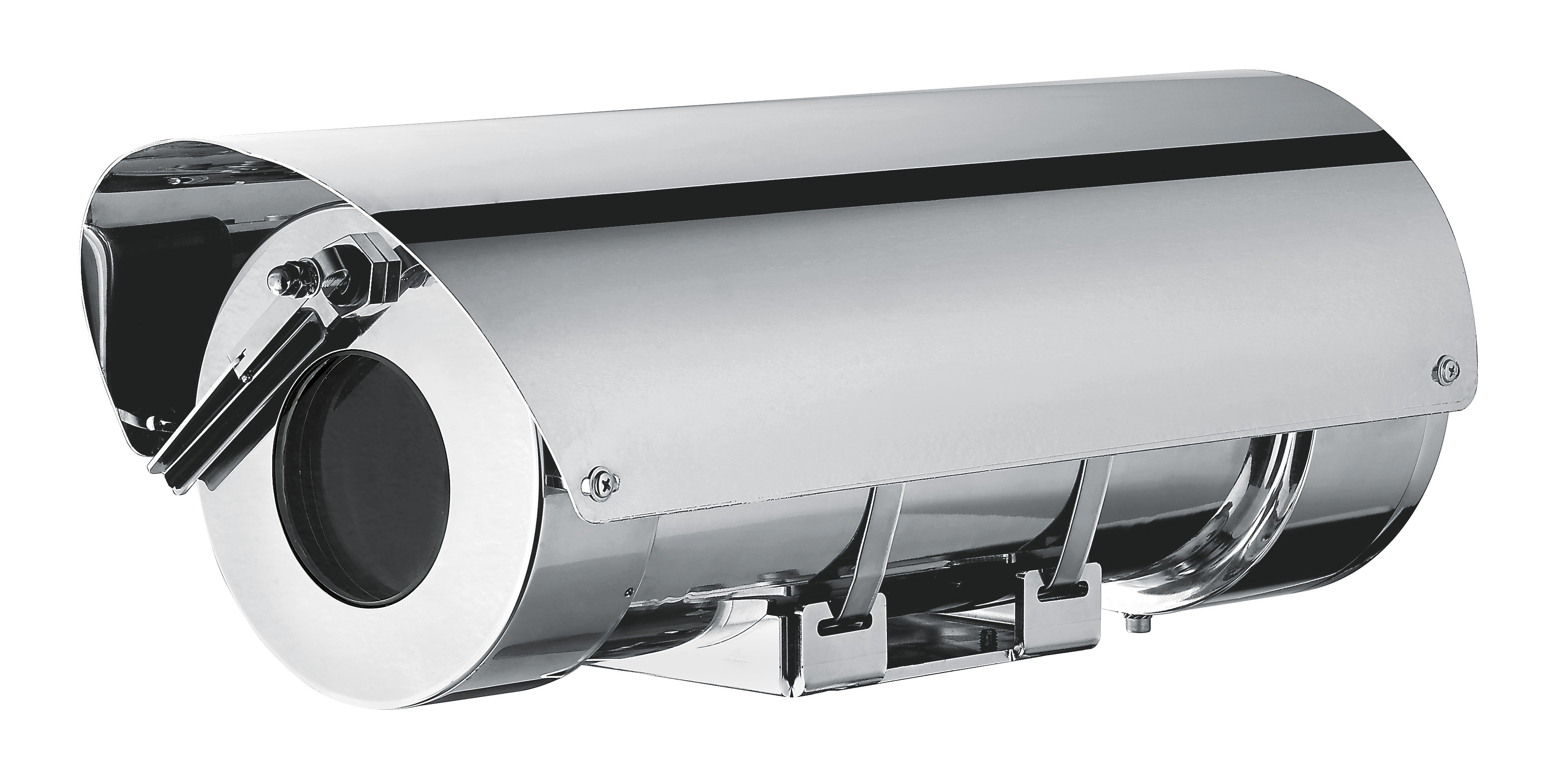

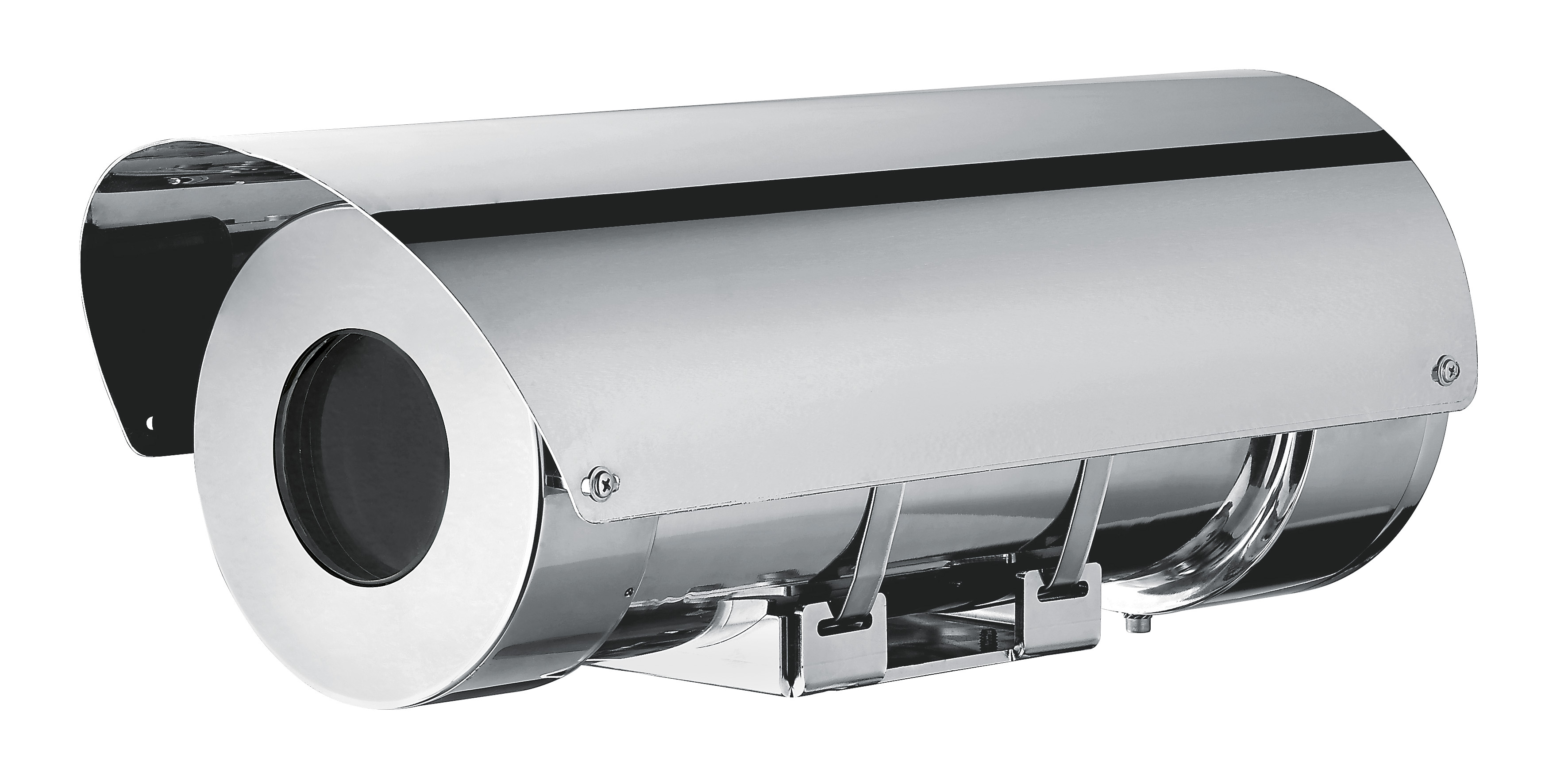

MAXIMUS MHXEx-proof housing

MAXIMUS RANGE ... Drillereye

MARKETS

CERTIFICATIONS

DESCRIPTION

The MAXIMUS range ensures excellent performance for monitoring critical processes in areas that carry a risk of explosion, such as refineries, gas pipelines, oil tankers, offshore platforms, industrial processes, chemical industries, etc.

KEY FEATURES

Made of AISI 316L electropolished stainless steel

2 threaded holes ¾” NPT for use of cable glands or conduit

Versions with wiper

Integrated telemetry receiver for version with wiper

Ambient temperature: from -40°C (-40°F) up to +60°C (140°F)

TECHNICAL DATA

General
  • AISI 316L stainless steel construction
  • Passivated and electropolished external surfaces
  • Silicone O-ring seals
Mechanical
  • 2 holes 3/4" NPT for cable entry
  • Sunshield
  • Unit weight: 16.5kg (36lb)
Housing's window
  • Tempered window glass
  • Usable diameter: 75mm (3.0in)
  • Thick: 12mm (0.47in)
Electrical
  • Supply voltage/Current consumption:
  • 230Vac, 0.34A, 50/60Hz
  • 120Vac, 0.5A, 50/60Hz
  • 24Vac, 2.2A, 50/60Hz
  • 12Vdc, 2.8A
  • Heater (Ton 15°C±4°C (59°F±7°F), Toff 22°C±3°C (72°F±5°F))
Communications
  • Serial interface: 1 RS-485 line, half-duplex
  • Addressable units: Up to 31, via dip-switch
  • Protocols:
  • PELCO D: 2400baud, 9600baud
  • VIDEOTEC MACRO: 9600baud, 38400baud
  • PELCO is registered trademark.
  • The product may be interfaced with devices not manufactured by VIDEOTEC. It is possible that the interface protocols have changed or are in a different configuration from earlier tested units by VIDEOTEC. VIDEOTEC recommends a test prior to installation. VIDEOTEC will not be liable for any installation costs or lost revenues in the event a compatibility problem will occur.
I/O interface
  • Version with wiper
  • Remote wiper activation: 1 input, dry contact NO
  • Day/Night camera status: 1 input
  • Wash system activation relay: 1 output, 60Vdc max or 30Vac max, 1A
  • Illuminator activation relay: 1 output, 60Vdc max or 30Vac max, 1A
Cameras
  • Compatible cameras:
  • Power consumption (assembly, camera and lens): 13W max
  • Cameras dimensions/Lenses that can be installed (WxHxL): 80x82x245mm (3.1x3.2x9.6in) max
  • Minimum distance between camera and housing's window: 10mm (0.4in)
Environment
  • For indoors and outdoors installation
  • Operating temperature/Installation temperature: from -40°C (-40°F) up to +60°C (140°F)
  • Operating temperature/Installation temperature (MHX2...A-U, in 24Vac and with pre-installed camera by Videotec): from -40°C (-40°F) up to +54°C (129.2°F)
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1
  • Electromagnetic compatibility (CE): EN601000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A)
  • RoHS (CE): EN50581
  • Outdoor installation (CE): EN60950-22, ICE60950-22
  • IP protection degree (EN/IEC60529): IP66, IP67
  • Vibration test: EN50130-5, EN60068-2-6
  • UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07): cULus Listed
  • Electromagnetic compatibility (North America): FCC part 15 (Class A)
  • Level of protection Type (UL50E): 4X
Certifications - Explosion-proof applications
  • ATEX (EN 60079-0+A11, EN 60079-1, EN 60079-31)
  • IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31)
  • EAC EX (TR CU 012/2011)
  • INMETRO (ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1, ABNT NBR IEC 60079-31)
  • KCs (Employment and labor department 2016-54)
  • UL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31) (only versions in 24Vac with pre-installed camera by Videotec)
  • UL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. 60079-1, CAN/CSA-C22.2 NO. 60079-31) (only versions in 24Vac with pre-installed camera by Videotec)
Accessories
  • WASEX2T4AT Tank 10l (2.6gal) with integrated manual pump controlled by ATEX certified solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac/Vdc
  • WASEX2T4GOR Tank 10l (2.6gal) with integrated manual pump controlled by EAC EX certified solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac/Vdc
  • WASEX2T4IN Tank 10l (2.6gal) with integrated manual pump controlled by INMETRO certified solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac/Vdc
  • MBA1S5A Explosion-proof communication box in aluminium , 230 Vac
  • MBA2S5A Explosion-proof communication box in aluminium , 24 Vac
  • MBA3S5A Explosion-proof communication box in aluminium , 120 Vac
  • OCTEX3/4C Cable gland in nickel-plated brass with gasket EX 3/4" NPT, unarmoured cable IECEX-ATEX-EAC Ex
  • OCTEXA3/4C Cable gland in nickel-plated brass with gasket EX 3/4" NPT, armoured cable IECEX-ATEX-EAC Ex
  • OCTEXB3/4C Barrier cable gland in nickel-plated brass 3/4" NPT, unarmoured cable IECEX-ATEX-EAC Ex
  • OCTEXB3/4P Barrier cable gland in nickel-plated brass EX 3/4" NPT, unarmoured cable IECEX-ATEX-EAC Ex
  • OCTEXBA3/4P Barrier cable gland in nickel-plated brass EX 3/4" NPT, armoured cable IECEX-ATEX-EAC Ex
  • OCTEXBA3/4C Barrier cable gland in nickel-plated brass 3/4" NPT, armoured cable IECEX-ATEX-EAC Ex
  • OCTEX3/4 Cable gland in nickel-plated brass with gasket EX 3/4" NPT, unarmoured cable ATEX
  • OCTEXA3/4 Cable gland in nickel-plated brass with gasket EX 3/4" NPT, armoured cable ATEX
  • OCTEXB1/2C Barrier cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex
  • OCTEXB1/2P Barrier cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex
  • OCTEXBA1/2P Barrier cable gland in nickel-plated brass EX 1/2" NPT, armoured cable IECEX-ATEX-EAC Ex
  • OCTEX1/2C Cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex
  • OCTEXS1/2C Cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex
  • OCTEXA1/2C Cable gland in nickel-plated brass EX 1/2" NPT armoured cable IECEX-ATEX-EAC Ex
  • OCTEX1/2-3/4P Cable glands reduction in nickel-plated brass Ex 3/4" - 1/2" NPT IECEX-ATEX-EAC Ex
  • OCTEXP3/4C Conduit cable gland nickel-plated brass 3/4" NPT IECEX-ATEX- c CSA us - EAC Ex ( operating temperature : from -60°C (-76°F) up to +80°C (+176°F) )
  • OEXPLUG1/2P Plug EX 1/2“ NPT IECEX-ATEX-EAC Ex
  • OEXPLUG3/4P Plug EX 3/4" NPT IECEX-ATEX-EAC Ex
  • USB485 USB-RS485 converter
  • For further details about cable glands part numbers, please refer to the relevant table.

    Brackets and adaptors

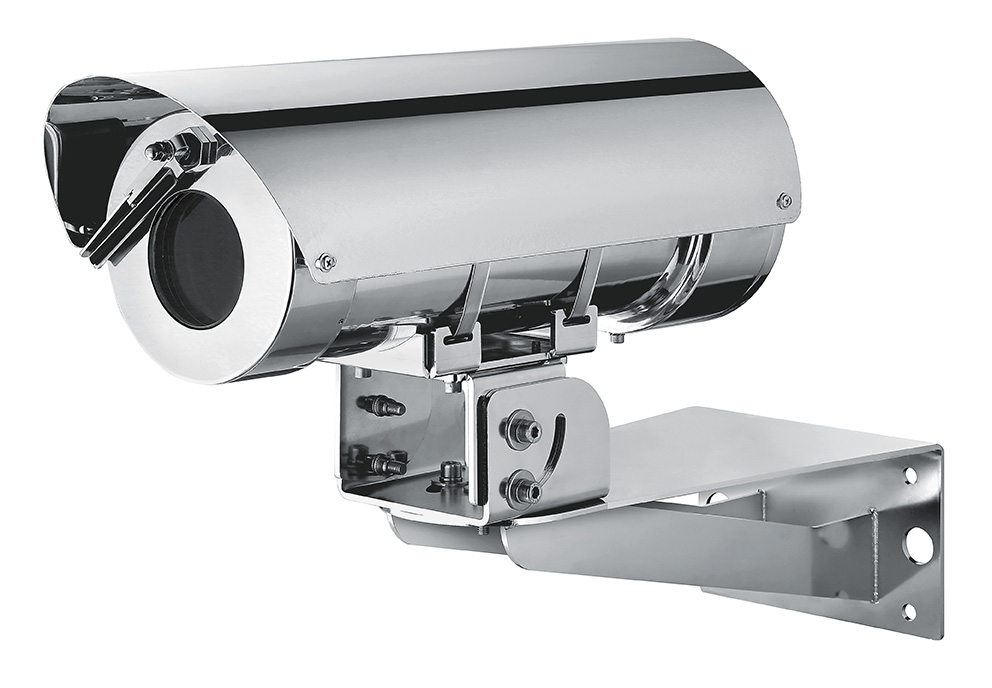

  • MHXWBS AISI 316L stainless steel wall bracket
  • MPXCW AISI 316L stainless steel corner adapter module
  • MPXCOL AISI 316L stainless steel pole adapter module
  • MHXWFWCA AISI 316L stainless steel ball joint
  • NXFWBT AISI 316L stainless steel parapet mounting bracket
