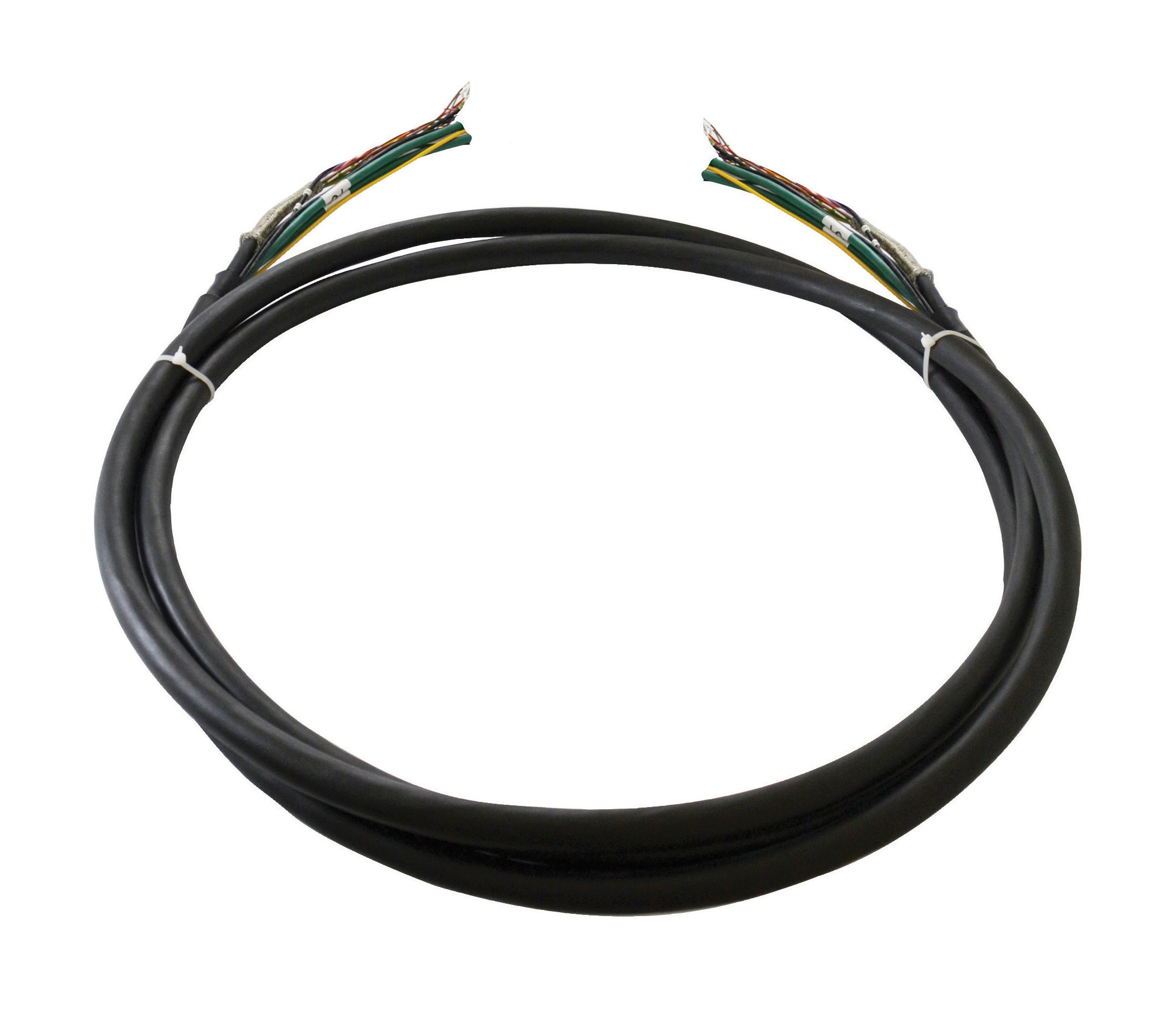

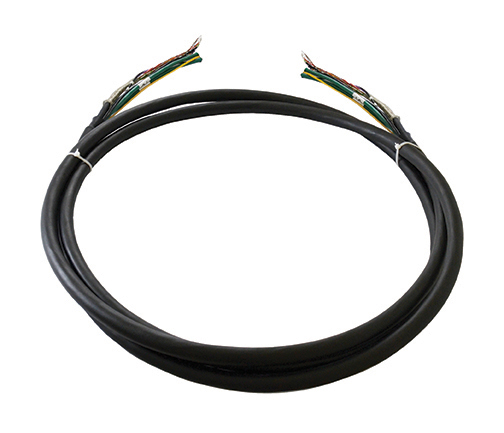

CMS - CMAArmoured and unarmoured multipolar cables

DESCRIPTION

Armoured and unarmoured multipolar cables for Pan & Tilt and housings.

They are suitable for use in hostile environments.

KEY FEATURES

  • Prepared for Ethernet, video, I/O and telemetry connections
  • Resistant to oil, flame spread and ultra-violet rays
  • Available in an armoured and unarmoured version
  • Designed for potentially explosive zones

DOWNLOAD

TECHNICAL DATA

    CMSN2200

General
  • Unarmoured black cable: 2 Ethernet cables, 3 power supply conductors, 2 coaxial video cables, 15 shielded I/O cables
Mechanical
  • Unarmoured cable
  • External diameter: 18.6mm (0.73in) ± 0.35mm (0.01in)
  • Minimum bending radius: 186mm (7.3in)
  • Colour: Black (RAL9005)
  • Type of laying: fixed installation
Electrical
  • Power supply
  • Number of conductors: 3
  • Section: 1.5mm² (15AWG)
  • Working voltage: 300V max
Network
  • Ethernet cable
  • Number of cables: 2
  • Category: 5e
  • Shielded cables
Video
  • 2 coaxial cables, RG179
I/O
  • Alarms, relay and telemetry
  • Number of conductors: 15
  • Section: 0.34mm² (22AWG)
  • Shielded cable
Environment
  • Temperature: from -40°C (-40°F) up to +85°C (+185°F)
Certifications
  • Oil resistant: complies with CNOMO E.03.40.150N, ASTM n.2, IRM 902, IEC60811-2-1
  • UV resistant: complies with UL1581
  • Resistance to flame spread: complies with IEC/EN60332-1
  • Halogen free: complies with EN50267-2, IEC/EN60754
  • Fixed installation: complies with IEC/EN60079-14 (ATEX Ex II)
  • RoHS (CE): complies with 2015/863/EU
  • UL Style 20233

    CMAN1300

General
  • Armoured black cable: 1 Ethernet cable, 3 power supply conductors, 1 coaxial video cable, 8 shielded I/O cables
Mechanical
  • Armoured cable
  • External diameter: 20.5mm (0.8in) ± 0.5mm (0.02in)
  • Diameter under armature: 16mm (0.63in)
  • Minimum bending radius: 184.5mm (72.6in)
  • Colour: Black (RAL9005)
  • Type of laying: fixed installation
Electrical
  • Power supply
  • Number of conductors: 3
  • Section: 2.5mm² (13AWG)
  • Working voltage: 300V max
Network
  • Ethernet cable
  • Number of cables: 1
  • Section: 4x2x0.22mm² (24AWG)
  • Category: 5e
  • Shielding: SF/UTP
Video
  • 1 coaxial cable, RG179
I/O
  • Alarms, relay and telemetry
  • Number of conductors: 8
  • Section: 0.34mm² (22AWG)
  • Shielded cable
Environment
  • Temperature: from -60°C (-76°F) up to +105°C (+221°F)
Certifications
  • Oil resistant: complies with CNOMO E.03.40.150N, ASTM n.2, IRM 902, VDE 0472 p.803 test B
  • UV resistant: complies with IEC60068-2-5
  • Resistance to flame spread: complies with IEC/EN60332-1, IEC/EN60332-3-22
  • Halogen free: EN50267-2-1
  • Fixed installation: complies with IEC/EN60079-14 (ATEX Ex II)
  • RoHS (CE): complies with 2015/863/EU

    CMAN0401

General
  • Armoured black cable: 1 Ethernet cable, 3 power supply conductors
Mechanical
  • Armoured cable
  • External diameter: 16.8mm (0.66in) ± 0.4mm (0.016in)
  • Diameter under armature: 12.4mm (0.5in) ± 0.3mm (0.012in)
  • Minimum bending radius: 168mm (6.6in)
  • Colour: Black (RAL9005)
  • Type of laying: fixed installation
Electrical
  • Power supply
  • Number of conductors: 3
  • Section: 1.5mm² (15AWG)
  • Working voltage: 300V max
Network
  • Ethernet cable
  • Number of cables: 1
  • Section: 4x2x0.22mm² (24AWG)
  • Category: 5e
  • Shielding: SF/UTP
Environment
  • Temperature: from -40°C (-40°F) up to +105°C (+221°F)
Certifications
  • Oil resistant: complies with CNOMO E.03.40.150N, ASTM n.2, IRM 902, VDE 0472 p.803 test B, CEI 20-34
  • UV resistant: complies with IEC/EN60068-2-5
  • Resistance to flame spread: complies with IEC/EN60332-1-2, IEC/EN60332-3-22
  • Halogen free: complies with EN50267-2, IEC/EN60754
  • Fixed installation: complies with IEC/EN60079-14 (ATEX Ex II)
  • RoHS (CE): complies with 2015/863/EU

    CMSN0400

General
  • Unarmoured black cable: 1 Ethernet cable, 3 power supply conductors
Mechanical
  • External diameter: 13.6mm (0,5in) ± 0.2mm (0.008in)
  • External diameter, ETH cable: 6.6mm (0.3in)
  • Minimum bending radius: 136mm (5.3in)
  • Colour: Black (RAL9005)
  • Type of laying: fixed installation
Electrical
  • Power supply
  • Number of conductors: 3
  • Section: 1.5mm² (15AWG)
  • Working voltage: 300V max
Network
  • Ethernet cable
  • Number of cables: 1
  • Section: 4x2x0.22mm² (24AWG)
  • Category: 5e
  • Shielding: SF/UTP
Environment
  • Temperature: from -40°C (-40°F) up to +105°C (+221°F)
Certifications
  • Oil resistant: complies with VDE 0472/803B, CEI 20-34, CNOMO E.03.40.150N, ASTM n.2, IRM 902
  • UV resistant: complies with IEC/EN 60068-2-5
  • Resistance to flame spread: complies with IEC/EN 60332-1-2
  • Halogen free: complies with EN50267-2, IEC/EN60754
  • Fixed installation: complies with IEC/EN60079-14 (ATEX Ex II)
  • RoHS (CE): 2015/863/EU
  • LSZH
