MAXIMUS MHX range, Brackets

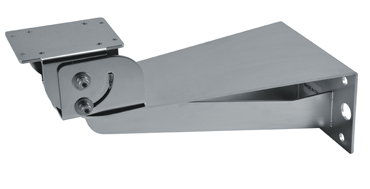

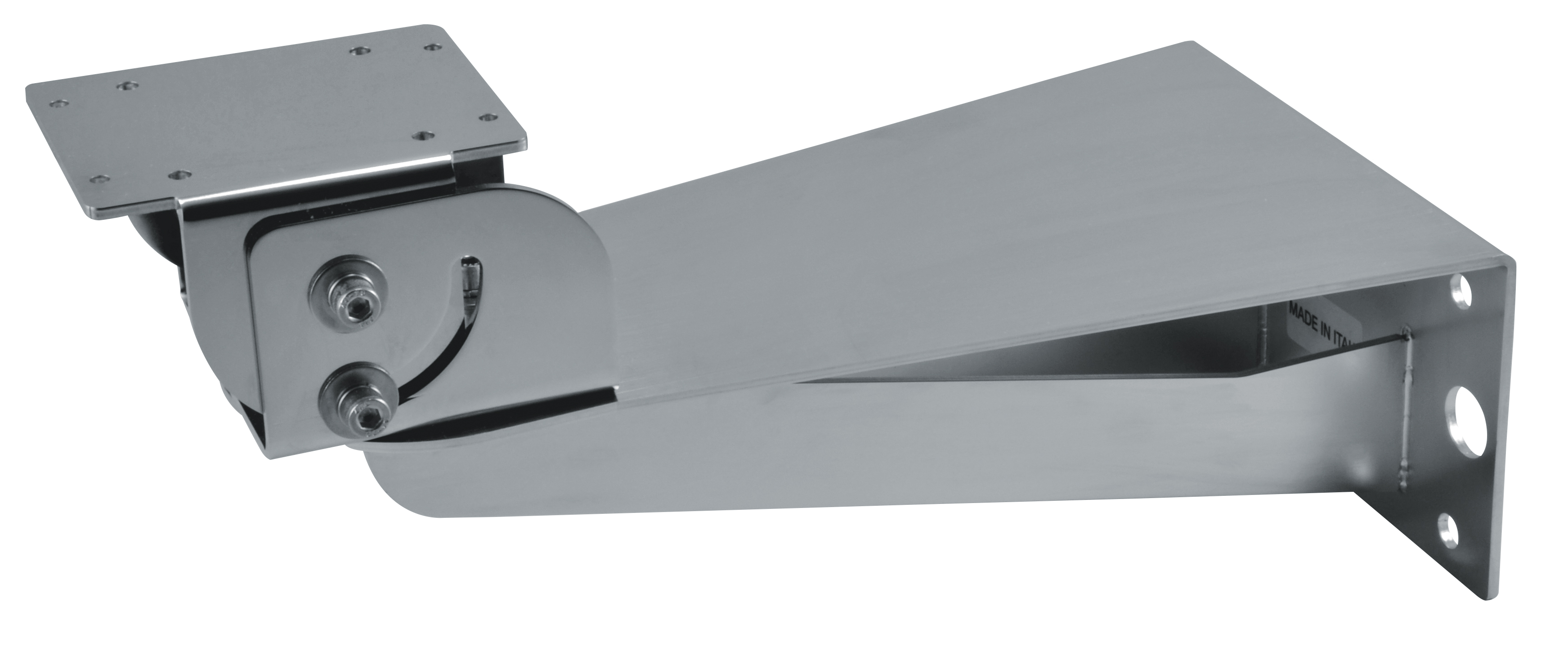

MHXWBS Wall mount bracket
- Made of AISI 316L electropolished stainless steel
- Load rating: 40kg (88lb)
- Length: 440mm (17.3in)
- Suitable for: MPXCW, MPXCOL
MPXCOL Pole mount adaptor
- Made of AISI 316L electropolished stainless steel
- For pole diameters: from 110mm (4.3in) up to 150mm (5.9in)
- Load rating: 50kg (110lb)
- Dimensions: 198x182mm (7.8x7.2in)
MPXCW Corner mount adaptor
- Made of AISI 316L electropolished stainless steel
- Load rating: 50kg (110lb)
- Dimensions: 335x186mm (13.2x7.3in)
- Suitable for: MPXWBA, MHXWBS
MHXWFWCA Parapet mounting bracket
- Made of AISI 316L electropolished stainless steel
- Load rating: 40kg (88lb)
- Dimensions: Ø 101.6mm (4in)
- Compatible with the bracket: NXFWBT
NXFWBT Extension bracket for parapet mounting
- Made of AISI 316L electropolished stainless steel
- Load rating: 70kg (154lb)
- Height: 124mm (4.9in)
MBXMP Plate for assembly of the MAXIMUS MBX with MPXCOL pole adaptor or with MPXCW corner adaptor
- In stainless steel
- Dimensions: 220x240x10mm (8.7x9.4x0.4in)
