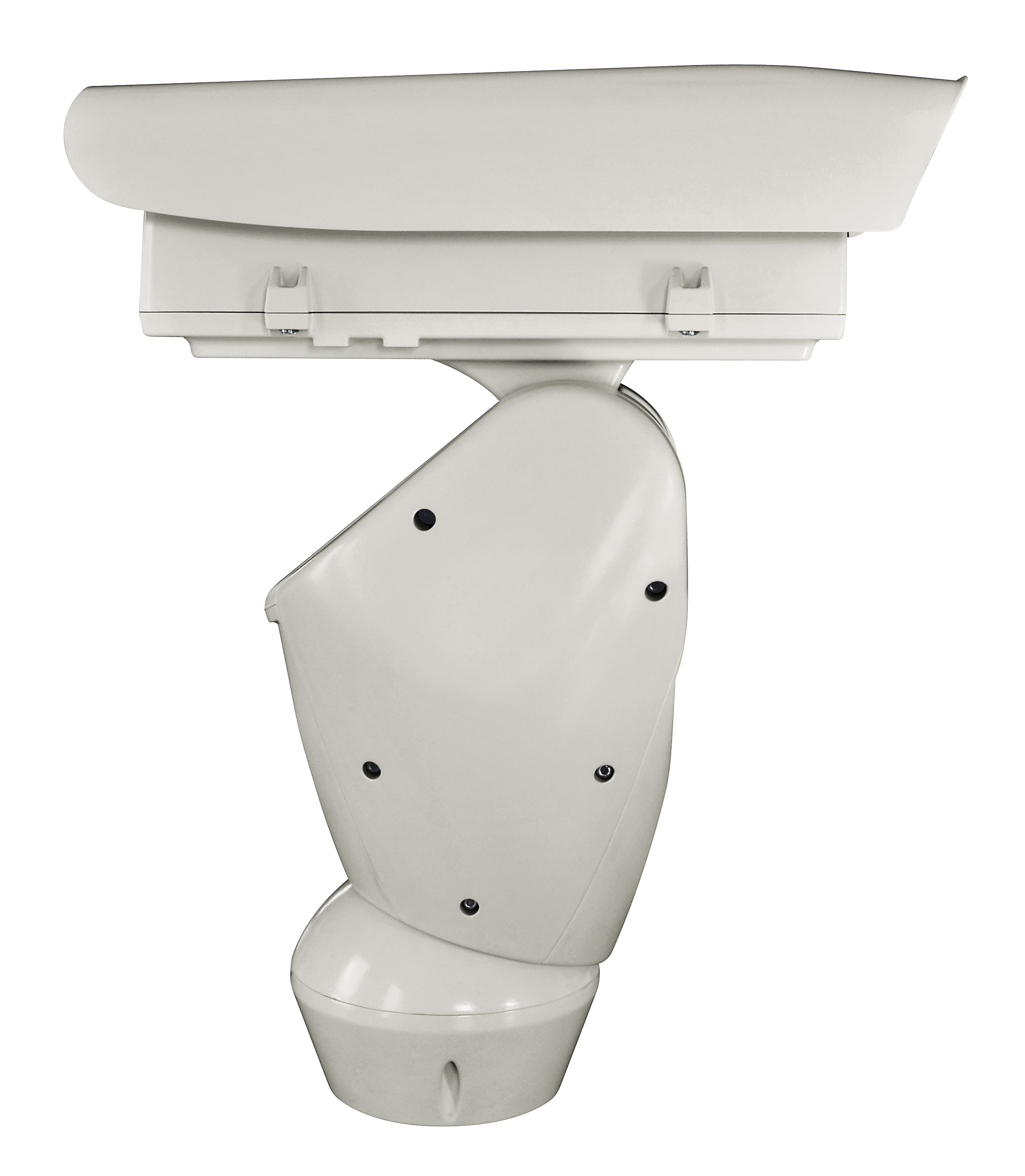

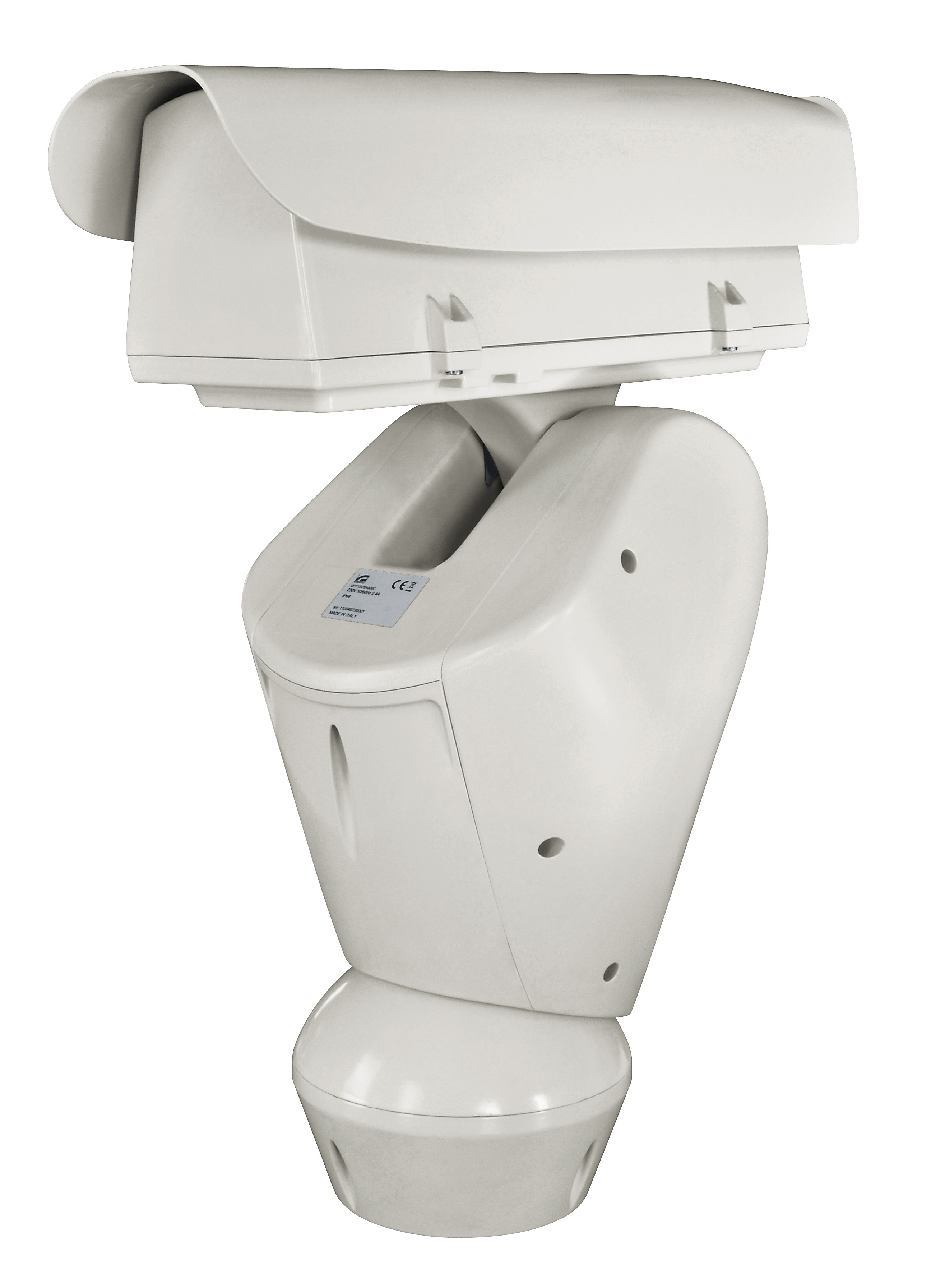

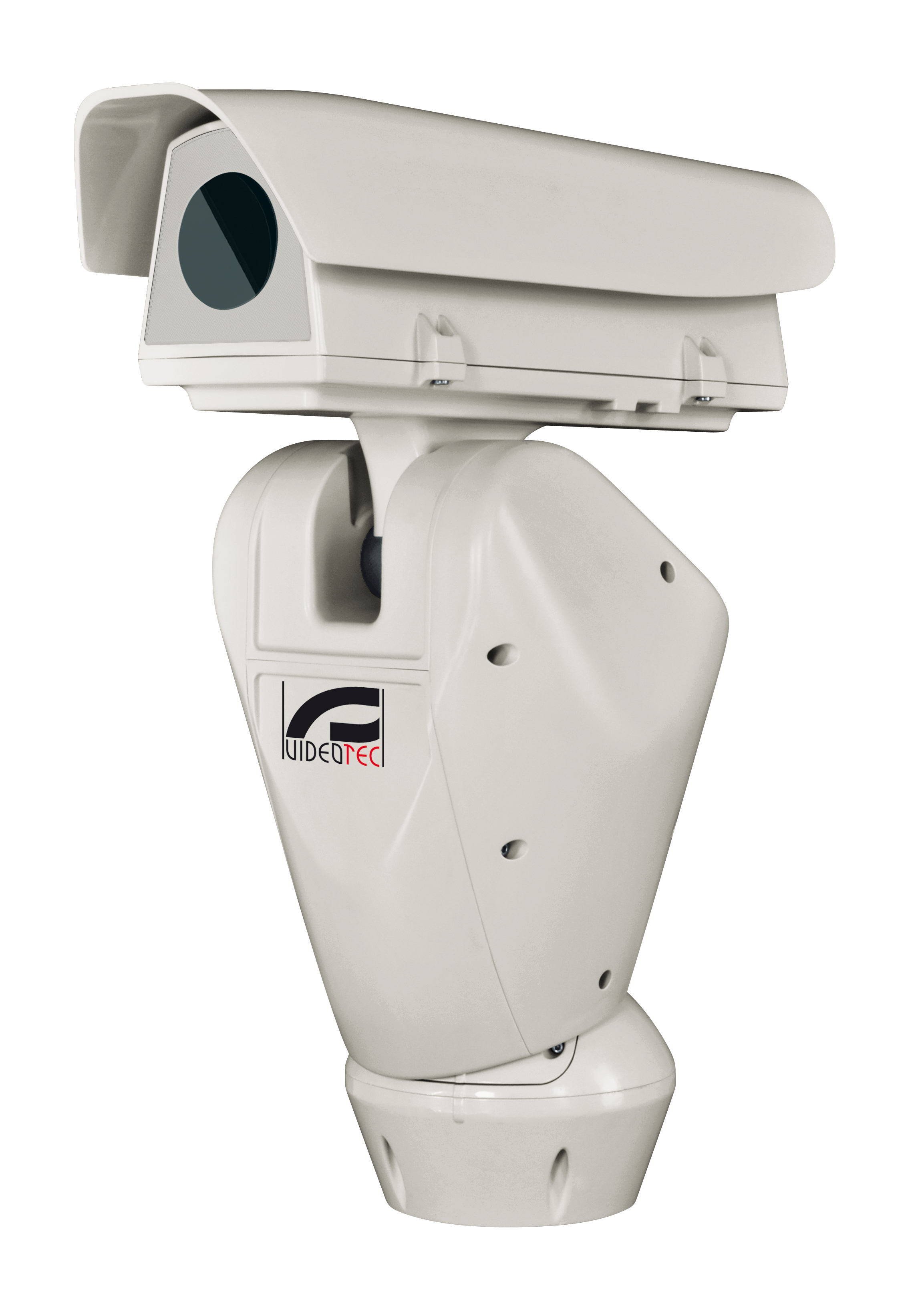

ULISSE RADICAL THERMALThermal PTZ camera with up to 24x continuous zoom

Config link

ULISSE RADICAL RANGE

MARKETS

DESCRIPTION

ULISSE RADICAL THERMAL is the first Videotec ready-to-use thermal PTZ camera system that integrates exceptional factory-assembled combinations of lens and thermal camera for unsurpassed intrusion detection and visual awareness in total darkness or extreme environmental conditions.

KEY FEATURES

Continuous zoom lens, 3x thermal optics, 35-105mm and digital zoom up to 8x, 24x total zoom

Advanced Autofocus system

Analogue or IP (ONVIF S) versions

Advanced Thermographic Function (STR, Spot Temperature Reading)

DDE, Digital Detail Enhancement

Dynamic adjustment of contrast (ACE, Active Contrast Enhancement)

Operating temperature: from -40°C (-40°F) up to +65°C (149°F)

TECHNICAL DATA

General
  • Constructed from aluminium and technopolymer
  • Epoxypolyester powder painting, RAL9002 colour
  • Top mount (OTT)
  • Transmission through toothed belt
  • Slip-ring
  • Electronic limit switches
  • Zero backlash

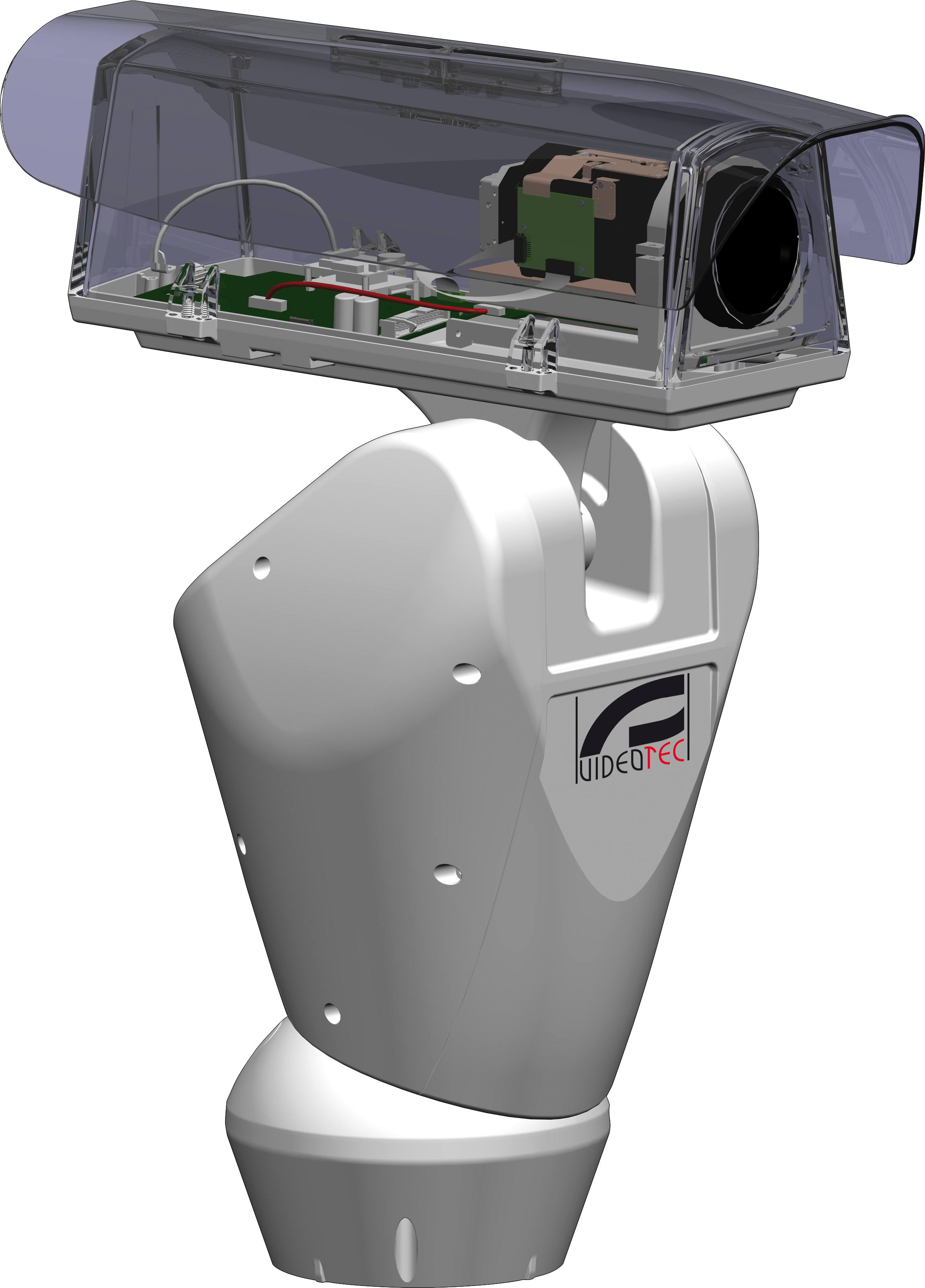

  • Pre-installed camera and lens
Mechanical
  • Cable glands: 3xM16
  • Horizontal rotation: 360°, continuous rotation
  • Vertical rotation: from -40° up to +90°
  • Horizontal speed (variable): from 0.02°/s up to 100°/s
  • Tilt speed (variable): from 0.02°/s up to 50°/s
  • Internal usable dimensions (WxHxL): 90x115x325mm (3.5x4.5x13in)
  • Accuracy of preset positions: 0.02°
  • Unit weight: 17kg (37lb)
Housing's window
  • Germanium window
  • Thick: 4mm (0.16in)
  • External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection
  • Internal treatment: antireflection
  • Spectral range: from 7.5μm up to 14μm
  • Medium transmittance (from 7.5μm up to 11.5μm): 88.1%
  • Medium transmittance (from 11.5μm up to 14μm): 77.7%
Electrical
  • Supply voltage/Current consumption:
  • 230Vac, 0.4A, 50/60Hz
  • 120Vac, 0.8A, 50/60Hz
  • 24Vac, 4A, 50/60Hz
  • Power consumption:
  • 100W max
  • 28.5W, P&T static, heating switched off
  • 4 self-powered alarm inputs
  • 2 dry contacts: 30Vdc max o 30Vac, @ 1A
Network
  • Connector: RJ45, 10BASE-T/100BASE-T
  • Protocol: ONVIF, Profile S (TCP/IPv4, UDP/IPv4, HTTP, NTP, DHCP, WS-DISCOVERY, QoS, RTSP, RTCP, RTP)
Serial communications
  • Configuration through OSM
  • 2 half-duplex serial RS-485 interfaces or full-duplex RS-422
  • Firmware updating from console in remote mode (PELCO D, MACRO)
  • Up to 999 units, addressable by means of dip-switches
  • Protocols supported: AMERICAN DYNAMICS, ERNITEC, PANASONIC, PELCO D, MACRO
Video
  • Compression: H.264/AVC, JPEG
  • Independent video streams: 2
  • Image resolution: from Full D1 (720x576 for PAL, 720x480 for NTSC) to 352x240 in 18 steps
Cameras
  • Thermal camera (336x256):
  • Pixel dimension: 17μm
  • Digital Zoom: 4x
  • Thermal sensitivity (NEdT): < 50mK at f/1.0
  • Spectral response - long wave infrared (LWIR): from 7.5μm to 13.5μm
  • Internal shutter (only for sensor compensation): Video stop < 1sec.
  • Scene range (High Gain): -40°C ÷ +160°C (-40°F ÷ +320°F)
  • Scene range (Low Gain): -40°C ÷ +550°C (-40°F ÷ +1022°F)
  • Thermal camera (640x512):
  • Pixel dimension: 17μm
  • Digital Zoom: 8x
  • Thermal sensitivity (NEdT): < 50mK at f/1.0
  • Spectral response - long wave infrared (LWIR): from 7.5μm to 13.5μm
  • Internal shutter (only for sensor compensation): Video stop < 1sec.
  • Scene range (High Gain): -40°C ÷ +160°C (-40°F ÷ +320°F)
  • Scene range (Low Gain): -40°C ÷ +550°C (-40°F ÷ +1022°F)
Lenses
  • 3x optical zoom, 35-105mm, F1.6
  • Minimum focusing distance: 7m (23ft)
  • Field of view (640x512 pixel):
  • Wide: 17.97°H, 14.33°V
  • Zoom tele: 5.93°H, 4.75°V
  • Field of view (336x256 pixel):
  • Wide: 8.98°H, 7.15°V
  • Zoom tele: 2.97°H, 2.38°V
Environment
  • For indoors and outdoors installation
  • Operating temperature: from -40°C (-40°F) up to +65°C (149°F)*
  • Cold start: -40°C (-40°F)
  • Surge immunity: up to 1kV line to line, up to 2kV line to earth (Class 4)
  • * peak temperature
  • Relative humidity: from 10% up to 95% (no condensation)
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN50130-4, EN610000-6-4, EN55022 (Class A), FCC Part 15 (Class A)
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • IP protection degree: EN60529, IP66
  • Salty fog resistance: EN50130-5, EN60068-2-52
  • UL certification : cULus Listed (TYPE 4X)
  • EAC certification
