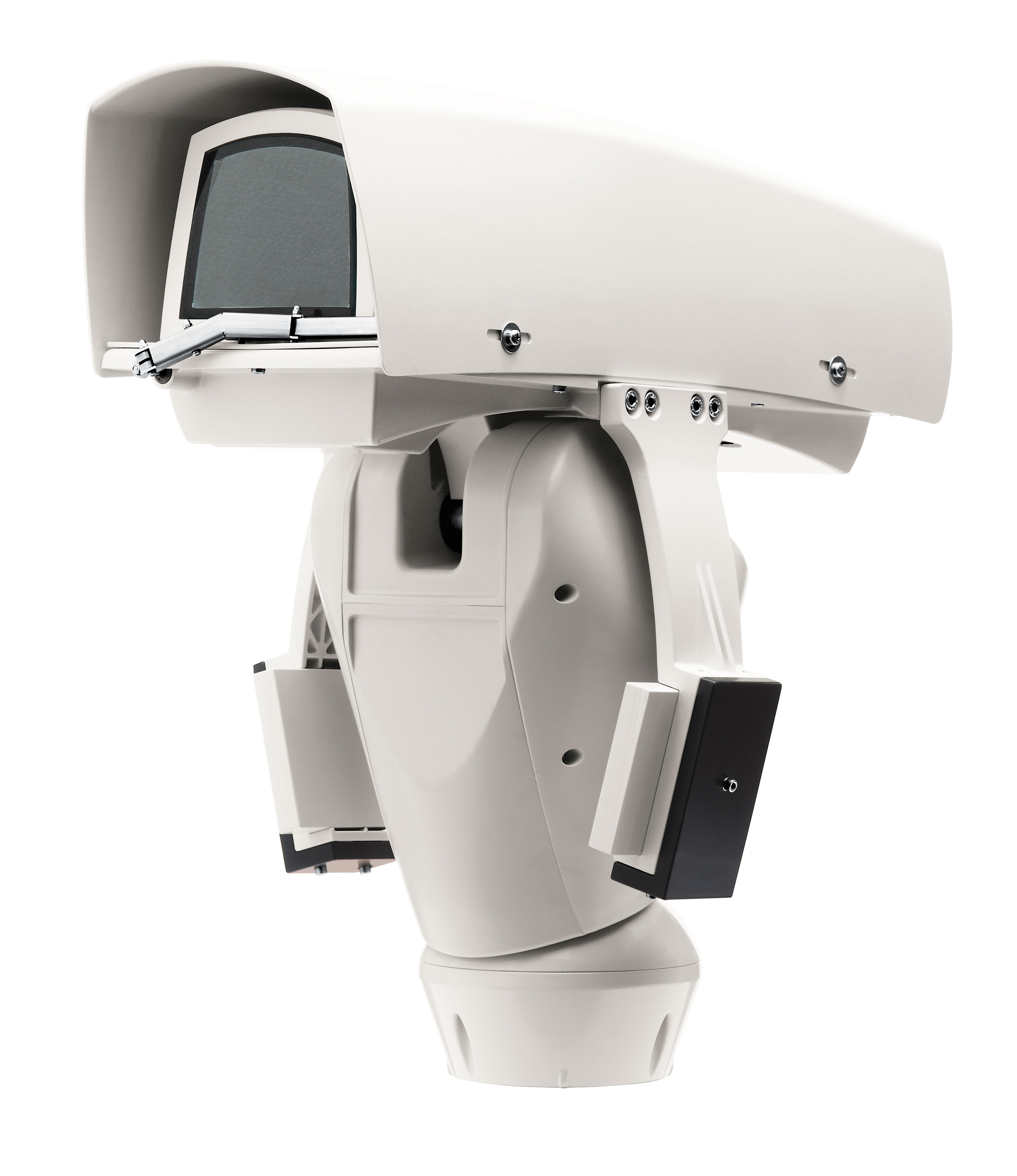

ULISSE MAXI NETCAMFull IP PTZ unit for network cameras for dynamic monitoring of large outdoor areas

Config link

ULISSE MAXI Vs 1-G FORCE

MARKETS

DESCRIPTION

ULISSE MAXI NETCAM is a powerful Full-IP PTZ for outdoor IP video surveillance, which can manage modern IP SD, HD and Megapixel cameras, with integration in a network system.

This model can house and manage the largest motorised lenses on the market, taking a total weight of up to almost 8 kilos.

KEY FEATURES

ULISSE PTZ, IP Onvif-S camera, zoom lens as a single IP address

Total control through Videotec's PTZ assistant

Optical sensors for absolute positioning feedback

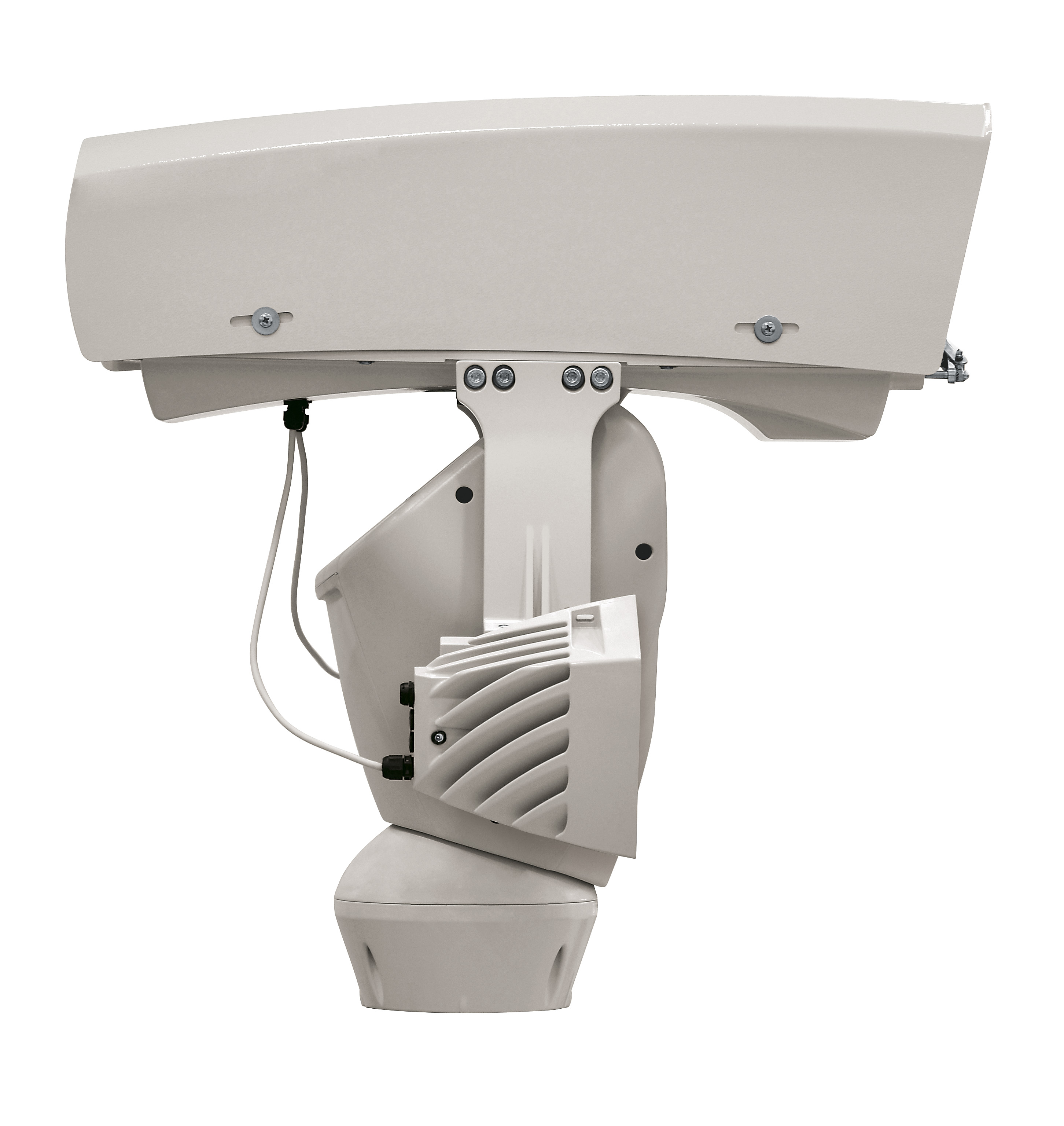

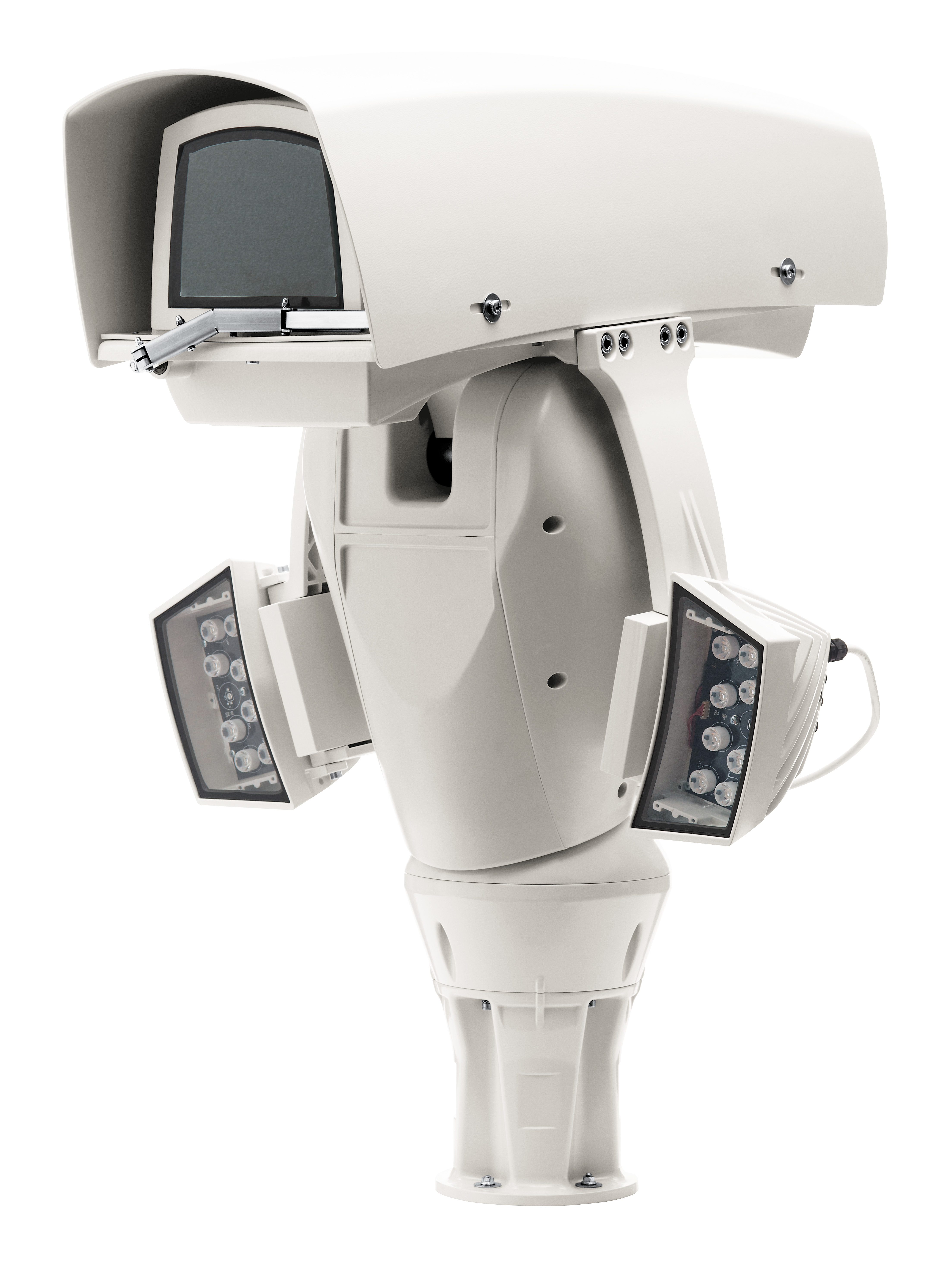

LED illuminators

Wiper

Operating temperature: -10°C / +60°C (14°F / 140°F)

TECHNICAL DATA

General
  • Top mount (OTT)
  • Transmission through toothed belt
  • Slip-ring
  • Electronic limit switches
  • Simplified installation thanks to the connector and easy replacement on-site
  • Zero backlash
  • Max weight camera+lens: 7.6kg (17lb)
  • Encoder for absolute positioning
  • Configuration of telemetry protocol parameters through dip-switch for RS-485
Mechanical
  • Constructed from aluminium and tecnopolymer
  • Epoxypolyester powder painting, RAL9002 colour
  • Horizontal rotation: 360°, continuous rotation
  • Vertical rotation: from -20° up to +45°
  • Horizontal speed (variable): from 0.02°/s up to 20°/s
  • Tilt speed (variable): from 0.02°/s up to 20°/s
  • Accuracy of preset positions: 0.02°
  • Internal usable area: See drawings
  • Cable glands: 3xM16
  • Unit weight: 30kg (66lb)
Housing's window
  • Glass window extra clear
  • Dimensions: 112mm (4.4in)x95mm (3.7in)
  • Germanium window
  • Usable diameter: 70mm (2.8in)
  • Thick: 2mm (0.08in)
  • External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection
  • Internal treatment: antireflection
  • Spectral range: from 7.5μm up to 14μm
  • Medium transmittance (from 7.5μm up to 11.5μm): 90%
  • Medium transmittance (from 11.5μm up to 14μm): 77%
Electrical
  • Suitable for use with network cameras
  • Supply voltage/Current consumption:
  • 230Vac, 0.4A, 50/60Hz
  • 24Vac, 4A (8A, with LED illuminators), 50/60Hz
  • 120Vac, 0.8A, 50/60Hz
  • Power consumption:
  • 100W
  • 150-190W max with LED illuminators in 24Vac
  • 24W, P&T static, heating switched off
  • Camera power supply: 12Vdc (800mA)
  • 4 self-powered alarm inputs
  • 2 dry contacts: 30Vdc max or 30Vac, 1A max
Network
  • Ethernet connection: IEEE 802.3 100Base-Tx
  • ONVIF, Profile S
Environment
  • For installation indoors and outdoors
  • Operating temperature (with heater): from -10°C (14°F) up to +60°C (140°F)
  • Surge immunity: up to 2kV line to line, up to 4kV line to earth (Class 4)
  • Relative humidity: from 10% up to 95% (no condensation)
Certifications
  • Electrical safety (CE): EN60950-1
  • Electromagnetic compatibility (CE): EN50130-4, EN55022 (Class A), FCC Part 15 (Class A)
  • Outdoor installation: EN60950-22
  • Photobiological safety (CE): EN62471 (LED illuminators)
  • IP protection degree: EN60529 (IP66)
  • Salty fog resistance: EN50130-5, EN60068-2-52
  • EAC certification
Accessories
  • UPTJBUL Junction weatherproof box for cables connexion (according UL norm)
  • UPTIRN108A00 LED illuminator for ULISSE, 10°, 850nm, 24Vac - 12/24Vdc
  • UPTIRN308A00 LED illuminator for ULISSE, 30°, 850nm, 24Vac - 12/24Vdc
  • UPTIRN608A00 LED illuminator for ULISSE, 60°, 850nm, 24Vac - 12/24Vdc
  • UPTIRN109A00 LED illuminator for ULISSE, 10°, 940nm, 24Vac - 12/24Vdc
  • UPTIRN309A00 LED illuminator for ULISSE, 30°, 940nm, 24Vac - 12/24Vdc
  • UPTIRN10WA00 LED illuminator for ULISSE, 10°, white light, 24Vac - 12/24Vdc
  • UPTIRN30WA00 LED illuminator for ULISSE, 30°, white light, 24Vac - 12/24Vdc
  • UPTIRN60WA00 LED illuminator for ULISSE, 60°, white light, 24Vac - 12/24Vdc
  • UPTIRPS230N External power supply for ULISSE series, prearranged for two LED illuminators, and control to synchronize IR illuminators with camera Day/Night switching, IN 230Vac, in weatherproof box . Twilight sensor included .
  • UPTIRPS100N External power supply for ULISSE series, prearranged for two LED illuminators, and control to synchronize IR illuminators with camera Day/Night switching, IN 100Vac, in weatherproof box
  • UPTIRPS120UL External power supply for ULISSE series, prearranged for two LED illuminators, and control to synchronize IR illuminators with camera Day/Night switching, IN 120Vac, in weatherproof box . Twilight sensor included .
  • WASPT0V5L5M00 Water tank 5l (1.3gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L5M00 Water tank 23l (6 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L11M00 Water tank 23l (6 gal), pump with delivery up to 11m (36ft) with water floating, IN 230Vac-24Vac-120Vac
  • WASPT1V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
  • WASPT3V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
  • WASNX1V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 230Vac
  • WASNX2V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac
  • WASNX3V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 120Vac
Brackets and adaptors
  • UPTWBA Wall bracket with internal cable channel
  • UPTWBTAB Parapet bracket with internal cable channel
