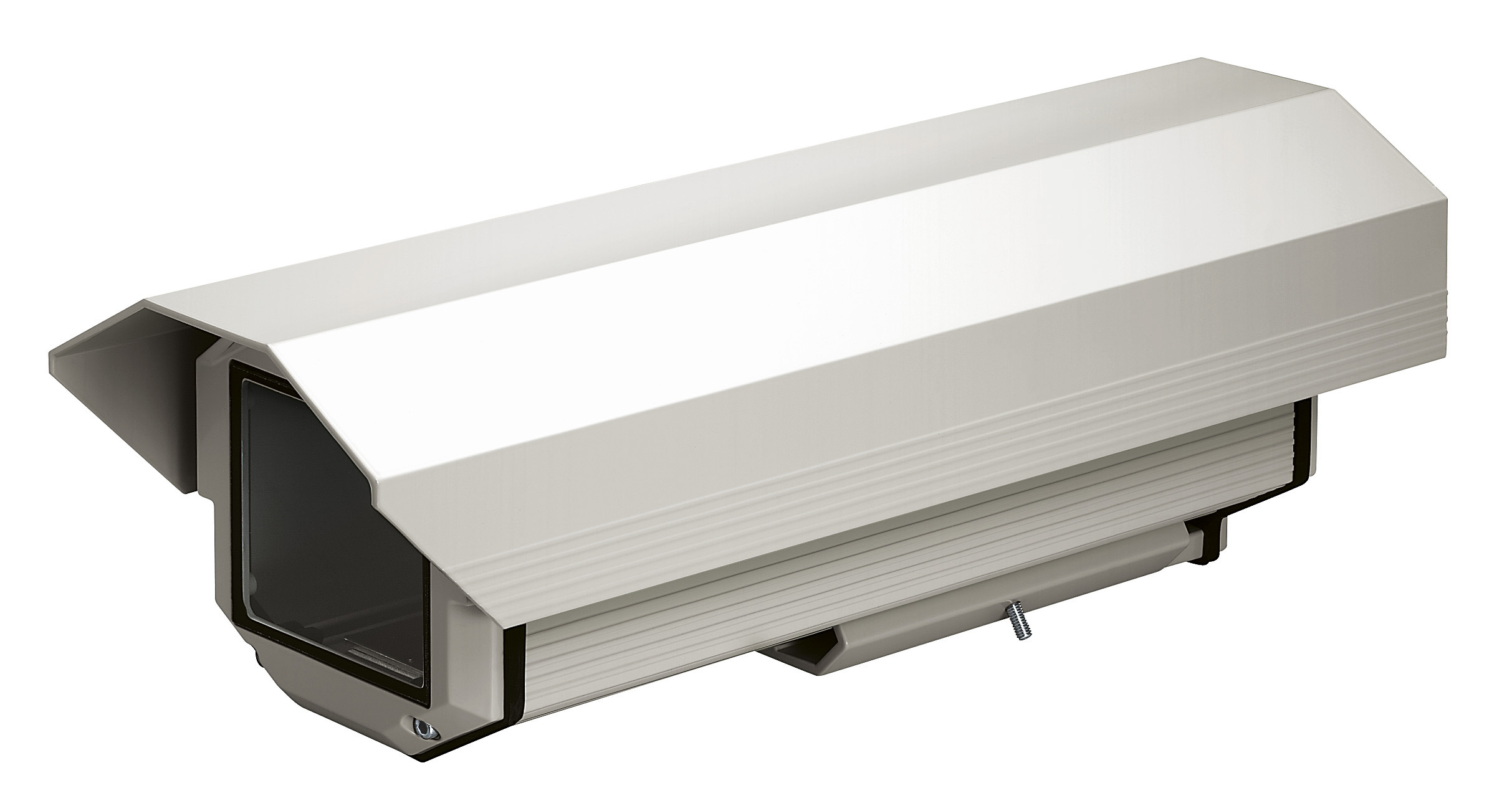

HEGLarge-sized aluminium camera housing

MARKETS

DESCRIPTION

Robust and large aluminium housing designed to fit 1/2", 1/3" and 1/4"cameras, with different types of optics.

The opening system allows an easy access for installation and servicing.

KEY FEATURES

Large housing for large lenses

Slide extractable body

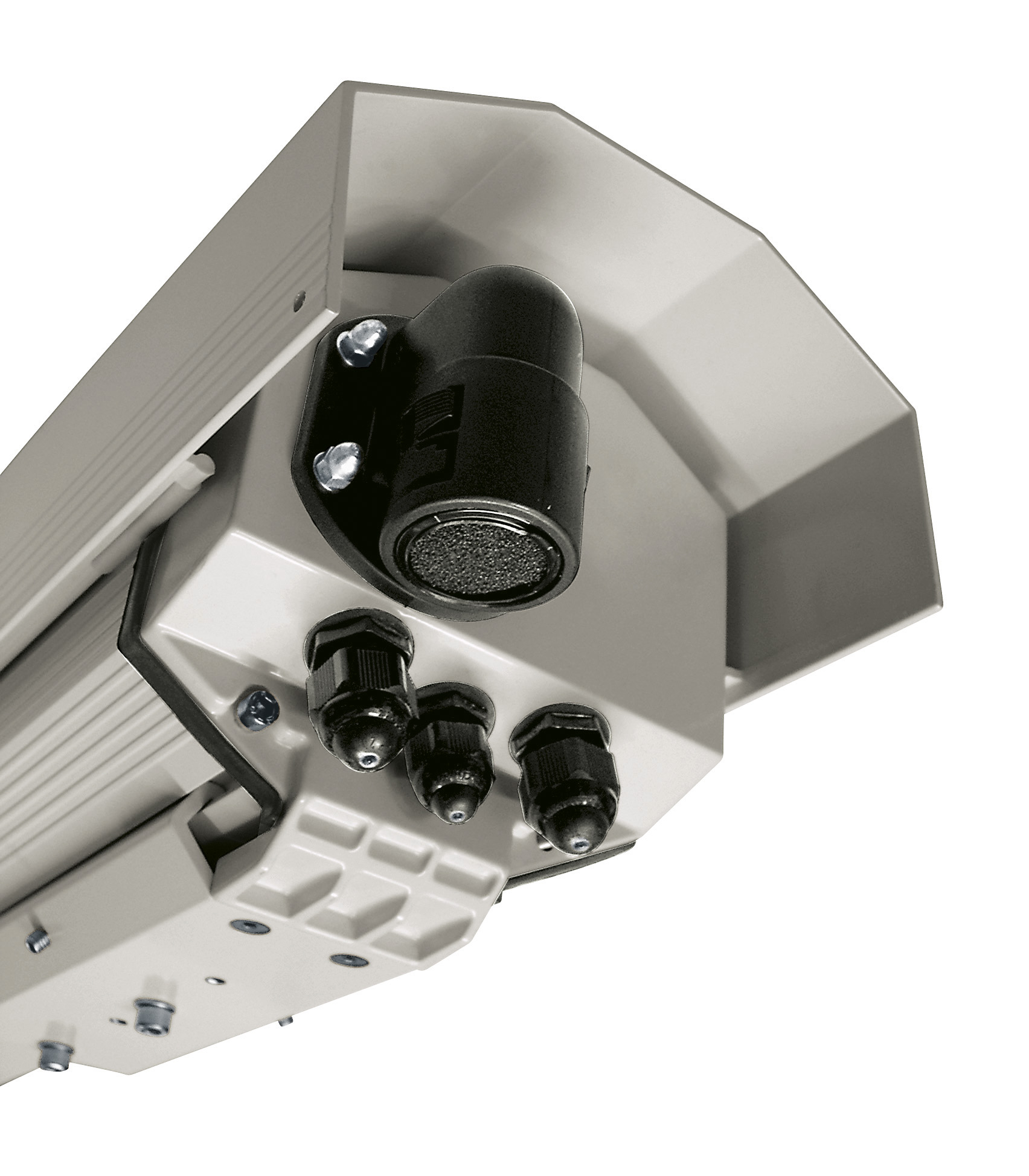

Version available with a very efficient cooling system for installation with IP cameras and for high environmental temperature

Versions with reinforced double heater (down to -40°C(-40°F) or triple (down to -50°C (-58°F))

TECHNICAL DATA

General
  • Constructed from aluminium
  • Epoxypolyester powder painting, RAL9002 colour
  • Stainless steel external screws
Mechanical
  • Internal usable area
  • Empty version: 134x88mm (5.3x3.4in)
  • Version with double or triple heater : 112x88mm (4.4x3.5in)
  • Internal usable length (without accessories)
  • HEG37: 365mm (in)
  • HEG47: 450mm (18in)
  • Internal usable length (with accessories):
  • HEG37: 273mm (10.7in)
  • HEG47: 363mm (14in)
  • Cable glands: 3xM16
  • Glass window extra clear
  • Dimensions (WxH): 94x80mm (3.7x3.1in)
  • Unit weight
  • HEG37: 4.1kg (9lb)
  • HEG47: 4.7kg (10.3lb)
Electrical
  • Supply voltage/Current consumption (version with heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)):
  • 12Vdc, 1.6A max
  • 24Vac, 0.85A max, 50/60Hz
  • 120Vac, 0.35A max, 50/60Hz
  • 230Vac, 0.18A max, 50/60Hz
  • Supply voltage/Current consumption (version with double heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)):
  • 120Vac, 0.7A max, 50/60Hz
  • 230Vac, 0.35A max, 50/60Hz
  • Supply voltage/Current consumption (version with triple heater, continuous duty fan , Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)):
  • 120Vac, 1A max, 50/60Hz
  • 230Vac, 0.52A max, 50/60Hz
  • Supply voltage/Current consumption (version with heater, blower and thermostat for models with double filter for air renewal, Ton 35°C±3°C (95°F±5°F), Toff 20°C±3°C (71°F±5°F)):
  • 24Vac, 1A max, 50/60Hz
  • 120Vac, 0.37A max, 50/60Hz
  • 230Vac, 0.19A max, 50/60Hz
  • Camera power supply:
  • IN from 100Vac up to 240Vac, 50/60Hz - OUT 12Vdc, 1.25A
  • IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA
Environment
  • For installation indoors and outdoors
  • Operating temperature with heating: from -20°C (-4°F) up to +60°C (140°F)
  • Operating temperature with double heater: from -40°C (-40°F) up to +60°C (140°F)
  • Operating temperature with triple heater: from -50°C (-58°F) up to +60°C (140°F)
Certifications
  • Electrical safety (CE): EN60065
  • Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3
  • IP protection degree:
  • EN60529, IP66/IP67 (with cable glands)
  • EN60529, IP44 (with double filter for air renewal)
  • Salty fog resistance: to 1000 hours (ISO9227)
  • EAC certification
Accessories
  • OHEH24B Heater 120/230Vac for HEG, HTG housings
  • OHEH25B Heater 12Vdc/24Vac for HEG, HTG housings
  • OHEPS19B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for VERSO, VERSO POLAR, VERSO COMPACT, HEG, HTG housings
  • OHEPS20 Camera power supply IN 230Vac - OUT 24Vac, 10VA, for VERSO, VERSO POLAR, VERSO COMPACT, HEG, HTG housings
  • OHEGBPS1B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, in weatherproof box, for VERSO, VERSO POLAR, HEG, HTG housings
  • OHEGBPS2B Camera power supply IN 230Vac - OUT 24Vac in weatherproof box, 10VA, for VERSO, VERSO POLAR, HEG, HTG housings
  • OHEGBB Weatherproof junction box

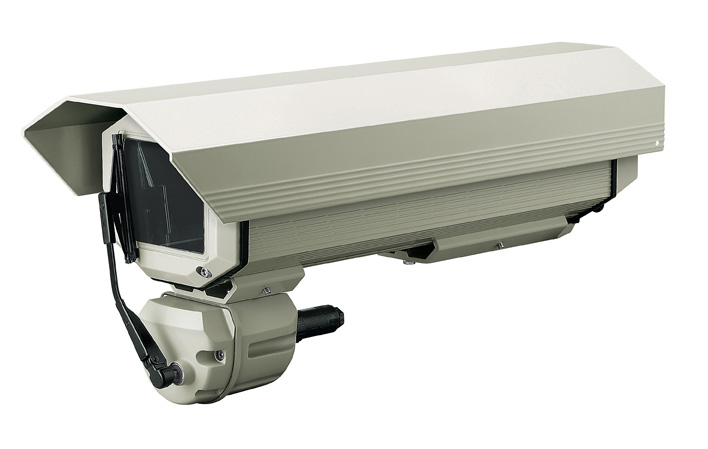

  • VIP6A1 Wiper 230Vac for HEG housings
  • VIP6A2 Wiper 24Vac for HEG housings
  • WAS0V5L5M00 Water tank 5l (1.3gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WAS0V23L5M00 Water tank 23l (6 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WAS0V23L11M00 Water tank 23l (6 gal), pump with delivery up to 11m (36ft), IN 230Vac-24Vac-120Vac
  • WAS1V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
  • WAS3V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
  • WASPT0V5L5M00 Water tank 5l (1.3gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L5M00 Water tank 23l (6 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L11M00 Water tank 23l (6 gal), pump with delivery up to 11m (36ft) with water floating, IN 230Vac-24Vac-120Vac
  • WASPT1V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
  • WASPT3V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
  • DTWRX Data receiver for remote control of the wiper and WASPT range pumps in stand-alone housings
Brackets and adaptors
  • WBJA Wall mount bracket
  • WCM5A Ceiling bracket with ball joint
  • WFWCA Column bracket with joint
Spare parts
  • OHEGS37A000 Sunshield
  • OHEGS47A000 Sunshield HEG47
  • DOTHE01 Spacers for camera and lens
  • OHEGNMAN Cable glands, gaskets and screws
  • OHEGFA04 Front cover with screws and gaskets
  • OHEGFPN04 Back cover with cable glands, gaskets and screws

AVAILABLE MODELS

Model Number

Sunshield

Heater 120Vac/230Vac

Heater 12Vdc/24Vac

24Vac fan with double air exchange filter

PS 100/240Vac IN, OUT 12Vdc, 1A for fan, with double air exchange filter

Double heater 120/230Vac

Triple fan-assisted heating 120/230Vac

Max consumption

HEG37K0A000

_|SI|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

HEG37K1A000

_|SI|_

_|SI|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

40W

HEG37K1A074

_|SI|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

_|SI|_

_|NO|_

80W

HEG37K1A143

_|SI|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

_|SI|_

124W

HEG37K2A000

_|SI|_

_|NO|_

_|SI|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

20W

HEG47K1A000

_|SI|_

_|SI|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

40W

HEG47K1A018

_|SI|_

_|SI|_

_|NO|_

_|NO|_

_|SI|_

_|NO|_

_|NO|_

44W

HEG47K2A000

_|SI|_

_|NO|_

_|SI|_

_|NO|_

_|NO|_

_|NO|_

_|NO|_

20W

HEG47K2A016

_|SI|_

_|NO|_

_|SI|_

_|SI|_

_|NO|_

_|NO|_

_|NO|_

24W
