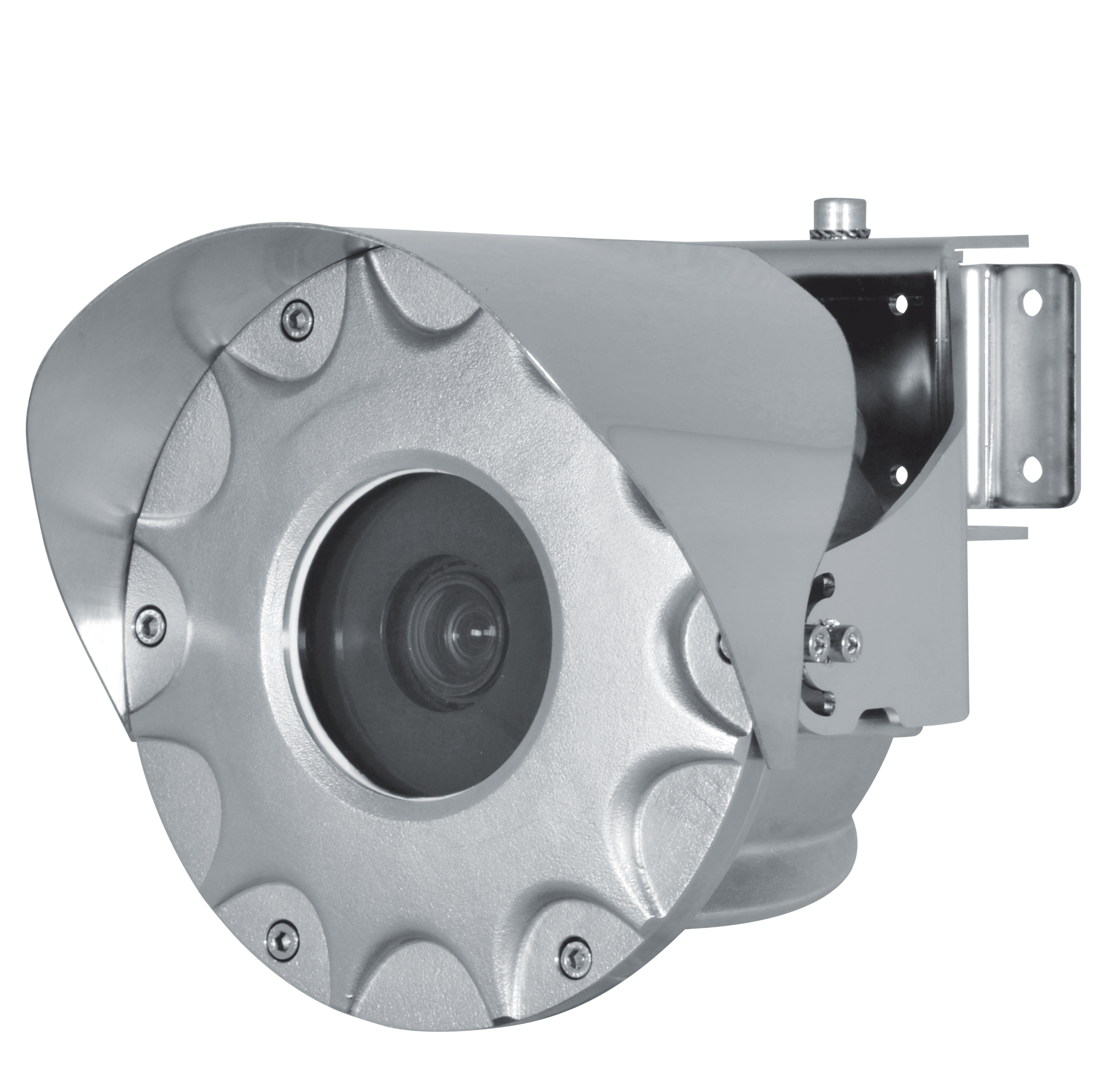

MAXIMUS MMXEx-proof FULL HD camera in a compact design

Maximus MMX Full HD Camera

MARKETS

CERTIFICATIONS

DESCRIPTION

The explosion-proof Full HD camera MAXIMUS MMX is perfect for efficient video surveillance and control of processes in hazardous environments where the atmosphere is potentially explosive due to the presence of inflammable gases or dust, typical of the Oil&Gas, marine or industrial and foodstuff sectors.

The Full HD, 1080p camera, with 3x or 10x motorised zoom lens, offers multiple video streams (H.264/AVC, MJPEG, JPEG, MPEG4) and provides exceptional image quality, picking out every detail in a scene, even in the harshest environmental conditions.

An absolute advantage offered by this camera is its extremely easy and safe installation. The camera can be supplied with multipolar cabling. The camera can also be powered in PoE+, thereby allowing further simplification of installation operations. The camera is supplied with supports for wall, ceiling and railing installation and with a sunshield.

The MAXIMUS MMX range of cameras meets every installation need, providing maximum performance and excellent value for money.

The MAXIMUS MMX product is Lloyd's Register Type Approval System Test Specification Number 1 certified and therefore can be used in Marine and Offshore applications for environmental categories ENV1, ENV2, ENV3 and ENV5.

KEY FEATURES

Certifications for use in Zones 1 and 2, IIB T6 or T5 Group (Gas) and in Zones 21 and 22, IIIC T85°C or T100°C Group (Dust)

AISI 316L stainless steel construction

Supports for ceiling, wall and parapet installation supplied

Camera Full HD 1080p, 3x or 10x with image stabilizer

TECHNICAL DATA

Mechanical
  • AISI 316L stainless steel construction
  • External shot peened and electro-polished surfaces
  • Sunshield

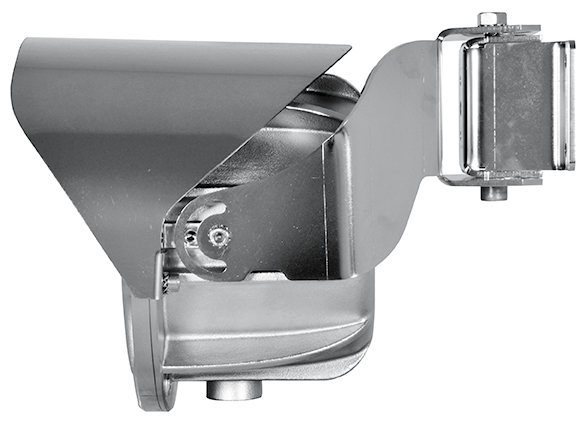

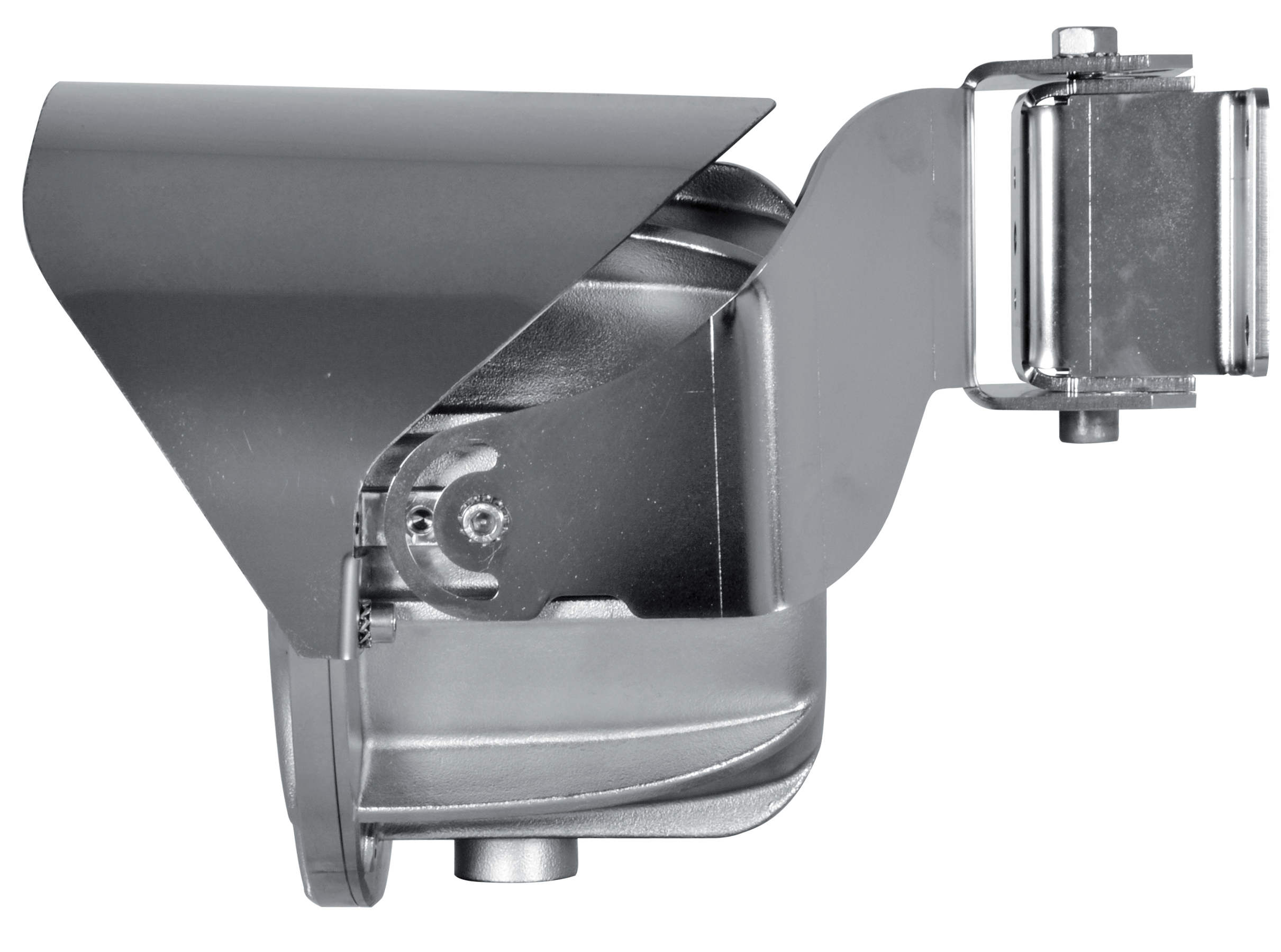

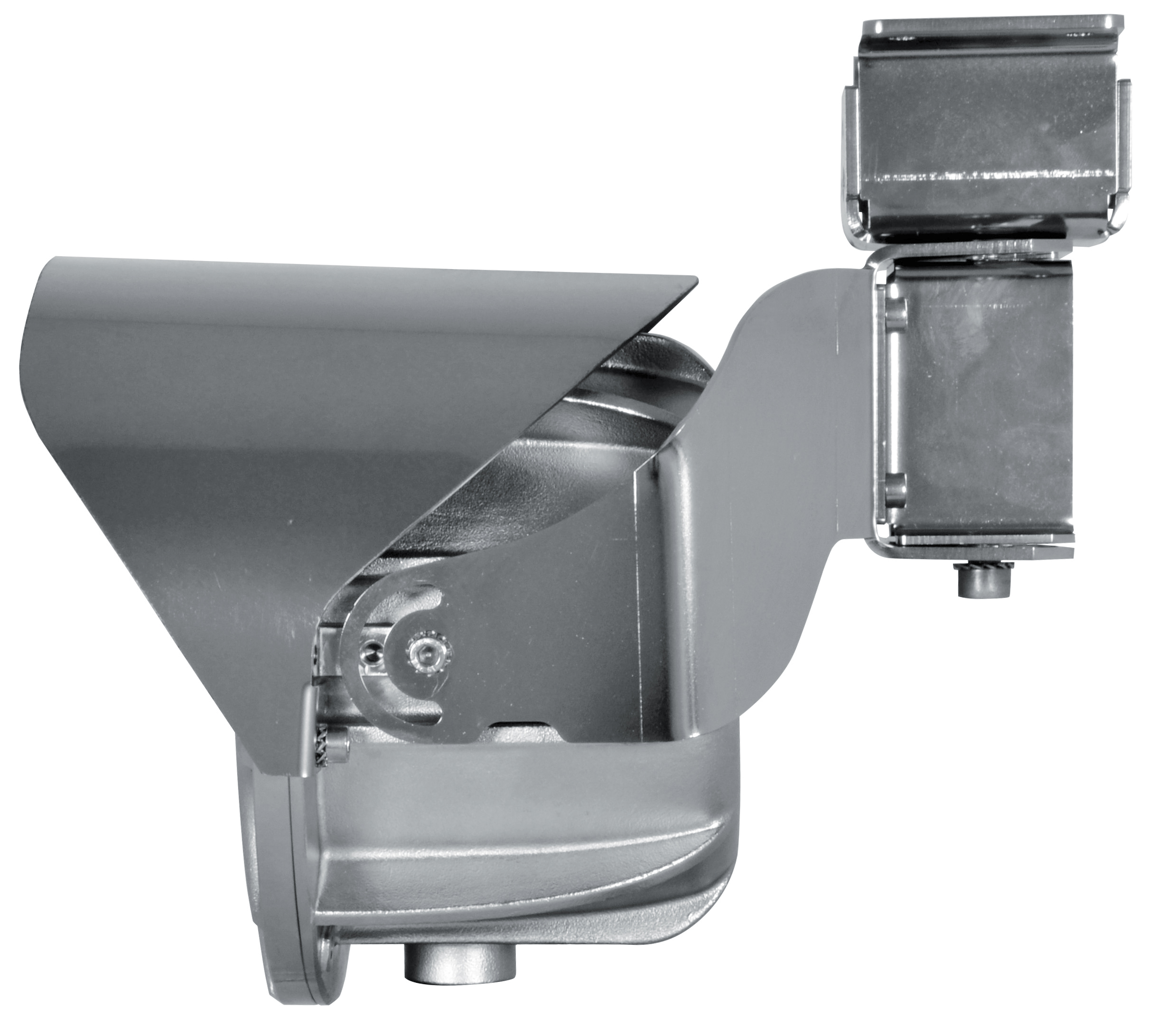

  • Supports for wall, ceiling or parapet installation
  • Unit weight:
  • 6.5kg (14.3lb) (housing only + mounting bracket)
  • 8.5kg (18.7lb) (housing with 4m (13ft) armoured multipolar cable)
Cable glands
  • Cable entry: 1 hole, 1/2" NPT
  • Cable gland Ex d 1/2"NPT (with pre-installed cable only)
Housing's window
  • Material: Tempered glass
  • Usable diameter: 73.5mm (2.9in)
Electrical
  • Supply voltage/Current consumption
  • 24Vac ±10%, 1.32A, 50/60Hz
  • 24Vdc ±5%, 0.9A
  • PoE+ (IEEE 802.3at)
  • Power consumption:
  • 21W (24Vac, 1.32A, 50/60Hz)
  • 20W (24Vdc, 0.9A)
  • 21W (PoE+)
  • Armoured cable
  • External diameter: 16.8mm (0.66in)±0.4mm (0.016in)
  • Diameter under armature: 12.4mm (0.5in)±0.3mm (0.012in)
  • Colour: black RAL 9005
  • Armoured cable composition:
  • 3x1.5mm² (15AWG)
  • 4x2x0.22mm² (24AWG) (cat. 5E F/STP)
Network
  • Ethernet connection: 100 Base-TX
  • Connector: RJ45
Cybersecurity
  • Digitally signed firmware
  • Password restricted access (HTTP digest)
  • Support of various user access levels
  • Control of accesses IEEE 802.1X
  • HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3
  • Centralised certificate management
  • Complies with ONVIF Security Service specifications
Video
  • Video encoder
  • Communication protocol: ONVIF, Profile Q, Profile S and Profile T
  • Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
  • Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
  • Video compression: H.264/AVC, MJPEG, MPEG4, snapshot JPEG
  • 3 independent video streams Full HD
  • Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps
  • Selectable frame rate from 1 to 60 images per second (fps)
  • Web Server
  • Directional OSD (maximum 4 settable areas)
  • Motion Detection
  • Video analytics: VIDEOTEC ANALYTICS (optional)
  • QoS: Differentiated DSCPs for streaming and device management
  • SNMP and NTCIP protocols
Cameras

    Day/Night Full HD 10x

  • Resolution: Full HD 1080p (1920x1080pixel)
  • Signal system: 1080p/60fps max
  • Image Sensor: 1/3" CMOS sensor
  • Effective pixels: 2.48Megapixel
  • Minimum Illumination, colour (ICR-OFF):
  • 0.5lx IRE 50%
  • 0.125lx IRE 50% (Slow Shutter)
  • Minimum Illumination, B/W (ICR-ON):
  • 0.1lx IRE 50%
  • 0.025lx IRE 50% (Slow Shutter)
  • Lens:
  • From f= 5.1mm (wide) up to 51mm (tele)
  • From F1.6 up to F1.8
  • Zoom: 10x (320x, with digital zoom)
  • Horizontal Viewing Angle: from 54° (wide) up to 4.9° (tele)
  • Minimum object distance: from 100mm (3.9in) (wide) up to 1000mm (39.4in) (tele)
  • Shutter speed: from 1/8s up to 1/30000s, 14 steps
  • White balance: Auto, Indoor, Outdoor, Manual
  • Wide Dynamic Range: On/Off, Light level
  • Exposure Control: Auto, Manual, Shutter priority, Iris priority, Brightness
  • S/N Ratio: 50dB
  • De-fog: Off, Auto, Manual
  • Backlight Compensation
  • Digital image stabilization: On/Off

    Day/Night Full HD 3x

  • Resolution: Full HD 1080p (1920x1080pixel)
  • Signal system: max 1080p/30fps
  • Image Sensor: 1/2.8 type Exmor™ CMOS sensor
  • Effective pixels: 3.27Megapixel
  • Minimum Illumination, colour (ICR-OFF):
  • 1lx, 1/30s, F1.2, 50% (Normal mode)
  • 0.25lx, 1/30s, F1.2, 50% (High sensitivity mode)
  • Minimum Illumination, B/W (ICR-ON):
  • 0.1lx, 1/30s, F1.2, 50% (Normal mode)
  • 0.03lx, 1/30s, F1.2, 50% (High sensitivity mode)
  • Lens:
  • From f= 3.0mm (wide) up to 9.0mm (tele)
  • From F1.2 up to F2.1
  • Zoom: 3x (36x with digital zoom)
  • Horizontal Viewing Angle: From 90° (wide) up to 32° (tele)
  • Minimum object distance: 300mm (11.8in) (wide to tele)
  • Shutter speed: From 1/1s up to 1/10000s, 22 steps
  • White balance: Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium vapor lamp (Fix, Auto), Manual
  • Wide Dynamic Range: On/Off
  • Exposure Control: Auto, Manual, Priority (Shutter priority, Iris priority), Brightness
  • S/N Ratio: 50dB
  • Gain limit: up to 28dB
  • Backlight Compensation
Environment
  • For indoors and outdoors installation
  • Certification temperature: from -40°C (-40°F) up to +65°C (149°F) (T6/T85°C) or +70°C (158°F) (T5/T100°C)
  • Operating temperature:
  • Continuous functioning: from -40°C (-40°F) up to +65°C (149°F)
  • Temperature test complies with NEMA-TS 2-2003 (R2008) par. 2.1.5.1, test profile fig. 2-1 (from -34°C (-29.2°F) to +74°C (165.2°F)) (only for models with Day/Night camera 10X zoom, FullHD)
  • De-icing function intervention (cold start): from -40°C (-40°F) up to -10°C (14°F)
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN61000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A)
  • RoHS (CE): EN IEC 63000
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • IP protection degree (EN/IEC60529): IP66, IP67, IP68 (2 hours, 5m (16ft)), IP69
  • Vibration test: EN50130-5, EN60068-2-6
  • UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07, UL62368-1 CAN/CSA C22.2 No. 62368-1-14): cULus Listed
  • Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A)
  • Level of protection Type (UL50E): 4X, 6P
  • BIS certification: IS 13252 (PART 1)/IEC60950-1 (certification only valid for the code: MMX2D0ZA)
  • KC certification (certification only valid for the code: MMX2C0ZJ)
  • RCM (Australian and New Zealand Regulatory Compliance Mark)
  • NDAA-compliant
Certifications - Explosion-proof applications
  • ATEX (EN IEC 60079-0, EN 60079-1, EN 60079-31)
  • IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31)
  • EAC EX (TR CU 012/2011)
  • INMETRO (ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1, ABNT NBR IEC 60079-31)
  • KCs (Employment and labor department 2021-22)
  • UL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31)
  • UL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. 60079-1, CAN/CSA-C22.2 NO. 60079-31)
  • UK Ex (EN IEC 60079-0, EN 60079-1, EN 60079-31)

For further details on certifications and markings, consult the relevant table.

Certifications - Marine applications
  • Lloyd's Register Marine Type Approval certification (only for models with Day/Night camera 10X zoom, FullHD):
  • Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
  • Electromagnetic compatibility: EN60945
  • Salty fog resistance: EN60068-2-52
  • Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2
