Stainless steel housings and cameras, Accessories

WAS - WASPT Washer pump and 5 or 23 litre tank

  • Polyethylene tank with stainless steel cage
  • Delivery: 5m (16ft), 11m (36ft), 30m (98ft)
  • Versions with alarm for the lack of liquid in the tank (WASPT)
  • Also for third-party products
  • Operating temperature: from -10°C (14°F) up to +60°C (140°F)
  • Available voltages: 230Vac, 120Vac, 24Vac
  • IP protection degree (EN60529): IP66 (only products with 5m (16ft) or 11m (36ft) delivery head)
  • The WASPT0V23L11M00 washer pump with tank of 23l (6gal) and delivery head 11m (36ft) is certified "Lloyd's Register Marine Type Approval"

WASNX Washer pump with solenoid valve for stainless steel products

  • Enclosure made of stainless steel AISI 316L
  • Delivery: 30m (98ft) (antistatic water delivery pipe supplied, 20m (66ft))
  • Water tank capacity: 10l (2.6gal)
  • Suitable for Videotec products
  • Operating temperature: from -20°C (-4°F) up to +60°C (140°F)
  • Available voltages: 230Vac, 120Vac, 24Vac
  • IP protection degree (EN60529): IP65 (solenoid valve only, enclosure not rated)

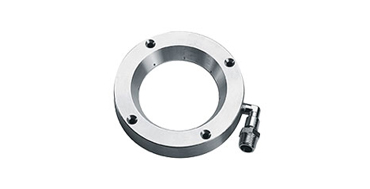

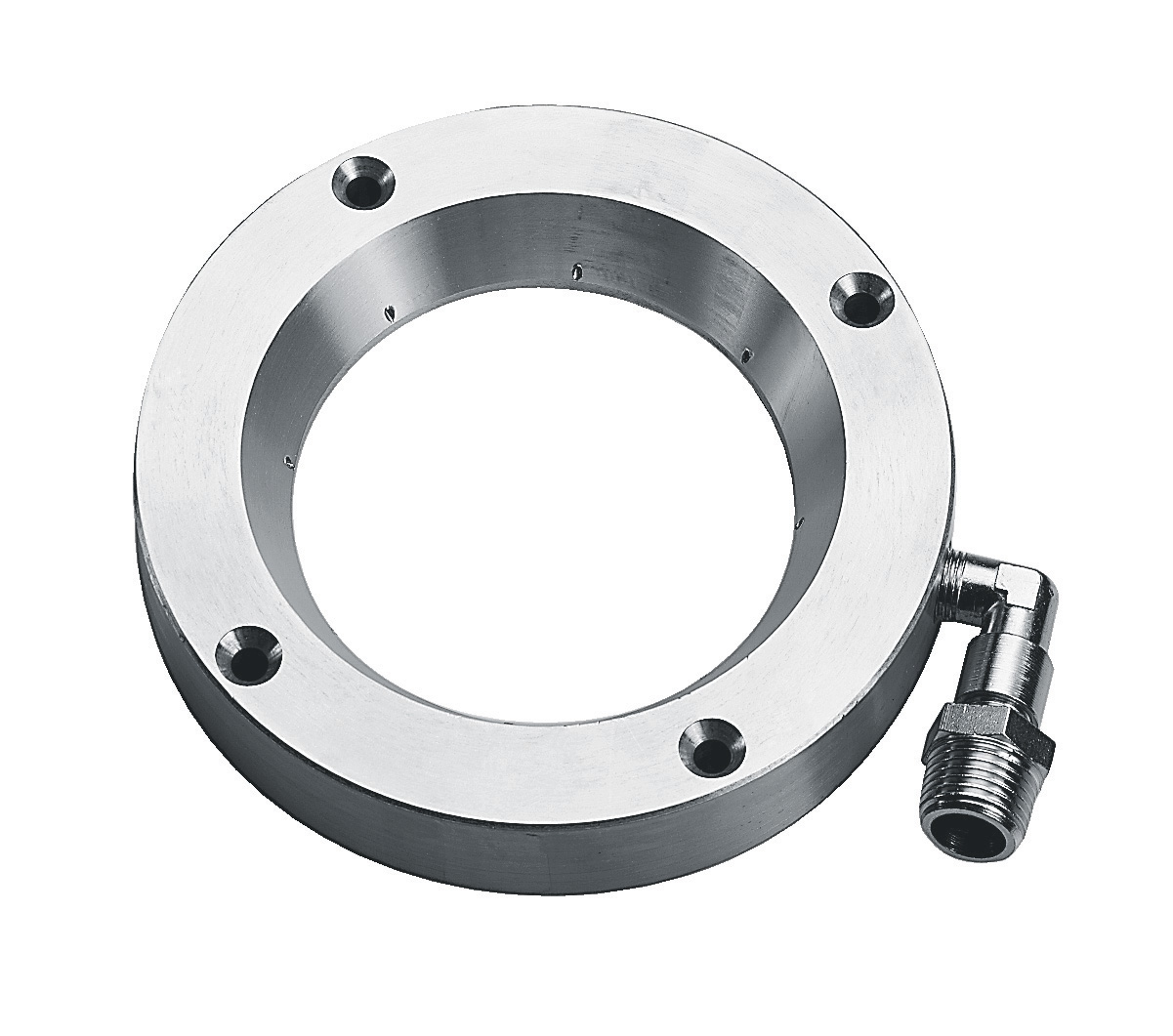

ONXAB1025B Air barrier with IR-proof glass

  • Made of AISI 316L electropolished stainless steel

ONXAB2 Air barrier with tempered window glass

  • Made of AISI 316L electropolished stainless steel
  • Supplied with NXW housing and optional on NXM

ONXMAIRB Front flange with air barrier and tempered glass

  • Made of AISI 316L electropolished stainless steel

ONXMAIRBIR Front flange with air barrier and IR-proof glasses

  • Made of AISI 316L electropolished stainless steel

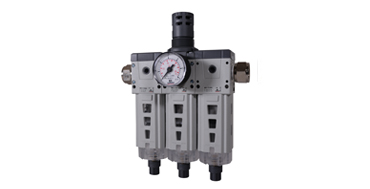

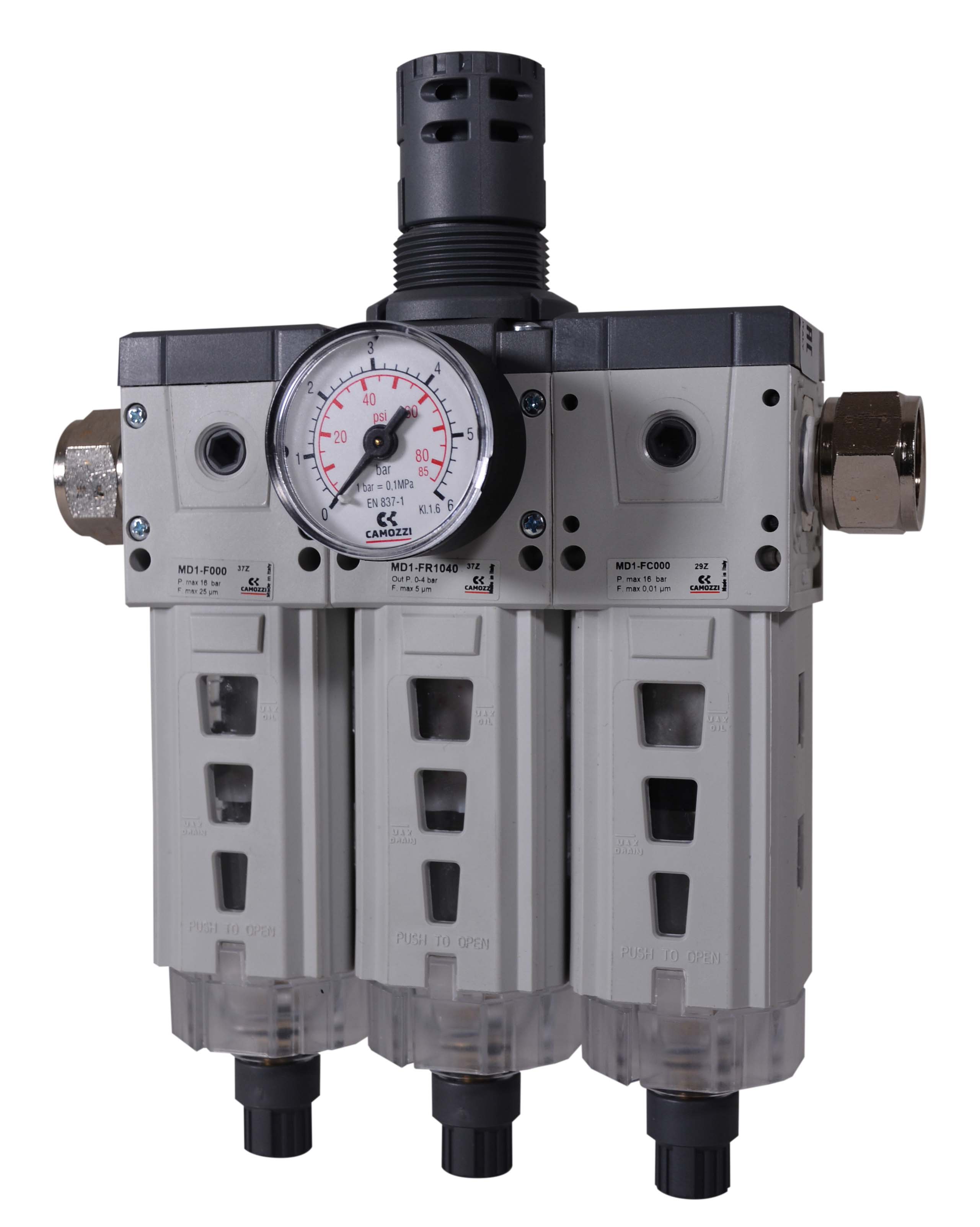

NXFIGRU2 Air filtering group

  • To combine with the air barrier ONXAB2 and ONXAB1025B to filter compressed air of oil and water impurities generally coming from the compressor
  • Filtering of particles with diameter higher than 0.1μm

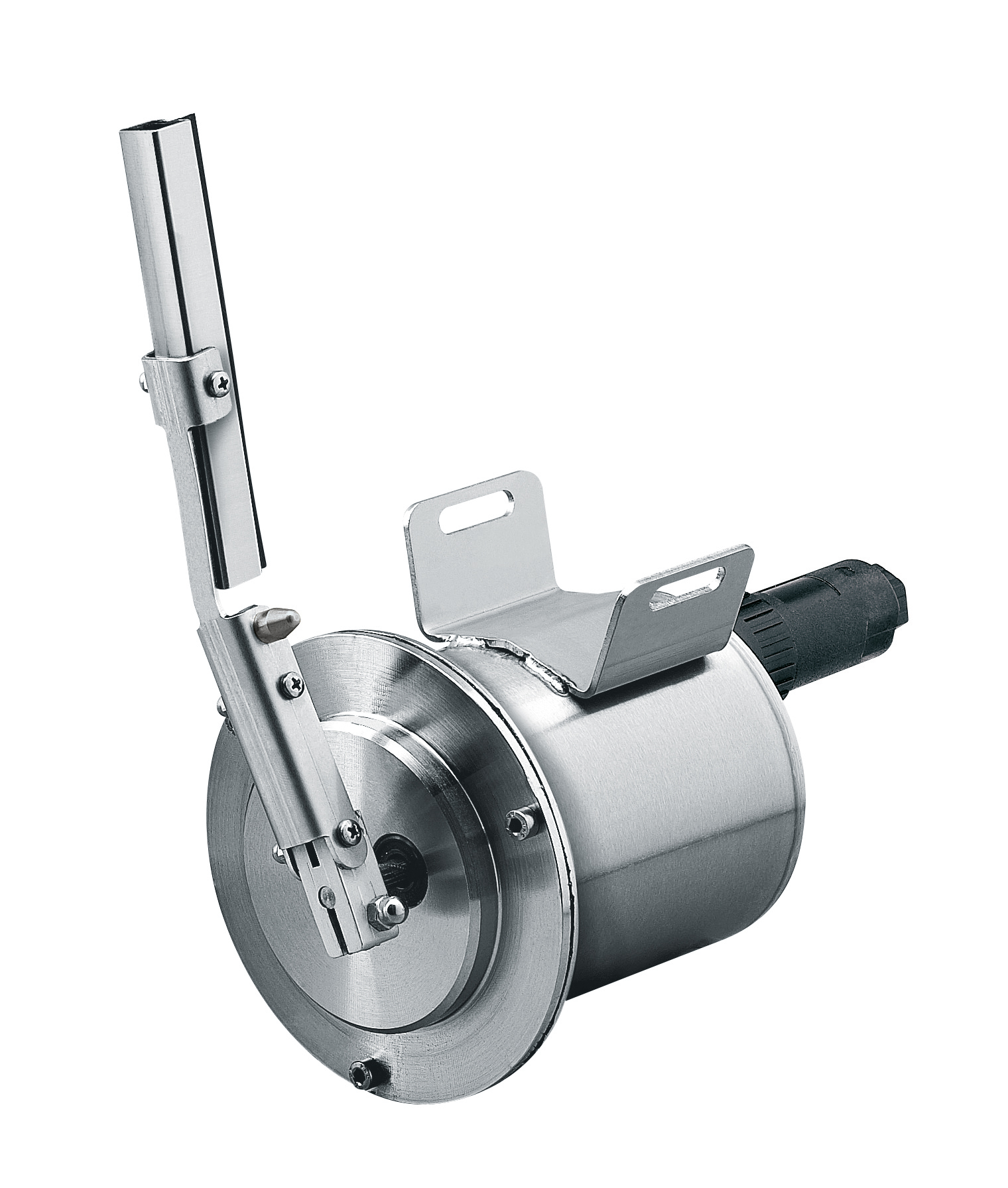

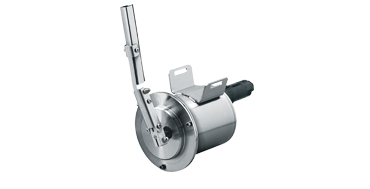

VIPNX Wiper for housing

  • Made of AISI 316L electropolished stainless steel
  • IP66/IP67
  • Different voltages available, 230Vac or 24Vac, both 50/60Hz
  • Connector 3+1 poles, easy wiring harness
  • Marine Certification: Lloyd's Register Marine Type Approval

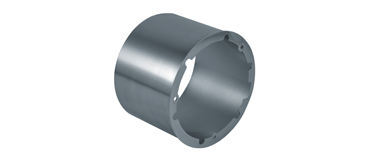

NVXTUB Dust protection frontal shield

  • Made of electro-polished stainless steel AISI 316L

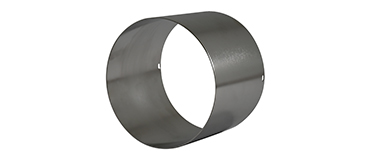

NXMTUB Dust protection frontal shield

  • Made of electro-polished stainless steel AISI 316L

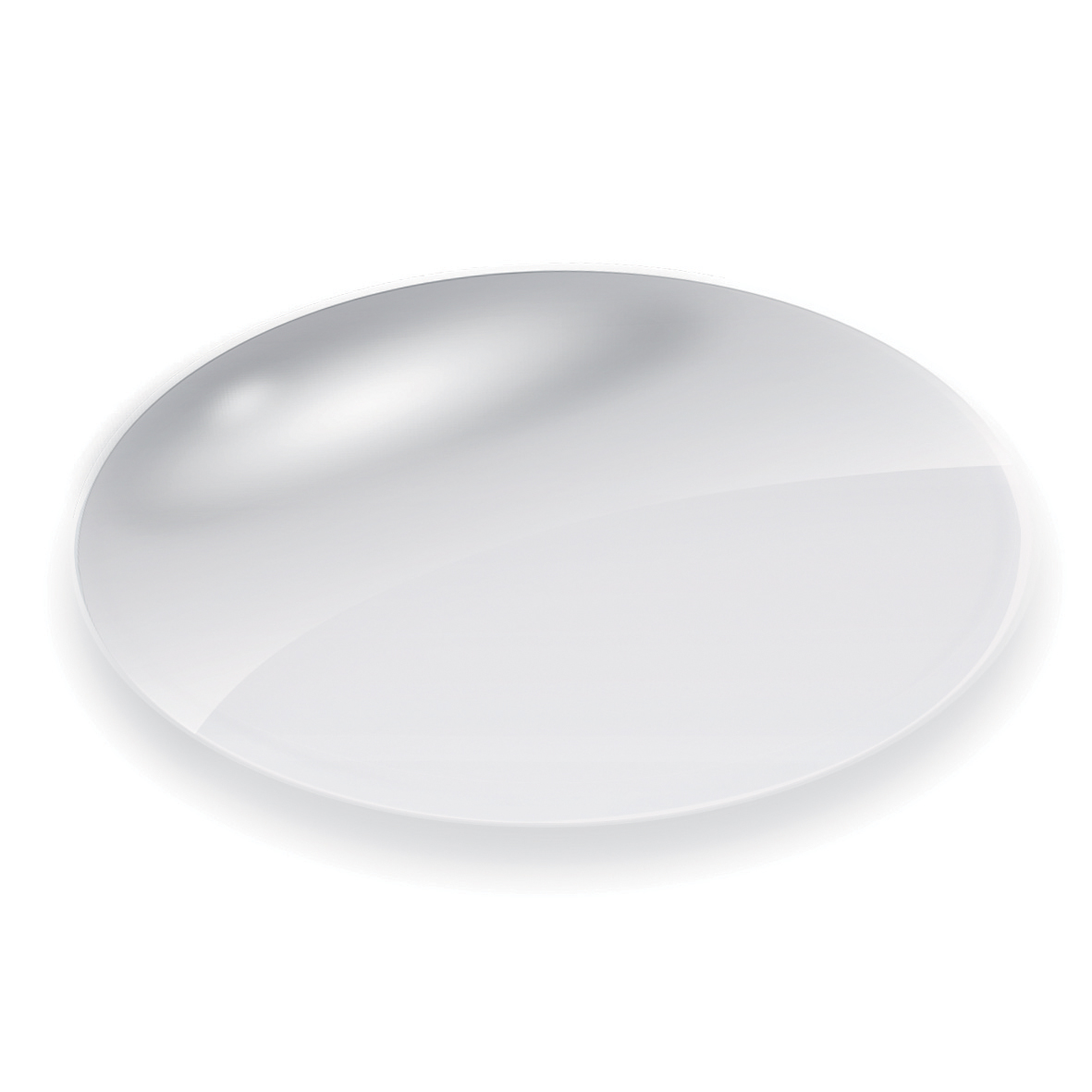

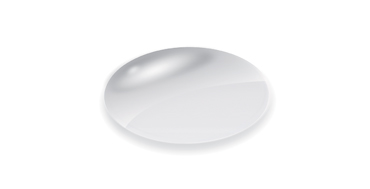

ONXWTG Tempered extra clear glass

  • The model with tempered glass has been designed to endure in installations where the surrounding air is of a high temperature (260°C (500°F) max)

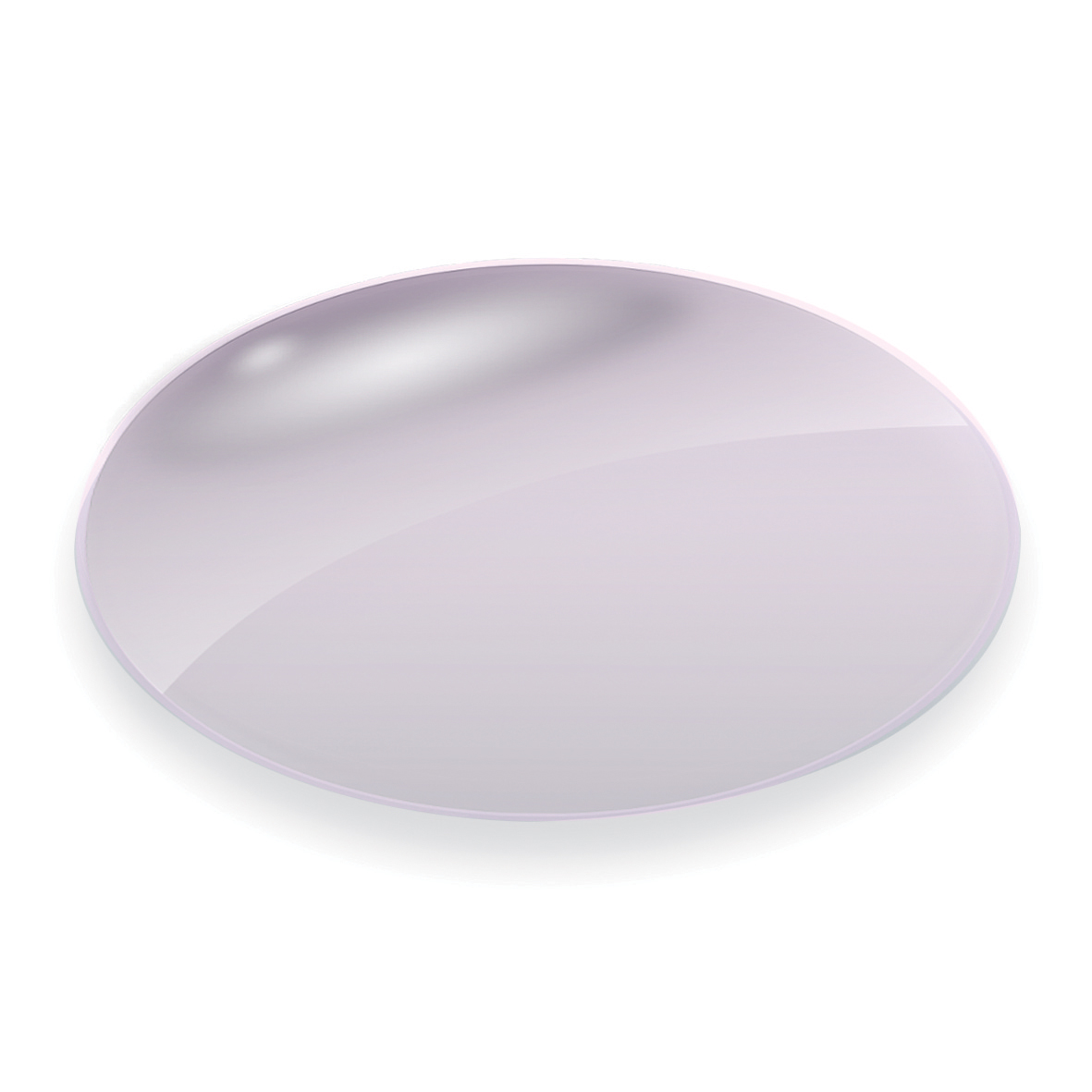

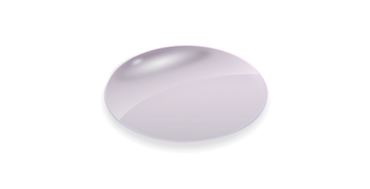

ONXWQG Quartz glass

  • The model with quartz glass has been designed to endure in installations where the surrounding air is of an extremely high temperature. (400°C (752°F) max)

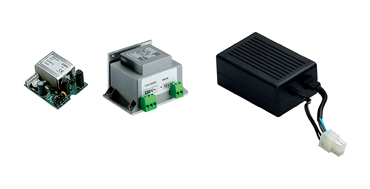

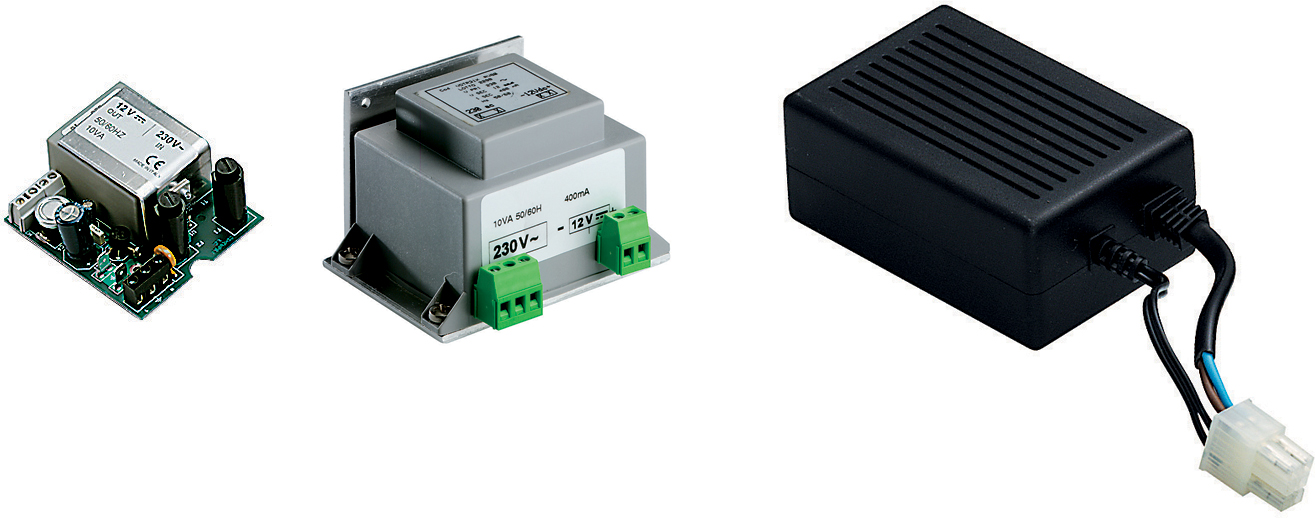

Camera power supply

  • Can be installed inside the housing
  • Available in different versions: IN from 100Vac up to 240Vac or 230Vac, OUT 24Vac or 12Vdc

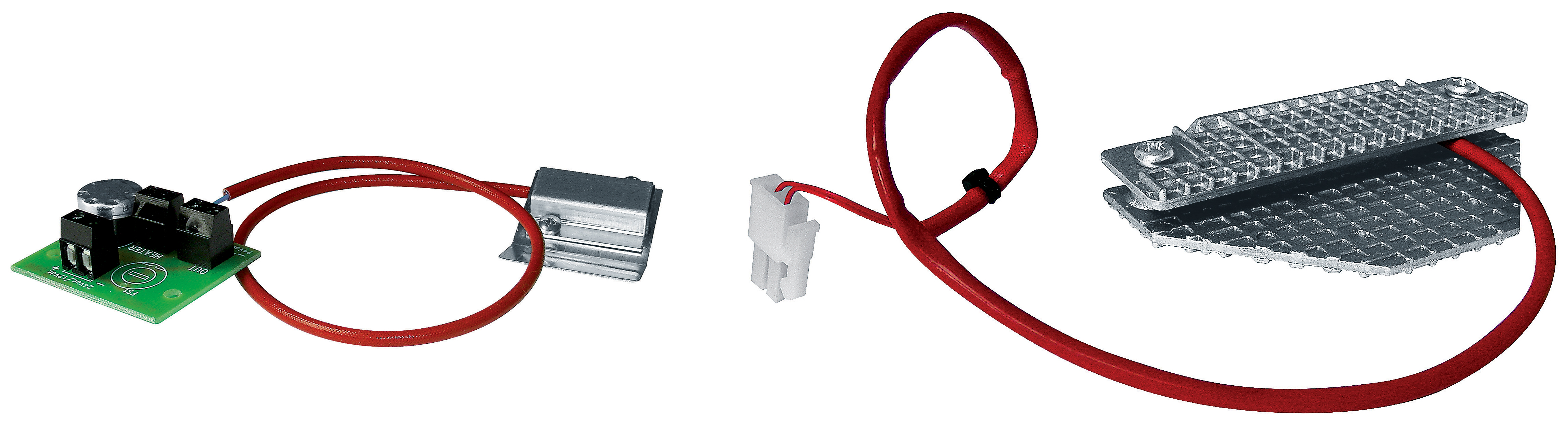

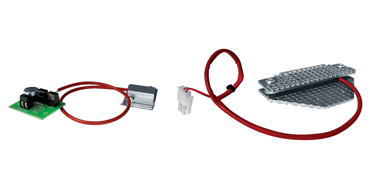

Heater

  • Thermostatically controlled heating element PTC 20W or 40W (Ton <= 15°C(59°F); Toff >= 22°C(72°F)
  • Available in low voltage (12Vdc/24Vac) or high voltage (120Vac/230Vac)
