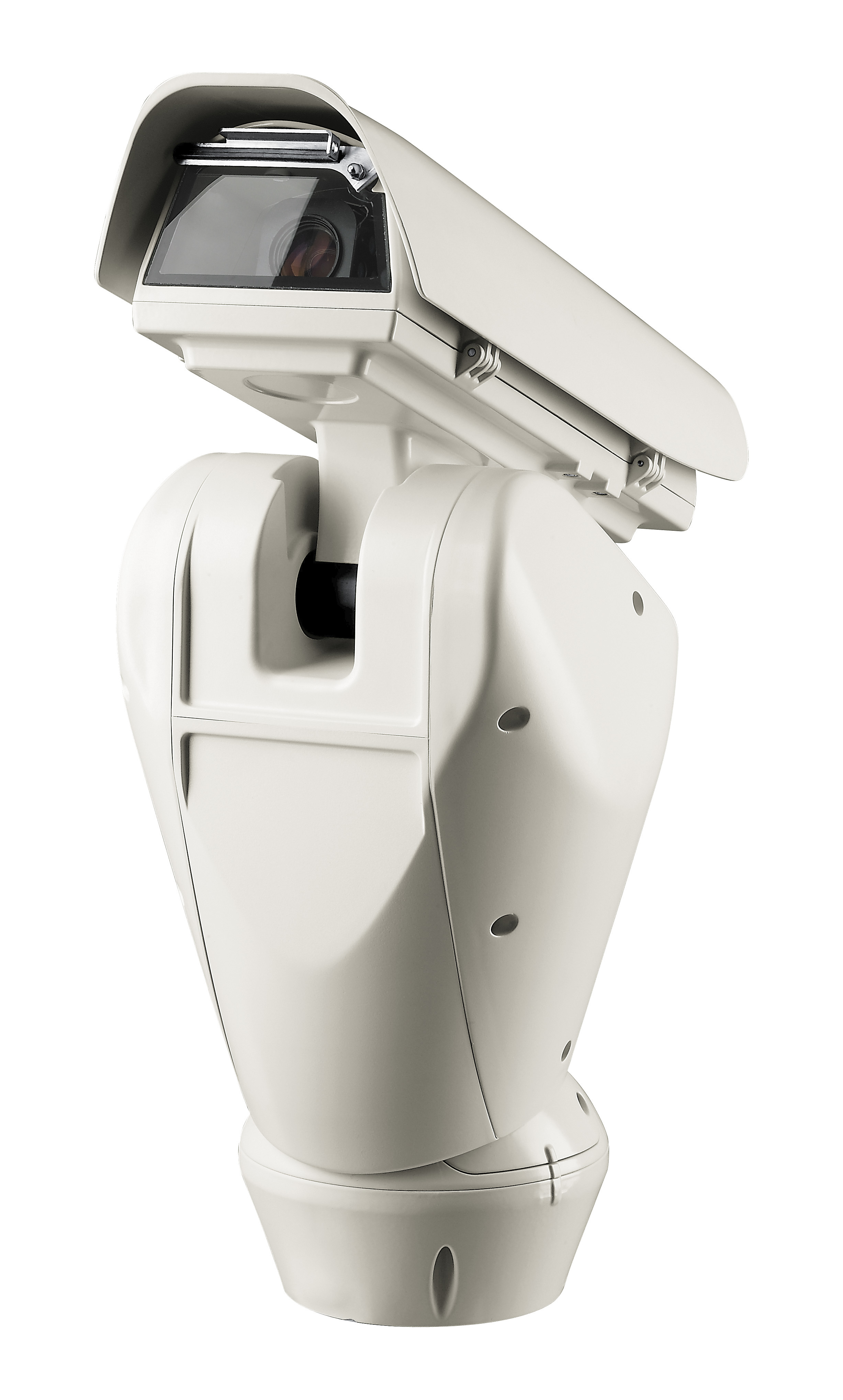

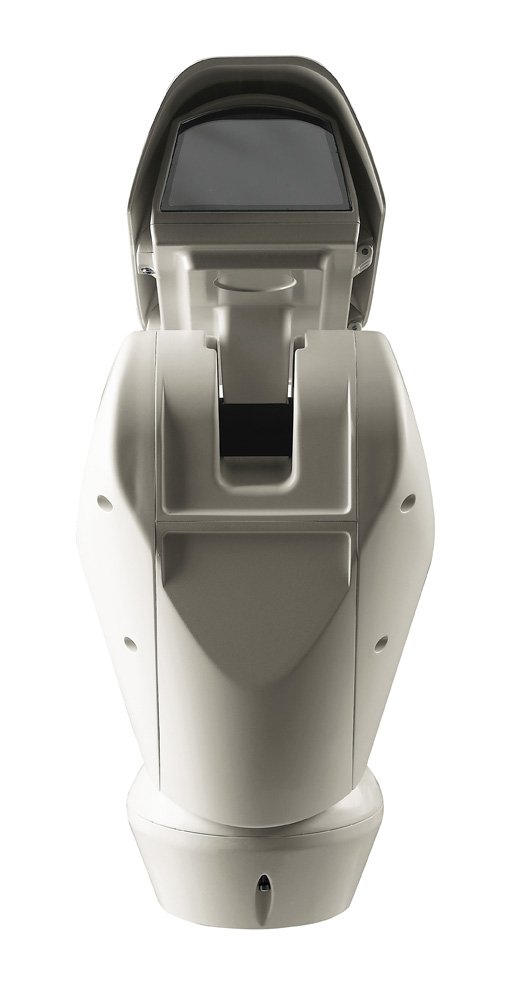

ULISSEOutdoor PTZ camera and unit for highest precision Day/Night monitoring

Config link

ULISSE Range

MARKETS

DESCRIPTION

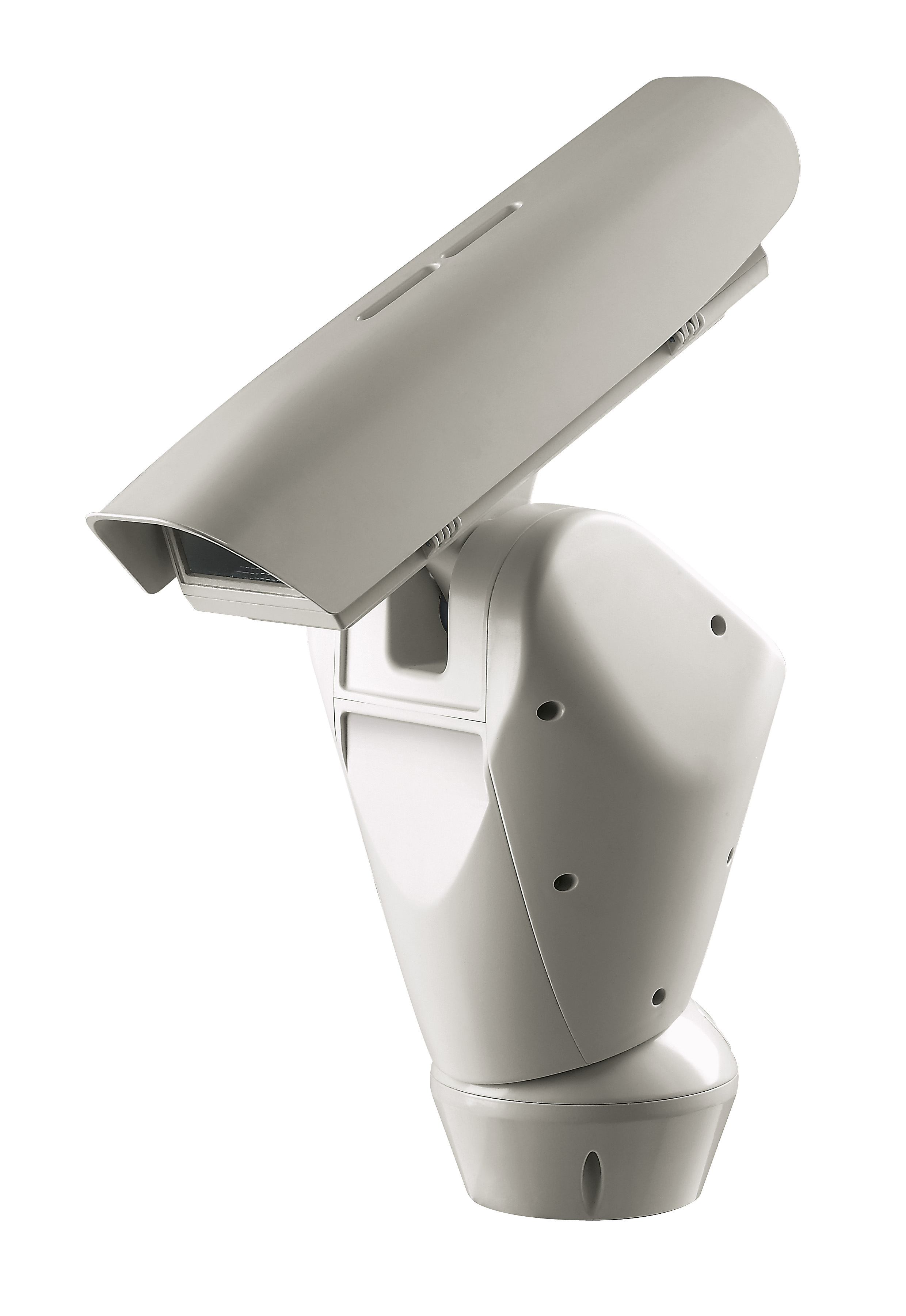

ULISSE PTZ camera unit ensures maximum video surveillance coverage in all outdoor environments, even the most difficult. The accurate top-mount configuration guarantees long-range vision and continuous horizontal axis rotation, combining high speed with absolute tracking accuracy, both in manual mode and in patrol mode.

KEY FEATURES

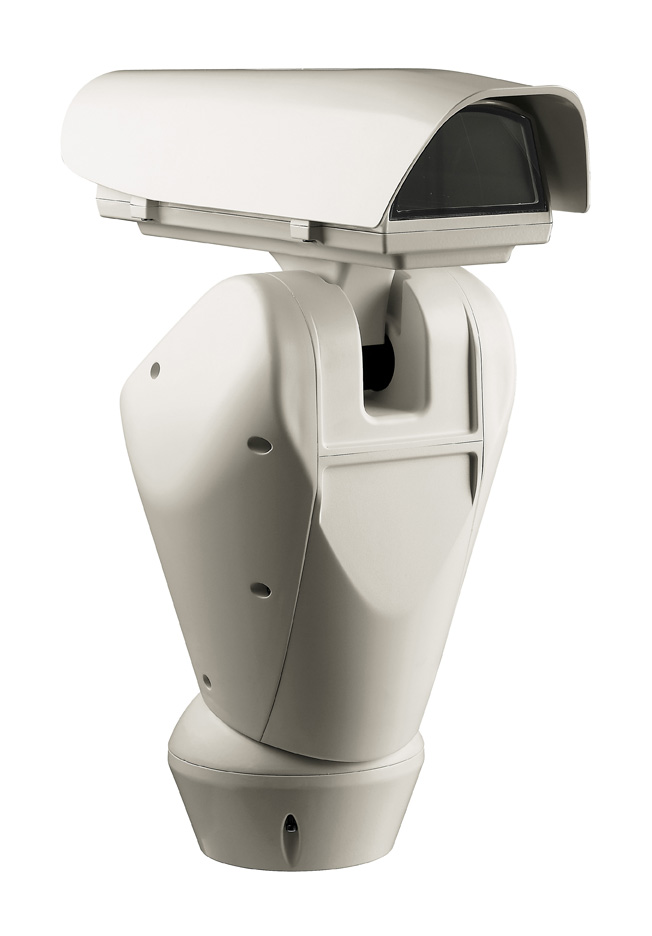

Versions without camera for customized combinations of camera/lens (compact lenses)

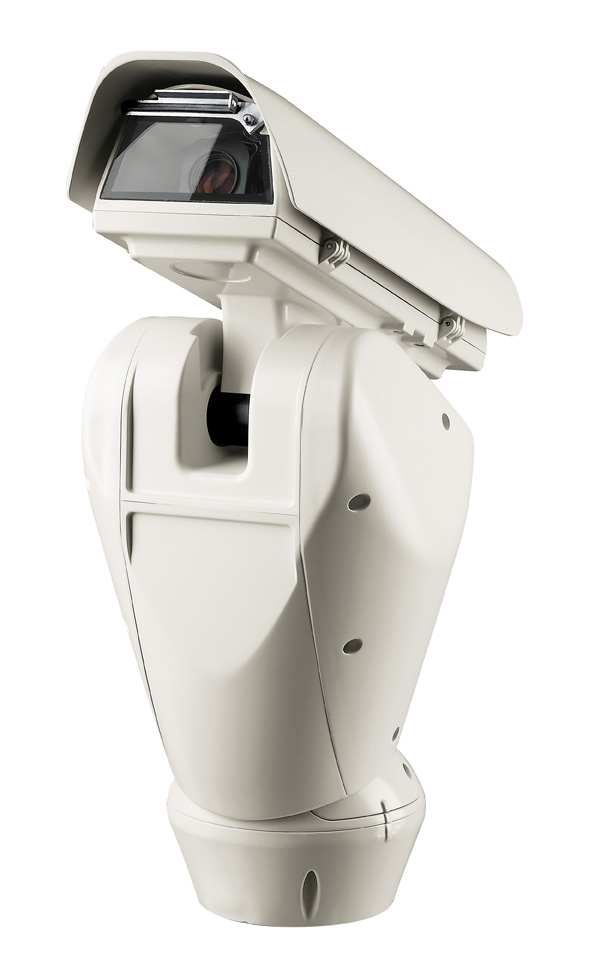

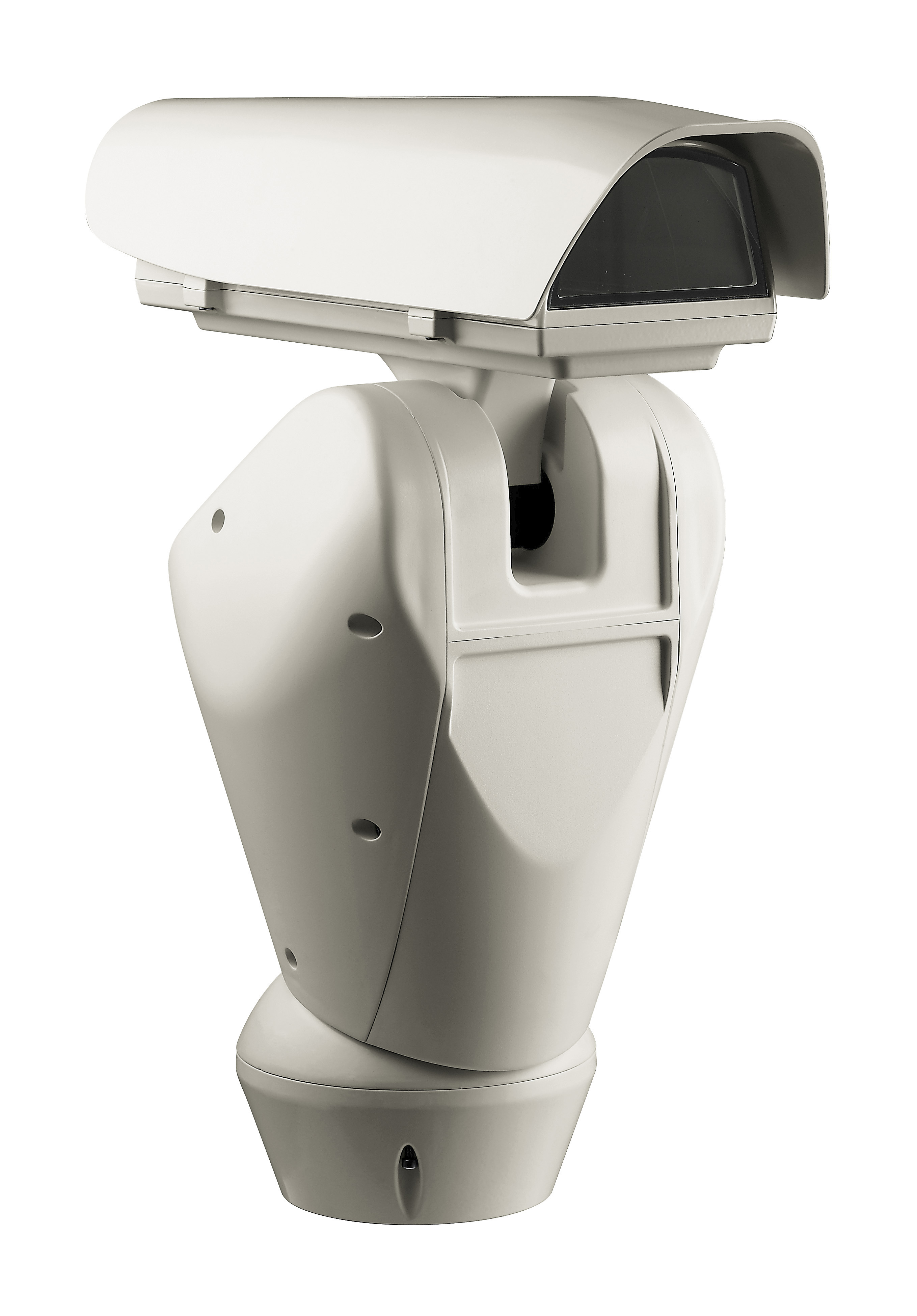

Day/night camera 36x

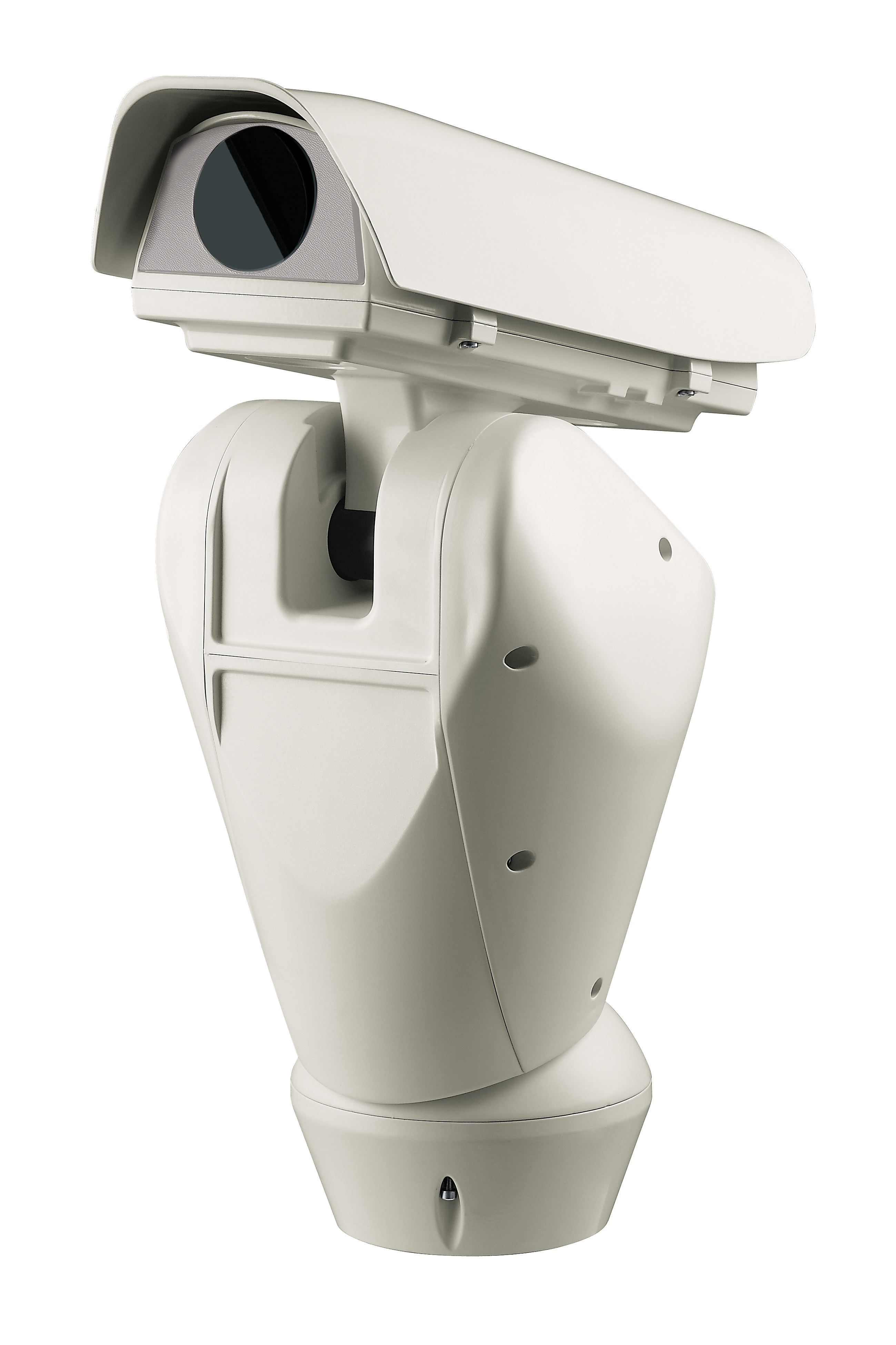

Germanium window for thermal cameras

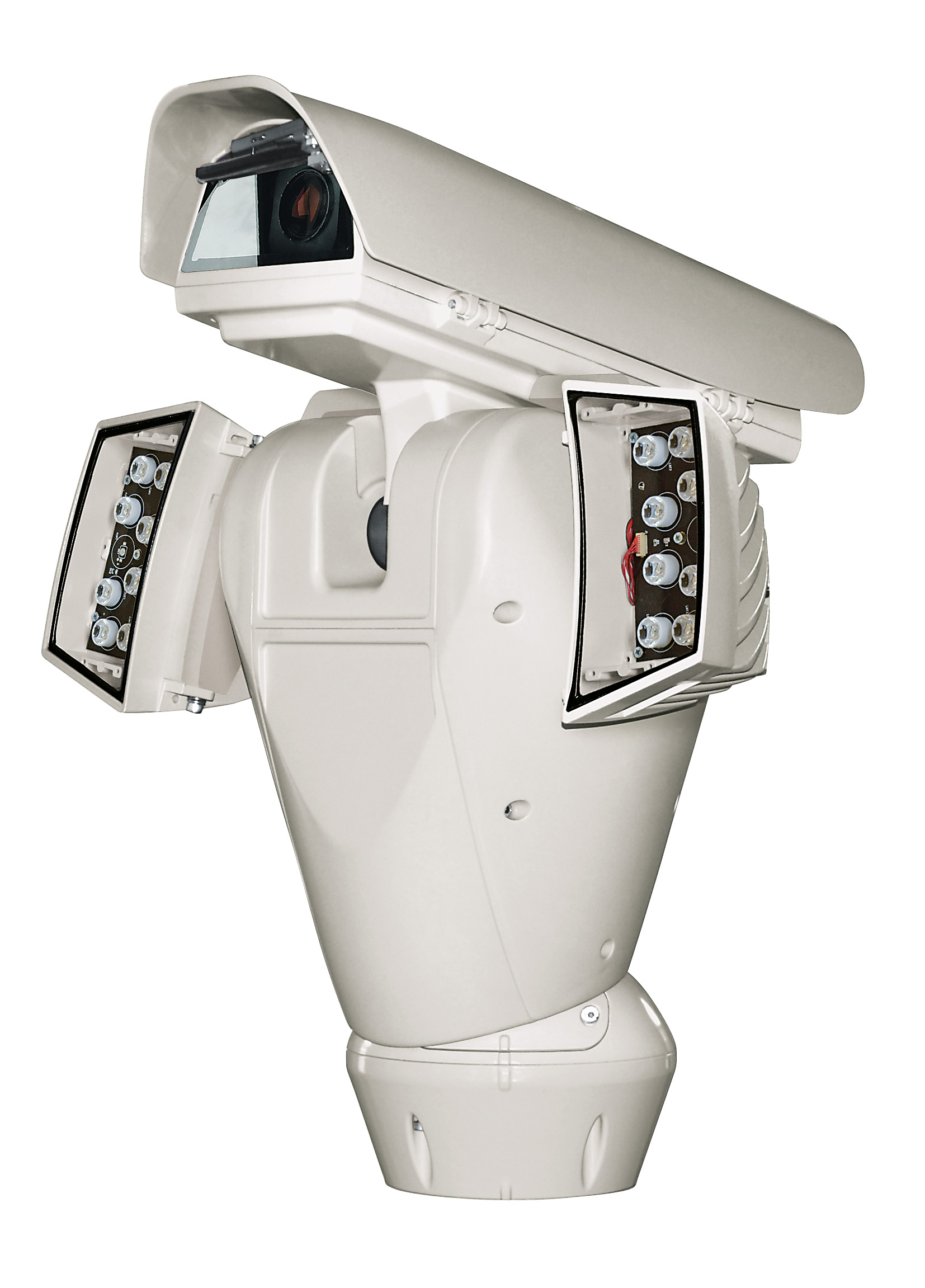

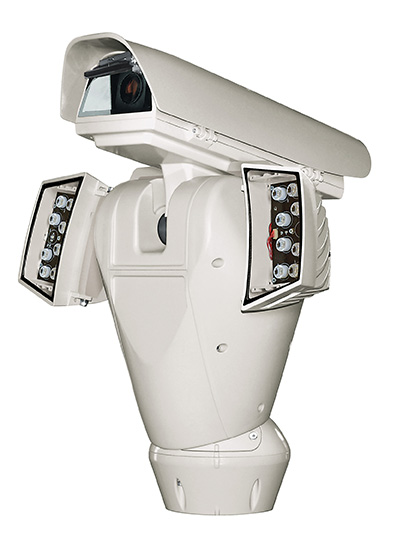

LED illuminators

Wiper

Cold pack for low temperature down to -30°C (-22°F)

TECHNICAL DATA

General
  • Top mount (OTT)
  • Transmission through toothed belt
  • Slip-ring
  • Electronic limit switches
  • Simplified installation thanks to the connector and easy replacement on-site
  • Zero backlash
  • Configuration of telemetry protocol parameters through dip-switch for RS-485
  • Zoom lens controller: polarity inversion and common wire
  • Functions: Autopan, Preset, Patrol
  • Maximum number of presets for protocol: 250 (MACRO)
  • 15 characters string for Area and Preset titling
  • Configuration through OSM
Mechanical
  • Constructed from aluminium and tecnopolymer
  • Epoxypolyester powder painting, RAL9002 colour
  • Horizontal rotation: 360°, continuous rotation
  • Vertical rotation: from -40° up to +90°
  • Horizontal speed (variable): from 0.02°/s up to 100°/s (from 0.02°/s up to 40°/s, with LED illuminators)
  • Tilt speed (variable): from 0.02°/s up to 40°/s (from 0.02°/s up to 30°/s, with LED illuminators)
  • Accuracy of preset positions: 0.02°
  • Internal usable area: See drawings
  • Cable glands: 3xM16
  • Unit weight: 16.3kg (36lb) (16.8kg (37lb), with LED illuminators bracket)
Electrical
  • Supply voltage/Current consumption:
  • 230Vac, 0.4A, 50/60Hz
  • 24Vac, 4A (8A with LED illuminators), 50/60Hz
  • 120Vac, 0.8A, 50/60Hz
  • Power consumption:
  • 100W (150-190W max with LED illuminators in 24Vac)
  • 24W, P&T static, heating switched off
  • Version with integrated camera:
  • 26.5W, P&T static, heating switched off
  • Cables input section:
  • 0.75mm² (18AWG), 120Vac or 230Vac
  • 1.5mm² (16AWG), 24Vac
  • Cables signal section: from 0.14mm² (26AWG) up to 0.5mm² (20AWG)
  • Housing standard heater: 24Vac, 20W max
  • 4 alarm inputs: from 10Vdc up to 35Vdc (2 alarm inputs, with LED illuminators)
  • 2 dry contacts: 50Vdc max or 30Vac @ 1A (1 dry contact, with LED illuminators)
  • Video line: coaxial cable (1Vpp, 75 Ohm)
  • Camera power supply: 12Vdc (800mA)
  • Power supply to the lens: from 6Vdc up to 15Vdc (200mA max)
Communications
  • RS-232 interface for firmware update
  • 2-ports RS-485 for daisy chain configuration
  • Addressable through dip-switch up 255 units
Protocols
  • Configuration of telemetry protocol parameters through dip-switch
  • Protocols supported: AMERICAN DYNAMICS, PANASONIC, PELCO D, VIDEOTEC MACRO, VISTA
  • AMERICAN DYNAMICS, PANASONIC, PELCO, VISTA are registered trademarks.
  • The product may be interfaced with devices not manufactured by VIDEOTEC. It is possible that the interface protocols have changed or are in a different configuration from earlier tested units by VIDEOTEC. VIDEOTEC recommends a test prior to installation. VIDEOTEC will not be liable for any installation costs or lost revenues in the event a compatibility problem will occur.
Environment
  • For installation indoors and outdoors
  • Operating temperature
  • With heater: from -20°C (-4°F) up to +60°C (140°F)
  • With reinforced heater: from -30°C (-22°F ) up to +60°C (140°F)
  • Wind resistance (without LED illuminators):
  • Operational: up to 160km/h
  • Stationary: up to 210km/h
  • Surge immunity: up to 2kV line to line, up to 4kV line to earth (Class 4)
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1
  • Electromagnetic compatibility (CE): EN50130-4, EN55022 (Class A), EN610000-6-3, FCC Part 15 (Class B)
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • Photobiological safety (CE): EN62471 (LED illuminators)
  • IP protection degree (EN60529):
  • IP66
  • Salty fog resistance: EN50130-5, EN60068-2-52
  • UL certification: cULus Listed (TYPE 4X) (not for thermal cameras version)
  • EAC certification
Accessories
  • UPTIRN108A00 LED illuminator for ULISSE, 10°, 850nm, 24Vac - 12/24Vdc
  • UPTIRN308A00 LED illuminator for ULISSE, 30°, 850nm, 24Vac - 12/24Vdc
  • UPTIRN608A00 LED illuminator for ULISSE, 60°, 850nm, 24Vac - 12/24Vdc
  • UPTIRN109A00 LED illuminator for ULISSE, 10°, 940nm, 24Vac - 12/24Vdc
  • UPTIRN309A00 LED illuminator for ULISSE, 30°, 940nm, 24Vac - 12/24Vdc
  • UPTIRN10WA00 LED illuminator for ULISSE, 10°, white light, 24Vac - 12/24Vdc
  • UPTIRN30WA00 LED illuminator for ULISSE, 30°, white light, 24Vac - 12/24Vdc
  • UPTIRN60WA00 LED illuminator for ULISSE, 60°, white light, 24Vac - 12/24Vdc
  • UPTIRPS230N External power supply for ULISSE series, prearranged for two LED illuminators, and control to synchronize IR illuminators with camera Day/Night switching, IN 230Vac, in weatherproof box . Twilight sensor included .
  • UPTIRPS100N External power supply for ULISSE series, prearranged for two LED illuminators, and control to synchronize IR illuminators with camera Day/Night switching, IN 100Vac, in weatherproof box
  • UPTIRPS120UL External power supply for ULISSE series, prearranged for two LED illuminators, and control to synchronize IR illuminators with camera Day/Night switching, IN 120Vac, in weatherproof box . Twilight sensor included .
  • UPTHT1 Cold pack for low temperature 24Vac, 30W
  • UPTHT2 Reinforced heater for block camera 24Vac, 30W
  • UPTJBUL Junction weatherproof box for cables connexion (according UL norm)
  • WASPT0V5L5M00 Water tank 5l (1.3gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L5M00 Water tank 23l (6 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L11M00 Water tank 23l (6 gal), pump with delivery up to 11m (36ft) with water floating, IN 230Vac-24Vac-120Vac
  • WASPT1V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
  • WASPT3V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
  • WASNX1V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 230Vac
  • WASNX2V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac
  • WASNX3V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 120Vac
Brackets and adaptors
  • UPTWBA Wall bracket with internal cable channel
  • UPTWBTAB Parapet bracket with internal cable channel
  • PTCC1 Pole mount adaptor
  • WCWGC Corner mount adaptor
Related products
  • ALBERT Encoder for video content analysis and smart system management
  • SM82A Video matrix 8 inputs and 2 outputs
  • SM164B Video matrix 16 inputs and 4 outputs
  • SM328B Matrix 32 inputs and 8 outputs
  • DCJ Keyboard for video and telemetry control
  • DCT Video and telemetry touch-screen control keyboard
  • DCZ Universal control keyboard for PC applications

DAY/NIGHT CAMERA

Day/Night 36x

PAL

NTSC

Optical zoom

36x

Wide Dynamic Range (ON, OFF, Auto)

_|SI|_

True progressive SCAN

_|SI|_

Digital image stabilisation

_|SI|_

White balance

Auto, ATW, Indoor, Outdoor (Fix/Auto), Sodium Vapor Lamp (Fix/Auto), Manual

High horizontal resolution

Up to 550 TV Lines

Day/Night (Auto ICR)

_|SI|_

Image Sensor

1/4" EXView HAD CCD

Number of effective Pixels

~ 440 000 pixel

~ 380 000 pixel

Min. Lighting Colour (IR-Cut Filter = OFF) (Interlace Mode)

1.4Lux / 1/50s_|n|_0.1 Lux / 1/3s

1.4Lux / 1/60s_|n|_0.1 Lux / 1/4s

Min. Lighting B/W (Interlace Mode)

0.01 Lux / 1/3s

0.01 Lux / 1/4s

“Shutter Time” automatic increase to improve the night surveillance

_|SI|_

S/N ratio

More than 50dB

AE control

Automatic, Shutter priority, Diaphragm priority, Brightness priority and Manual

Back light compensation

On/Off

Spherical masking (3D) of Privacy zones with automatic upgrade

_|SI|_

Privacy Zone Masking

On/Off (24 positions)

Maximum number of masking blocks to be displayed

8

Resolution of masking blocks

160x120 HxV

Masking

Up to 15 different masking types: 14 colour types or mosaic

Focusing system

Auto (Sensitivity: Normal, Low), Trigger PTZ, Manual

“Smart” lens control

Automatic Lens Reset

High Zoom and Wide Horizontal Field of View Capability

_|SI|_

Optical zoom

36x, f=3.4 (wide) to 122.4mm (tele) / F1.6 to F4.5

Digital Zoom

12x (432x with optical zoom)

Horizontal field of view

57.8 degrees (wide) to 1.7 degrees (tele)

Minimum object distance

10mm (0.4in) (wide) to 1500mm (59.1in) (tele)

Shutter speed

1/1 ÷ 1/10 000s
