MAXIMUS MPX SERIES2 with DELUX technologyNew generation of explosion-proof PTZ with Day/Night camera

Config link

MAXIMUS RANGE ... Drillereye

MARKETS

CERTIFICATIONS

DESCRIPTION

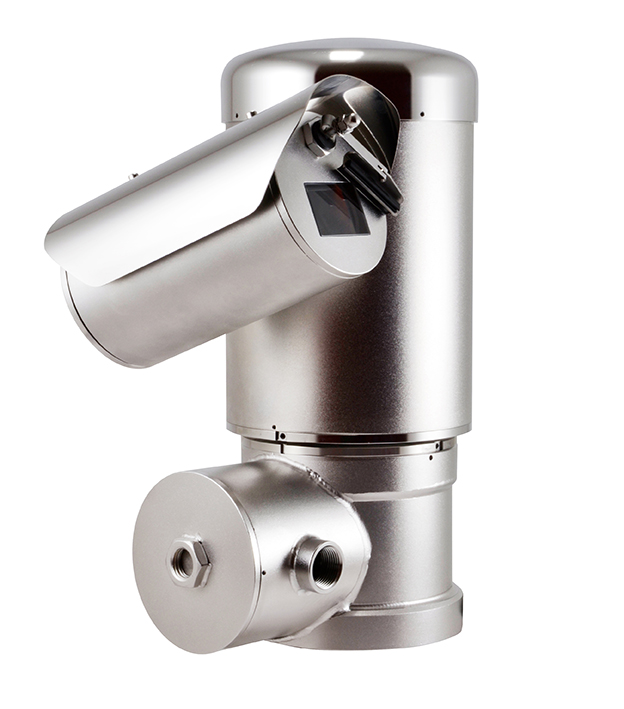

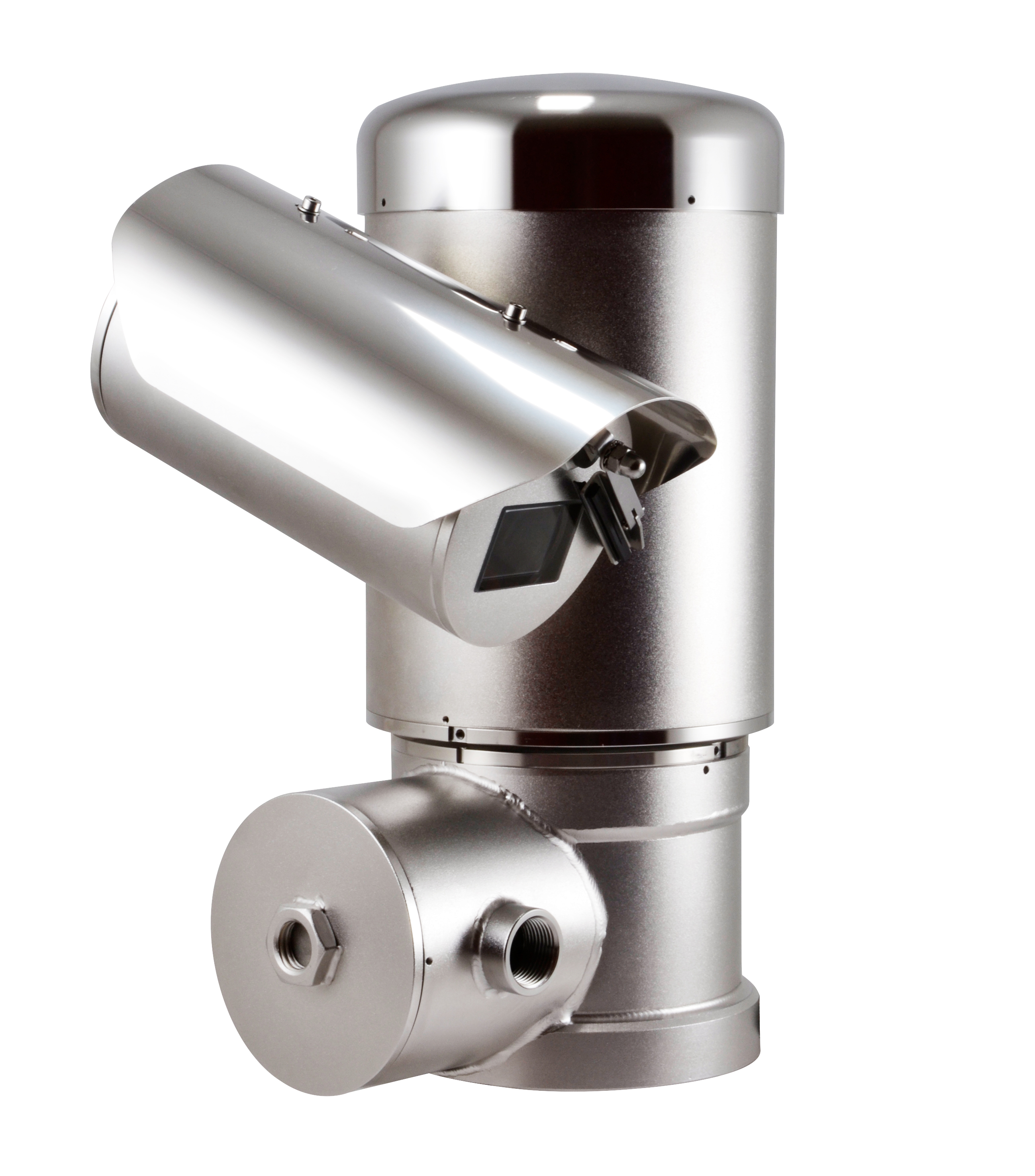

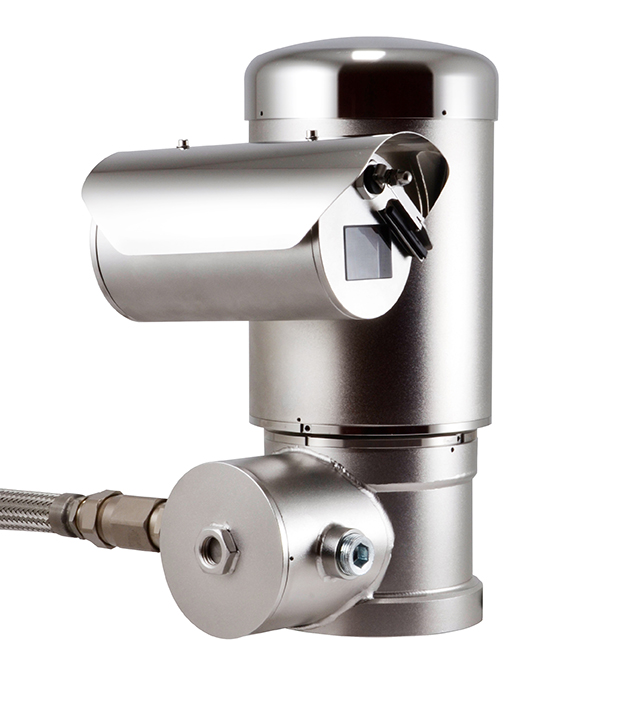

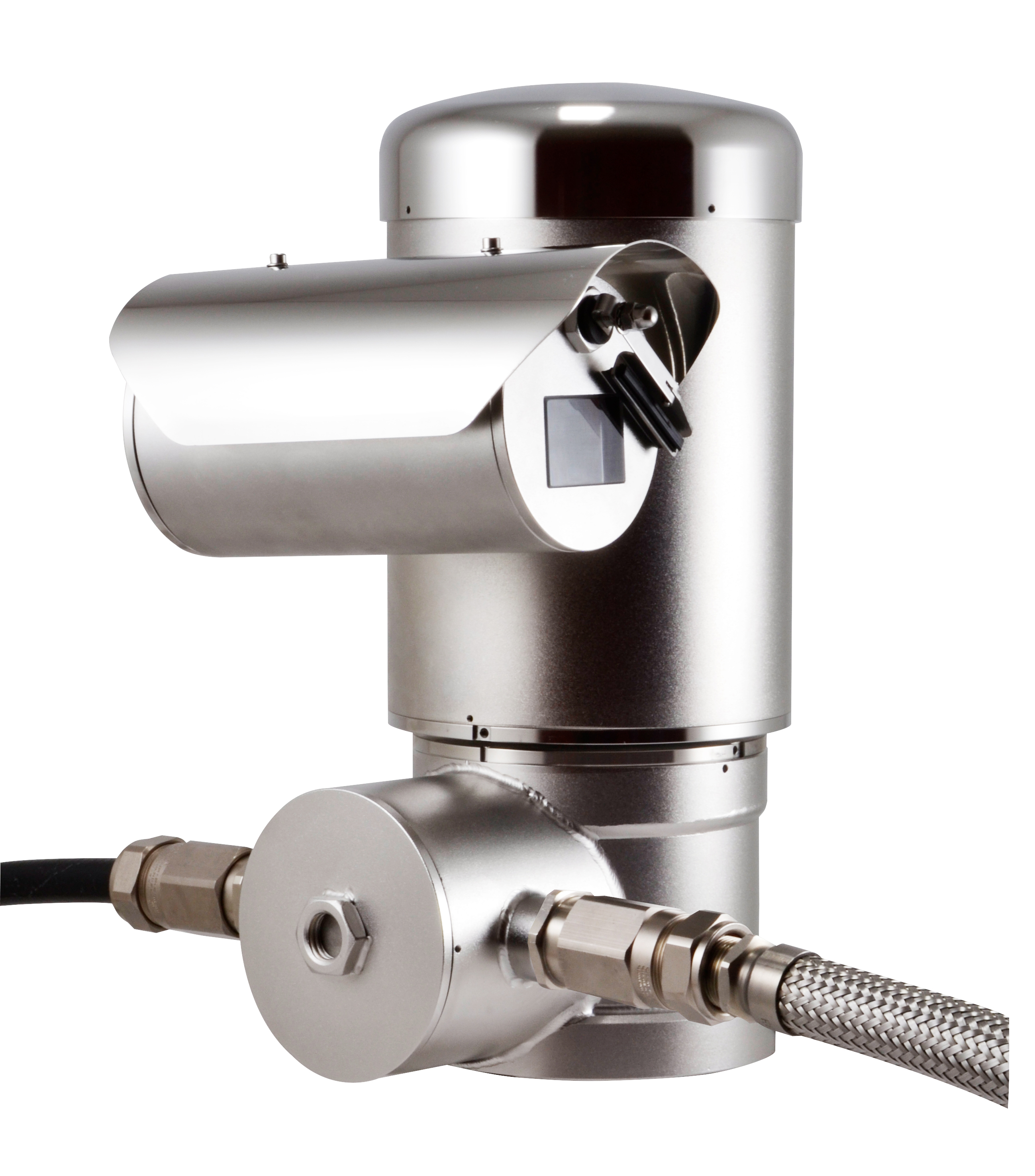

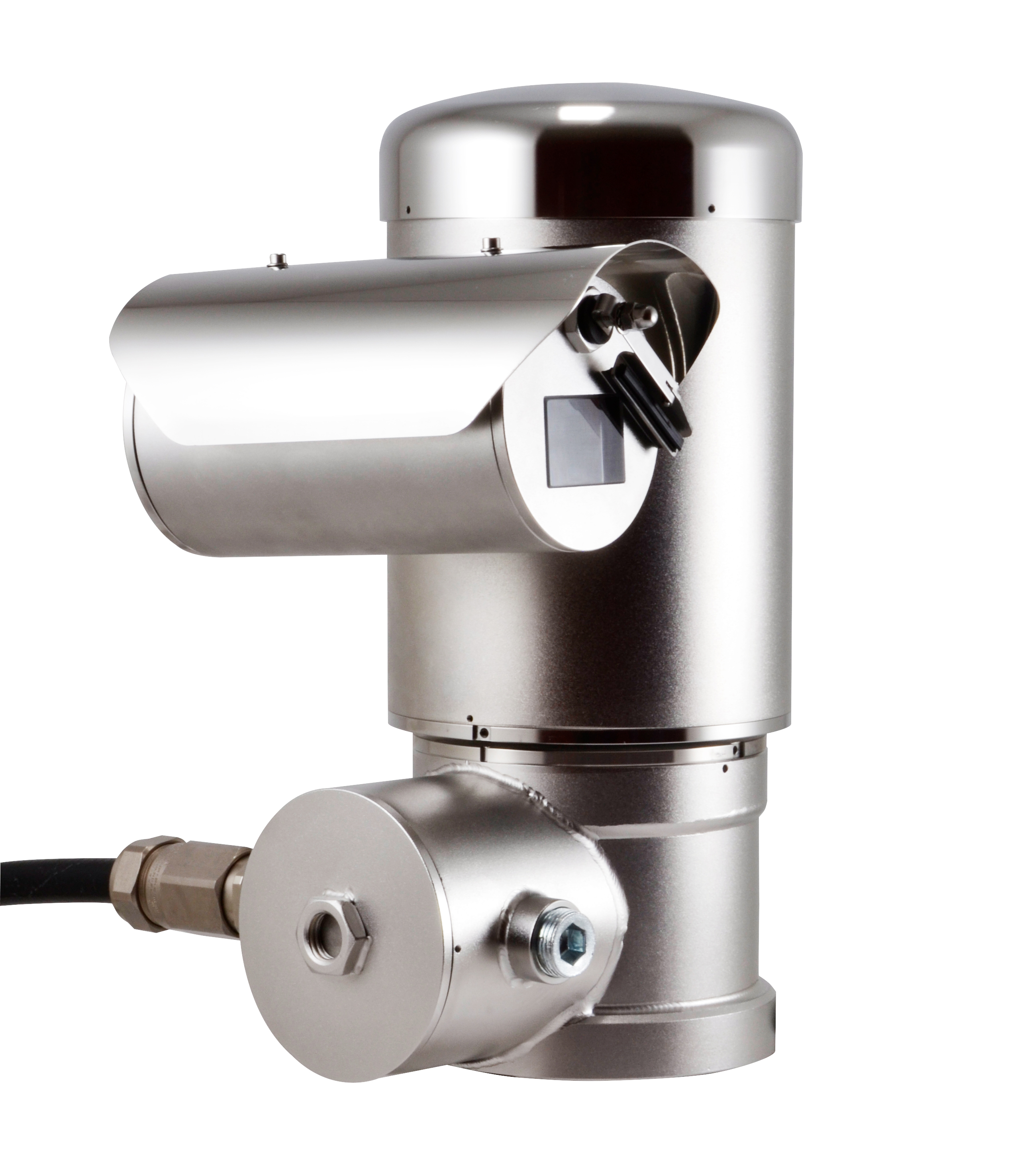

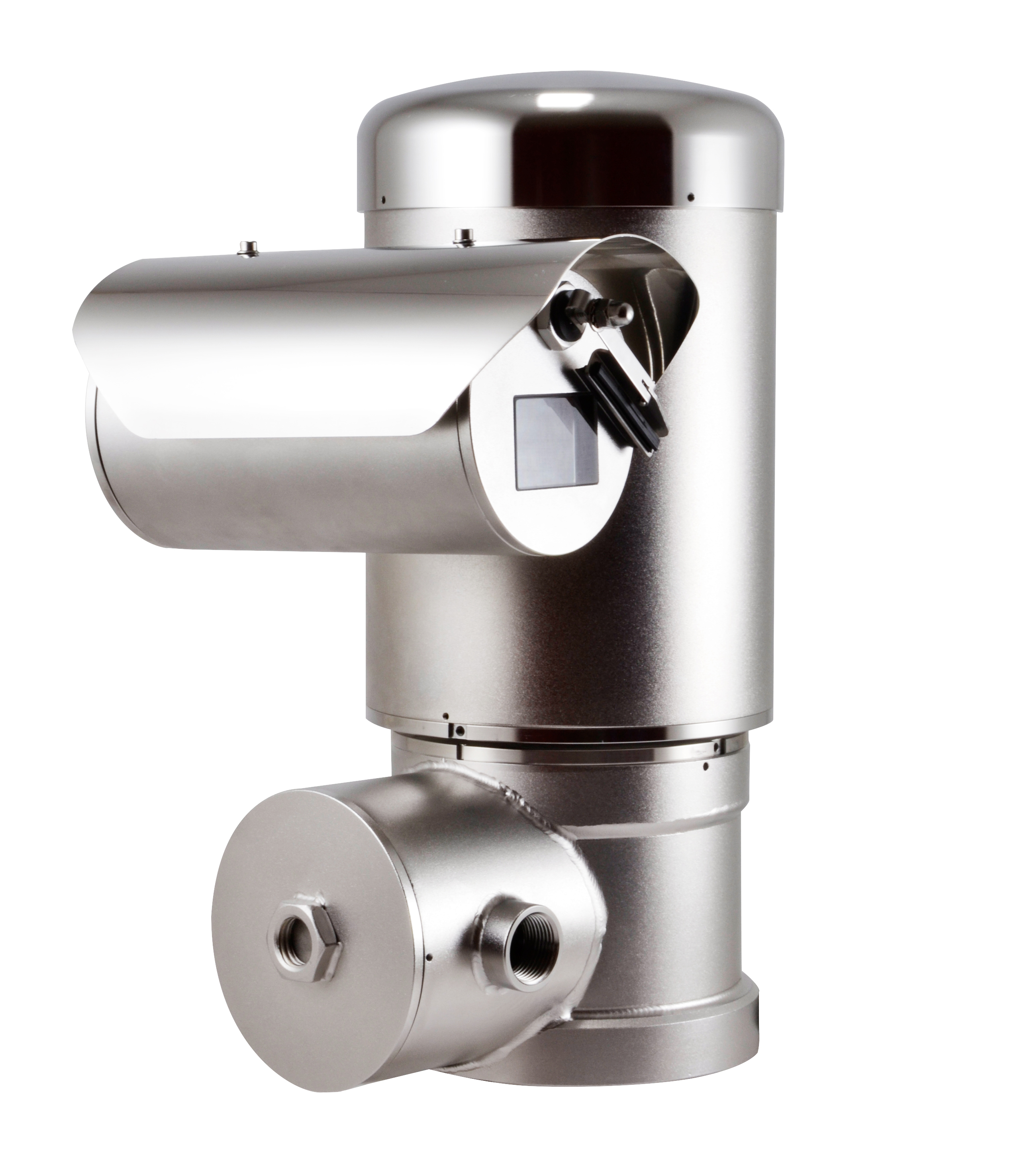

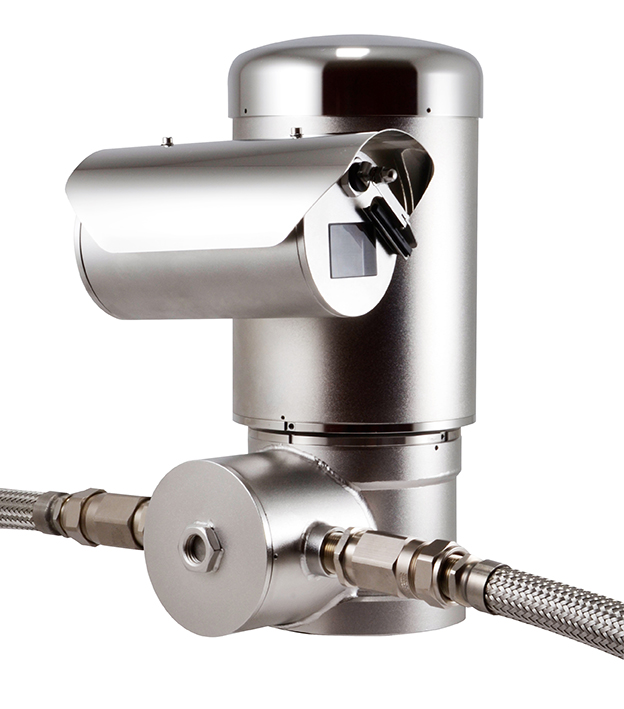

MAXIMUS MPX SERIES2 is an ex-proof Full-HD PTZ camera that is ideal for effective preventative video surveillance and process monitoring in the Oil & Gas, maritime or industrial sectors where fire or explosion hazards may exist due to the presence of flammable gases or vapors, flammable liquids or combustible dusts.

MAXIMUS MPX SERIES2 offers the highest level of corrosion resistance thanks to its solid AISI 316L stainless-steel construction and its microshot and electropolished surfaces. As well as this, the IP66/IP67/IP68/IP69, NEMA Type 4X and Type 6P certifications guarantee complete protection against water and dust. It can continue to operate in winds up to 210 Km/h.

KEY FEATURES

Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)

Certified up to a temperature of +80°C

Maximum resistance in corrosive environments

Possibility of direct connection via fiber optic

TECHNICAL DATA

General
  • AISI 316L stainless steel construction
  • External surfaces micro-shot peened and electro-polished
  • Dynamic positioning control system
  • Maximum number of presets: 250
Mechanical
  • Cable inputs: 2 x 3/4" NPT
  • Zero backlash
  • Horizontal rotation: 360°, continuous rotation
  • Vertical rotation: from -90° up to +90°
  • Horizontal speed (variable): from 0.1°/s up to 100°/s
  • Tilt speed (variable): from 0.1°/s up to 100°/s
  • Accuracy of preset positions: 0.02°
  • Integrated wiper
  • Window with extra clear tempered glass
  • Thick: 12mm (0.47in)
  • Unit weight: 26.5kg (58lb)
Electrical
  • Supply voltage/Current consumption:
  • 230Vac ±10%, 0.5A, 50/60Hz
  • 24Vac ±10%, 5A, 50/60Hz
  • 120Vac ±10%, 1A, 50/60Hz
  • 220Vac ±10%, 0.54A, 50/60Hz
  • 100Vac ±10%, 1.2A, 50/60Hz
  • Power consumption:
  • 120W max
Network
  • RJ45 port
  • Ethernet connection: 10BASE-T/100BASE-T
  • Slot SFP (SMALL FORM FACTOR PLUGGABLE)
  • Ethernet connection:100BASE-FX
  • Supply voltage: 3.3V
  • Standard: MSA compliant
  • The SFP module (not supplied by VIDEOTEC) must meet the following requirements:
  • Laser: Class 1, complies with EN60825-1
  • Certification: UL/IEC 60950-1 or UL/IEC 62368-1
Cybersecurity
  • Digitally signed firmware
  • Password restricted access (HTTP digest)
  • Support of various user access levels
  • Control of accesses IEEE 802.1X
  • HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3
  • Centralised certificate management
  • Complies with ONVIF Security Service specifications
Cameras

    Day/Night Full HD 30x DELUX

  • Resolution: Full HD 1080p (1920x1080)
  • Image Sensor: 1/2.8" Exmor™ R CMOS sensor
  • Effective Pixels: approx. 2.38 Megapixels
  • Minimum Illumination:
  • Colour: 0.006lx (F1.6, 30 IRE)
  • B/W: 0.0006lx (F1.6, 30 IRE)
  • Focal length: from 4.5mm (wide) up to 135mm (tele)
  • Zoom: 30x (480x with digital zoom)
  • Iris: from F1.6 up to F9.6 (Auto, Manual)
  • Horizontal Viewing Angle: from 61.60° (wide end) up to 2.50° (tele end)
  • Vertical Viewing Angle: from 37.07° (wide end) up to 1.44° (tele end)
  • Shutter speed: from 1/1s up to 1/10000s (Auto, Manual)
  • White balance: Auto, Manual
  • Gain: from 0dB up to 100dB (Auto, Manual)
  • Wide Dynamic Range: 120dB
  • Focus System: Auto, Manual, Trigger
  • Picture Effects: E-flip, Colour enhancement
  • Noise removal: 2D (3 levels), 3D (3 levels)
  • Exposure Control: Auto, Manual, Priority (Iris Priority, Shutter Priority), Brightness, Custom
  • De-fog: On/Off
  • Privacy zones masking: maximum 8 settable masks
  • Indoor Flicker Reduction
  • Auto Slowshutter: Off, On (from 1/30s up to 1/1s)
  • Exposure compensation: Off, On (from level 0 up to level 14)
  • Sharpness: from level 0 up to level 3
Video
  • Video encoder
  • Communication protocol: ONVIF, Profile Q, Profile S and Profile T
  • Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
  • Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
  • Video compression: H.264/AVC, MJPEG, MPEG4, snapshot JPEG
  • 3 independent video streams Full HD
  • Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps
  • Selectable frame rate from 1 to 60 images per second (fps)
  • Web Server
  • Directional OSD (maximum 4 settable areas)
  • Motion Detection
  • Video analytics: VIDEOTEC ANALYTICS (optional)
  • QoS: Differentiated DSCPs for streaming and device management
  • SNMP and NTCIP protocols
Video analytics
  • Ultra-robust detection algorithms and auto-tracking, specifically for outdoor perimeter control.
  • Targets Classification: People, vehicles, generic objects
  • Programmable rules for video analysis, VIDEOTEC ANALYTICS (it is possible to rapidly configure up to ten rules for every preset using an intuitive control management interface)
  • Line crossing: the target triggers an alarm if it crosses the line in one or both directions
  • Entering/leaving area: the target triggers an alarm if it leaves or enters the configured area
  • Appearing in area: the target triggers an alarm if it appears inside the configured area
  • Loitering: the target triggers an alarm if it stays inside the configured area over the set time
  • Detection Mask: disables the detection activity in a portion of the image to prevent false alarms
  • Video Tampering Detection: a specific ONVIF alarm is triggered if the video camera view is obstructed (e.g. spray)
I/O interface
  • Input for remote reset: 1
  • Alarm inputs: 1
  • Relay outputs: 1+1 (1A, 30Vac/60Vdc max, one relay reserved for washer pump and one configurable)
Environment
  • For indoors and outdoors installation
  • Certification temperature: from -40°C (-40°F) up to +80°C (+176°F)
  • Temperature test complies with NEMA-TS 2-2003 (R2008) par. 2.1.5.1, test profile fig. 2-1 (from -34°C (-29.2°F) to +74°C (165.2°F)) (not valid for versions with integrated video analysis, VIDEOTEC ANALYTICS)
  • De-icing function intervention (cold start): from -40°C (-40°F) up to -10°C (14°F)
  • Wind resistance
  • PTZ static: 230km/h (143mph) max.
  • PTZ operational at the maximum speed: 210km/h (130.5mph) max.
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN50130-4, EN55032 (Class A), EN61000-6-4, EN61000-3-2, EN61000-3-3
  • RoHS (CE): EN IEC 63000
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • Vibration test: EN50130-5, EN60068-2-6
  • UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07 ) (not available for 100Vac versions): cULus Listed
  • UL certification (UL62368-1, CAN/CSA C22.2 No. 62368-1-14 ) (not available for 100Vac versions): cULus Listed
  • Electromagnetic compatibility (North America) (not available for 100Vac versions): FCC part 15 (Class A), ICES-003 (Class A)
  • IP protection degree (EN/IEC60529): IP66, IP67, IP68, IP69
  • Level of protection Type (UL50E) (not available for 100Vac versions): 4X, 6P
  • RCM (Australian and New Zealand Regulatory Compliance Mark)
  • KC certification (certification only valid for the codes: MPXHD51A001C, MPXHD31A001C)
  • BIS certification (certification only valid for the code: MPXHD22A000C)

1 Certification not available for 100Vac and 220Vac versions.

Certifications - Explosion-proof applications
  • ATEX (EN IEC 60079-0, EN 60079-1, EN 60079-31)
  • IECEX (IEC 60079-0, IEC 60079-1, IEC 60079-31)
  • UL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31) (not available for 100Vac versions)
  • UL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. 60079-1, CAN/CSA-C22.2 NO. 60079-31) (not available for 100Vac versions)
  • EAC Ex (TR CU 012/2011)
  • INMETRO (ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1, ABNT NBR IEC 60079-31)
  • KCs (Employment and labor department 2021-22)

For further details on certifications and markings, consult the relevant table.

1 Certification not available for 100Vac and 220Vac versions.

Certifications - Marine applications
  • Lloyd's Register Marine Type Approval certification (with MAXIMUS MBX communication box or with FM1010 filter): Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
  • Electromagnetic compatibility: EN60945
  • Salty fog resistance: EN60068-2-52
