NXM36 Hi-PoEHousing for IP cameras for installation in aggressive environments

MARKETS

DESCRIPTION

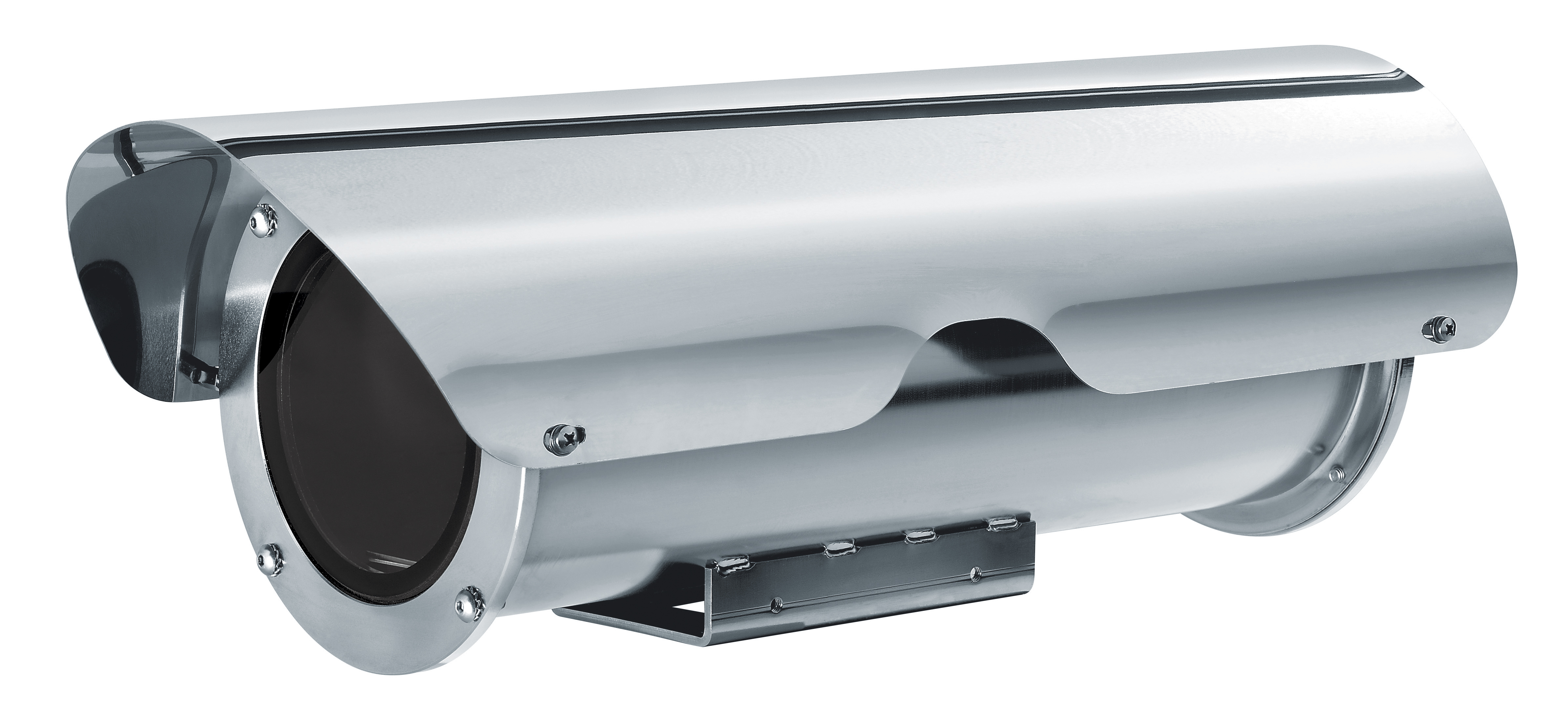

The NXM36 Hi-PoE housing has been developed for installations in highly corrosive areas such as industrial chemical, petrochemical, marine, naval and offshore platforms. Entirely made from electropolished and passivated AISI 316L stainless steel for maximum protection against deterioration.

The IP66/IP67/IP68/IP69 level guarantees complete protection against bad weather and water immersion.

KEY FEATURES

  • Made of AISI 316L electropolished stainless steel

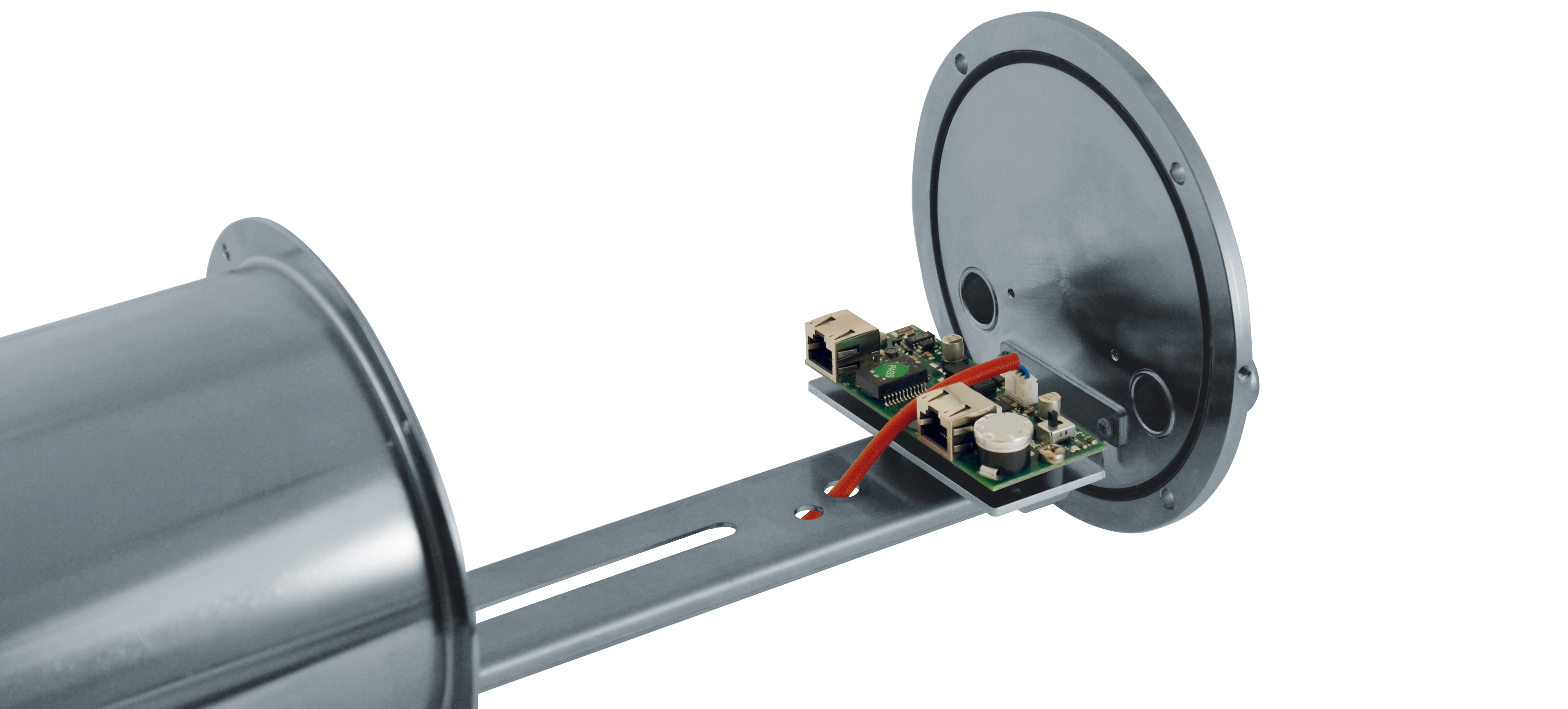

  • PoE/Hi-PoE to power heater & network camera
  • Category 5e shielded power cable
  • Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus
  • IP66/IP67/IP68/IP69

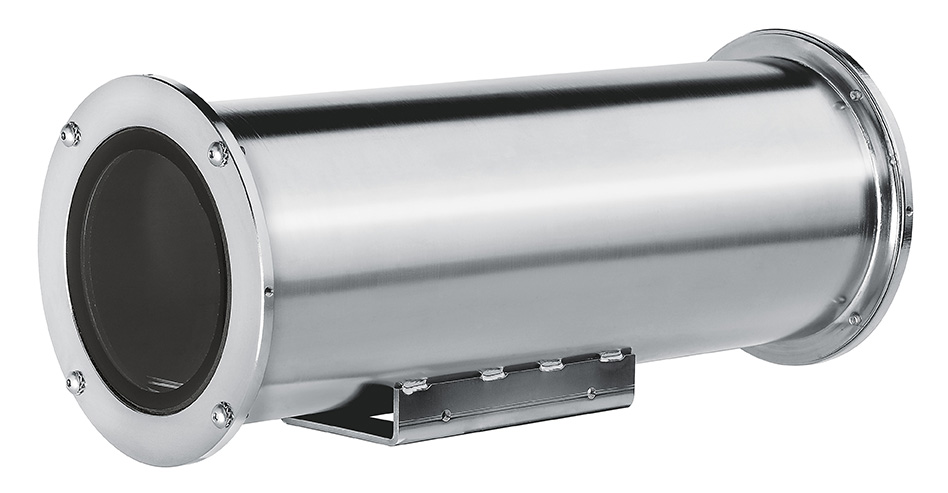

  • Cylindrical body enclosed by two 6mm(0.24in)-thick circular flanges
  • 2 PG13.5 cable glands in nickel-plated brass for external connections

LINK

DOWNLOAD

TECHNICAL DATA

Mechanical
  • The housing is in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards:
  • AISI 316L
  • UNI 6900-71: X 2 Cr Ni Mo 17 12 2
  • DIN 17006: X 2 Cr Ni Mo 17 13 2
  • N° werkstoff 1.4404
  • AFNOR: Z2 CND 17-12
  • BSI: 316S11
  • The screws utilised are in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards:
  • ISO: 7380
  • AISI: 316
  • ISO quality: A4
  • Resistance class ISO: from 50 to 70
  • External body polishing
  • Flange thickness (front/back): 6mm (0.24in)
  • External dimensions (ØxL): 154x358mm (6.1x14.1in)
  • Internal usable area (WxH): 88x86mm (3.5x2.9in) (front surface dimensions), 88x86mm (3.5x3.4in) (rear surface dimensions)
  • Internal usable length (with heater): 210mm (8.3in)
  • Cable glands: 2xPG13.5 (nickel-plated brass for external connections)
  • Gaskets: High sealing O-ring
  • Unit weight: 5kg (11lb)
Housing's window
  • Window with extra clear tempered glass
  • Usable diameter: 97mm (3.8in)
  • Thick: 4mm (0.16in)
Electrical
  • Power absorbed in input/Available power for camera (selectable with dip-switch)
  • PoE input Class 3 (13W): PoE camera Class 2 (7W)
  • Hi-PoE input Class 4 (25W): PoE camera Class 3 (13W)
  • Data line: 10/100Base-T
  • Heater
  • PoE input Class 3: 3W, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)
  • Hi-PoE input Class 4: 7W, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)
  • Demisting: 1W
  • Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus
Environment
  • For indoors and outdoors installation
  • Submersible: up to -40m (-130ft) (pressure: 4bar)
  • Operating temperature (with wide range cameras, in Hi-PoE version Hi-PoE): from -20°C (-4°F) up to +60°C (140°F)
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60065
  • Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3
  • IP protection degree (EN60529): IP66, IP67, IP68, IP69
  • EAC certification
Accessories
  • OHEPOWINJ Hi-PoE Power Injector, 1 channel, for indoor installations
  • VIPNX1C 230Vac stainless steel wiper for NXM housing
  • VIPNX2C 24Vac stainless steel wiper for NXM housing
  • WAS0V5L5M00 Water tank 5l (1.3gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WAS0V23L5M00 Water tank 23l (6gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WAS0V23L11M00 Water tank 23l (6gal), pump with delivery up to 11m (36ft), IN 230Vac-24Vac-120Vac
  • WAS1V23L30M00 Water tank 23l (6gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
  • WAS3V23L30M00 Water tank 23l (6gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
  • WASPT0V5L5M00 Water tank 5l (1.3gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L5M00 Water tank 23l (6gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L11M00 Water tank 23l (6gal), pump with delivery up to 11m (36ft) with water floating, IN 230Vac-24Vac-120Vac
  • WASPT1V23L30M00 Water tank 23l (6gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
  • WASPT3V23L30M00 Water tank 23l (6gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
  • DTWRX Data receiver for remote control of the wiper and WASPT range pumps in stand-alone housings
  • WASNX1V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 230Vac
  • WASNX2V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac
  • WASNX3V10L20M00 Tank 10l (2.6gal) with integrated manual pump controlled by solenoid valve, delivery head up to 20m (66ft) max, IN 120Vac
    • Brackets and adaptors
    • NXWBS1 AISI 316L stainless steel wall bracket with joint
    • NXCOL AISI 316L stainless steel pole adapter module
    • NXCW **non tradotto**
    Related products
    • NXPTH Stainless steel P&T motor
    Spare parts
    • OSPAVIPNXMC Complete blade for VIPNX wiper
