WASEXWasher pump with ex-proof solenoid valve

MARKETS

CERTIFICATIONS

DESCRIPTION

The WASEX washer pump is an important element for effective video surveillance in hazardous areas because it guarantees sharp images in all environmental conditions and reduces the need for maintenance.

The WASEX system is designed for the MAXIMUS series and is also compatible with third-party products.

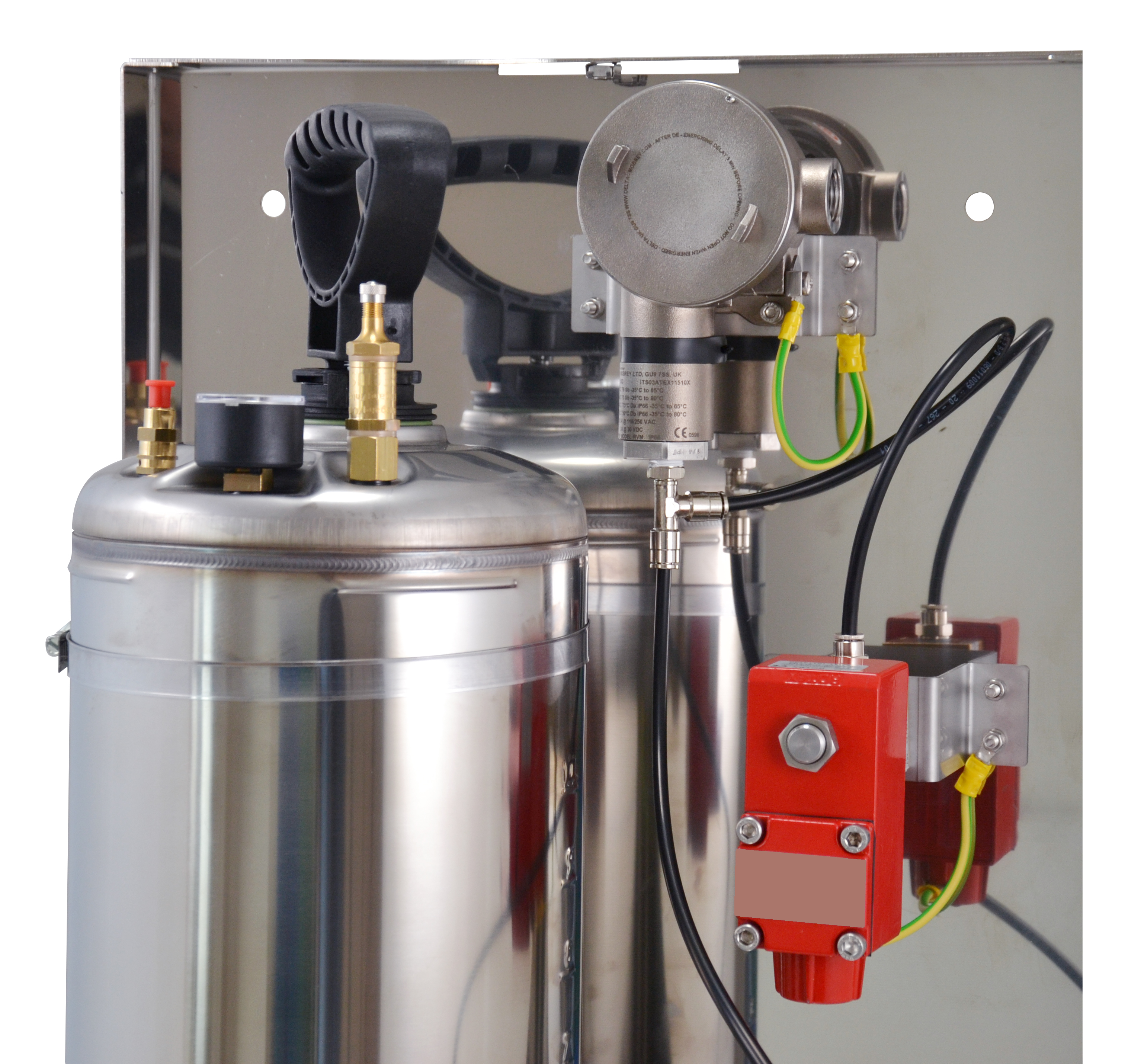

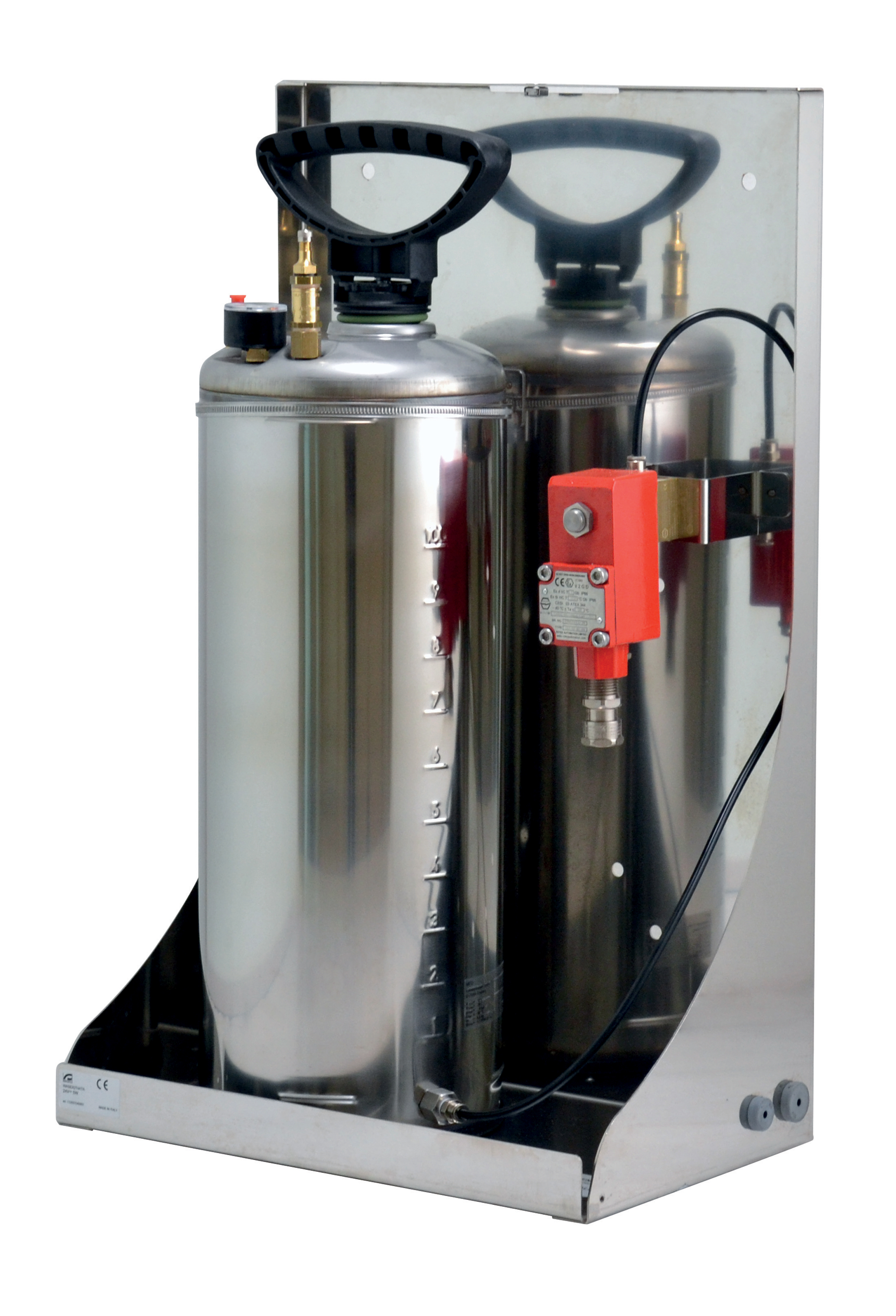

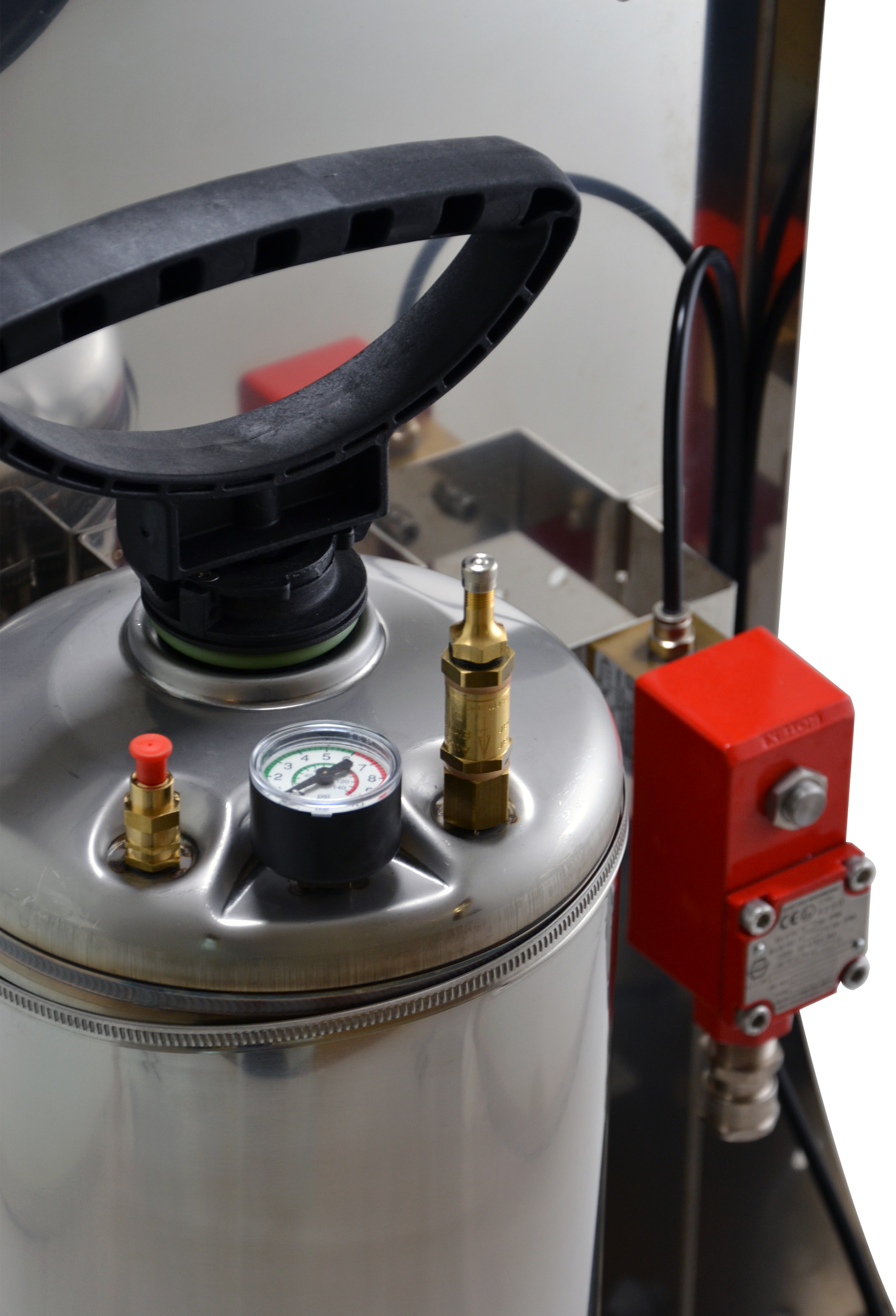

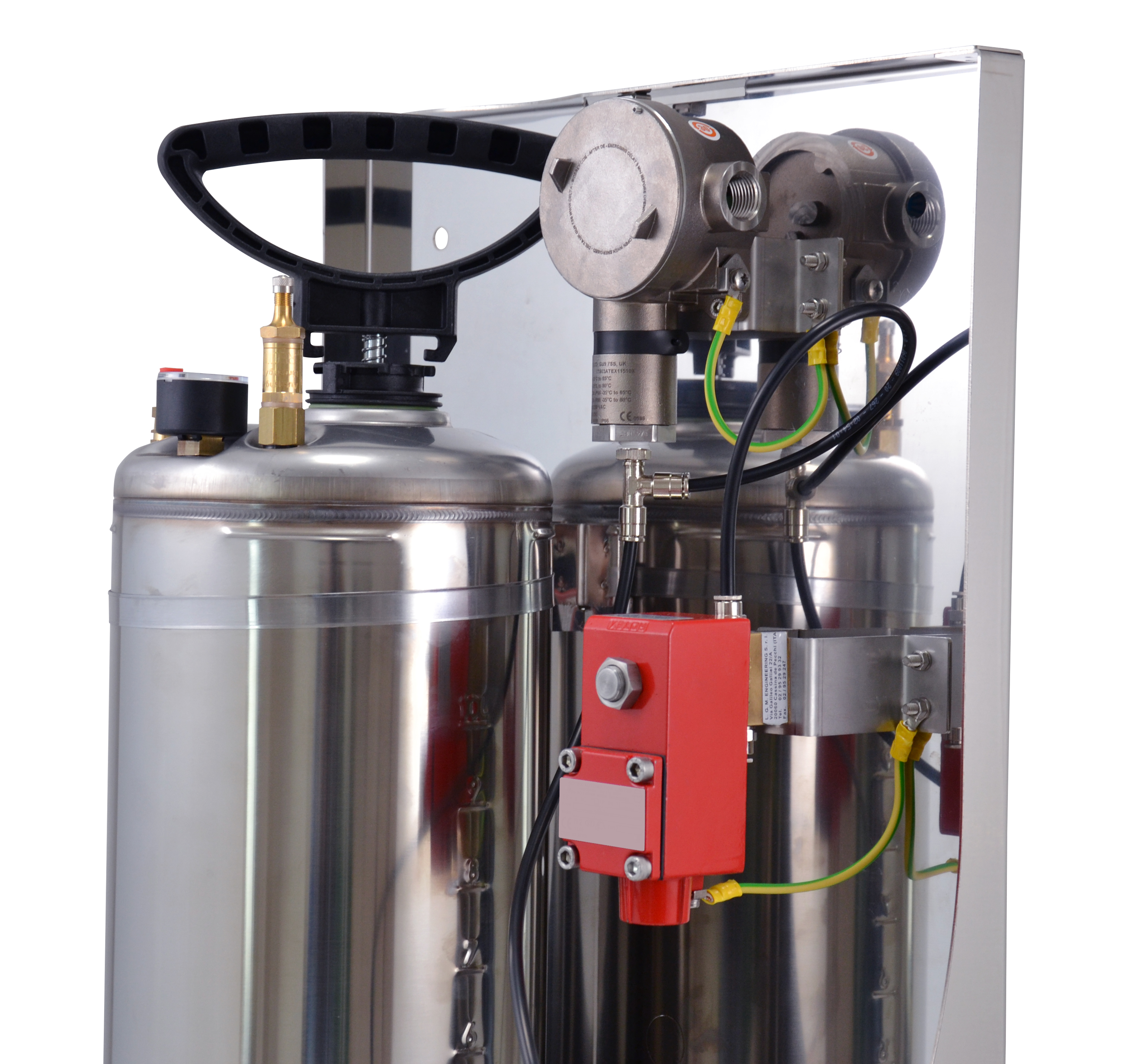

The kit is composed of a 10-litre stainless steel tank with an explosion-proof certified solenoid valve.

The WASEX product is Lloyd's Register Type Approval System Test Specification Number 1 certified and therefore can be used in Marine and Offshore applications for environmental categories ENV1, ENV2, ENV3 and ENV5

KEY FEATURES

  • Delivery head: 20m (66ft) or 30m (98ft)
  • Water tank capacity: 10l (2.6gal)
  • Suitable for MAXIMUS series or with third-party products
  • Power supply in 24Vac/dc, 5W max

TECHNICAL DATA

Mechanical
  • Materials

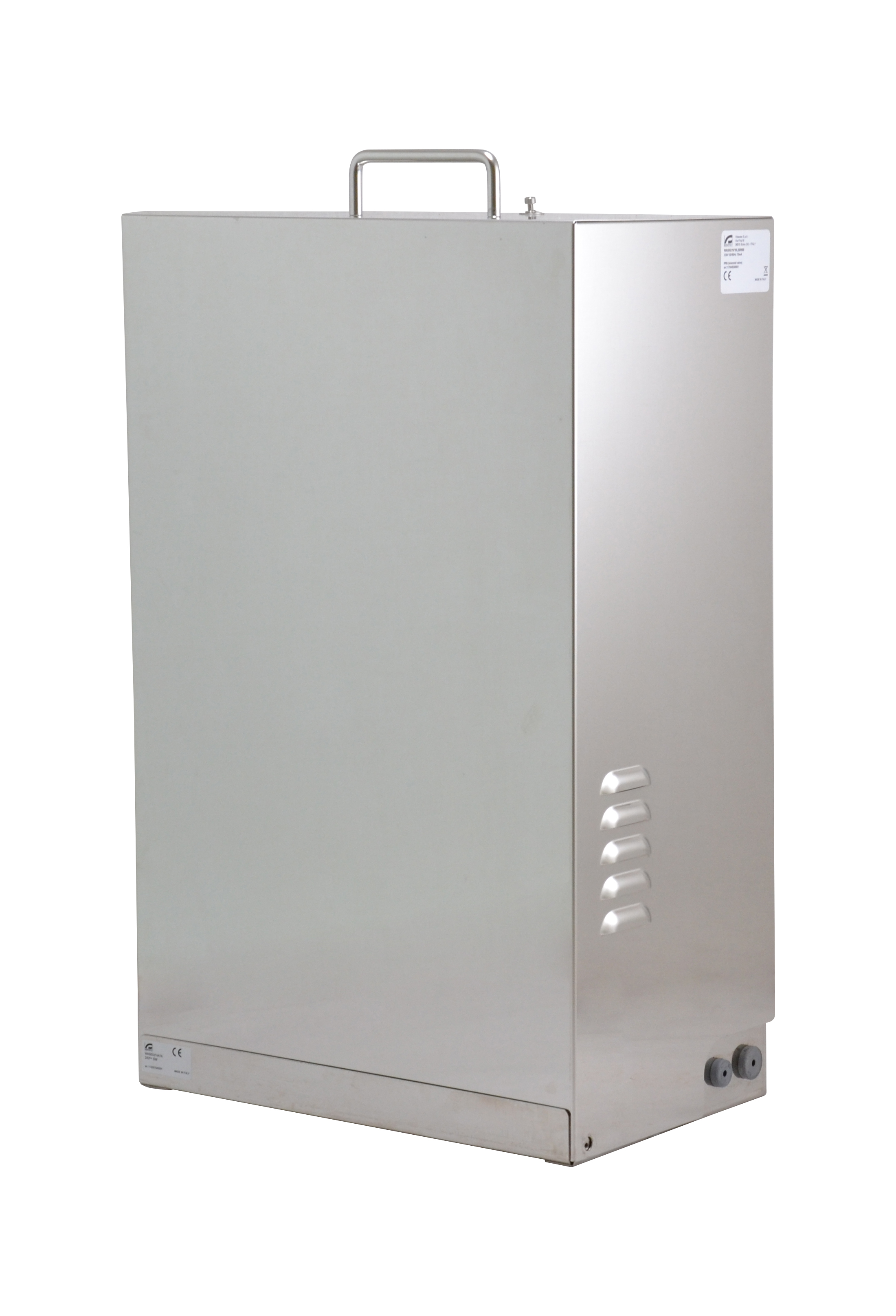

  • External enclosure: Stainless steel AISI 316L
  • Antistatic delivery water pipe: Antistatic plastic
  • Antistatic delivery water pipe (supplied)
  • Length: 20m (66ft)
  • Pressure: 6bar max
  • Delivery head
  • Antistatic delivery water pipe (supplied): 20m (66ft), 4bar
  • Antistatic delivery water pipe (available as an accessory): 30m (98ft), 6bar
  • Water tank capacity: 10l (2.6gal)
  • 1 hole 1/2" NPT for cable entry
  • Dimensions (WxHxL): 429x697x255mm (16.9x27.4x10in)
  • Unit weight: 18kg (40lb)
Electrical

    WASEX2T4AT, WASEX2T4GOR, WASEX2T4IN

  • Power supply: 24Vac, 50/60Hz or 24Vdc
  • Consumption: 5W

    WASEX2T4KC

  • Power supply: 24Vdc
  • Consumption: 10.6W
Environment

    WASEX2T4AT, WASEX2T4GOR, WASEX2T4IN

  • For indoors and outdoors installation
  • Operating temperature of solenoid valve: From -40°C (-40°F) up to +60°C (140°F)
  • Operating temperature of device: depending on the solidification temperature of the liquid
  • Relative humidity: from 5% up to 95%

    WASEX2T4KC

  • For indoors and outdoors installation
  • Operating temperature of solenoid valve: from -40°C (-40°F) up to +55°C (131°F)
  • Operating temperature of device: depending on the solidification temperature of the liquid
  • Relative humidity: from 5% up to 95%
Certifications
  • Lloyd's Register Marine Type Approval
  • Test Specification Number 1:2015 (ENV1, ENV2, ENV3, ENV5)
  • EAC EX:
  • 1 Ex d IIC T4 Gb X, IP66 -40°C/+60°C
  • Ex tb IIIC T130°C Db X, IP66 -40°C/+60°C
  • Solenoid valve:
  • ATEX (EN 60079-0: 2012+A11: 2013, EN 60079-1: 2014, EN 60079-31: 2014)
  • Ex 2 II GD Ex d IIC T6 or T5 or T4 Gb

    Ex tb IIIC T80°C or 95°C or T130°C Db IP66

    Tamb -40°C to +35°C or +50°C or +60°C

  • INMETRO
  • Ex d IIC T4 Gb IP66

    Ex tb IIIC T135°C Db IP66

    Tamb '-40/+60°C

  • EAC EX:
  • 1 Ex d IIC T4 Gb X

    Ex tb IIIC T130°C Db X, IP66 -40°C/+60°C

Certifications - Explosion-proof applications

For further details on certifications and markings, consult the relevant table.

Certifications - Marine applications
  • Lloyd's Register Marine Type Approval certification:
  • Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
  • Electromagnetic compatibility: EN60945
  • Salty fog resistance: EN60068-2-52
  • Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2
Accessories
  • MBA1S5A Explosion-proof communication box in aluminium , IN 230 Vac
  • MBA2S5A Explosion-proof communication box in aluminium , IN 24 Vac
  • MBA3S5A Explosion-proof communication box in aluminium , IN 120 Vac
  • OCTEX1/2C Cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex
  • OCTEXS1/2C Cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex
  • OCTEXB1/2C Barrier cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex
  • OCTEXB1/2P Barrier cable gland in nickel-plated brass EX 1/2" NPT, unarmoured cable IECEX-ATEX-EAC Ex
  • OCTEXBA1/2P Barrier cable gland in nickel-plated brass EX 1/2" NPT, armoured cable IECEX-ATEX-EAC Ex
  • OCTEXA1/2C Cable gland in nickel-plated brass EX 1/2" NPT armoured cable IECEX-ATEX-EAC Ex
  • For further details about cable glands part numbers, please refer to the relevant table.

    Brackets and adaptors
  • NXCOL AISI 316L stainless steel pole adapter module
  • NXCW AISI 316L stainless steel corner adapter module
  • WASEX - Certifications and Markings

    Part number

    Certification

    Marking

    Ambient temperature

    WASEX2T4AT

    ATEX (Solenoid valve)

    __logo__EX2mm__ 2 II GD Ex d IIC T6 or T5 or T4 Gb_|n|_ Ex tb IIIC T80°C or 95°C or T130°C Db IP66

    -40°C ≤ Ta ≤ +35°C or +50°C or +60°C

    WASEX2T4GOR

    EAC Ex (Pumping unit)

    II Gb c IIC T6/T5/T4_|n|_III Db c IIIC T80°C/T95°C/T130°C

    -40°C ≤ Ta ≤ +35°C or +50°C or +60°C

    EAC Ex (Solenoid valve)

    1Ex d IIC T6/T5/T4 Gb X_|n|_Ex tb IIIC T80°C/ T95°C/ T130°C Db X

    -40°C ≤ Ta ≤ +35°C or +50°C or +60°C

    WASEX2T4IN

    INMETRO (Solenoid valve)

    Ex d IIC T4 Gb IP66_|n|_Ex tb IIIC T135°C Db IP66

    -40°C ≤ Ta ≤ +60°C

    WASEX2T4KC

    ATEX (Solenoid valve)

    __logo__EX2mm__ 2 II GD Ex db mb IIC T4 Gb_|n|_ Ex mb tb IIIC T135°C Db

    -40°C ≤ Ta ≤ +55°C

    IECEx (Solenoid valve)

    Ex db mb IIC T4 Gb_|n|_Ex mb tb IIIC T135°C Db

    KCs (Solenoid valve)

    Ex d mb IIC T4_|n|_Ex mb tD A21 IP67 T135°C
