COMB Communication box in polycarbonate

Designed to work exclusively with Videotec products and accessories

1 SFP port, 3 RJ45 ports, 2 bypass for analog video signals

Extended/Industrial range electronics

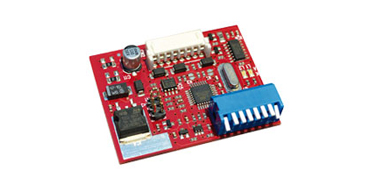

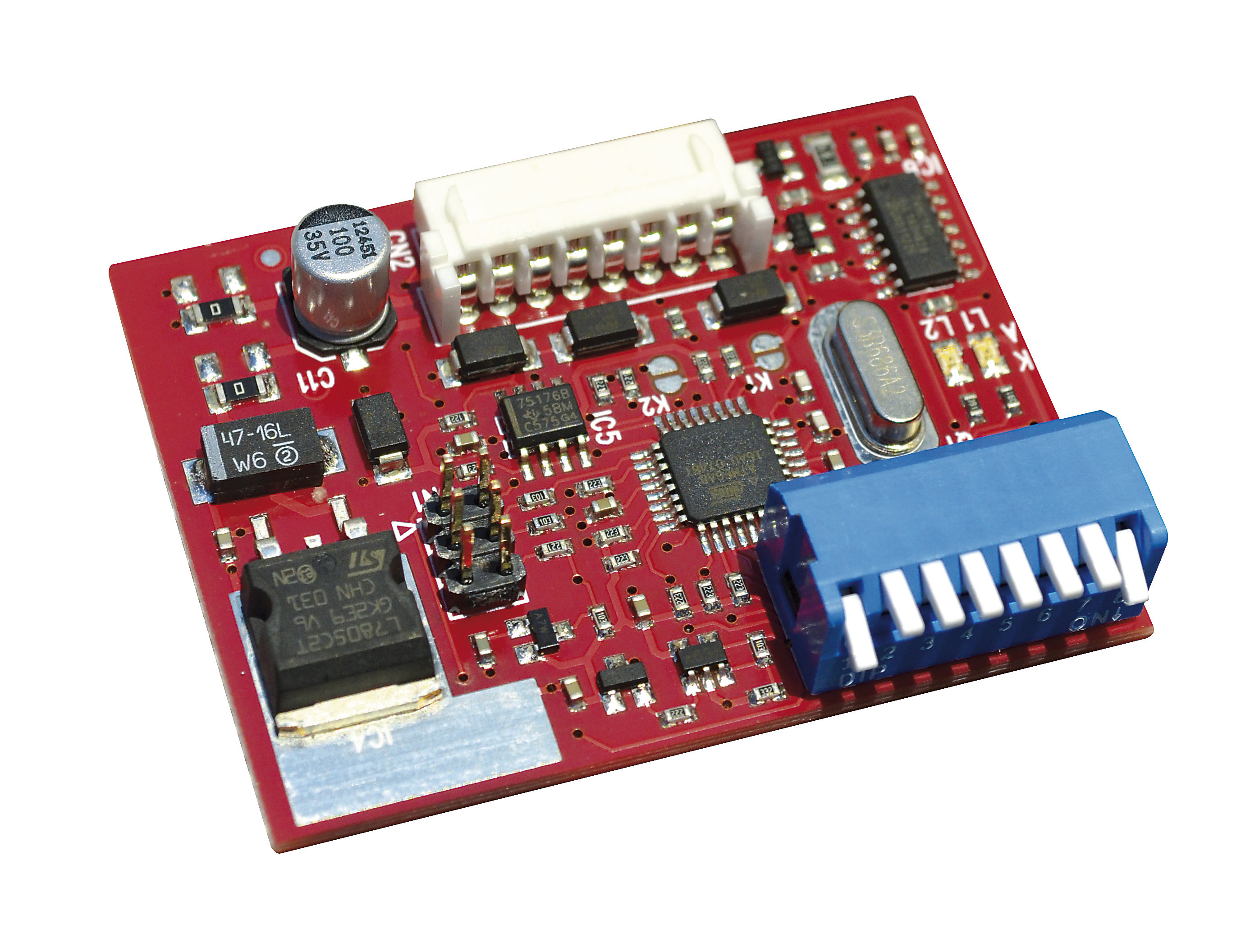

DTWRX Telemetry data receiver for wiper and washer remote control

• Remote control of wiper and washer pump of WASPT series in stand-alone housings
• RS-485 communication
• Remote controllable up to 1200m (3937ft) from the control keyboard

MAXIMUS MBA Explosion-proof communication box in aluminium

Certifications for use in Zones 1 and 2, IIC T5 or T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C or T85°C Group (Dust)

Copper-free marine grade aluminium construction, RAL 9006 external epoxy paint

Designed to work exclusively with Videotec products and accessories

Plenty of space for cables and connections

3 RJ45 ports, Fast Ethernet (10BASE-T/100BASE-T)

1 SFP port, Fast Ethernet (100BASE-FX), for fiber optic connection

2 bypass for analog video signals with BNC connectors

2 bypass for I / O signals with multi-pin connectors

Input voltages available: 230Vac, 120Vac, 24Vac

Extended/Industrial range electronics

Operating temperature: from -40°C (-40°F) up to +70°C (158°F)

IP66

MAXIMUS MBX Explosion-proof communication box in stainless steel

Certifications for use in Zones 1 and 2 IIC Group (Gas) and in Zones 21 and 22 IIIC Group (Dust); ambient temperature up to +80°C (+176°F)

Designed to work exclusively with Videotec products and accessories

1 SFP port, Fast Ethernet (100BASE-FX), for fiber optic connection

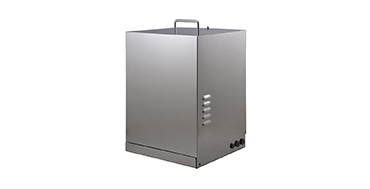

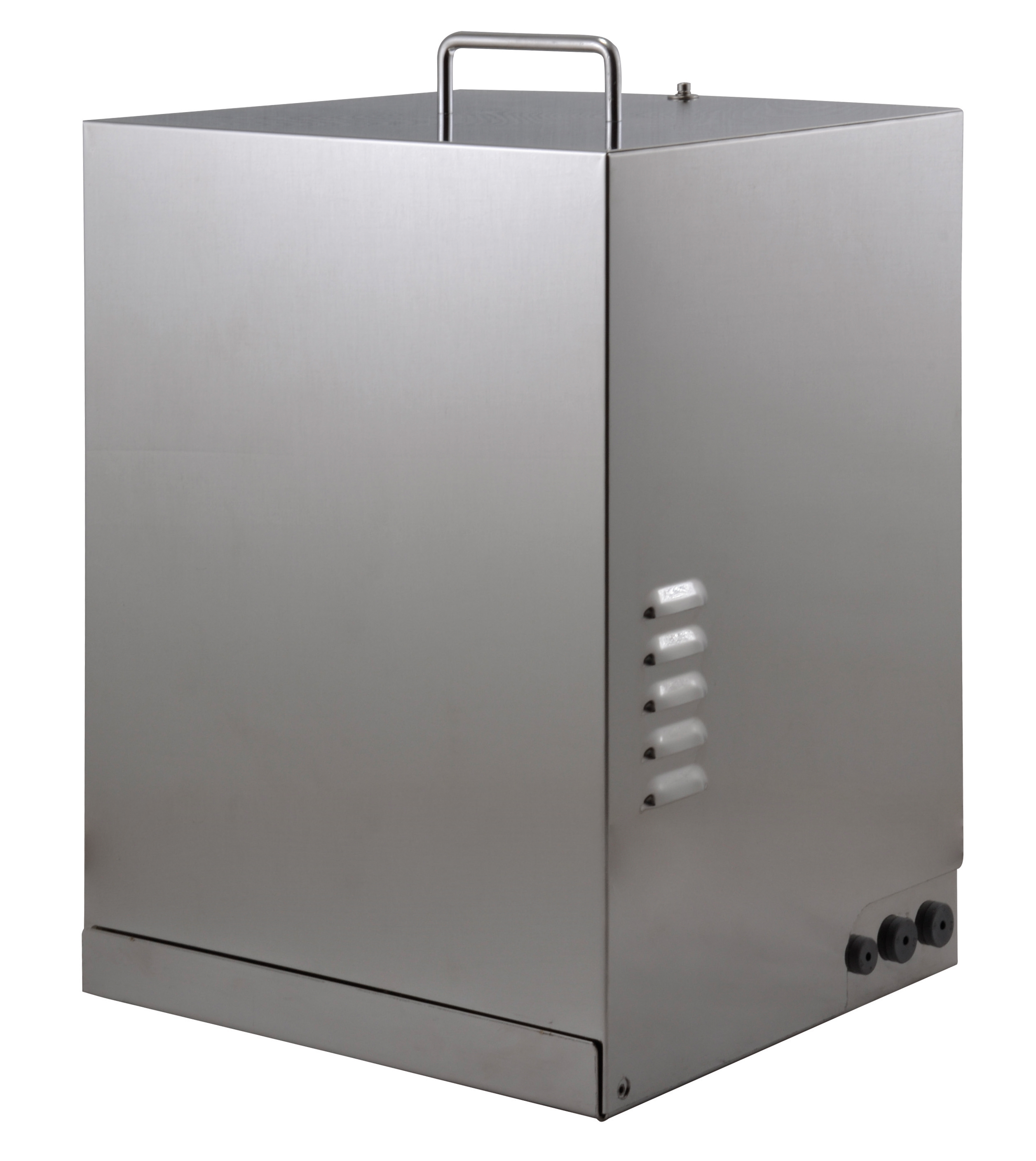

WASCAB Cabinet for WAS/WASPT

• In stainless steel AISI 316L
