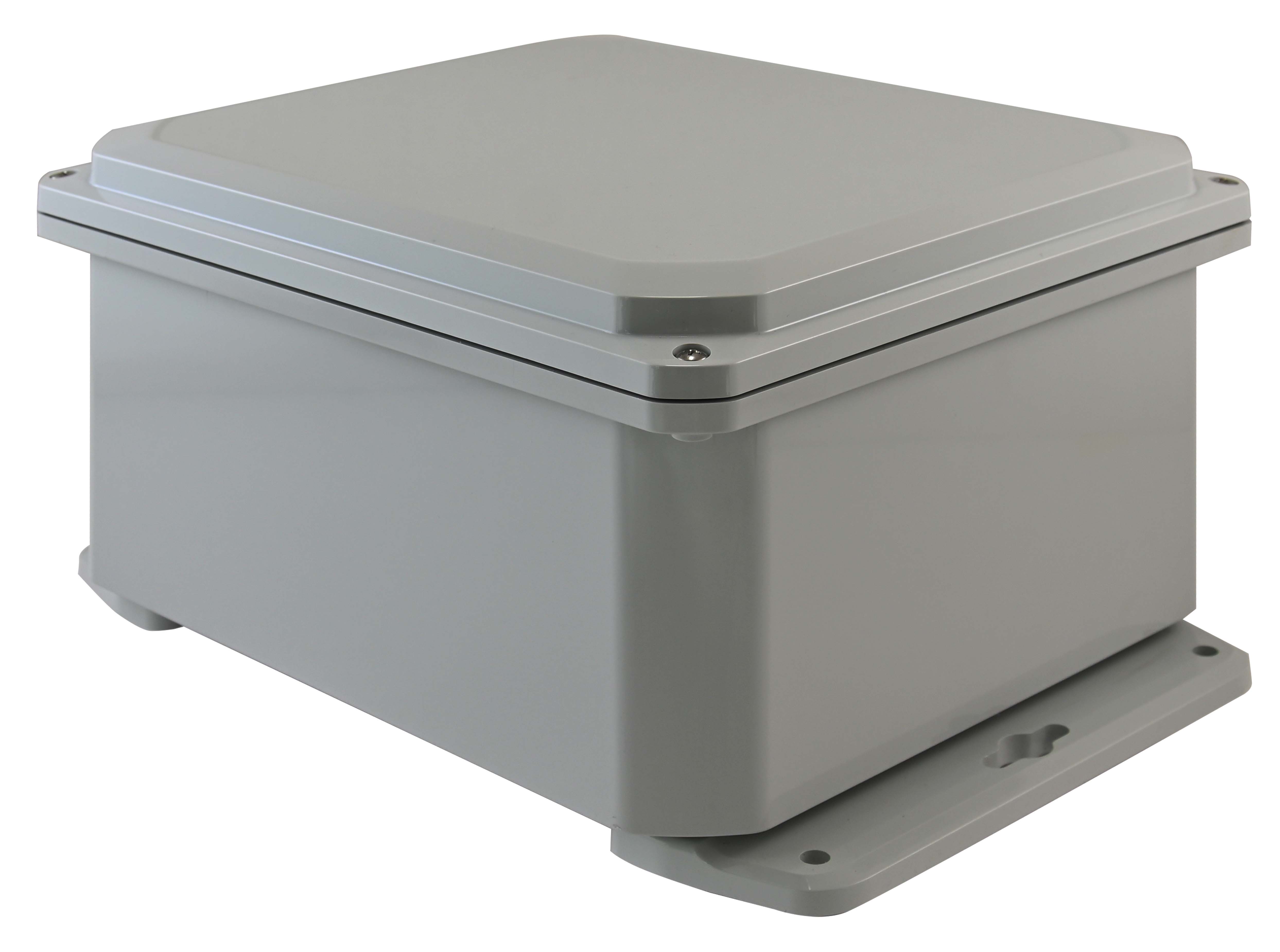

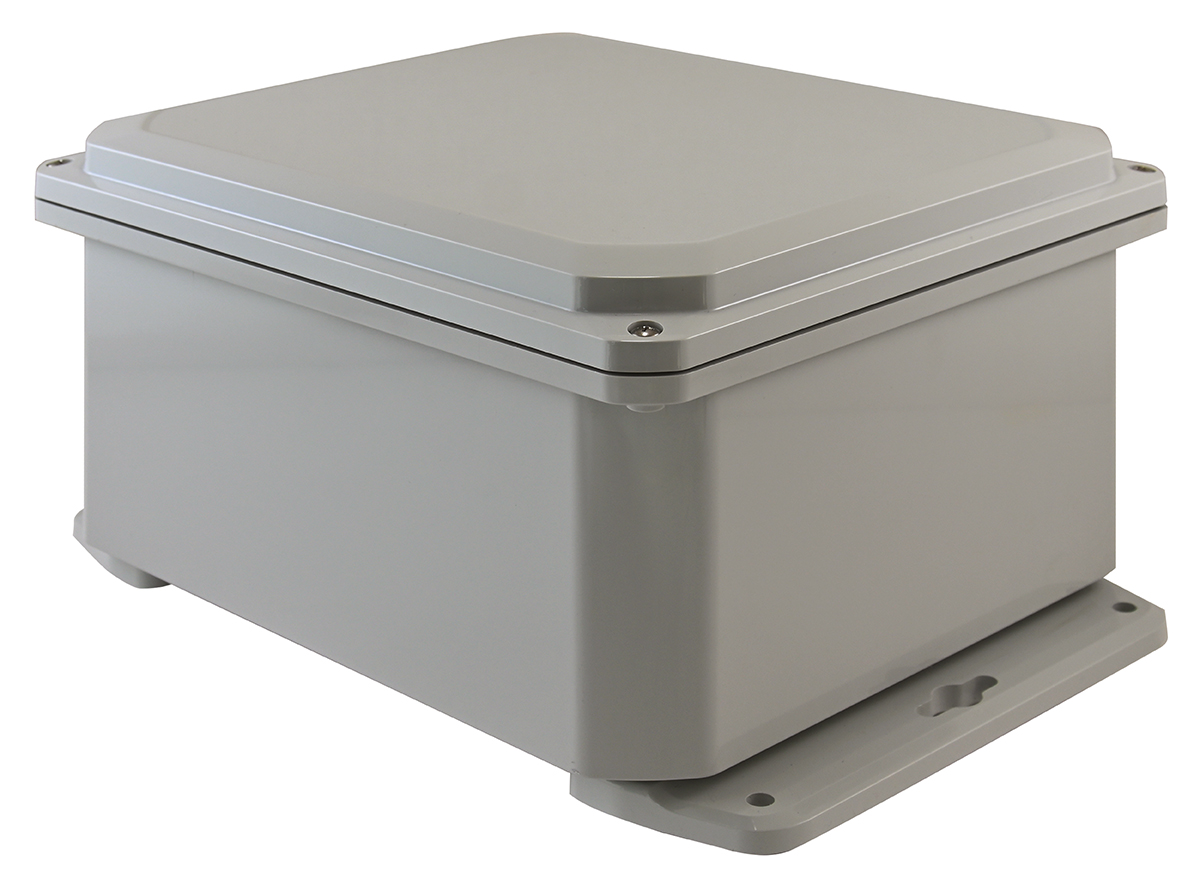

COMB Communication box in polycarbonate

Designed to work exclusively with Videotec products and accessories

1 SFP port, MSA compliant, Fast Ethernet (100BASE-FX), for fiber optic connection (splice tray included in the product)

3 RJ45 ports, Fast Ethernet (10BASE-T/100BASE-T)

2 bypass for analog video signals with BNC connectors and 2 bypass for I / O signals with multi-pin connectors

Extended/Industrial range electronics

FM1010 EMC filter for Marine certification

• Electrical data: from 0 up to 250V DC/AC 50/60 Hz, 6A

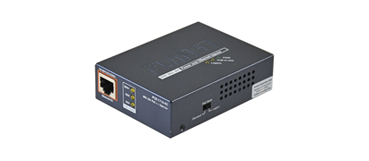

OHEP90INJ Power Injector PoE (90W)

• Power Injector PoE (90W), 1 channel, for indoor installations
• Input voltage: from 100Vac up to 240Vac

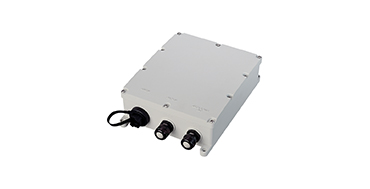

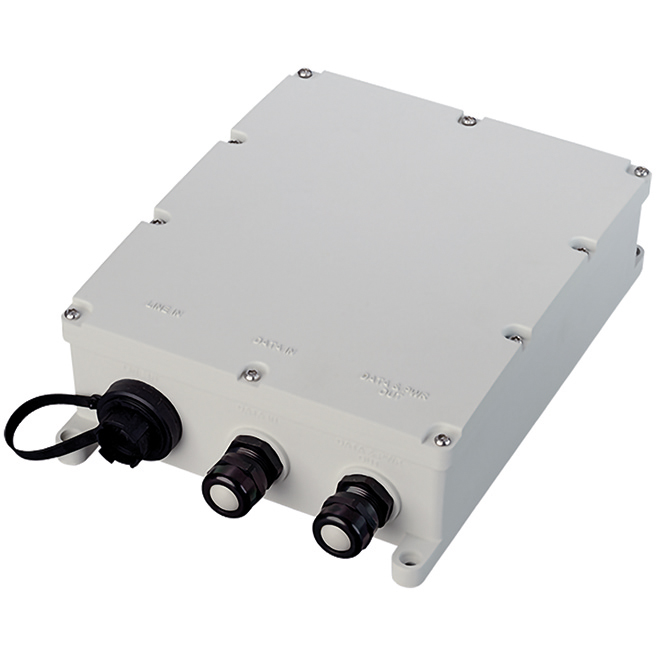

OHEP90INJO Power Injector PoE (90W)

• Power Injector PoE (90W), 1 channel, for outdoor installations
• Input voltage: from 100Vac up to 240Vac
• Weatherproof standard IP66, NEMA 4X

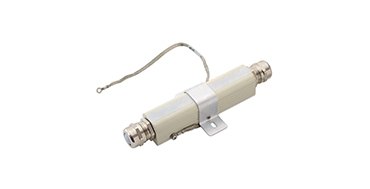

SURGEPR Lightning surge protection device

• Surge handling capability: 10kV, 5kA to ground in 8/20µs, 800V, 100A PoE
• Weatherproof standard IP66, NEMA 4X

UPTIRPS100N External power supply for ULISSE with UPTIRN LED illuminators

• Power supply: 100Vac, 50/60Hz
• Control to synchronise illuminators with camera Day/Night switching
• Twilight sensor included
• IP66

UPTIRPS120UL External power supply for ULISSE with UPTIRN LED illuminators

• Power supply: 120Vac, 50/60Hz
• Control to synchronise illuminators with camera Day/Night switching
• Twilight sensor included
• IP66

UPTIRPS230N External power supply for ULISSE with UPTIRN LED illuminators

• Power supply: 230Vac, 50/60Hz
• Control to synchronise illuminators with camera Day/Night switching
• Twilight sensor included
• IP66

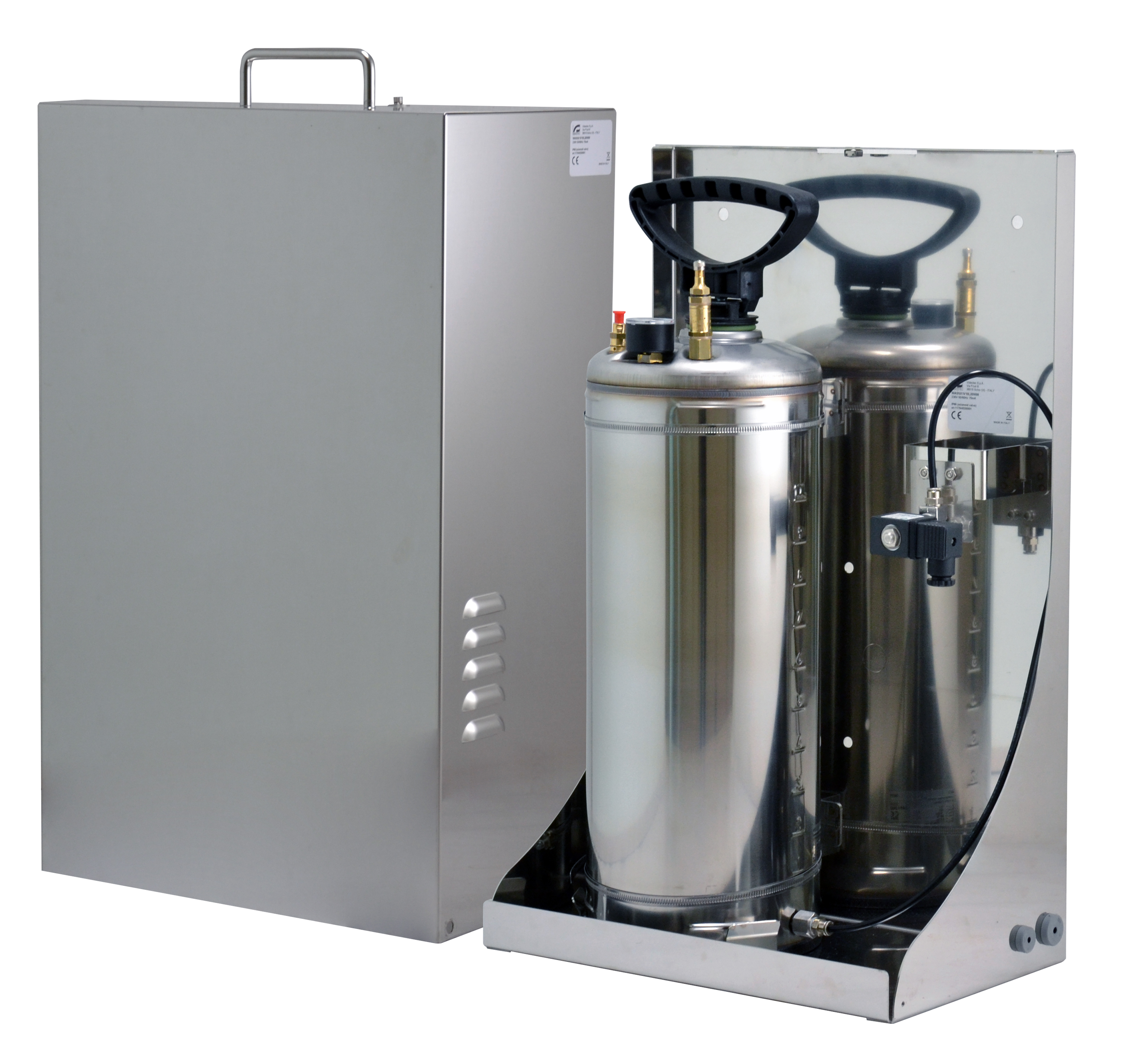

WASNX Washer pump with solenoid valve for stainless steel products

• Enclosure made of stainless steel AISI 316L
• Delivery head: 30m (98ft) (antistatic water delivery pipe supplied, 20m (66ft))
• Water tank capacity: 10l (2.6gal)
• Suitable for Videotec products or with third-party products
• Operating temperature: from -20°C (-4°F) up to +60°C (140°F)
• Available voltages: 230Vac, 120Vac, 24Vac
• IP protection degree (EN60529): IP65 (solenoid valve only, enclosure not rated)

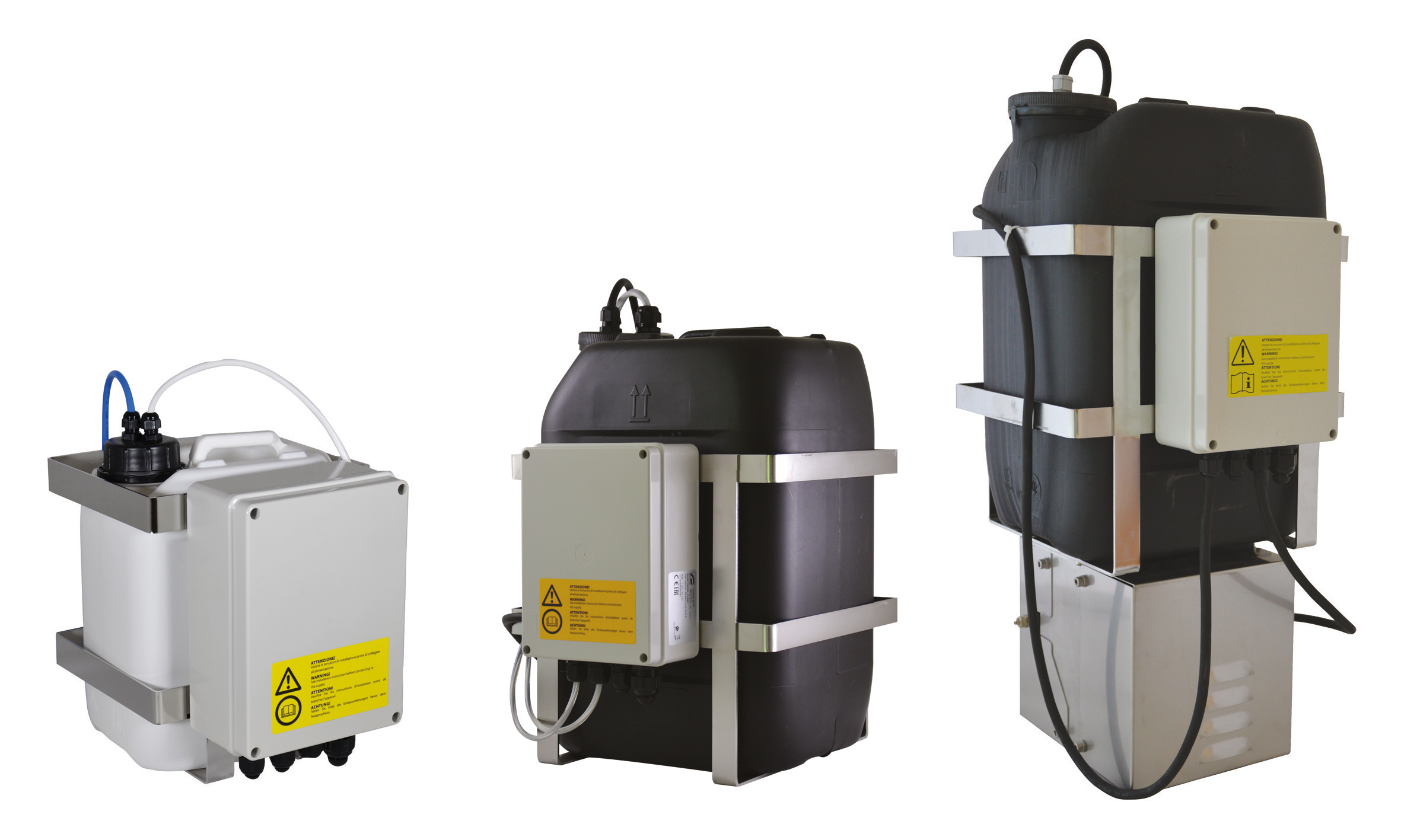

WASPT Washer pump and 5 or 23 litre tank

• Polyethylene tank with stainless steel cage
• Delivery head: 5m (16ft), 11m (36ft), 30m (98ft)
• Versions with alarm for the lack of liquid in the tank
• Also for third-party products
• Operating temperature: from -10°C (14°F) up to +60°C (140°F)
• Available voltages: 230Vac, 120Vac, 24Vac
• IP protection degree (EN60529): IP66 (only products with 5m (16ft) or 11m (36ft) delivery head)
• The WASPT0V23L11M00 washer pump with tank of 23l (6gal) and delivery head 11m (36ft) is certified "Lloyd's Register Marine Type Approval"

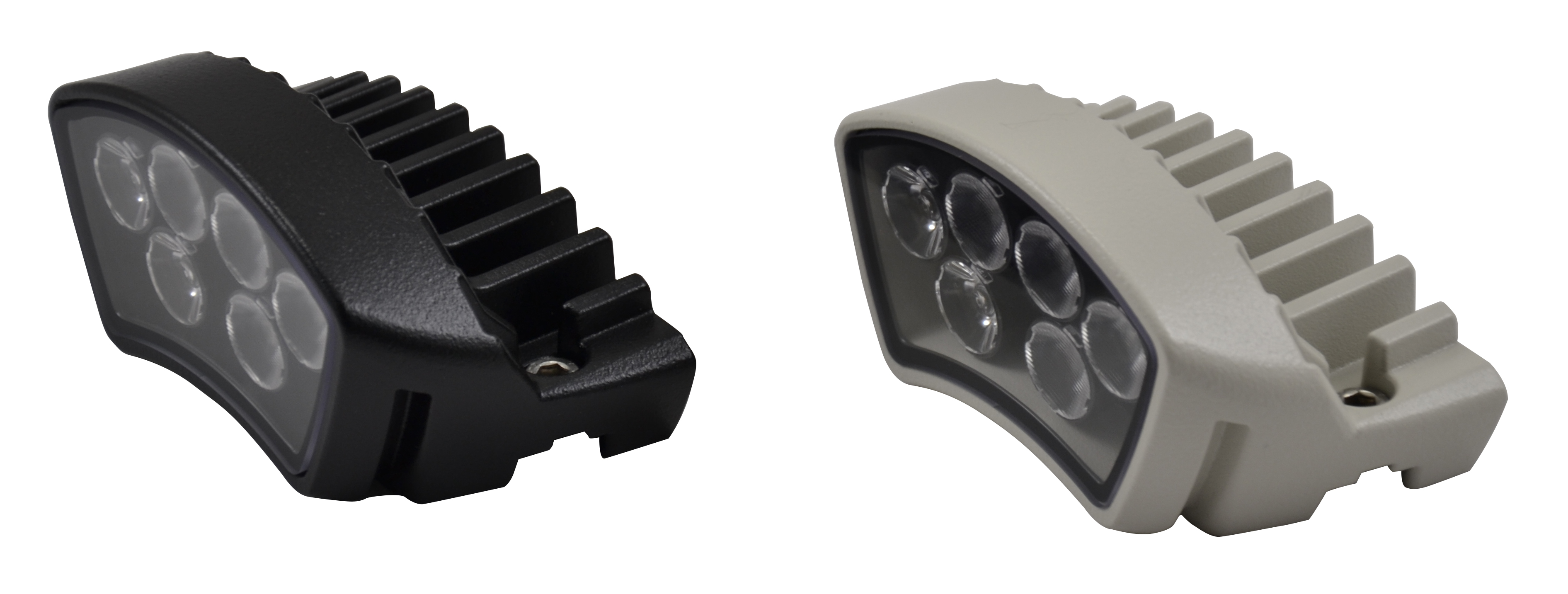

UEI LED illuminator for ULISSE EVO

• Wavelength: 850nm, 940nm, white light
• Automatic and remote switching on
• No calibration required for light beam alignment with the camera
• Automatic recognition of the type of illuminator installed
