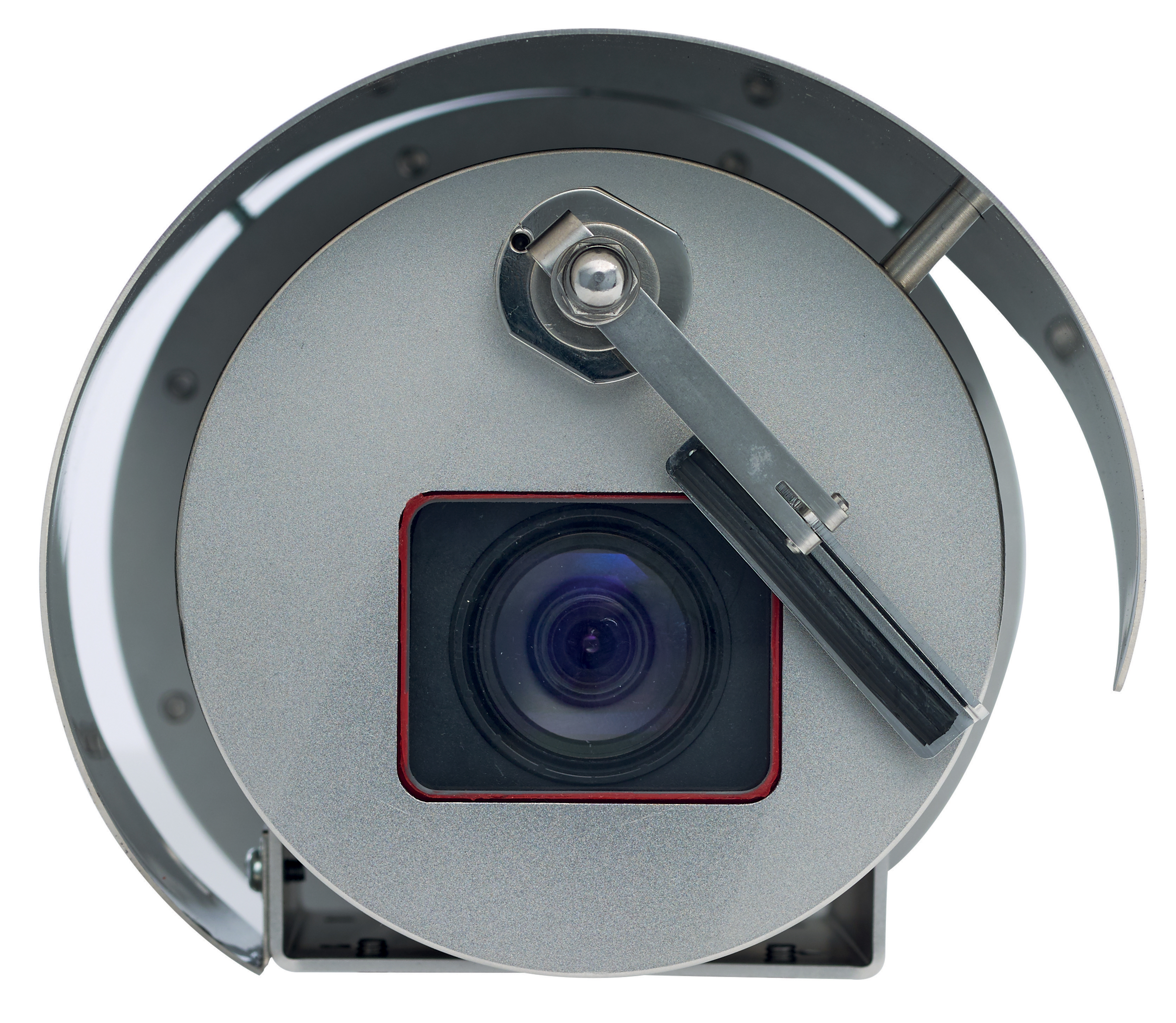

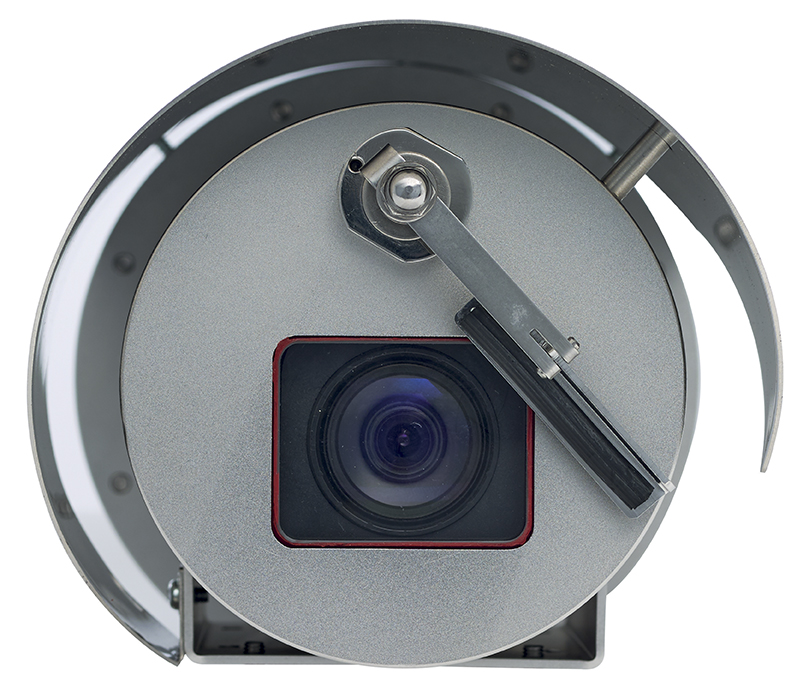

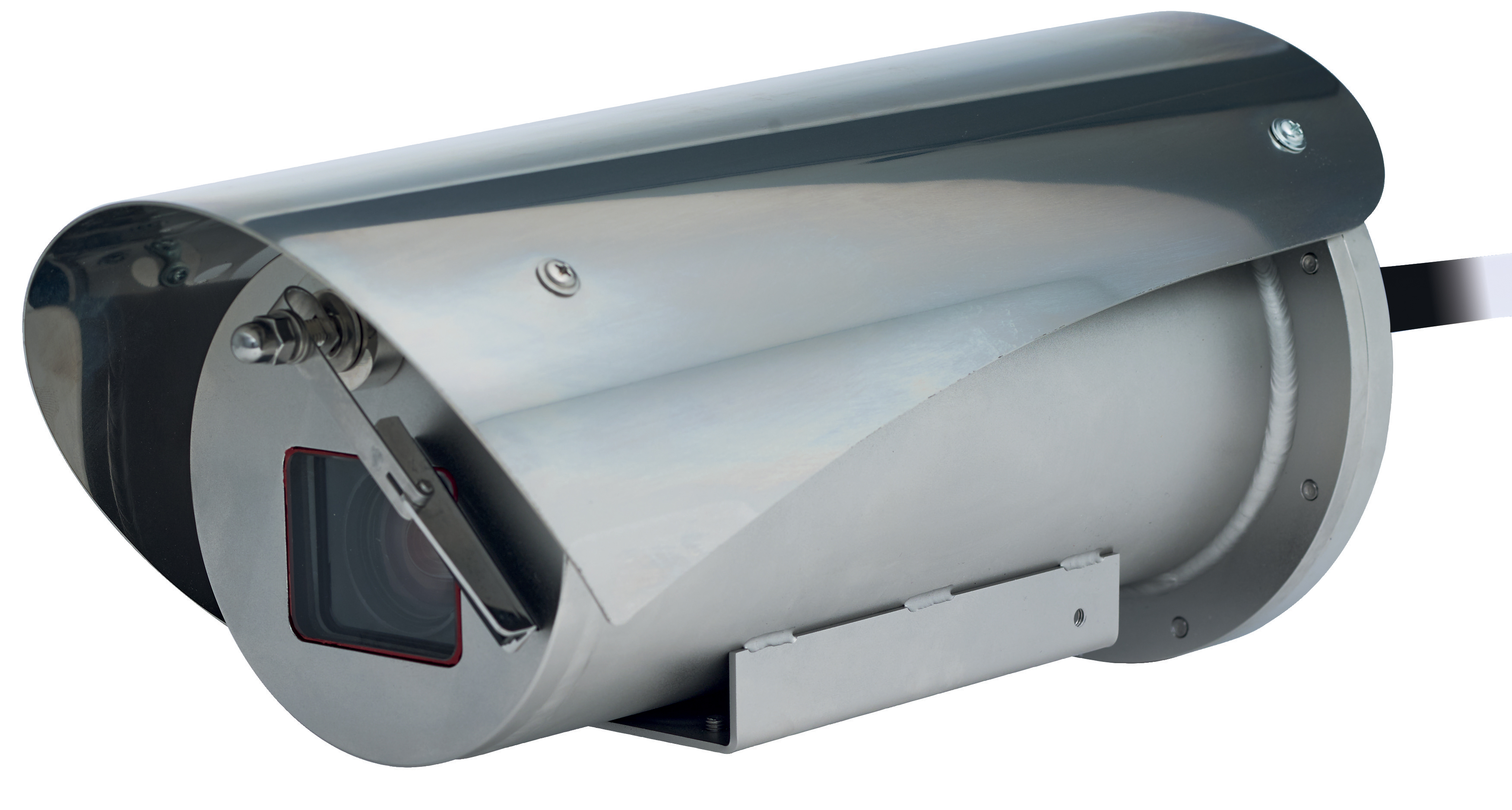

MAXIMUS MVX with SONY FCB-EV7520 cameraExplosion-proof FULL HD camera, for day/night viewing with exceptional night brightness

MAXIMUS RANGE ... Drillereye

MARKETS

CERTIFICATIONS

DESCRIPTION

MAXIMUS MVX with the SONY FCB-EV7520 camera has a 30x optical zoom and a 1/2.8” Exmor R™ CMOS sensor with Full HD 1080/60p resolution that produces the highest image quality, even when surveilling moving objects or in poor lighting conditions. The advanced SONY technology brings Wide Dynamic Range and a configurable High Light Compensation that allows optimal management of contrasting light and dark conditions. The camera’s high sensitivity means you get colour video with a minimum illumination of just 0.0013lx (0.0008lx in black and white). This guarantees surveillance coverage even when lighting at the scene is very poor.

KEY FEATURES

Certifications for use in Zones 1 and 2, IIC T5 and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C and T85°C Group (Dust)

Marine Certification: Lloyd's Register Marine Type Approval

AISI 316L stainless steel construction

External shot peened and electro-polished surfaces

Camera Full HD 1080p, 30x, 60fps

Minimum Illumination:

Colour: 0.006lx

B/W: 0.0006lx

4m (13ft) / 10m (32.8ft) preinstalled armoured multipolar cable with cable gland or, alternatively, with 4m (13ft) / 10m (32.8ft) cable tail (for installation with conduit, conduit sealing fitting and conduit not included)

TECHNICAL DATA

Mechanical
  • AISI 316L stainless steel construction
  • External shot peened and electro-polished surfaces
  • Sunshield
  • Integrated wiper
  • Unit weight:
  • 8.5kg (18.7lb) (housing with 4m (13ft) armoured multipolar cable)
  • 12kg (26.5lb) (housing with 10m armoured multipolar cable)
Cable glands
  • Cable entry: 1 hole, 3/4" NPT
  • Cable gland Ex db 3/4"NPT and 4m/10m (13ft/33ft) preinstalled multipolar armoured cable or with 4m/10m (13ft/33ft) cable tail (for installation with conduit, conduit sealing fitting and conduit not included)
Housing's window
  • Material: Thermally tempered glass
  • Dimensions: 51x41mm (2x1.6in)
  • Thick: 12mm (0.47in)
Electrical
  • Supply voltage/Current consumption
  • 24Vac ±10%, 2.2A, 50/60Hz
  • 24Vdc ±5%, 2.2A
  • 12Vdc ±5%, 3.5A
  • Heater (Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F))
  • Armoured cable:
  • external diameter = 20.00 ± 0.50mm (0.79±0.20in)
  • under armour diameter = 15.20mm (0.60in)
  • colour: Black RAL 9005
  • Armoured cable composition:
  • 3 x 2.5mm²
  • 7 x 0.34mm²
  • 4 x 2 x 0.22mm² (cat. 5E)
  • Cable tail composition:
  • 3 x 2.5mm², rated external diameter = 8.7mm (0.34in)
  • 7 x 0.34mm², rated external diameter = 6.4mm (0.25in)
  • 4 x 2 x 0.21mm², (cat. 5E), rated external diameter = 6.7mm (0.26in)
Network
  • Ethernet connection: 100 Base-TX
  • Connector: RJ45
Cybersecurity
  • Digitally signed firmware
  • Password restricted access (HTTP digest)
  • Support of various user access levels
  • Control of accesses IEEE 802.1X
  • HTTPS cryptography using TLS1.0, TLS1.1, TLS1.2 and TLS1.3
  • Centralised certificate management
  • Complies with ONVIF Security Service specifications
Video
  • Video encoder
  • Communication protocol: ONVIF, Profile Q, Profile S and Profile T
  • Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WS-DISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
  • Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
  • Video compression: H.264/AVC, MJPEG, MPEG4
  • 3 independent video streams Full HD
  • Image resolution: from 320x180pixel up to 1920x1080pixel in 8 steps
  • Selectable frame rate from 1 to 60 images per second (fps)
  • Web Server
  • Directional OSD (maximum 4 settable areas)
  • Motion Detection
  • Video analytics: VIDEOTEC ANALYTICS (optional)
  • QoS: Differentiated DSCPs for streaming and device management
  • SNMP and NTCIP protocols
I/O interface
  • I/O alarm board
  • Alarm inputs: 1
  • Relay outputs: 1 (1A, 30Vac/60Vdc max)
Cameras

    SONY FCB-EV7520 Day/Night Full HD 30x

  • Resolution: Full HD 1080p (1920x1080)
  • Image Sensor: 1/2.8" Exmor™ R CMOS sensor
  • Effective Pixels: approx. 2.13 Megapixels
  • Minimum Illumination:
  • Colour: 0.0013lx (50 IRE, High sensitivity on)
  • B/W: 0.0008lx (30 IRE, High sensitivity on)
  • Focal length: from 4.3mm (wide) up to 129mm (tele)
  • Zoom: 30x (360x with digital zoom)
  • Iris: from F1.6 up to F14 (Auto, Manual)
  • Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end)
  • Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end)
  • Shutter speed: from 1/1s up to 1/10000s (Auto, Manual)
  • White balance: Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto)
  • Gain: from 0dB up to 50.0dB (Auto, Manual)
  • Wide Dynamic Range: 120dB
  • Focus System: Auto (PTZ Trigger, Full Auto), Manual
  • Picture Effects: E-flip
  • Noise removal (2D, 3D): Off, On (from level 1 up to level 5)
  • Exposure Control: Auto, Manual, Priority (Shutter priority, Iris priority, Brightness priority)
  • De-fog: Off, Low, Mid, High
  • Dynamic masking of privacy zones: maximum 24 masks settable, maximum 8 simultaneously displayable
  • Indoor Flicker Reduction
  • Gain Limit: from10.7dB up to 50dB
  • High sensitivity: On/Off
  • Backlight Compensation: On/Off
  • Auto Slowshutter: On/Off
  • Exposure compensation: Off, On (from -10.5dB up to +10.5dB)
  • Sharpness: from level 0 up to level 15
  • High Light Compensation (HLC): Off, Low, Mid, High, Masking Level (Off, On, from level 1 up to level 15)
  • Digital image stabilization: On/Off
Environment
  • For indoors and outdoors installation
  • Operating temperature:
  • Cold start from -40°C (-40°F) up to +65°C (149°F)
  • Running from -50°C (-58°F) up to +65°C (149°F)
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN61000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A)
  • RoHS (CE): EN50581
  • Outdoor installation (CE): EN60950-22, ICE60950-22
  • IP protection degree (EN/IEC60529): IP66, IP67, IP68 (2 hours, 5m (16ft)), IP69
  • Vibration test: EN50130-5, EN60068-2-6
  • UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07): cULus Listed
  • Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A)
  • Level of protection Type (UL50E): 4X, 6P
  • RCM (Australian and New Zealand Regulatory Compliance Mark)
Certifications - Explosion-proof applications
  • ATEX (EN 60079-0+A11, EN 60079-1, EN 60079-31)
  • IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31)
  • EAC EX (TR CU 012/2011)
  • INMETRO (ABNT NBR IEC 60079-0 + Errata 1, ABNT NBR IEC 60079-1 + Errata 1, ABNT NBR IEC 60079-31)
  • KCs (Employment and labor department 2016-54), cable tail versions
  • ETL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31), cable tail versions
  • ETL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. 60079-1, CAN/CSA-C22.2 NO. 60079-31), cable tail versions

For further details on certifications and markings, consult the relevant table.

Certifications - Marine applications
  • Lloyd's Register Marine Type Approval certification (only if used with the filter accessory FM1010):
  • Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
  • Electromagnetic compatibility: EN60945
  • Salty fog resistance: EN60068-2-52
  • Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2
Accessories
  • WASEX2T4AT Tank 10l (2.6gal) with integrated manual pump controlled by ATEX certified solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac/Vdc
  • WASEX2T4GOR Tank 10l (2.6gal) with integrated manual pump controlled by EAC EX certified solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac/Vdc
  • WASEX2T4IN Tank 10l (2.6gal) with integrated manual pump controlled by INMETRO certified solenoid valve, delivery head up to 20m (66ft) max, IN 24Vac/Vdc
  • MBX1MAA Explosion-proof communication box in stainless steel , IN 230 Vac , with EMC filter for marine certification
  • MBX2MAA Explosion-proof communication box in stainless steel , IN 24 Vac , with EMC filter for marine certification
  • MBX3MAA Explosion-proof communication box in stainless steel , IN 120 Vac , with EMC filter for marine certification
  • MBA1S5A Explosion-proof communication box in aluminium , IN 230 Vac
  • MBA2S5A Explosion-proof communication box in aluminium , IN 24 Vac
  • MBA3S5A Explosion-proof communication box in aluminium , IN 120 Vac
  • OCTEXP3/4C Conduit cable gland nickel-plated brass 3/4" NPT IECEX-ATEX- c CSA us - EAC Ex ( operating temperature : from -60°C (-76°F) up to +80°C (+176°F) )
  • FM1010 EMC filter for Marine certification

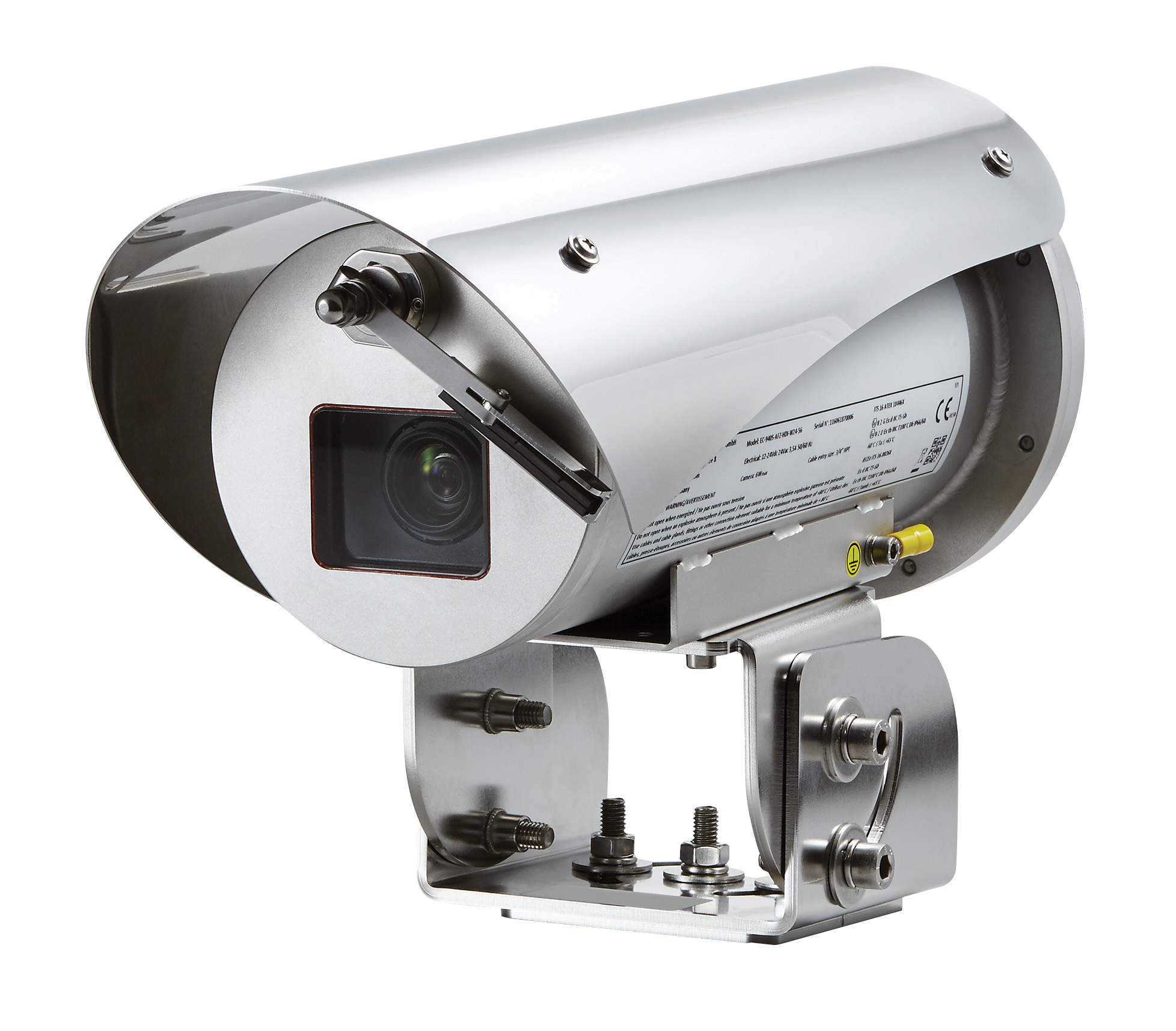

  • Brackets and adaptors
  • NXWBS1 AISI 316L stainless steel wall bracket with joint
  • MHXWFWCA AISI 316L stainless steel ball joint
  • NXFWBT AISI 316L stainless steel parapet mounting bracket
  • NXCOL AISI 316L stainless steel pole adapter module
  • NXCW AISI 316L stainless steel corner adapter module
  • NXWTU AISI 316L stainless steel adapter module for oblique surfaces
