MAXIMUS MPX SERIES2 range, Brackets

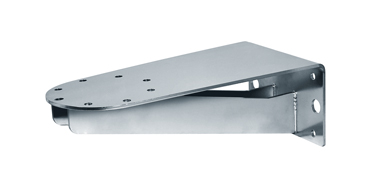

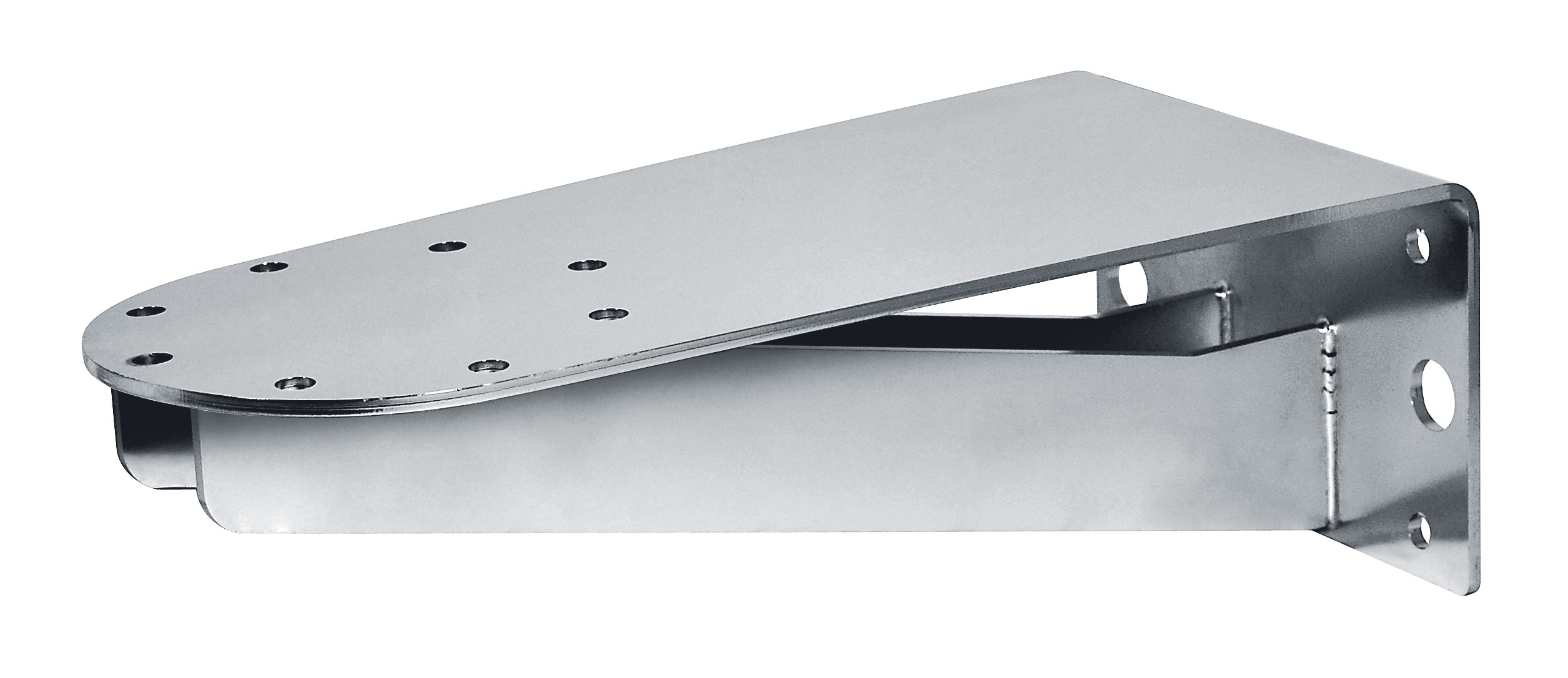

MPXWBA Wall mount bracket

  • Made of AISI 316L electropolished stainless steel
  • Load rating: 40kg (88lb)
  • Length: 400mm (15.7in)
  • Can be coupled with modular components (MPXCW, MPXCOL).

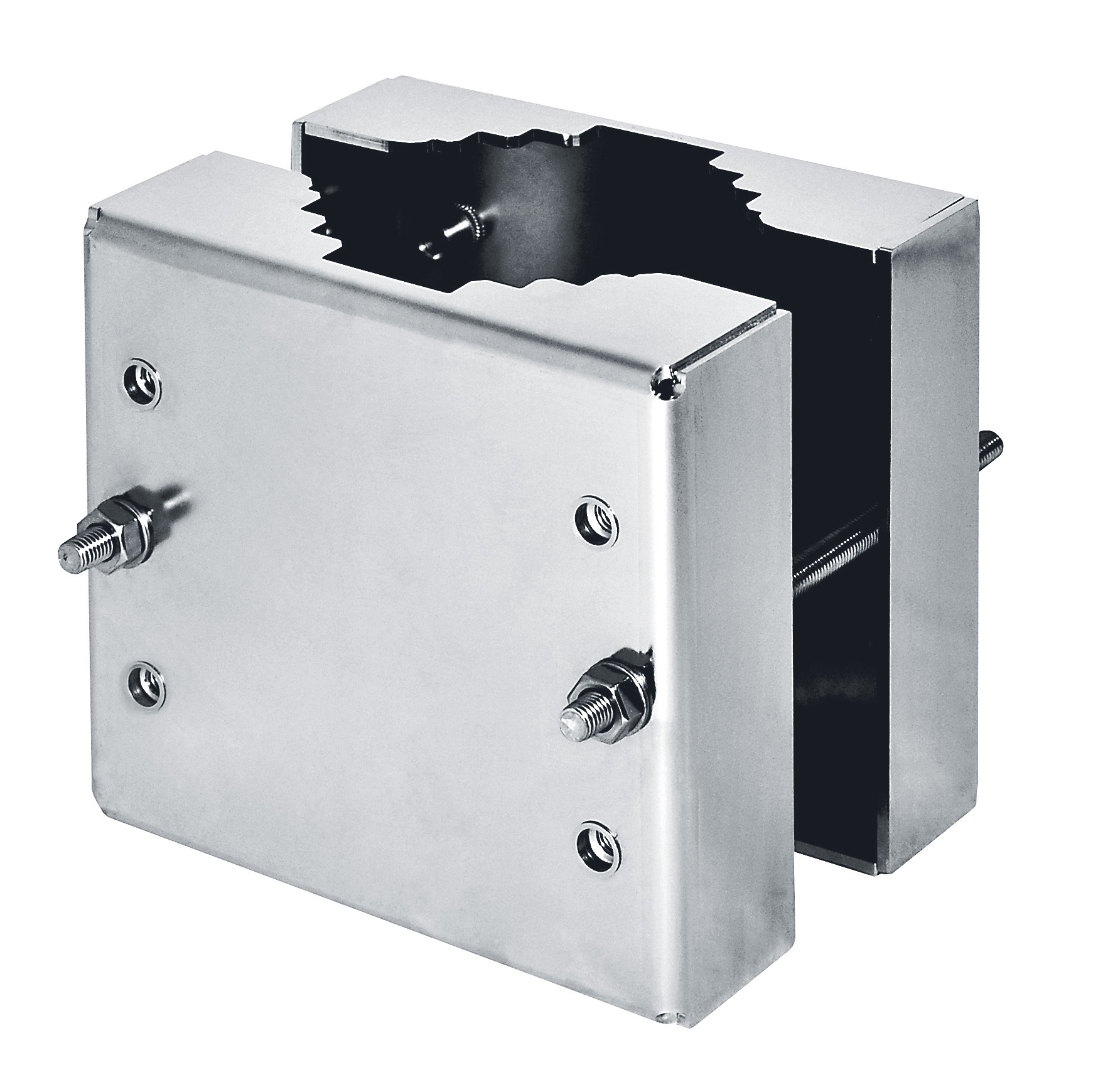

MPXCOL Pole mount adaptor

  • Made of AISI 316L electropolished stainless steel
  • For pole diameters: from 110mm (4.3in) up to 150mm (5.9in)
  • Load rating: 50kg (110lb)
  • Dimensions: 198x182mm (7.8x7.2in)

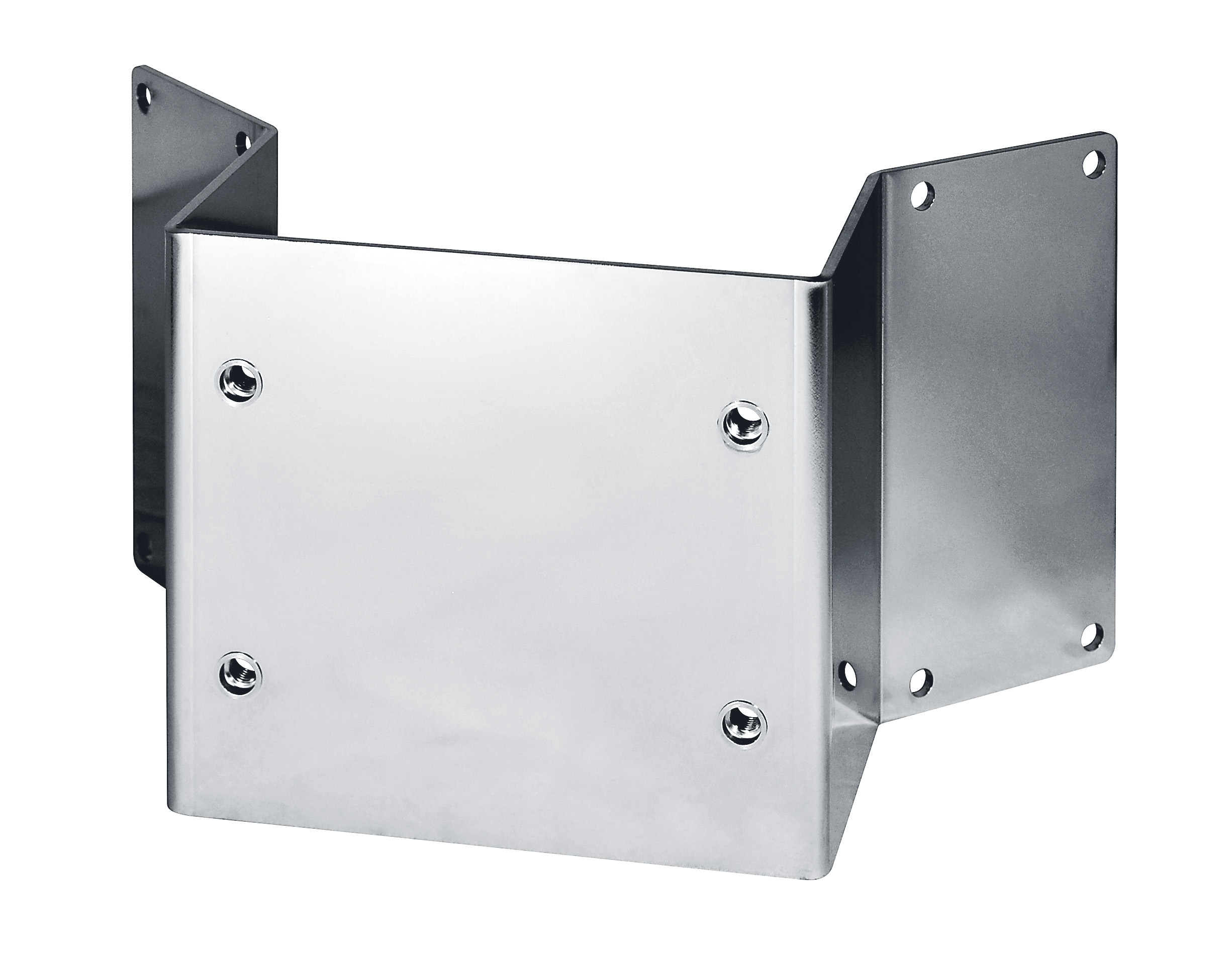

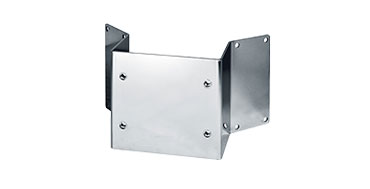

MPXCW Corner mount adaptor

  • Made of AISI 316L electropolished stainless steel
  • Load rating: 50kg (110lb)
  • Dimensions: 335x186mm (13.2x7.3in)
  • Suitable for: MPXWBA, MHXWBS

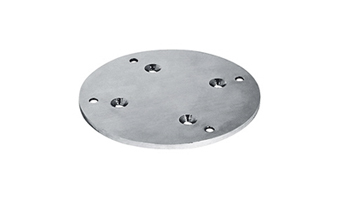

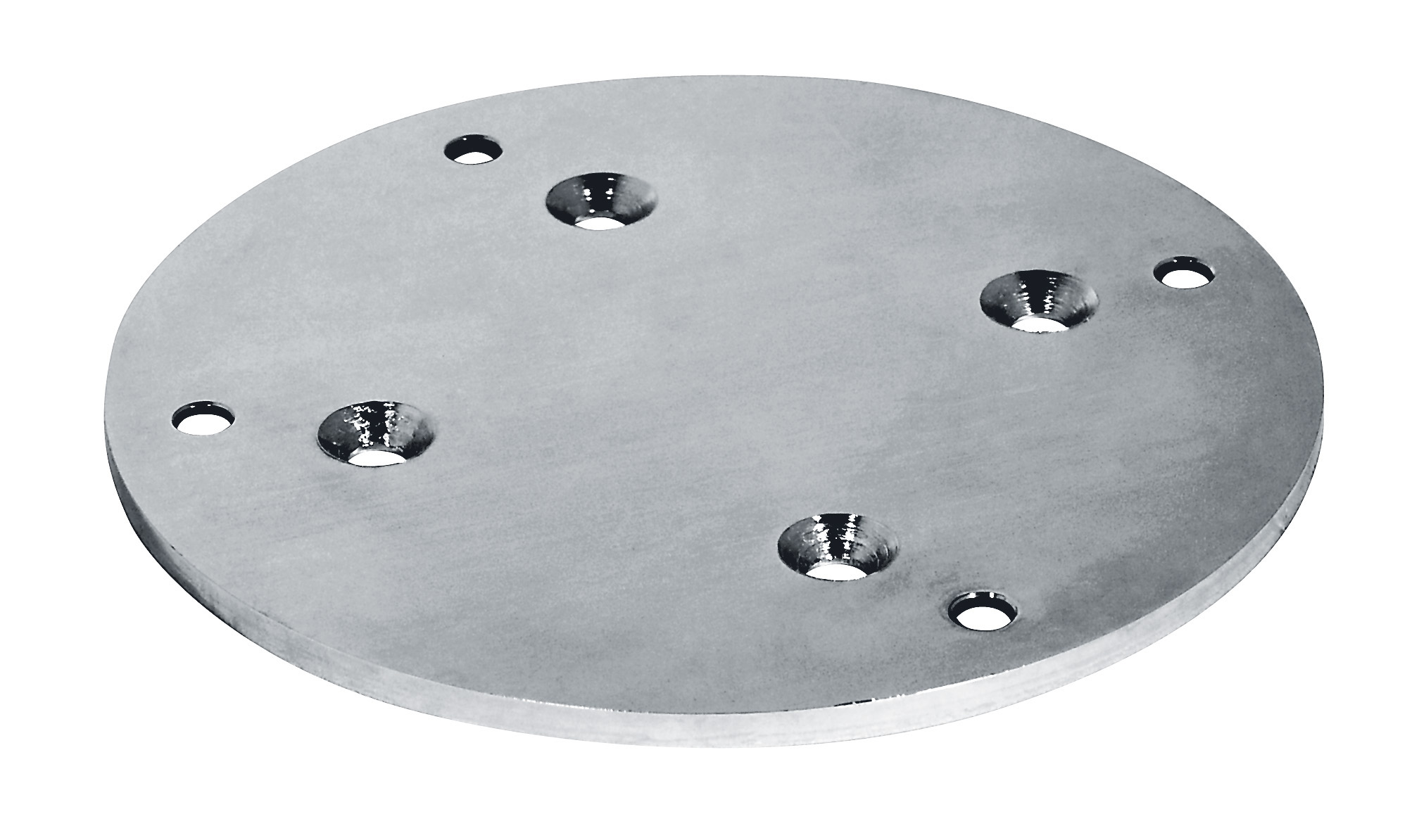

MPXWBTA Parapet or ceiling mounting bracket

  • Made of AISI 316L electropolished stainless steel
  • Load rating: 40kg (88lb)
  • Dimensions: Ø 238mm (9.4in)
