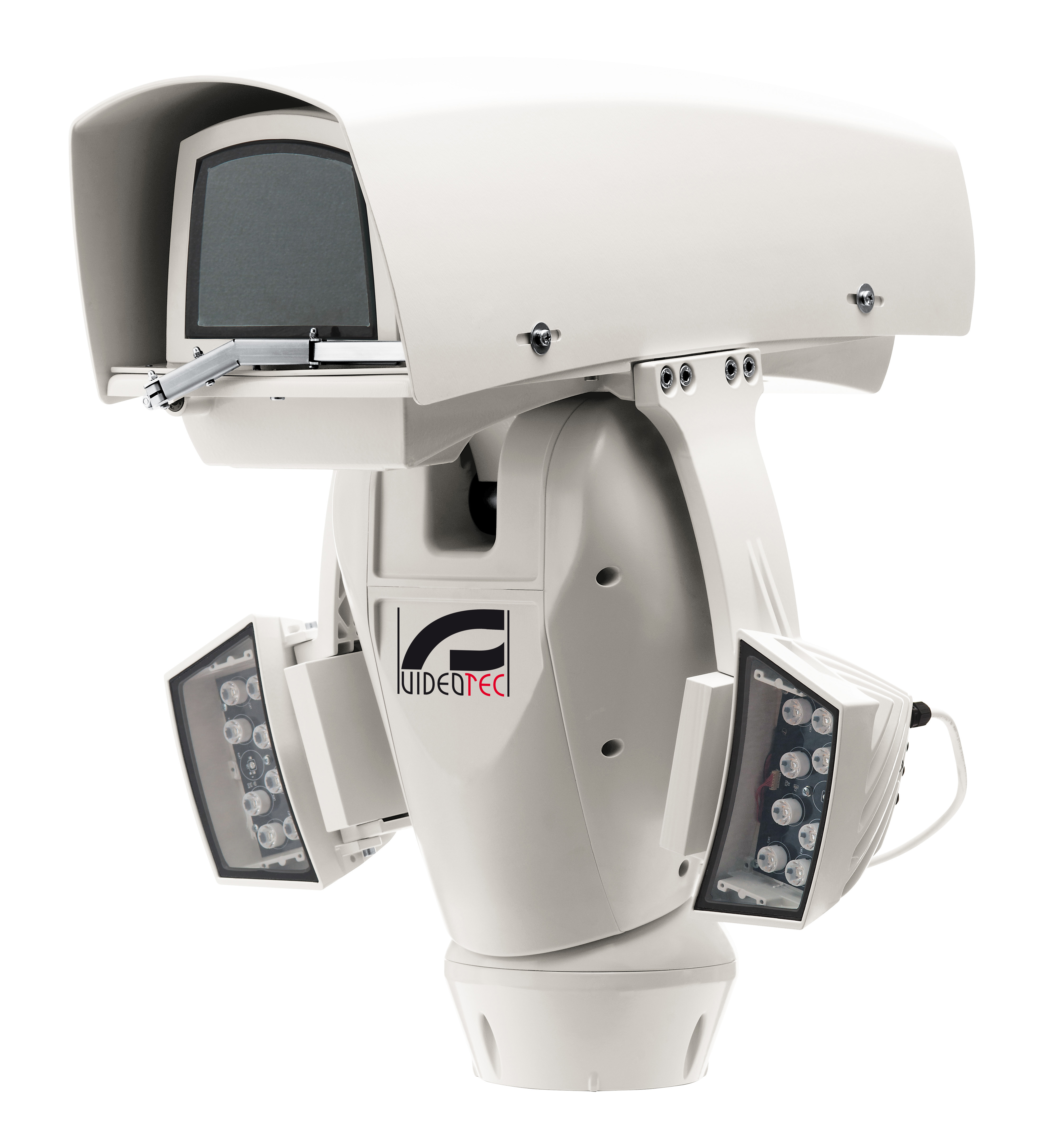

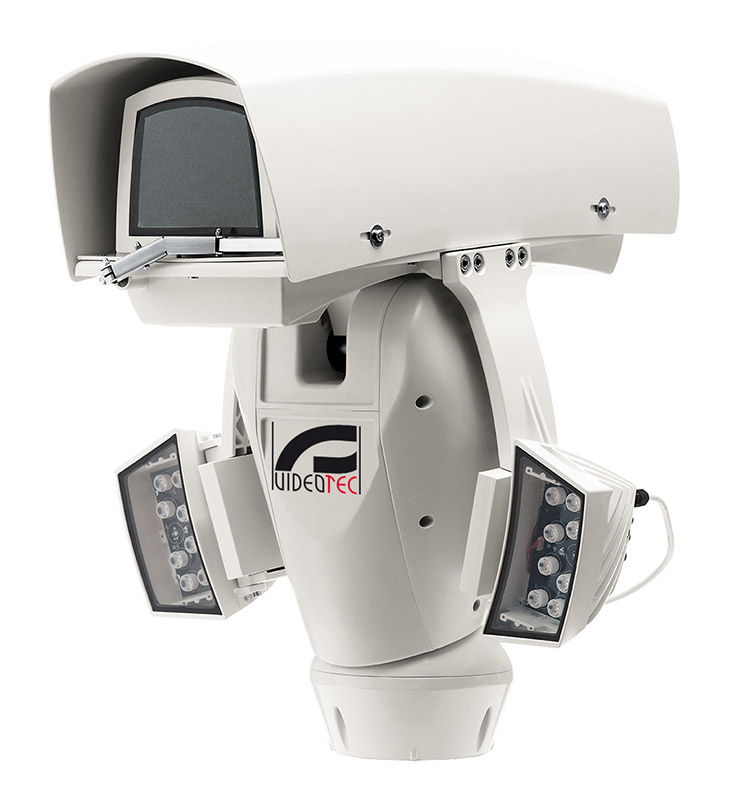

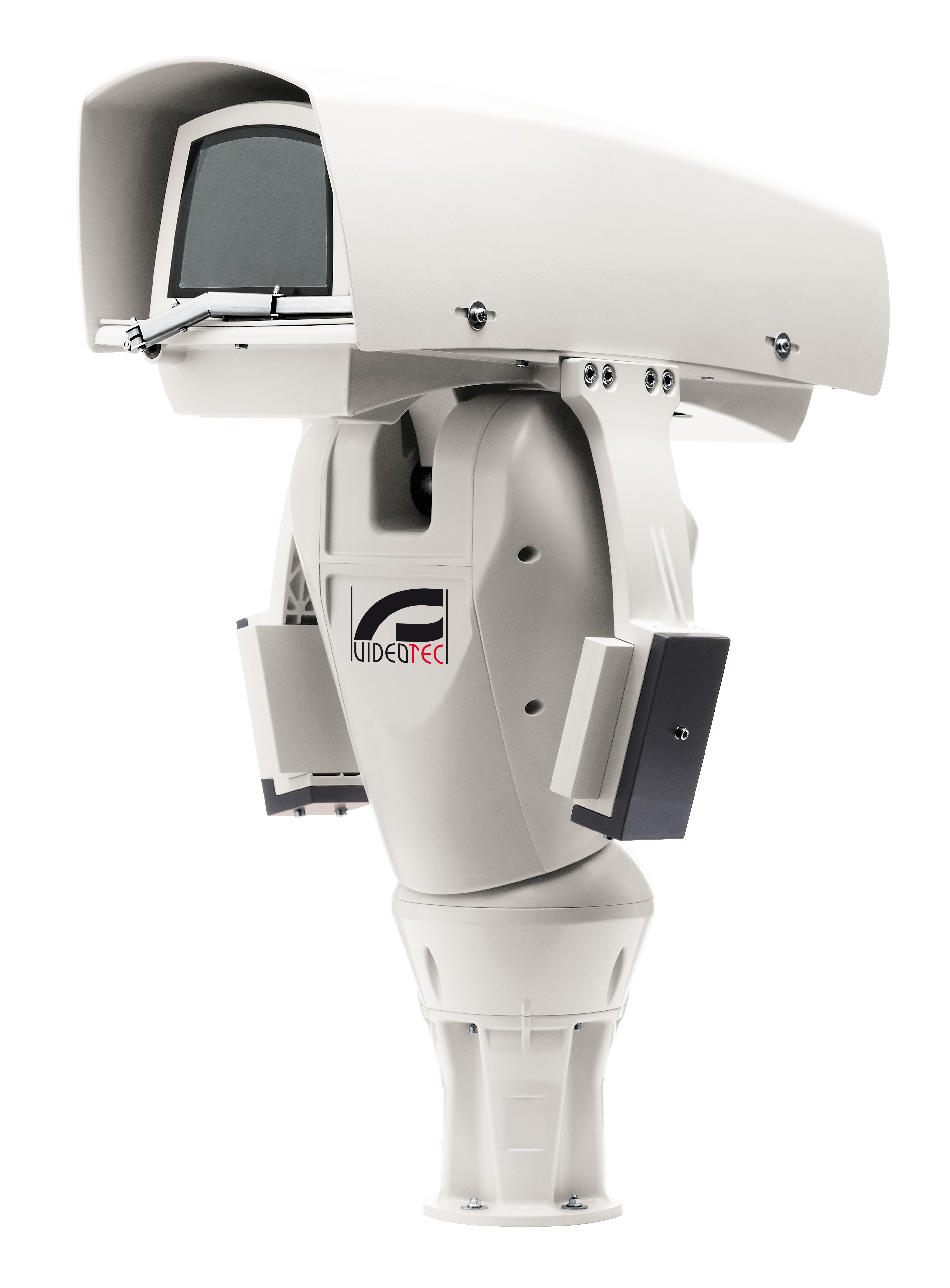

ULISSE RADICALTop performance long range HD PTZ camera

Config link

ULISSE RADICAL RANGE

MARKETS

DESCRIPTION

ULISSE RADICAL is the first PTZ Full HD Videotec network system ready for use that integrates exceptional lens and pre-configured camera combinations, Full HD 1080p, 60fps and CMOS 1/2.8" sensors, for night and day broadcast quality video in extensive outdoor areas.

KEY FEATURES

  • PTZ unit with factory-assembled and pre-configured camera and 500mm lens
  • Minimum Illumination, Colour (ICR-OFF):
  • 0.041 lx 1/25s F3.0, 50 IRE

  • Minimum Illumination, B/W (ICR-ON):
  • 0.005 lx 1/25s F3.0, 50 IRE

  • IR corrected lens
  • Advanced Autofocus system
  • Thermal Compensation System and Visibile Cut Filter
  • Pre-wired camera and lens through snap-on connector for easy installation and maintenance
  • Horizontal continuous rotation
  • Optical sensors for absolute positioning feedback
  • Position accuracy: 0.02°
  • Up to 250 Presets

TECHNICAL DATA

General
  • Top mount (OTT)
  • Transmission through toothed belt
  • Slip-ring
  • Electronic limit switches
  • Zero backlash
  • Optical sensors for absolute positioning feedback
  • Integrated wiper
  • Pre-installed camera and lens
Mechanical
  • Constructed from aluminium and technopolymer
  • Epoxypolyester powder painting, RAL9002 colour
  • Horizontal rotation: 360°, continuous rotation
  • Zoom 33x:
  • Vertical rotation: from -20° up to +45°
  • Horizontal speed (variable): from 0.02°/s up to 20°/s
  • Tilt speed (variable): from 0.02°/s up to 20°/s
  • Accuracy of preset positions: 0.02°
  • Cable glands: 3xM16
  • Unit weight: 30kg (66lb)
Electrical
  • Supply voltage/Current consumption:
  • 230Vac, 0.4A, 50/60Hz
  • 120Vac, 0.8A, 50/60Hz
  • 24Vac, 4A (8A with LED illuminators), 50/60Hz
  • Power consumption (illuminators off):
  • 24W, P&T static (stand-by), heating switched off
  • 100W, P&T in motion, heating switched on
  • Power consumption (illuminators on):
  • 150W, P&T in motion, heating switched on, illuminators to minimum power
  • 190W, P&T in motion, heating switched on, illuminators to maximum power
  • 4 self-powered alarm inputs
  • 2 dry contacts: 30Vdc max or 30Vac, @ 1A
Network
  • Connector: RJ45, 10BASE-T/100BASE-T
  • Protocol: ONVIF, Profile S (TCP/IPv4, UDP/IPv4, HTTP, NTP, DHCP, WS-DISCOVERY, QoS, RTSP, RTCP, RTP)
Video
  • Compression: H.264/AVC, JPEG
  • Multiple video stream capability: up to 3 independent streams and up to 20 simultaneous clients
  • Resolution: 1920x1080, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, 352x288, 320x184
  • Range of Bitrate setting: 64 kbps to 32 Mbps
  • Selectable frame rate from 1 to 60 images per second (fps)
Cameras
  • Day/Night Full HD, 60fps, CMOS 1/1.9" sensor
  • Effective Pixels: 2.38 Megapixel
  • Minimum Illumination Zoom 18x, Colour (ICR-OFF):
  • 0.08lx, 50 IRE F2.5, 1/30s
  • Minimum Illumination Zoom 18x, B/W (ICR-ON):
  • 0.06lx, 50 IRE F2.5, 1/30s
  • Minimum Illumination Zoom 33x, Colour (ICR-OFF):
  • 0.1lx, 50 IRE F3.0, 1/30s
  • Minimum Illumination Zoom 33x, B/W (ICR-ON):
  • 0.07lx, 50 IRE F3.0, 1/30s
  • Zoom 18x:
  • Horizontal Viewing Angle: from 40.6° (wide end) up to 2.4° (tele end)
  • Vertical Viewing Angle: from 30.8° (wide end) up to 1.8° (tele end)
  • Zoom 33x:
  • Horizontal Viewing Angle: from 23.42° (wide end) up to 0.74° (tele end)
  • Vertical Viewing Angle: from 17.74° (wide end) up to 0.55° (tele end)
  • S/N Ratio: more than 50 dB
  • WDR (wide dynamic range): 90dB
  • Shutter speed: 1/1 to 1/10,000 s
  • Exposure Control: Exposure compensation, AGC, Shutter speed, Iris
  • White balance: ATW, ATW PRO, Fluorescent lamp, Mercury lamp, Sodium vapor lamp, Metal halide lamp, White LED, Open Push WB, Manual
  • Wide-D: View-DR
  • Tone correction: Visibility enhancer
  • Noise reduction: XDNR
Lenses
  • Zoom 33x, 15.2-500mm (0.6-19.7in), F3.0 (Thermal compensation system and Visible Cut Filter)
Environment
  • For indoors and outdoors installation
  • Operating temperature
  • Continuous working: from -40°C (-40°F) up to +60°C (140°F)
  • Non continuous working (absolute maximum temperature for short periods): +65°C (149°F)
  • Cold start (33x lenses): -30°C (-22°F )
  • Surge immunity: up to 2kV line to line, up to 4kV line to earth (Class 4)
  • Relative humidity: from 10% up to 95% (no condensation)
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN50130-4, EN61000-6-4, EN55022 (Class A), FCC Part 15 (Class A)
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • Photobiological safety (CE): EN62471 (LED illuminators)
  • IP protection degree: EN60529, IP66
  • Salty fog resistance: EN50130-5, EN60068-2-52
  • EAC certification
  • NDAA-compliant
