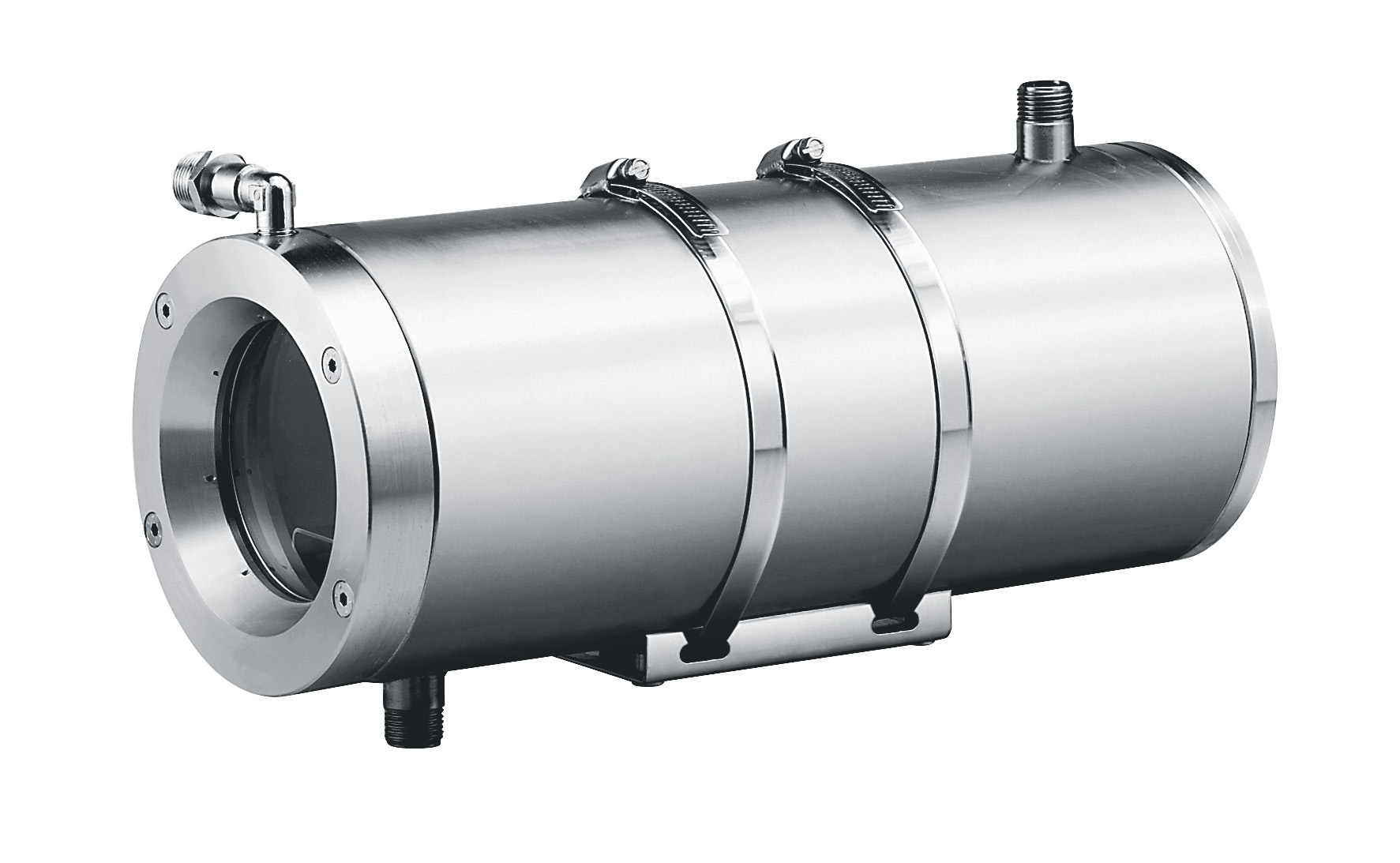

NXWLiquid-cooled camera housing

MARKETS

DESCRIPTION

The solid construction of this housing makes it suitable for heavy-duty applications, such as the surveillance of ovens, foundries and other high-temperature environments.

KEY FEATURES

For industrial installations with high-temperatures in corrosive environments

For temperatures up to 400°C (752°F)

Made of AISI 316L electropolished stainless steel

Supplied air barrier

2 PG13.5 cable glands nickel-plated brass for external connections

TECHNICAL DATA

Mechanical
  • Housing manufactured in polished stainless steel (austenitic stainless alloy steel resistant to corrosion and heat):
  • AISI 316L
  • UNI 6900-71: X 2 Cr Ni Mo 17 12 2
  • DIN 17006: X 2 Cr Ni Mo 17 13 2
  • N° werkstoff: 1.4404
  • AFNOR: Z2 CND 17-12
  • BSI: 316S11
  • The screws utilised are in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards:
  • ISO: 7380
  • AISI: 316
  • ISO quality: A4
  • External body polishing
  • Dimensions (ØxL): 154x375mm (6x14.8in)
  • Internal usable area (WxH): 78x78mm (3.1x 3.1in)
  • Internal usable length: 345mm (13.6 in)
  • Internal usable length (with power supply): 280mm (11in)
  • 2x1/2”GAS connectors for liquid input / output
  • The flange with air barrier is equipped with a 1/4”Gas thread joint and a reduction from 1/2”Gas to 1/4”Gas.
  • Gaskets: O-ring
  • Flange thickness (back) : 9mm (0.35in)
  • Cable glands: 2xPG13.5 (nickel-plated brass)
  • Cooling liquid (application example with incoming water at 20°C (68°F) temperature):
  • ambient temperature 200°C (392°F), water capacity 2l/min, temperature inside housing 32°C (89.6°F)
  • ambient temperature 300°C (572°F), water capacity 2.2l/min, temperature inside housing 41°C (105.8°F)
  • ambient temperature 400°C (752°F), water capacity 6.5l/min, temperature inside housing 44°C (111.2°F)
  • Cooling Air (Application example with incoming air at 17°C(62°F) and an environmental temperature at 80°C(176°F)):
  • with pressure 1bar, air capacity 10m³/h, temperature inside housing 45°C (113°F)
  • with pressure 2bar, air capacity 15m³/h, temperature inside housing 35°C (95°F)
  • Air barrier (Flange with 8 holes)
  • Male input 1/2” GAS
  • System pressure: 4bar max
  • Recommended minimum pressure: 2bar
  • Air barrier (Flange with 32 holes)
  • Male input 1/2” GAS
  • System pressure: 6bar max
  • Recommended minimum pressure: 2bar
  • Unit weight: 10.2kg (22lb)
Housing's window
  • Usable diameter: 95mm (3.7in)
  • Tempered extra clear glass
  • Thick: 6mm (0.24in)
  • Operating temperature: 260°C (500°F) max, thermal gradient 108°C (226.4°F) max
  • Quartz glass
  • Thick: 6mm (0.24in)
  • Operating temperature: 400°C (752°F) max, thermal gradient 220°C (428°F) max
  • IR-proof glass
  • Thick: 6.6mm (0.3in)
  • Operating temperature: 260°C (500°F) max, thermal gradient 108°C (226.4°F) max
  • Transmitted IR radiation: 21%
Electrical
  • Camera power supply
  • IN 230Vac, 50/60Hz - OUT 12Vdc, 400mA
  • IN 230Vac, 50/60Hz - OUT 24Vac, 400mA
Environment
  • For installation indoors and outdoors
  • Maximum working temperature (with water cooling):
  • with tempered glass 260°C (500°F) max
  • with quartz glass 400°C (752°F) max
  • with IR-proof glass 260°C (500°F) max
Certifications
  • Electrical safety (CE): EN60065
  • Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3
  • IP protection degree: EN60529, IP66/IP67
  • EAC certification
Accessories
  • ONXWTG Tempered glass
  • ONXWQG Quartz glass
  • ONXAB2 Front flange with air barrier and tempered glass
  • ONXAB1025B Air barrier with IR-proof glass included for NXW housings

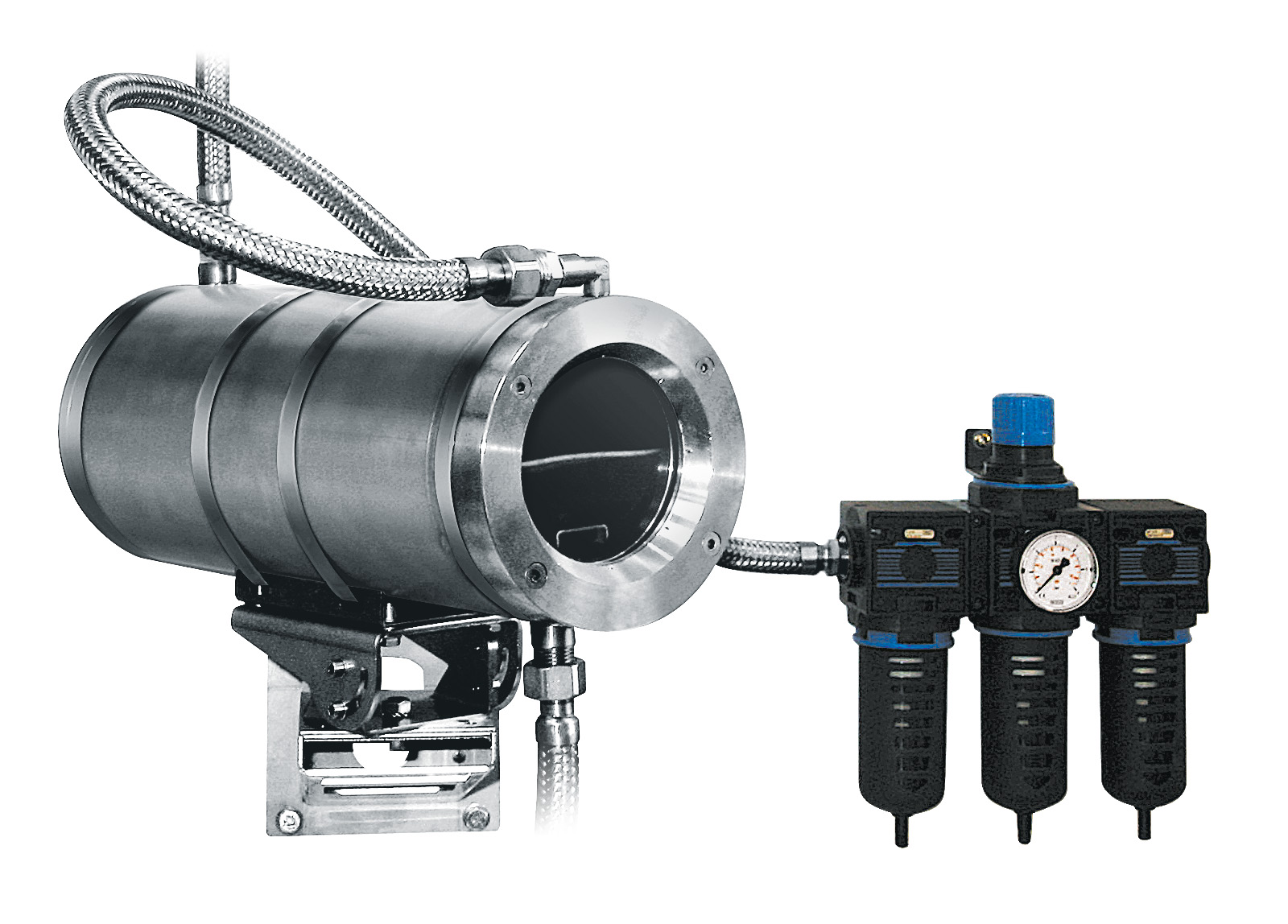

  • NXFIGRU Filtering group for compressed air cleaning
  • OHEPS24 Camera power supply IN 230Vac, 50/60Hz - OUT 12Vdc, 400mA
  • OHEPS25 Camera power supply IN 230Vac, 50/60Hz - OUT 24Vac, 400mA
  • Brackets and adaptors
  • NXWBS1 AISI 316L stainless steel wall bracket with joint
  • NXCOL AISI 316L stainless steel pole adapter module
  • NXCW AISI 316L stainless steel corner adapter module
  • AVAILABLE MODELS

    Available models

    Model Number

    Description

    NXW0K1000

    Liquid-cooled housing with air barrier (glass not included)

    NXW0K1025

    Liquid-cooled housing with air barrier and IR-proof glass
