MAXIMUS MVXTHigh performance ex-proof thermal camera

MAXIMUS MVXT

MARKETS

CERTIFICATIONS

DESCRIPTION

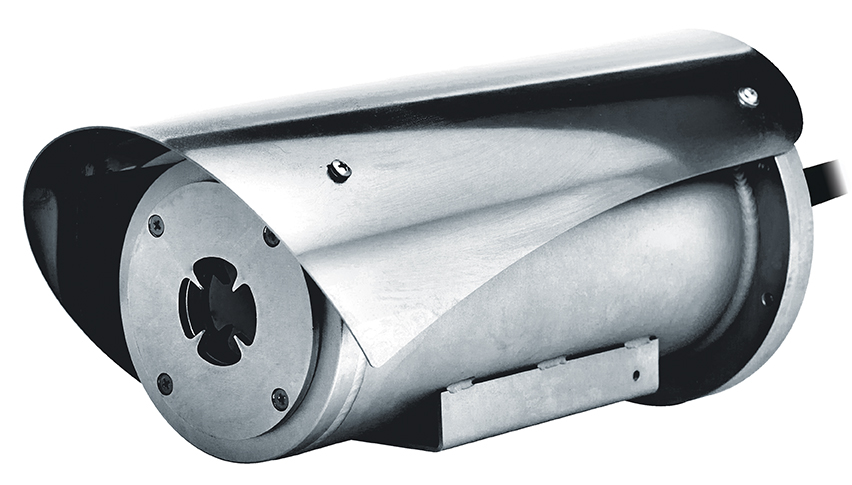

The explosion-proof camera MAXIMUS MVXT is perfect for efficient and preventive video surveillance and control of processes in hazardous environments where the atmosphere is potentially explosive due to the presence of inflammable gases or dust, typical of the Oil&Gas, marine or industrial sectors.

IP-based cameras are also enhanced with radiometric functions that allow temperature detection based on the 4 central pixels of the image. Versions are available on request with advanced radiometry, capable of measuring the temperature of a specific object in any point of the image by defining a specific area.

MVXT takes full advantage of all the functionalities and advantages offered by the thermal camera, including the possibility of sending an alarm and enabling immediate actions for the purpose of preventing undesired accidents or intrusions in the protected areas.

The housing is compact yet functional and is made entirely out of AISI 316L stainless steel. Its resistance to corrosion is not only guaranteed, but is also enhanced by way of polishing processes.

An equally noteworthy point is that the IP66/IP68 ratings guarantee the complete protection against harsh weather and submersion in up to 5 metres of water for 2 hours. Moreover, the IP69 rating allows the device to be cleaned with high pressure water jets.

KEY FEATURES

  • Certifications for use in Zones 1 and 2, IIC T5 and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C and T85°C Group (Dust)
  • Marine Certification: Lloyd's Register Marine Type Approval
  • AISI 316L stainless steel construction
  • External shot peened and electro-polished surfaces
  • Analogue or IP (ONVIF Profil Q, Profile S, Profile T, ONVIF Thermal Service) versions
  • Thermal cameras:
  • Sensor: Uncooled VOx microbolometer

    Lenses: 9mm, 13mm, 19mm, 25mm, 35mm, 50mm, 60mm

    Resolution: 336x256 or 640x512

  • 1 alarm input and 1 relay output
  • 4m (13ft) / 10m (32.8ft) preinstalled armoured multipolar cable with cable gland or, alternatively, with 4m (13ft) / 10m (32.8ft) cable tail (for installation with conduit, conduit sealing fitting and conduit not included)
  • Power supply: 12-24Vdc/24Vac
  • IP66/IP67/IP68/IP69
  • Radiometry functions available only for IP versions

TECHNICAL DATA

General
  • AISI 316L stainless steel construction
  • External shot peened and electro-polished surfaces
  • Silicone O-ring seals
  • Configuration via OSM
Mechanical
  • Sunshield
  • Unit weight:
  • 8.5kg (18.7lb) (housing with 4m (13ft) multi-polar cable shield)
  • 12kg (26.5lb) (housing with 10m multi-polar cable shield)
Cable glands
  • Cable entry: 1 hole, 3/4", NPT
  • Cable gland Ex db 3/4"NPT and 4m/10m (13ft/33ft) preinstalled multipolar armored cable or with 4m/10m (13ft/33ft) cable tail (for installation with conduit, conduit sealing fitting and conduit not included)

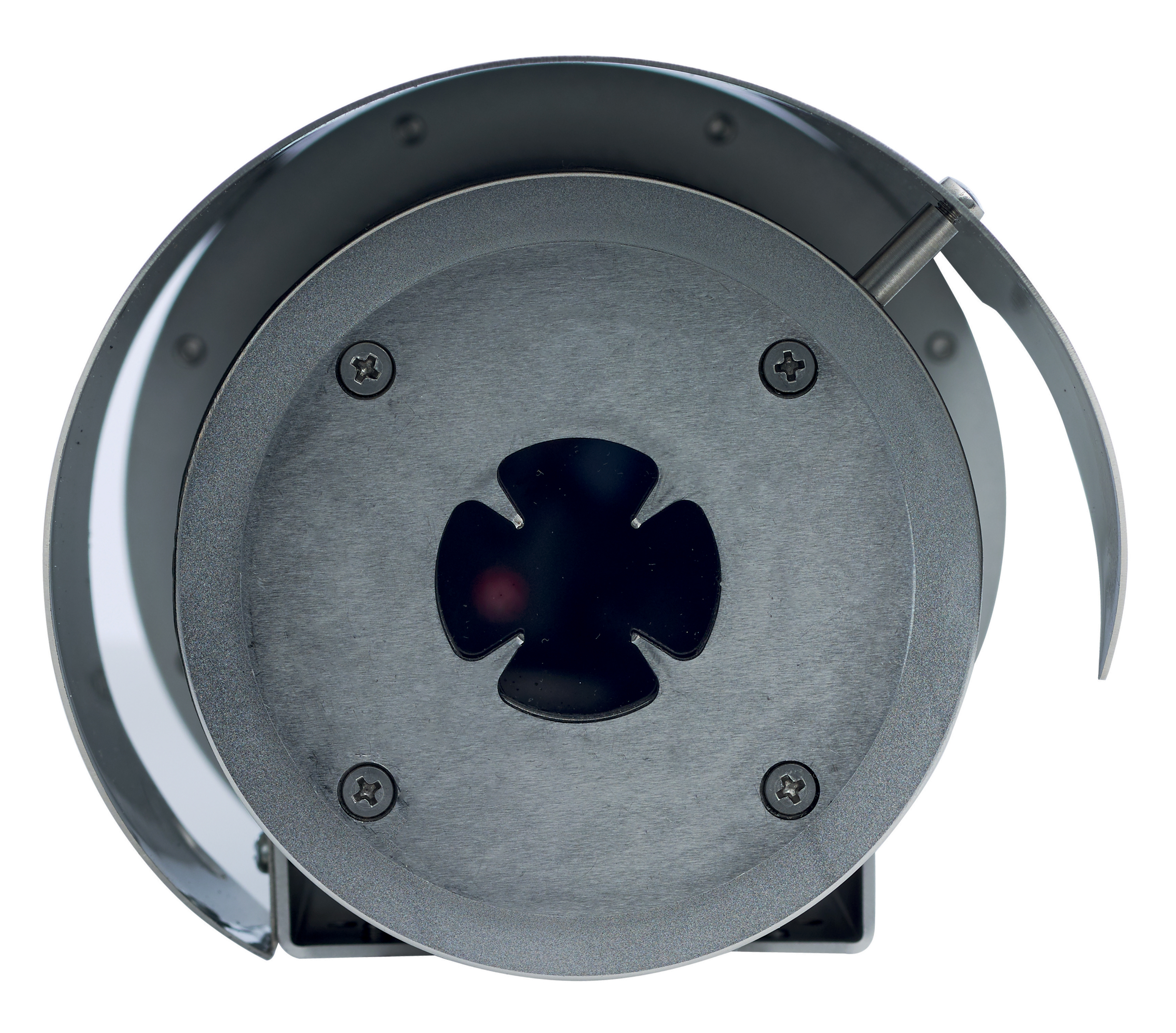

Housing's window
  • Germanium window (big grid)
  • Usable diameter: 57mm (2.2in)
  • Thick: 10mm (0.4in)
  • External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection
  • Internal treatment: antireflection
  • Spectral range: from 7.5μm up to 14μm
  • Medium transmittance (from 7.5μm up to 11.5μm): 87.3%
  • Medium transmittance (from 11.5μm up to 14μm): 67.3%
  • Germanium window (small grid)
  • Usable diameter: 40mm (1.6in)
  • Thick: 8mm (0.3in)
  • External treatment: antiscratch (Hard Carbon Coating - DLC), antireflection
  • Internal treatment: antireflection
  • Spectral range: from 7.5μm up to 14μm
  • Medium transmittance (from 7.5μm up to 11.5μm): 87.5%
  • Medium transmittance (from 11.5μm up to 14μm): 72.1%
Electrical
  • Supply voltage/Current consumption (heating switched on, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)):
  • 24Vac ±10%, 2.2A, 50/60Hz
  • 24Vdc ±5%, 2.2A
  • 12Vdc ±5%, 3.5A
  • Armoured cable:
  • external diameter = 20.00 ± 0.50mm (0.79±0.20in)
  • diameter under armature = 15.20mm (0.60in)
  • colour: Black RAL9005
  • Armoured cable composition:
  • 3 x 2.5mm²
  • 7 x 0.34mm²
  • 4 x 2 x 0.22mm² (IP-based version, cat. 5E)
  • 1 x coax 75ohm RG179 (analog version)
  • Cable tail composition:
  • 3 x 2.5mm², rated external diameter = 8.7mm (0.34in)
  • 7 x 0.34mm², rated external diameter = 6.4mm (0.25in)
  • 4 x 2 x 0.21mm², (IP-based version, cat. 5E), rated external diameter = 6.7mm (0.26in)
  • 1 x coax 75ohm RG59 (analog version), rated external diameter = 4.9mm (0.19in)
Network
  • Only for the IP versions of the product:
  • Ethernet connection: 10BASE-T/100BASE-T
  • Connector: RJ45
  • Cable length: 100m max
Serial communications
  • Only for product analogue versions:
  • Serial interface
  • RS-485 line, half-duplex
  • Cable length: 1200m max
  • Addressable units: 255 (configuration via OSM)
  • Serial communication protocol
  • PANASONIC 850: 9600baud, 19200baud
  • PELCO D: 2400baud, 9600baud
  • MACRO: 9600baud, 38400baud
Video
  • Only for the IP versions of the product:
  • Video encoder
  • Communication protocol: ONVIF, Profile Q, Profile S and Profile T, ONVIF Thermal Service
  • Device configuration: TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
  • Streaming: RTSP, RTCP, RTP/IPv4-IPv6, HTTP, Multicast
  • Video compression: H.264/AVC, MJPEG, JPEG, MPEG4
  • 3 independent video streams
  • Image resolution: from 320x180pixel up to 720x480pixel in 4 steps
  • Selectable frame rate from 1 to 30 images per second (fps)
  • Web Server
  • Motion Detection
  • QoS: Differentiated DSCPs for streaming and device management
  • SNMP and NTCIP protocols
I/O interface
  • I/O alarm board
  • Alarm inputs: 1
  • Relay outputs: 1 (1A, 30Vac/60Vdc max)
  • Cable length: 200m (656ft) max
Cameras
  • Power consumption (assembly, camera and lens)
  • Without video encoder IP: 8W
  • With video encoder IP: 6W
  • Minimum distance between camera and housing's window: 4mm (0.16in)
  • Cameras dimensions/Lenses that can be installed (WxHxL)
  • Without video encoder: 70x65x140mm (2,6x2,5x5,5in)
  • With video encoder: 70mmx65mmx120mm
Environment
  • For indoors and outdoors installation
  • Operating temperature:
  • Cold start from -40°C (-40°F) up to +65°C (149°F)
  • Running from -50°C (-58°F) up to +65°C (149°F)
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN61000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A)
  • RoHS (CE): EN50581
  • Outdoor installation (CE): EN60950-22, ICE60950-22
  • IP protection degree (EN/IEC60529): IP66, IP67, IP68 (2 hours, 5m (16ft)), IP69
  • Vibration test: EN50130-5, EN60068-2-6
  • UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07): cULus Listed
  • Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A)
  • Level of protection Type (UL50E): 4X, 6P
Certifications - Explosion-proof applications
  • ATEX (EN 60079-0+A11, EN 60079-1, EN 60079-31)
  • IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31)
  • EAC EX (TR CU 012/2011)
  • INMETRO (ABNT NBR IEC 60079-0 + Errata 1, ABNT NBR IEC 60079-1 + Errata 1, ABNT NBR IEC 60079-31)
  • ETL listed for USA (UL 60079-0, UL 60079-1, UL 60079-31), cable tail versions
  • ETL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, CAN/CSA-C22.2 NO. 60079-1, CAN/CSA-C22.2 NO. 60079-31), cable tail versions
Certifications - Marine applications
  • Lloyd's Register Marine Type Approval certification (only if used with the filter accessory FM1010):
  • Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
  • Electromagnetic compatibility: EN60945
  • Salty fog resistance: EN60068-2-52
  • Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2
Accessories
  • MBA1S5A Explosion-proof communication box in aluminium , IN 230 Vac
  • MBA2S5A Explosion-proof communication box in aluminium , IN 24 Vac
  • MBA3S5A Explosion-proof communication box in aluminium , IN 120 Vac
  • OCTEXP3/4C Conduit cable gland nickel-plated brass 3/4" NPT IECEX-ATEX- c CSA us - EAC Ex ( operating temperature : from -60°C (-76°F) up to +80°C (+176°F) )
  • FM1010 EMC filter for Marine certification
Brackets and adaptors

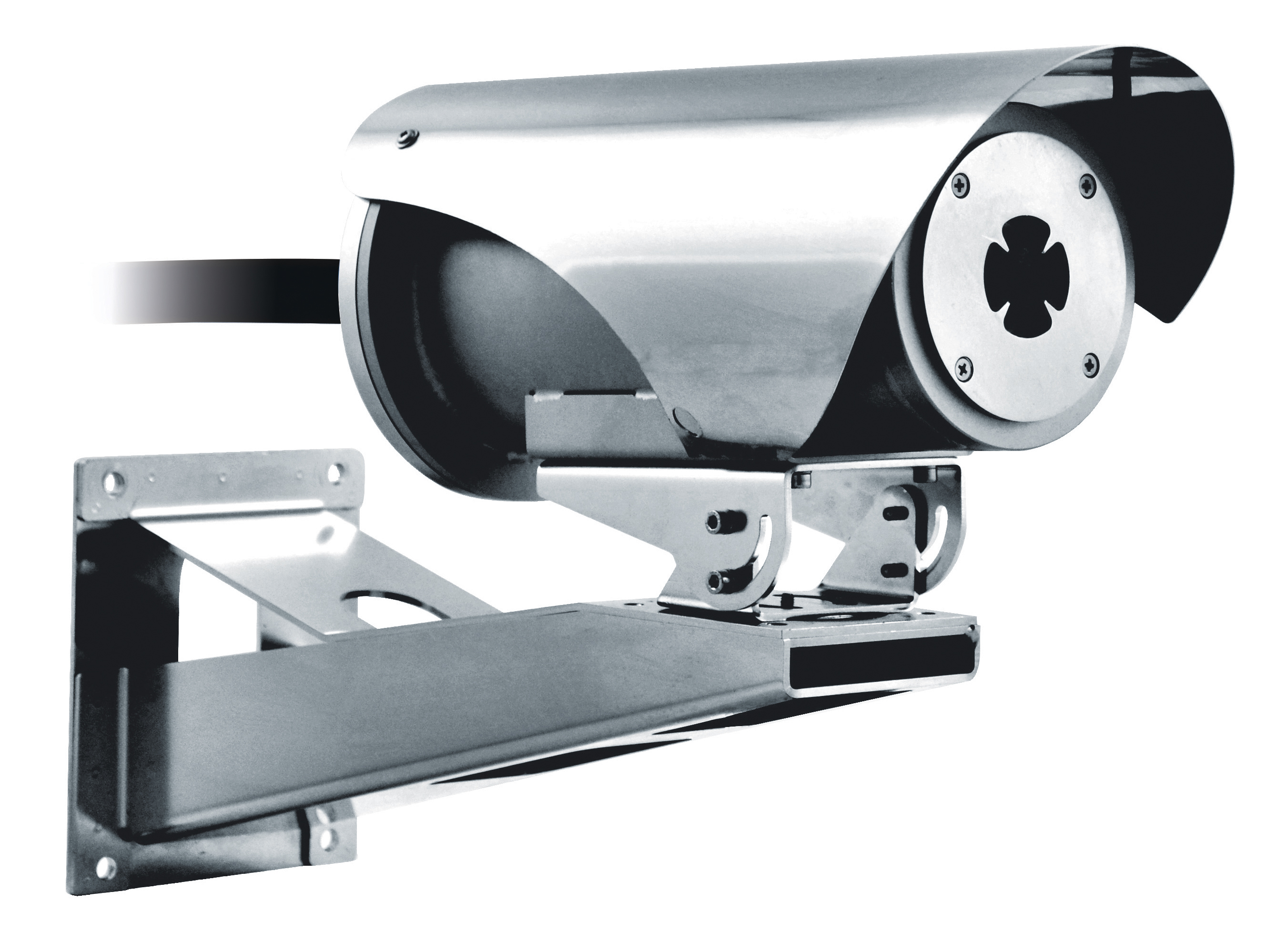

  • NXWBS1 AISI 316L stainless steel wall bracket with joint
  • MHXWFWCA AISI 316L stainless steel ball joint
  • NXFWBT AISI 316L stainless steel parapet mounting bracket
  • NXCOL AISI 316L stainless steel pole adapter module
  • NXCW AISI 316L stainless steel corner adapter module
  • NXWTU Wall adaptor module in stainless steel AISI 316L
