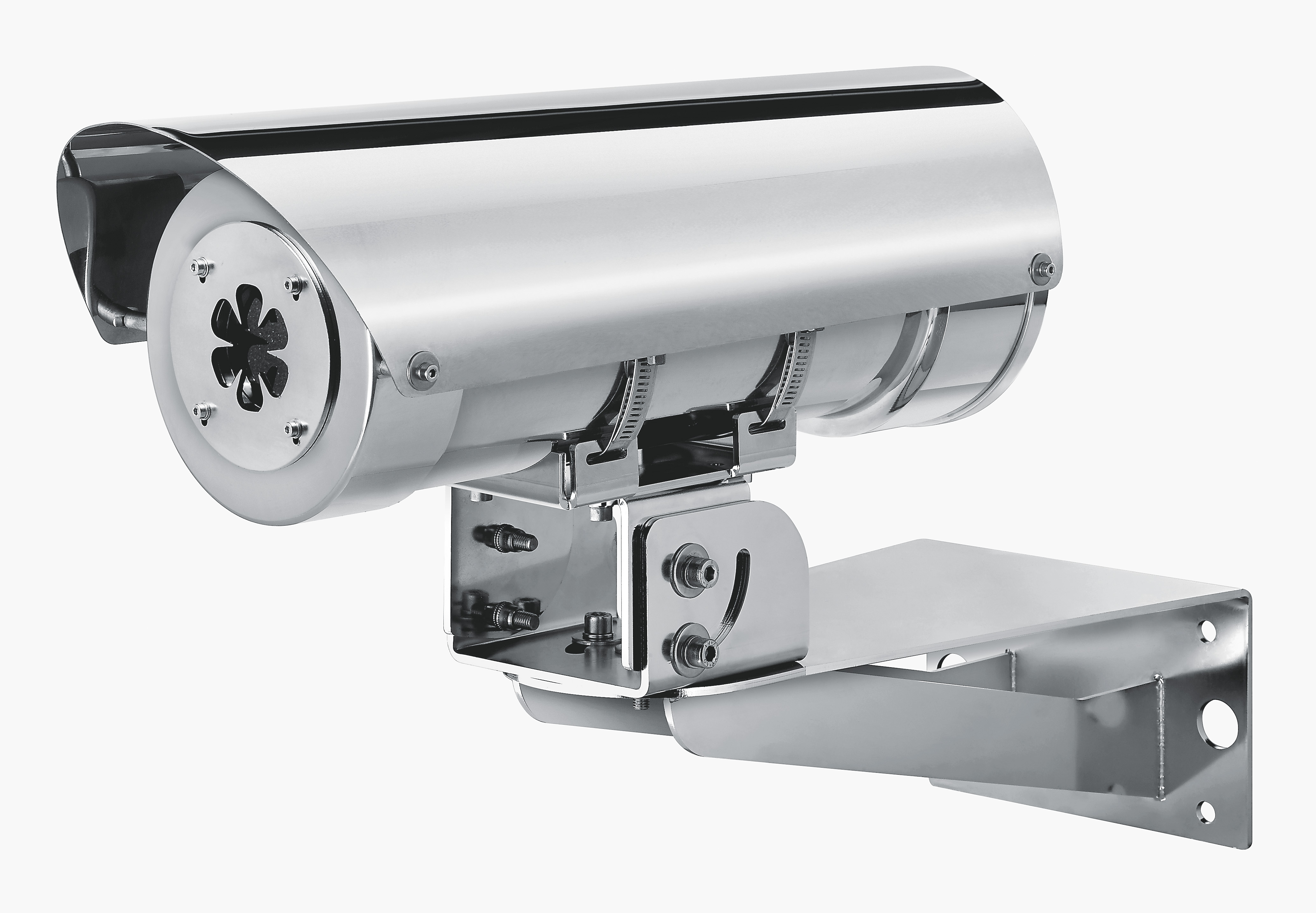

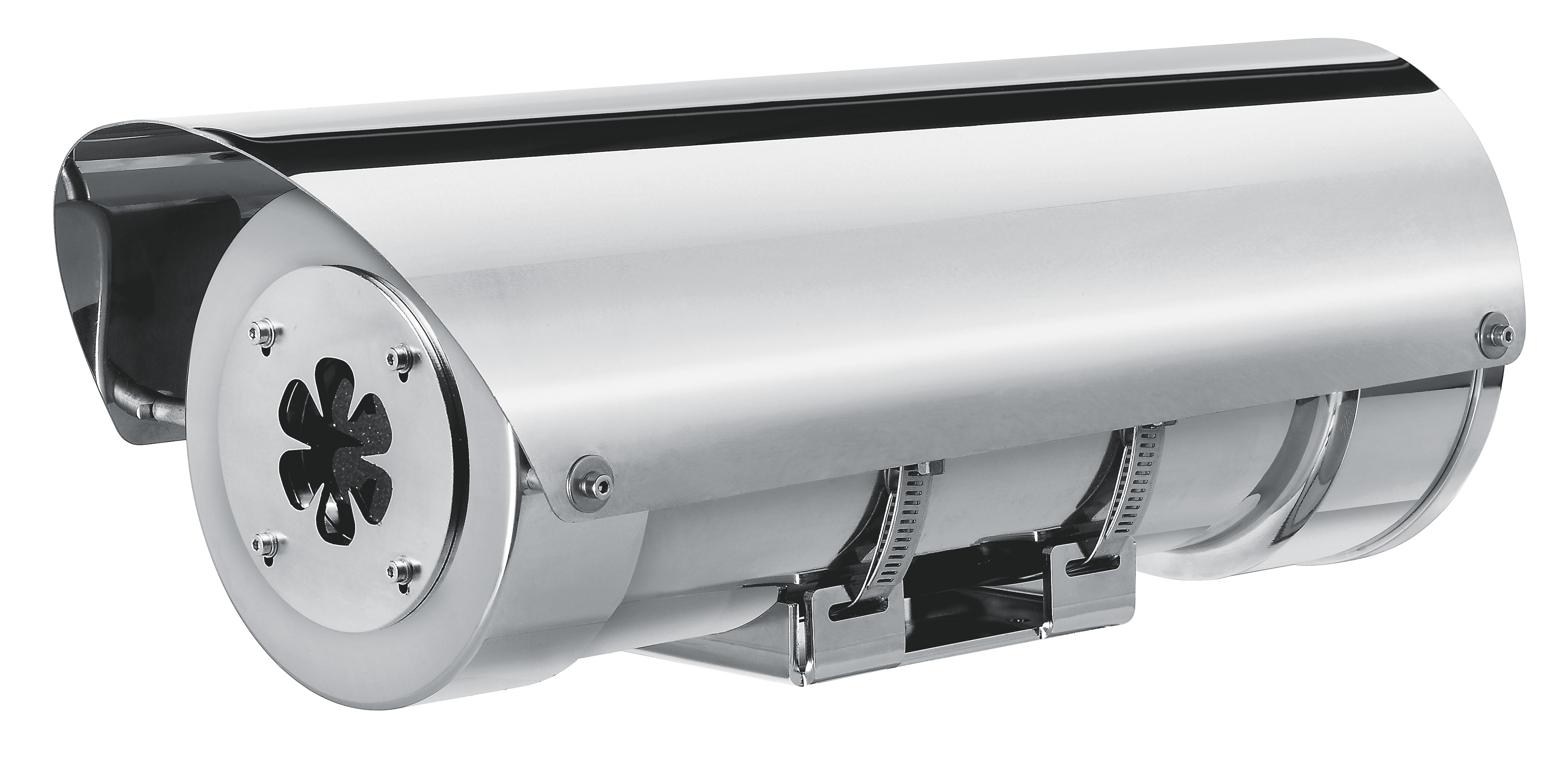

MAXIMUS MHXTEx-proof housing for thermal cameras

MAXIMUS RANGE ... Drillereye

MARKETS

CERTIFICATIONS

DESCRIPTION

These explosion-proof housings for the MAXIMUS range have been certified and designed to meet the strictest standards regarding installation in potentially explosive environments, i.e. where there is the presence of gas and flammable dusts.

The MAXIMUS range ensures excellent performance for monitoring critical processes in areas that carry a risk of explosion, such as refineries, gas pipelines, oil tankers, offshore platforms, industrial processes, chemical industries, etc.

Equipped with heating, the housing has the same installation and operating temperatures, of between -40° C and + 60° (-40°F / +140°F).

The wiring is made easier thanks to the removable connectors on the circuit board.

The housing can eventually be controlled by VMS through a video encoder with RS485 serial port.

KEY FEATURES

Certifications Ex d for use in Zone 1 and 2, Group IIC (Gas), and in Zone Ex tb 21 and 22 (Dust)

Germanium window with protection grid

2 threaded holes ¾” NPT for use of cable glands or conduit

Integrated telemetry receiver

Sunshield and heater included

Ambient temperature: from -40°C (-40°F) up to +60°C (140°F)

TECHNICAL DATA

General
  • AISI 316L stainless steel construction
  • Passivated and electropolished external surfaces
  • Silicone O-ring seals
Mechanical
  • 2 holes 3/4" NPT for cable entry
  • Window with protection grid
  • Sunshield
  • Unit weight: 16.5kg (36lb)
Housing's window
  • Germanium window
  • Usable diameter: 56mm (2.2in)
  • Thick: 10mm (0.4in)
  • External treatment: antiscratch (Hard Carbon Coating - DLC)
  • Internal treatment: antireflection
  • Spectral range: from 7.5μm up to 14μm
  • Medium transmittance (from 7.5μm up to 11.5μm): 87.3%
  • Medium transmittance (from 11.5μm up to 14μm): 67.3%
Electrical
  • Supply voltage/Current consumption/Power:
  • 230Vac, 0.34A, 50/60Hz, 80W
  • 120Vac, 0.5A, 50/60Hz, 60W
  • 24Vac, 2.2A, 50/60Hz, 53W
  • 12Vdc, 2.8A, 34W
  • Heater (Ton 15°C±4°C (59°F±7°F), Toff 22°C±3°C (72°F±5°F))
Communications
  • Serial interface: 1 RS-485 line, half-duplex
Cameras
  • Compatible cameras:
  • Power consumption (assembly, camera and lens): 13W max
  • Cameras dimensions/Lenses that can be installed (WxHxL): 80x82x245mm (3.1x3.2x9.6in) max
  • Minimum distance between camera and housing's window: 10mm (0.4in)
Environment
  • For indoors and outdoors installation
  • Operating temperature/Installation temperature: from -40°C (-40°F) up to +60°C (140°F)
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN61000-6-4, EN61000-3-2, EN61000-3-3, EN50130-4, EN55032 (Class A)
  • RoHS (CE): EN IEC 63000
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • IP protection degree (EN/IEC60529): IP66, IP67
  • Vibration test: EN50130-5, EN60068-2-6
  • Electromagnetic compatibility (North America): FCC part 15 (Class A)
  • KC certification (certification only valid for the code: MHXT1C000B)
Certifications - Explosion-proof applications
  • ATEX (EN IEC 60079-0, EN 60079-1, EN 60079-31)
  • IECEx (IEC 60079-0, IEC 60079-1, IEC 60079-31)
  • EAC EX (TR CU 012/2011)
  • KCs (Employment and labor department 2021-22)
  • UK EX (EN IEC 60079-0, EN 60079-1, EN 60079-31)

For further details on certifications and markings, consult the relevant table.
