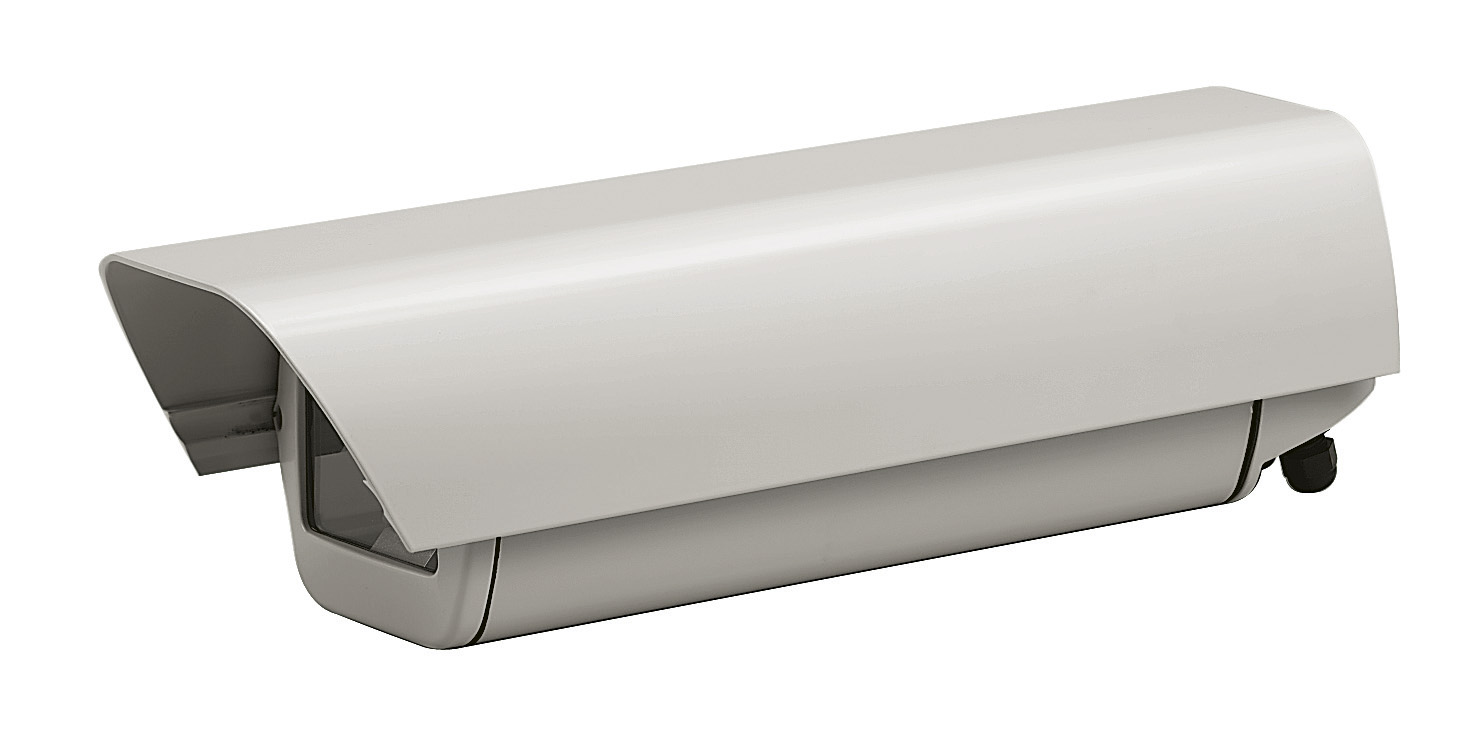

HEBAluminium weatherproof camera housing

MARKETS

DESCRIPTION

Robust and large aluminium housing designed to fit combinations of 1/2", 1/3" and 1/4"cameras, with different types of optics

The frontal opening system allows an easy access to the camera and all internal connections.

KEY FEATURES

Slide-extractable body with hinged system

Pre-arranged for internal cable management bracket

Available accessories: heater, camera power supply, blower and air filter

TECHNICAL DATA

General
  • Aluminium back and front cover plates
  • Extruded aluminium body, external slide and sunshield
  • Epoxypolyester powder painting, RAL9002 colour
  • Stainless steel external screws
Mechanical
  • Cable glands:ᅠ ᅠ3xM16
  • Glass windowᅠ ᅠ(WxH):ᅠ ᅠ90x81mm (3.5x3.2in)
  • Internal usable areaᅠ ᅠ(WxH):ᅠ ᅠ90x85mm (3.5x3.3in)
  • Internal usable lengthᅠ ᅠ(without accessories):ᅠ ᅠ320mm (12.6in)
  • Internal usable lengthᅠ ᅠ(with accessories):ᅠ ᅠ250mm (9.8in)
  • Unit weight:ᅠ ᅠ3.2kg (7.1lb)
Electrical
  • Heaterᅠ ᅠ(Ton 15°C±3°C (59°F ±5°F),ᅠ ᅠToff 22°C±3°C (72°F±5°F))
  • Power supply/Consumption:ᅠ ᅠINᅠ ᅠ12Vdc/24Vac,ᅠ ᅠ20Wᅠ ᅠmax
  • Power supply/Consumption:ᅠ ᅠINᅠ ᅠ120/230Vac,ᅠ ᅠ40Wᅠ ᅠmax
  • Blower with thermostat and air filter, Ton 35°C±3°C (95°F±5°F) Toff 20°C±3°C (71°F±5°F) and back cover
  • IN 12Vdc, consumption 4W max
  • IN 24Vac, consumption 4W max
  • IN 230Vac, consumption 4W max, complete with voltage transformer
  • Camera power supply
  • IN 100-240Vac, 50/60Hz - OUT 12Vdc, 1.25A
  • IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA
Environment
  • For installation indoors and outdoors
  • Operating temperature with heater:ᅠ ᅠfromᅠ ᅠ-20°C (-4°F)ᅠ ᅠup toᅠ ᅠ+60°C (140°F)
  • Salty fog resistance,ᅠ ᅠto 1000 hoursᅠ ᅠ(ISO9227)
Certifications
  • CE EN61000-6-3, EN60065, EN50130-4
  • IP66/IP67 EN60529 with cable glands
  • IP66/IP67 EN60529 with special gaskets and bracket with internal cable channel
  • IP55 EN60529 with bracket with internal cable channel
Accessories
  • OHEH01B Heater 12Vdc/24Vac for HEB, HEK housings
  • OHEH02B Heater 120/230Vac for HEB, HEK housings
  • OHEBVF1 Blower with thermostat and air filter IN 12Vdc, for HEB housing, not compatible with WBOVA2 and WBOV3A2 brackets
  • OHEBVF2 Blower with thermostat and air filter IN 24Vac, for HEB housing, not compatible with WBOVA2 and WBOV3A2 brackets
  • OHEBVF3 Blower with thermostat and air filter IN 230Vac, for HEB housing, not compatible with WBOVA2 and WBOV3A2 brackets
  • OHEPS01B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for HEB housing
  • OHEPS02B Camera power supply IN 230Vac - OUT 24Vac, 10VA, for HEB housing
  • OWBIP2 Sealing rings kit (3xM16) IP66/IP67 for WBOVA2 and WCM4A2 brackets for PUNTO, HOV, HTV, HTC, VERSO, VERSO POLAR, VERSO COMPACT, HEB, HEK housings
  • OHEGBB Weatherproof junction box
Brackets and adaptors
  • WBJA Wall mount bracket
  • WBMA Wall bracket with ball joint
  • WBOVA2 Wall bracket with internal cable channel
  • WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3
  • WCM3A Ceiling bracket with ball joint
  • WCM5A Ceiling bracket with ball joint
  • WCM4A2 Ceiling bracket with internal cable channel
  • WFWCA Column bracket with joint
Related products
  • PTH300 Horizontal/vertical Pan & Tilt
Spare parts
  • OHEBS32A000 Sunshield HEB32
  • DOTHE01 Spacers for camera and lens
  • OHEBMAN Cable glands, gaskets and screws
  • OHBCFA04 Front cover with glass, screws and gaskets
  • OHBFP04B Back cover with cable glands, gaskets and screws

AVAILABLE MODELS

Model Number

Sunshield

Heaterᅠ ᅠ120Vac/230Vac

Heaterᅠ ᅠ12Vdc/24Vac

Max consumption

HEB32K1A000B

40W

HEB32K2A000B

20W

HEB32K0A000B

TOP
