PUNTO Hi-PoETechnopolymer housing for IP camera

MARKETS

DESCRIPTION

The PUNTO Hi-PoE housing exploits the PoE and Hi-PoE technology in an optimal way, using the power provided by the Ethernet cable as the sole source of electricity to power the network camera along with heating/demisting.

PUNTO Hi-PoE provides high reliability and flexibility of the network installation and simplifies installation operations with important cost reduction.

KEY FEATURES

Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus

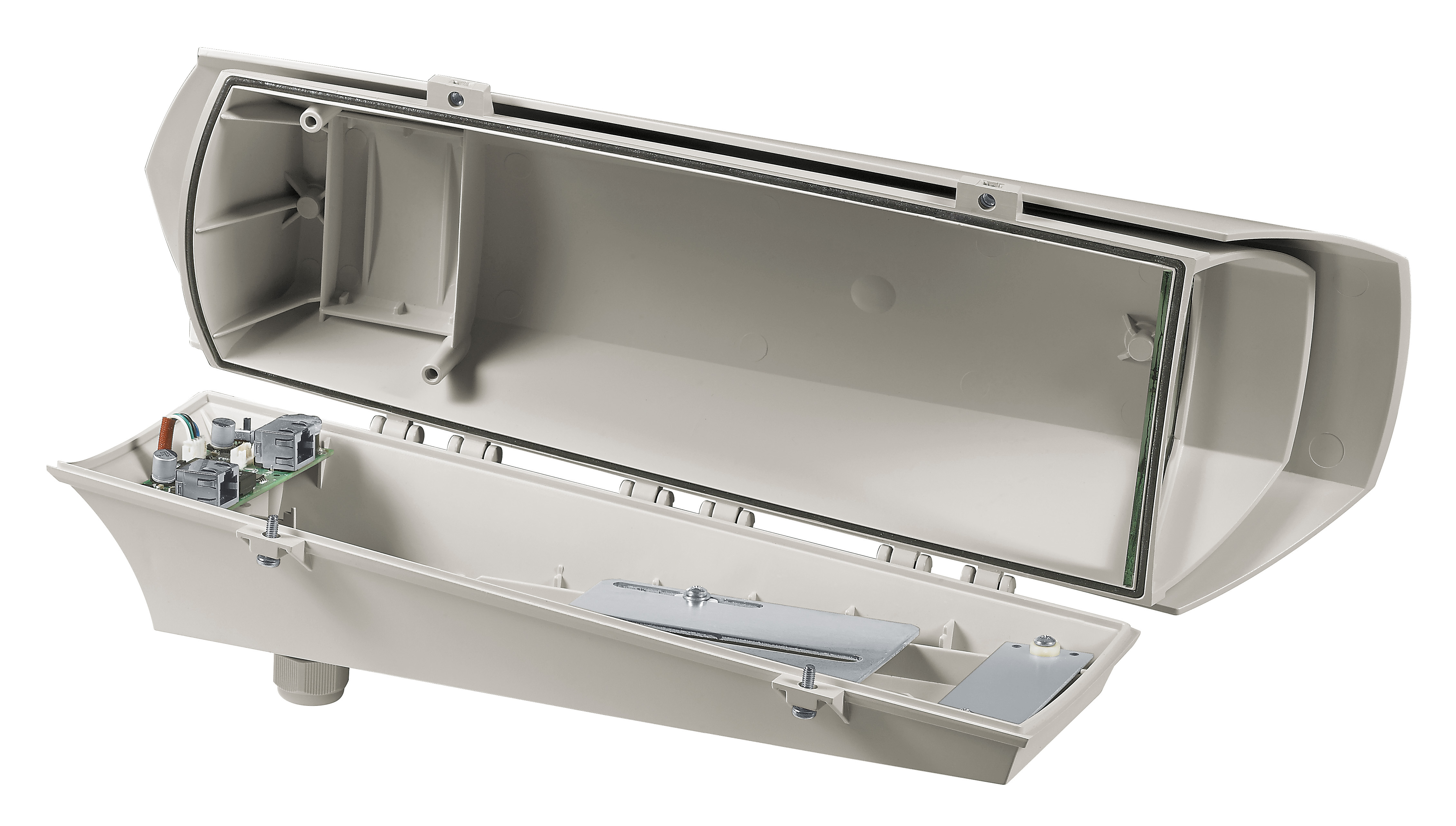

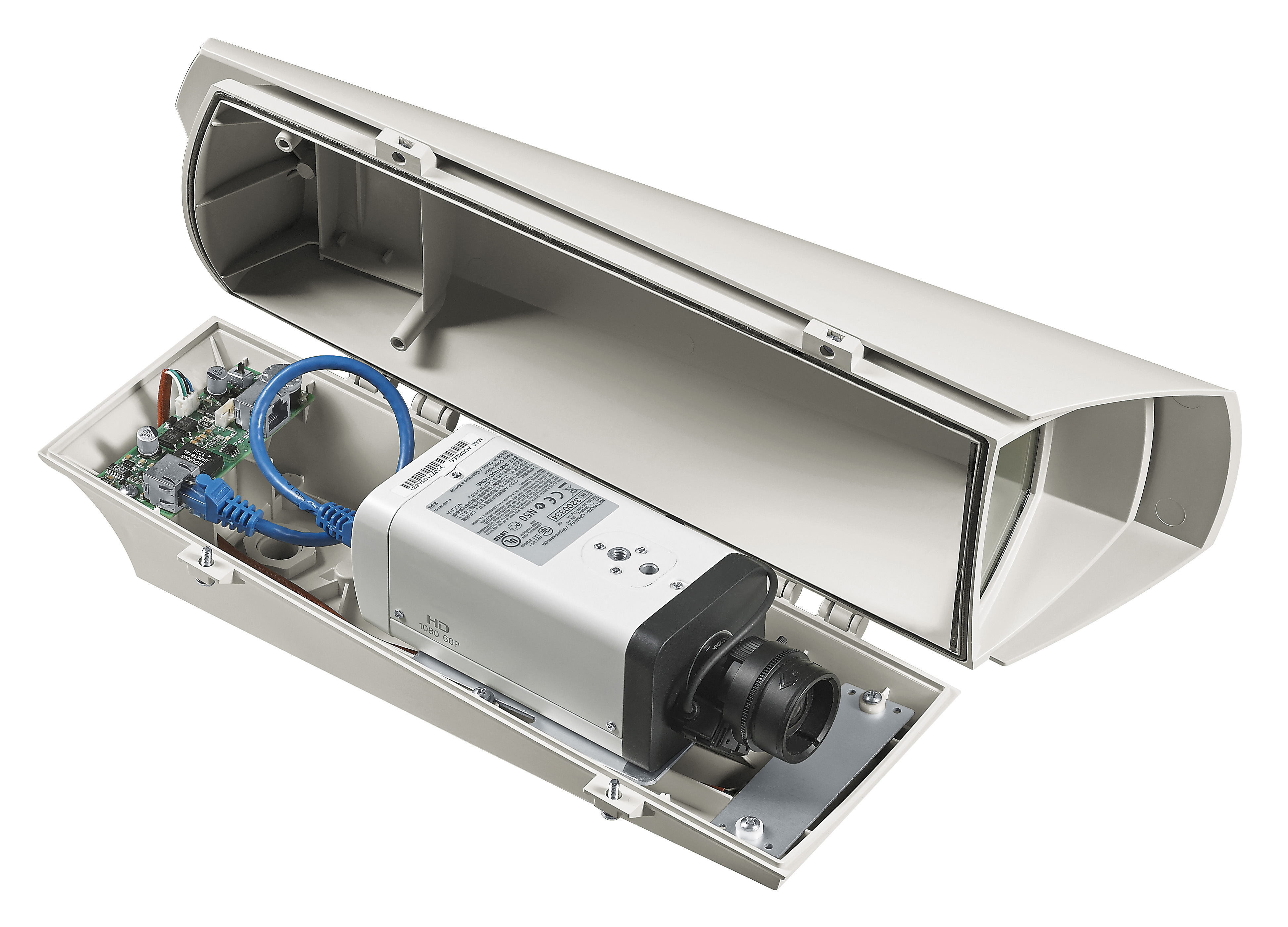

Side opening, easy camera servicing

PoE/Hi-PoE to power heater & network camera

Category 5e shielded power cable

Special cable gland for a fast Ethernet connection/disconnection without cutting the RJ45 connector

Pre-arranged for internal cable management bracket

TECHNICAL DATA

General
  • Made of strong technopolymer,ᅠ ᅠRAL9002 colour
  • Stainless steel external screws
Mechanical
  • Cable glands:ᅠ ᅠ1xM20
  • Glass windowᅠ ᅠ(WxH):ᅠ ᅠ60/95x63mm (2.4/3.7x2.5in)
  • Internal usable areaᅠ ᅠ(WxH):ᅠ ᅠ70x70mm (2.7x2.7in)
  • Internal usable length:ᅠ ᅠ250mm (9.8in)
  • Unit weight:ᅠ ᅠ0.8kg (1.7lb)
Electrical
  • Power absorbed in input/Available power for cameraᅠ ᅠ(selectable with dip-switch)
  • PoE inputᅠ ᅠClassᅠ ᅠ3ᅠ ᅠ(13W):ᅠ ᅠPoE cameraᅠ ᅠClassᅠ ᅠ2ᅠ ᅠ(7W)
  • Hi-PoE inputᅠ ᅠClassᅠ ᅠ4ᅠ ᅠ(25W):ᅠ ᅠPoE cameraᅠ ᅠClassᅠ ᅠ3ᅠ ᅠ(13W)
  • Data line:ᅠ ᅠ10/100Base-T
  • Heater
  • PoE inputᅠ ᅠClassᅠ ᅠ3:ᅠ ᅠ3W,ᅠ ᅠTon 15°C±3°C (59°F ±5°F),ᅠ ᅠToff 22°C±3°C (72°F±5°F)
  • Hi-PoE inputᅠ ᅠClassᅠ ᅠ4:ᅠ ᅠ7W,ᅠ ᅠTon 15°C±3°C (59°F ±5°F),ᅠ ᅠToff 22°C±3°C (72°F±5°F)
  • Demisting:ᅠ ᅠ1W
  • Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus
Environment
  • For installation indoors and outdoors
  • Operating temperature with heating:ᅠ ᅠFromᅠ ᅠ-20°C (-4°F)ᅠ ᅠup toᅠ ᅠ+60°C (140°F)
  • Chemical agents resistance
  • High resistance:ᅠ ᅠbasics,ᅠ ᅠalcohols,ᅠ ᅠgas,ᅠ ᅠhydrocarbon
  • Good resistance:ᅠ ᅠOrganic acids,ᅠ ᅠinorganic acids,ᅠ ᅠoils
  • Low resistance:ᅠ ᅠSolvents
Certifications
  • Electrical safetyᅠ ᅠ(CE):ᅠ ᅠEN60950-1
  • Electromagnetic compatibilityᅠ ᅠ(CE):ᅠ ᅠEN50130-4,ᅠ ᅠEN61000-6-3
  • Outdoor installationᅠ ᅠ(CE):ᅠ ᅠEN60950-22,ᅠ ᅠIEC 60950-22
  • IP protection degree:ᅠ ᅠEN60529,ᅠ ᅠIP66
  • UL certification:ᅠ ᅠcULus Listedᅠ ᅠ(TYPE 4X)
  • EAC certification
Accessories
  • OHEPOWINJ Hi-PoE Power Injector, 1 channel
Brackets and adaptors
  • WBJA Wall mount bracket
  • WBOVA2 Wall bracket with internal cable channel
  • WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3
  • WCM3A Ceiling bracket with ball joint
  • WCM5A Ceiling bracket with ball joint
  • WCM4A2 Ceiling bracket with internal cable channel
  • WFWCA Column bracket with joint
