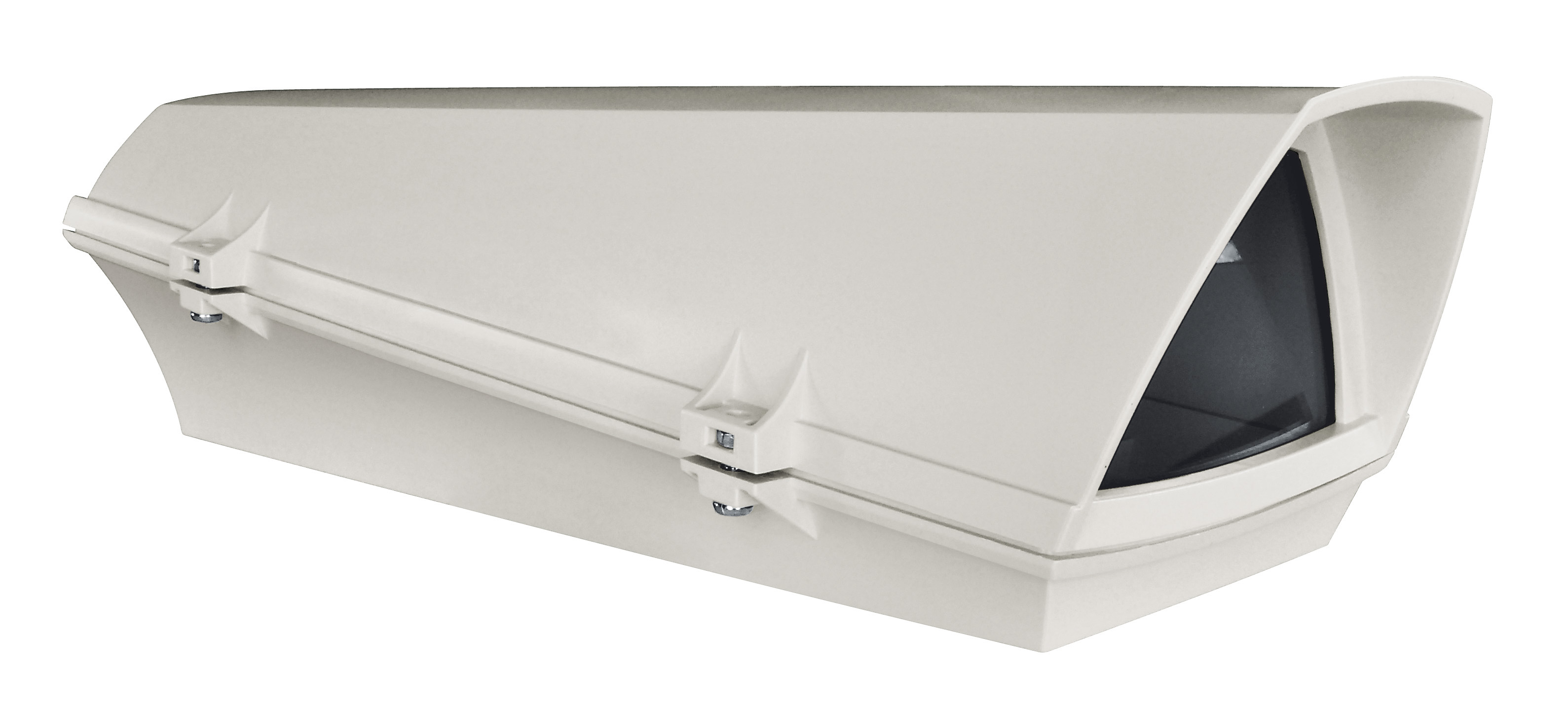

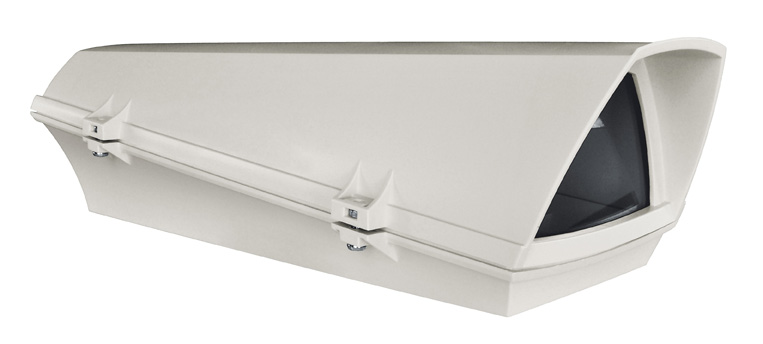

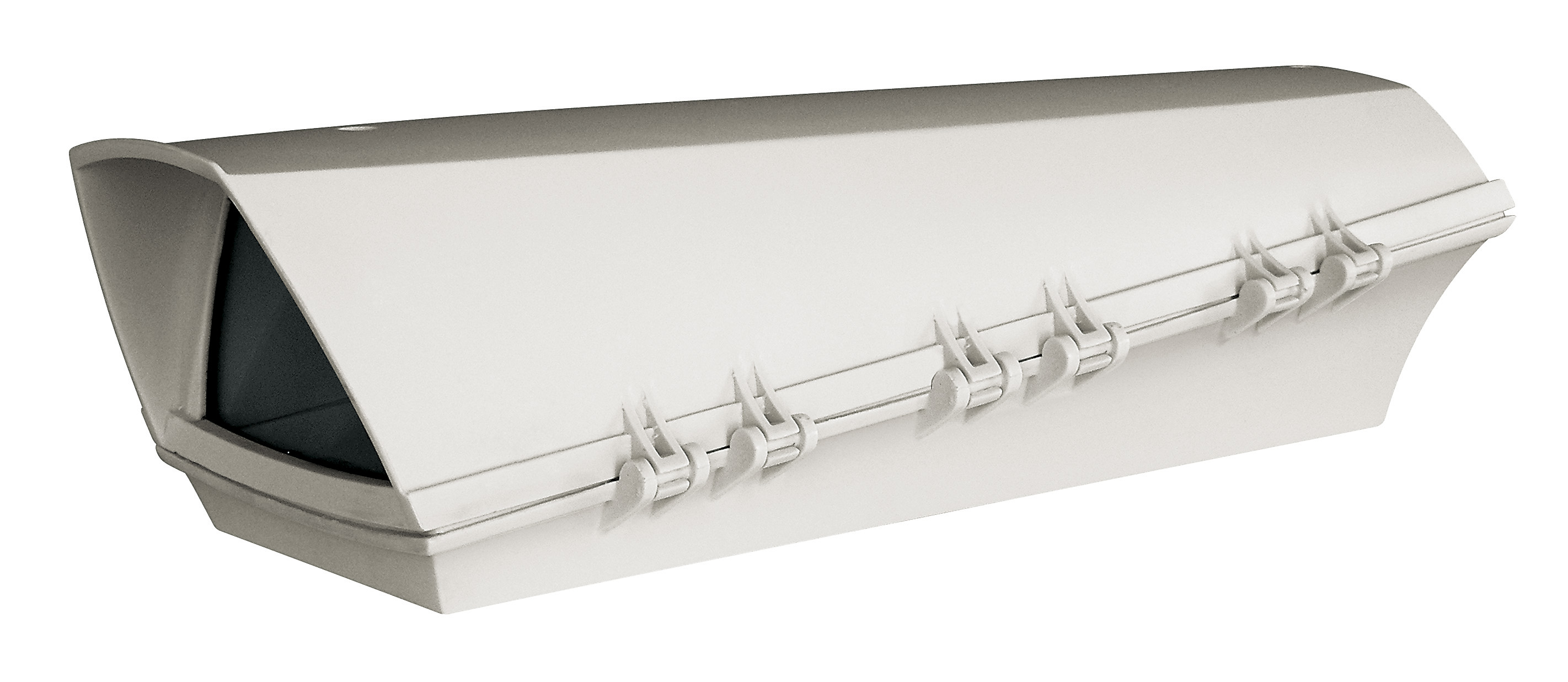

PUNTOSide-opening technopolymer camera housing

MARKETS

DESCRIPTION

This aerodynamic technopolymer housing has been designed to accommodate a variety of camera and lens combinations

Very easy to install thanks to the side-opening system that allows the full access to the camera, lenses and all internal connections.

KEY FEATURES

Aerodynamic design

Full access to camera, lens and all internal connections

Pre-arranged for internal cable management bracket

Integrated heater

TECHNICAL DATA

General
  • Made of strong technopolymer
  • RAL9002 Colour
  • Stainless steel external screws
Mechanical
  • Internal usable areaᅠ ᅠ(WxH):ᅠ ᅠ70x70mm (2.7x2.7in)
  • Internal usable lengthᅠ ᅠ(with or without accessories):ᅠ ᅠ250mm (9.8in)
  • Unit weight:ᅠ ᅠ0.8kg (1.7lb)
  • Cable glands:ᅠ ᅠ2xM16
  • Housing window
  • Material:ᅠ ᅠGlass
  • Dimensionsᅠ ᅠ(WxH):ᅠ ᅠ60/95x63mm (2.4/3.7x2.5in)
Electrical
  • Supply voltage/Current consumptionᅠ ᅠ(empty version):
  • Fromᅠ ᅠ12Vdcᅠ ᅠup toᅠ ᅠ24Vdc,ᅠ ᅠ1Aᅠ ᅠmax
  • Fromᅠ ᅠ12Vacᅠ ᅠup toᅠ ᅠ24Vac,ᅠ ᅠ1Aᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • Fromᅠ ᅠ120Vacᅠ ᅠup toᅠ ᅠ230Vac,ᅠ ᅠ400mAᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • Supply voltage/Current consumptionᅠ ᅠ(version with heater,ᅠ ᅠTon 15°C±3°C (59°F ±5°F),ᅠ ᅠToff 22°C±3°C (72°F±5°F)):
  • Fromᅠ ᅠ12Vdcᅠ ᅠup toᅠ ᅠ24Vdc,ᅠ ᅠ3Aᅠ ᅠmax
  • Fromᅠ ᅠ12Vacᅠ ᅠup toᅠ ᅠ24Vac,ᅠ ᅠ3Aᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • Fromᅠ ᅠ120Vacᅠ ᅠup toᅠ ᅠ230Vac,ᅠ ᅠ400mAᅠ ᅠmax,ᅠ ᅠ50/60Hz
Environment
  • For installation indoors and outdoors
  • Operating temperature with heating:ᅠ ᅠFromᅠ ᅠ-20°C (-4°F)ᅠ ᅠup toᅠ ᅠ+60°C (140°F)
  • Chemical agents resistance
  • High resistance:ᅠ ᅠbasics,ᅠ ᅠalcohols,ᅠ ᅠgas,ᅠ ᅠhydrocarbon
  • Good resistance:ᅠ ᅠOrganic acids,ᅠ ᅠinorganic acids,ᅠ ᅠoils
  • Low resistance:ᅠ ᅠSolvents
Certifications
  • Electrical safetyᅠ ᅠ(CE):ᅠ ᅠEN60950-1,ᅠ ᅠIEC60950-1
  • Electromagnetic compatibilityᅠ ᅠ(CE):ᅠ ᅠEN50130-4,ᅠ ᅠEN61000-6-3,ᅠ ᅠEN55022 Classe B
  • Outdoor installationᅠ ᅠ(CE):ᅠ ᅠEN60950-22,ᅠ ᅠIEC 60950-22
  • IP protection degree:ᅠ ᅠEN60529,ᅠ ᅠIP66/IP67ᅠ ᅠ(with cable glands)
  • UL certification:ᅠ ᅠcULus Listedᅠ ᅠ(TYPE 4X)ᅠ ᅠ(only versions from 12Vdc up to 24Vdc and from 12Vac up to 24Vac)
  • EAC certification
Accessories
  • OHOTS Sunshield
  • OHOTPS1 Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for PUNTO housing
  • OHOTPS2 **non tradotto**
  • OWBIP2 Sealing rings kit (3xM16) IP66/IP67 for WBOVA2 and WCM4A2 brackets for PUNTO, HOV, VERSO, VERSO POLAR, VERSO COMPACT, HEB, HEK housings
  • OSUPPIR Support for 1 GEKO IRH illuminator under the housing ᅠ ( Not compatible with WBOVA2 wall bracket )
Brackets and adaptors
  • WBJA Wall mount bracket
  • WBOVA2 Wall bracket with internal cable channel
  • WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3
  • WCM3A Ceiling bracket with ball joint
  • WCM5A Ceiling bracket with ball joint
  • WCM4A2 Ceiling bracket with internal cable channel
  • WFWCA Column bracket with joint
Related products
  • PTH300 Horizontal/vertical Pan & Tilt

AVAILABLE MODELS

Model Number

Only housing

Sunshield

Heater 120/230Vac

Heater 12Vdc/24Vac

Wall bracket WBOVA2

HOT39D0A000

HOT39D1A000

HOT39D1A085

HOT39D2A000

HOT39D2A085

HOT39K1A000

HOT39K2A000
