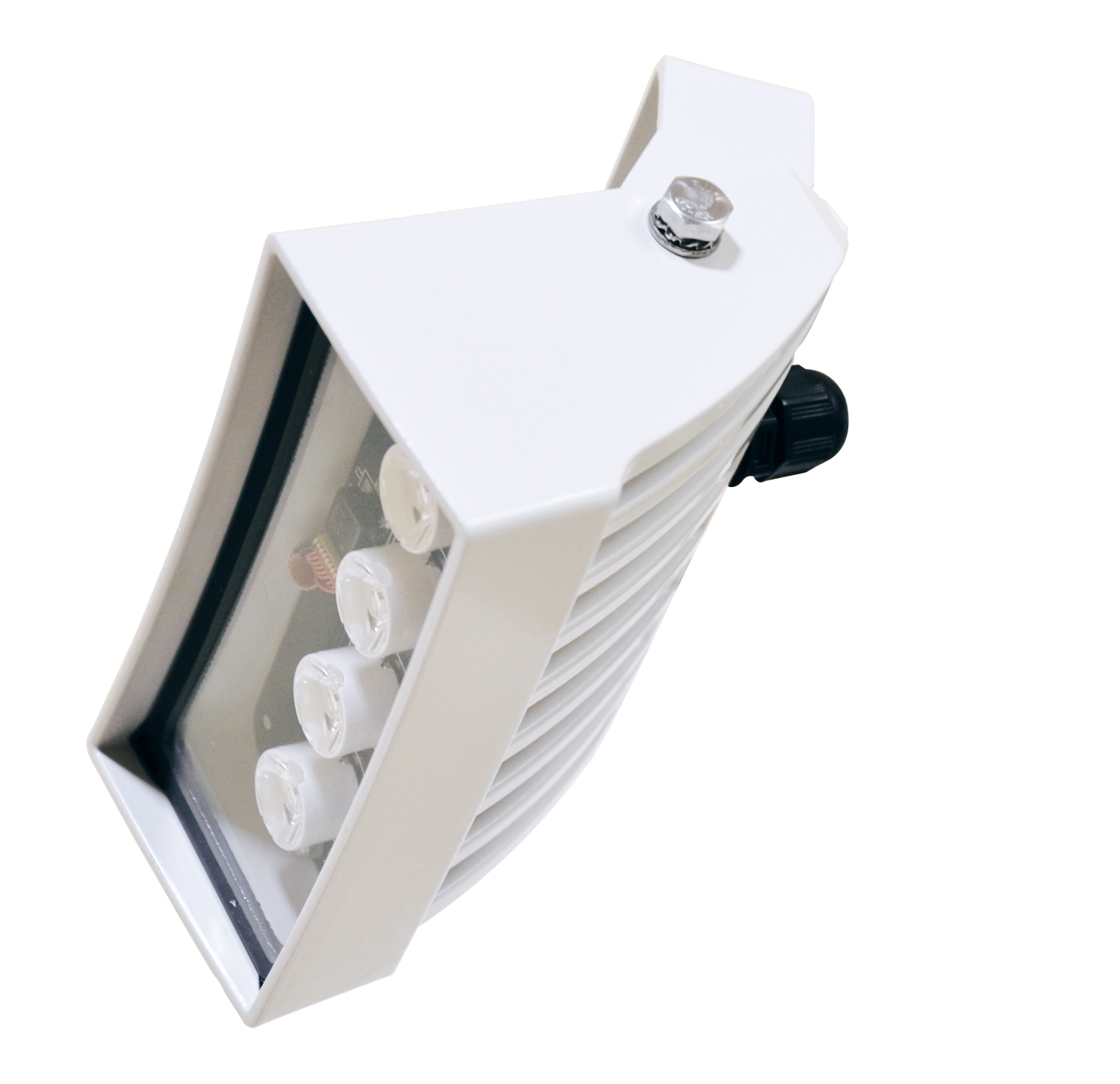

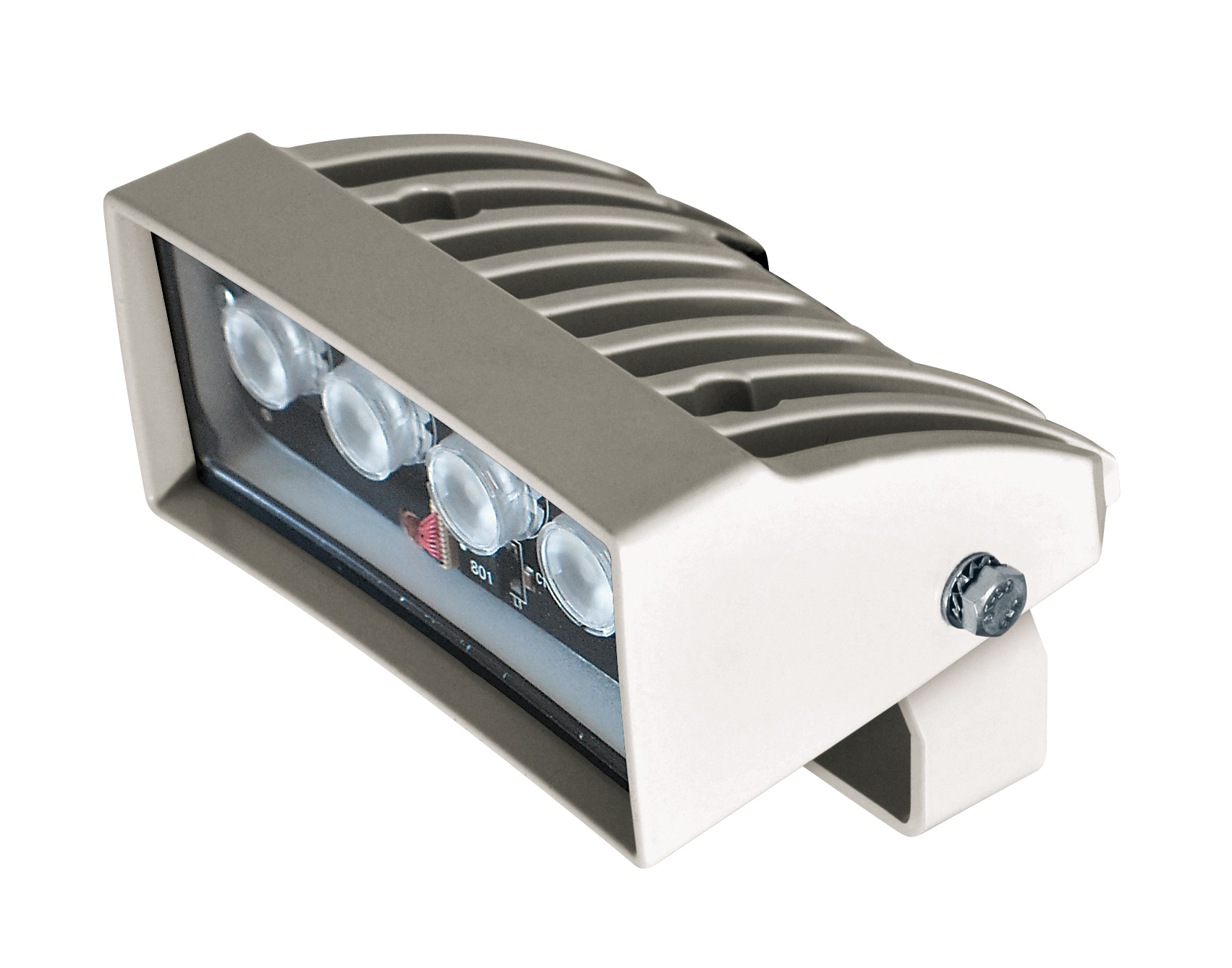

GEKO IRHLED illuminator

MARKETS

DESCRIPTION

The GEKO lights the entire scene evenly, eliminating hotspots and underexposures, for unbeatable night-time images and secure surveillance of the area.

The illuminators can be powered at 12Vdc to 24Vdc or at 24Vac.

The power supply in a waterproof box, in 230Vac or 120Vac version, is available as an accessory for one or two GEKO illuminators.

KEY FEATURES

Clear night vision up to 140m (460ft) in indoor or outdoor environment

Vandal-proof protection (IK10)

Beam pattern: 10°, 30°, 60°

Wavelengths: 850nm, 940nm, white light

Consumption: 6W or 12W

It can be mounted under a housing using the OSUPPIR bracket

Supplied with a wall-mount bracket

IP66/IP67

TECHNICAL DATA

General
  • Die cast aluminum body

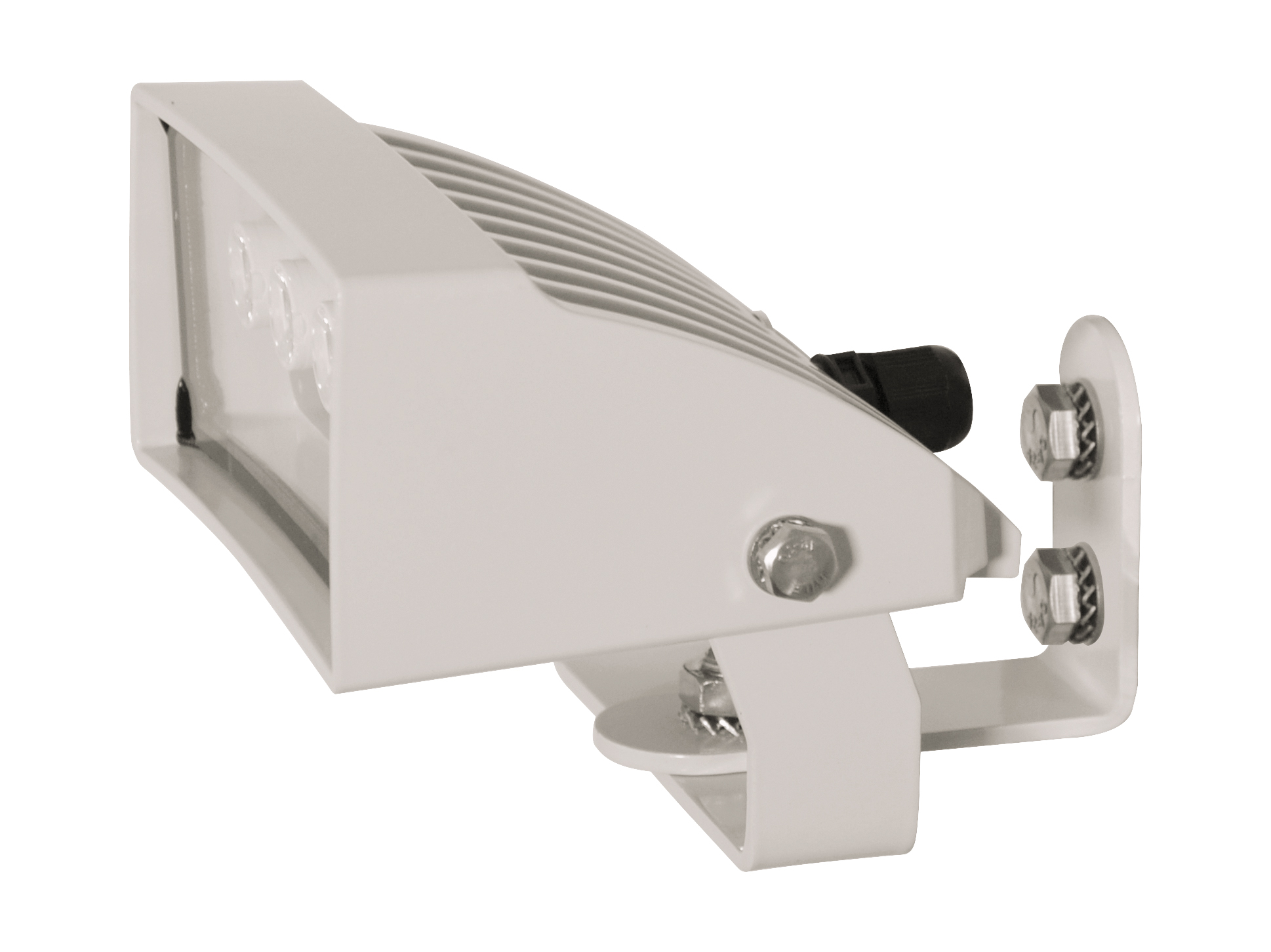

  • Supplied complete with horizontal and vertical rotating support in painted galvanized steel
  • Wavelengths: 850nm, 940nm, white light
Mechanical
  • Dimensions: 133x112x135mm (5.2x4.4x5.3in)
  • Unit weight: 0.9kg (2lb)
Electrical
  • Supply voltage/Current consumption:
  • from 12Vdc up to 24Vdc: 1A max (high power 4 LED, 12Vdc), 0.5A max (high power 4 LED, 24Vdc) or 0.5A max (low power 2 LED, 12Vdc), 0.25A max (low power 2 LED, 24Vdc)
  • 24Vac: 0.5A max (high power, 4 LED) or 0.25A max (low power, 2 LED), 50/60Hz
  • State of the art SMD LED
  • Adjustable built-in photocell for automatic activation and deactivation
  • Input for activation by means of external dry contact
  • Supplied with multipole cable: 4x0.34mm² (22AWG), L=2m
Environment
  • For indoors and outdoors installation
  • Operating temperature: from -40°C (-40°F) up to +60°C (140°F)
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN50130-4, EN55032 (Class A), EN61000-6-4
  • Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A)
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • Photobiological safety (CE): EN62471, IEC62471
  • IP protection degree (EN60529): IP66, IP67
  • IK protection degree : IK10
  • UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07): cULus Listed
  • Level of protection Type (UL50E): 4X
  • EAC certification
  • Restriction of Hazardous Substances (RoHS), Directive 2011/65/EU
  • Waste Electrical and Electronic Equipment (WEEE), Directive 2012/19/EU
Accessories
  • IRHPS230 Power supply for 2 GEKO IRH illuminators, IN 230Vac 50/60Hz - OUT 24Vac 30W
  • IRHPS120 Power supply for 2 GEKO IRH illuminators, IN 120Vac 50/60Hz - OUT 24Vac 30W
Brackets and adaptors

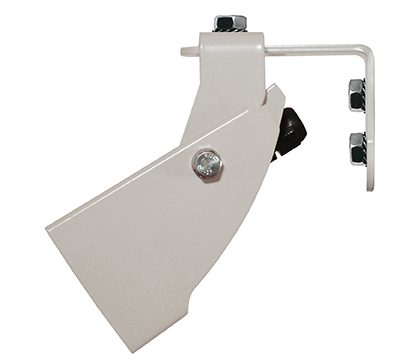

  • OSUPPIR Support for 1 GEKO IRH illuminator under the housing ( the combination between OSUPPIR and WBOVA2 wall mount is not compatible with the PUNTO housing )

CONFIGURATION OPTIONS

Beam patterns

Power

Wavelength

IRH

10
Narrow

H
High power

8
850nm

A

30
Medium

L
Low power

9
940nm

60
Wide

W
White light

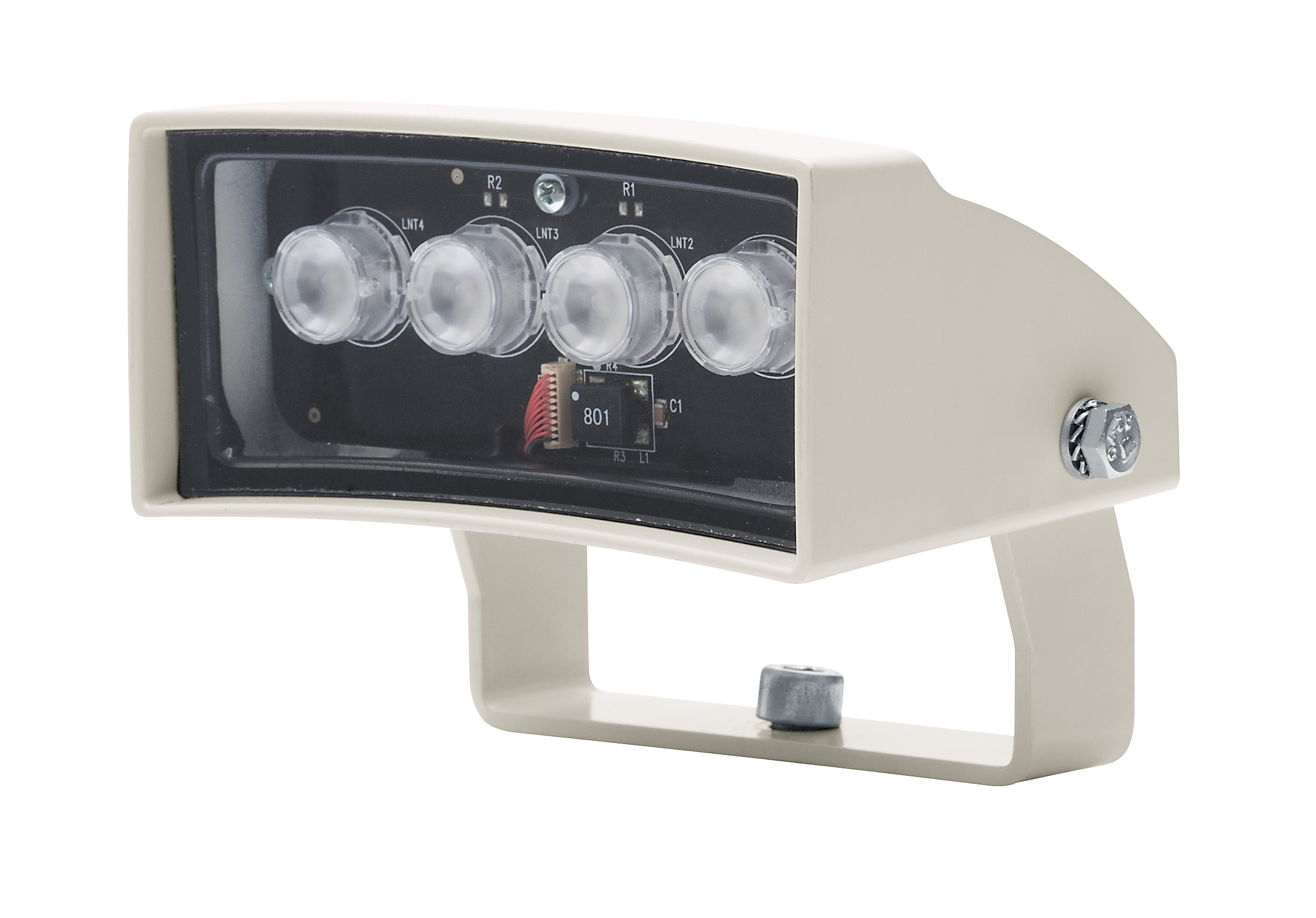

The version in white light (W) is only available in high-power (H) with 30° or 60° beam patterns.

The versions in 940nm are available in high power (H).
