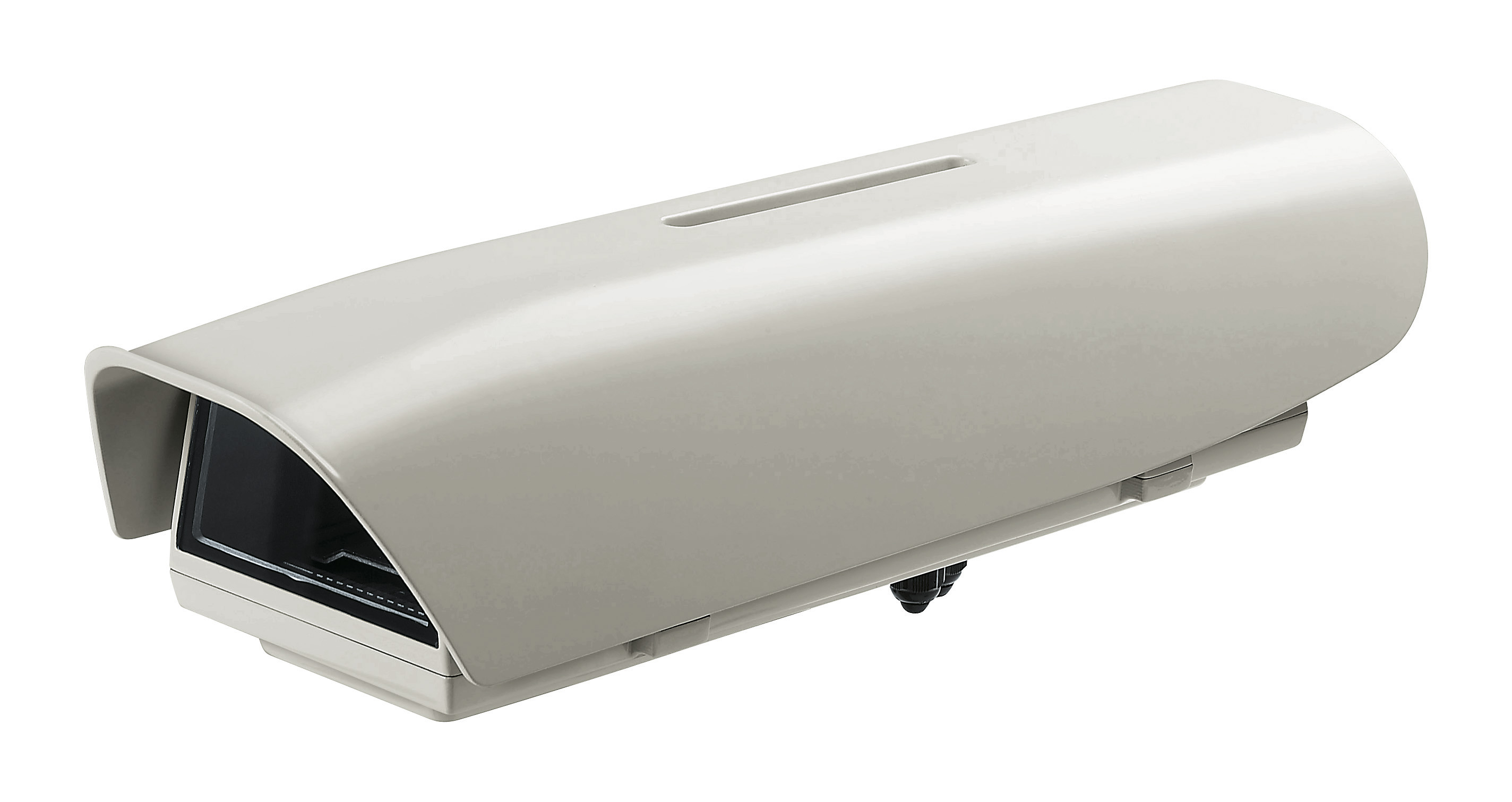

HOVSide-opening aluminium camera housing

MARKETS

DESCRIPTION

Robust aluminium housing designed to simplify the installation and service, and guarantee total protection against all environmental conditions.

Its size makes it ideal for housing various combinations of standard cameras with fixed or compact zoom lenses.

KEY FEATURES

Full access to camera, lens and all internal connections

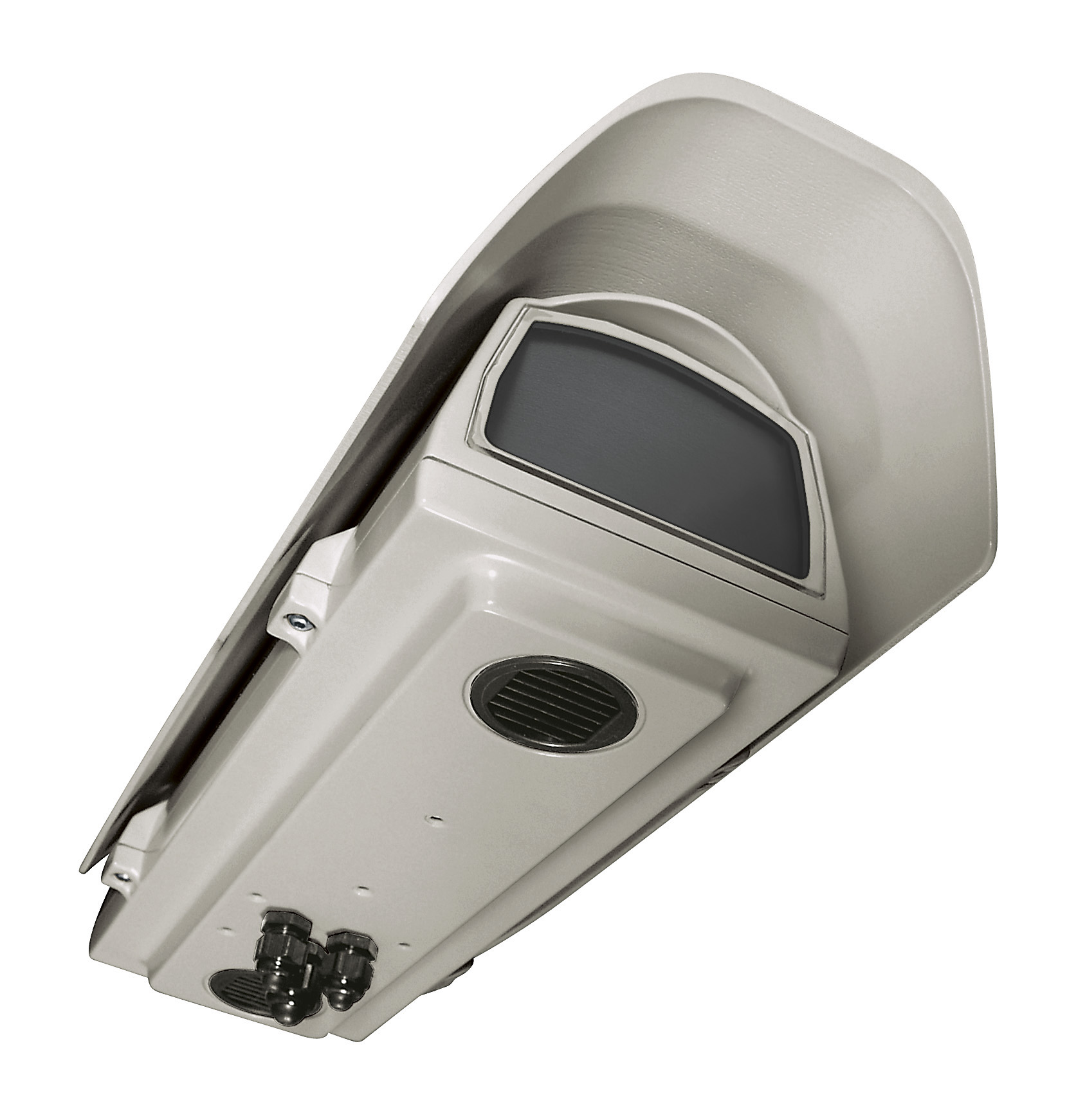

Version with a very efficient cooling system for installation with IP cameras and for high environmental temperature

IP66/IP67 (with cable glands or optional sealing rings)

Version with integrated wiper

Pre-arranged to supply a GEKO IRH illuminator

TECHNICAL DATA

Mechanical
  • Constructed from aluminium
  • Sunshield in ABS
  • Epoxypolyester powder painting, RAL9002 colour
  • Stainless steel external screws
  • Internal usable area   (WxH):   100x70mm (3.9x2.7in)
  • Internal usable length   (with or without accessories):   250mm (9.8in)
  • Cable glands:   3xM16
  • Glass window extra clear
  • Dimensions   (WxH):   118x75mm (4.6x2.7in)
  • Unit weight:   3kg (6.6lb)
Electrical
  • Supply voltage/Current consumption   (empty version):
  • From   12Vdc   up to   24Vdc,   1A   max
  • From   12Vac   up to   24Vac,   1A   max,   50/60Hz
  • From   120Vac   up to   230Vac,   400mA   max,   50/60Hz
  • Supply voltage/Current consumption   (version with heater,   Ton 15°C±3°C (59°F ±5°F),   Toff 22°C±3°C (72°F±5°F)):
  • From   12Vdc   up to   24Vdc,   3A   max
  • From   12Vac   up to   24Vac,   3A   max,   50/60Hz
  • From   120Vac   up to   230Vac,   400mA   max,   50/60Hz
  • Supply voltage/Current consumption   (version with heater fan assistant, continuous duty):
  • 12Vdc,   400mA   max
  • 24Vac,   200mA   max,   50/60Hz
  • Power supply/Current consumption
  • From   100Vac   up to   240Vac,   40mA   max,   50/60Hz   (with wide-range power supply)
  • Supply voltage/Current consumption   (version with blower and thermostat for models with double filter for air renewal,   Ton 35°C±3°C (95°F±5°F),   Toff 20°C±3°C (71°F±5°F)):
  • 12Vdc,   400mA   max
  • 24Vac,   200mA   max,   50/60Hz
  • Supply voltage/Current consumption   (version with integrated wiper):
  • 24Vac,   1.85A   max,   50/60Hz
  • 230Vac,   40mA   max,   50/60Hz
  • Camera power supply:
  • IN   from   100Vac   up to   240Vac,   50/60Hz   -   OUT 12Vdc, 1.25A
  • IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA
Environment
  • For installation indoors and outdoors
  • Operating temperature   (with heater):   from   -20°C (-4°F)   up to   +65°C (149°F)
Certifications
  • Electrical safety   (CE):   EN60950-1,   IEC60950-1
  • Electromagnetic compatibility   (CE):   EN50130-4,   EN61000-6-3,   EN55032   Class B,   FCC Part. 15   Class B,   ICES-003   Class B   (with wiper:   EN61000-6-4,   EN55032   Class A,   FCC Part. 15   Class A,   ICES-003   Class A)
  • Outdoor installation   (CE):   EN60950-22,   IEC 60950-22
  • IP protection degree   (EN60529):
  • IP66/IP67   (with cable glands)
  • IP66/IP67   (with bracket with internal cable channel,   with sealing rings)
  • IP55   (with bracket with internal cable channel)
  • IP44   (with double filter for air renewal)
  • IK protection degree   (EN62262):
  • for models HOV32K1A084, HOV32K2A084:   IK10 protection degree
  • for all the other models:   IK10 protection degree   (except for the front glass)
  • Salty fog resistance:   to 1000 hours   (ISO9227)
  • UL certification:   cULus Listed,   TYPE 4X   (except for versions with double filter for the air exchange, HOV32K1A018, HOV32K2A016, HOV32K2A017, HOV32K2A147, and the version with wiper 230Vac, HOV32K1A100)
  • EAC certification
Accessories
  • OHOVPOEIPM Maintenance/retrofit kit for HOV and HOV HI-POE IPM housings
  • OHEH26 Heater 120Vac/230Vac for HOV, HTV, VERSO, VERSO COMPACT housings
  • OHEH27 Heating 12Vdc/24Vac for HOV, HTV, HTC, VERSO and VERSO COMPACT housings
  • OHOVV1 Heater fan assistant, continuous duty, IN 12Vdc, for HOV housing
  • OHOVV2 Heater fan assistant, continuous duty, IN 24Vac, for HOV housing
  • OHOVV3 Heater fan assistant, continuous duty,IN 100-240Vac, for HOV housing
  • OHOVPS1B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for HOV and HTV housing
  • OHOVPS2B Camera power supply IN 230Vac - OUT 24Vac, 10VA, for HOV and HTV housings
  • OHOVTA1 Tamper switch on board with tamper proof screws and key for HOV housing
  • OWBIP2 Sealing rings kit (3xM16) IP66/IP67 for WBOVA2 and WCM4A2 brackets for PUNTO, HOV, HTV, HTC, VERSO, VERSO POLAR, VERSO COMPACT, HEB, HEK housings
  • OHEGBB Weatherproof junction box
  • WAS0V5L5M00 Water tank 5l (1 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WAS0V23L5M00 Water tank 23l (6 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WAS0V23L11M00 Water tank 23l (6 gal), pump with delivery up to 11m (36ft), IN 230Vac-24Vac-120Vac
  • WAS1V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
  • WAS3V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
  • WASPT0V5L5M00 Water tank 5l (1 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L5M00 Water tank 23l (6 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L11M00 Water tank 23l (6 gal), pump with delivery up to 11m (36ft) with water floating, IN 230Vac-24Vac-120Vac
  • WASPT1V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
  • WASPT3V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
  • DTWRX Data receiver for remote control of the wiper and WASPT range pumps in stand-alone housings
  • OSUPPIR Support for 1 GEKO IRH illuminator under the housing   ( Not compatible with WBOVA2 wall bracket )
Brackets and adaptors
  • WBJA Wall mount bracket

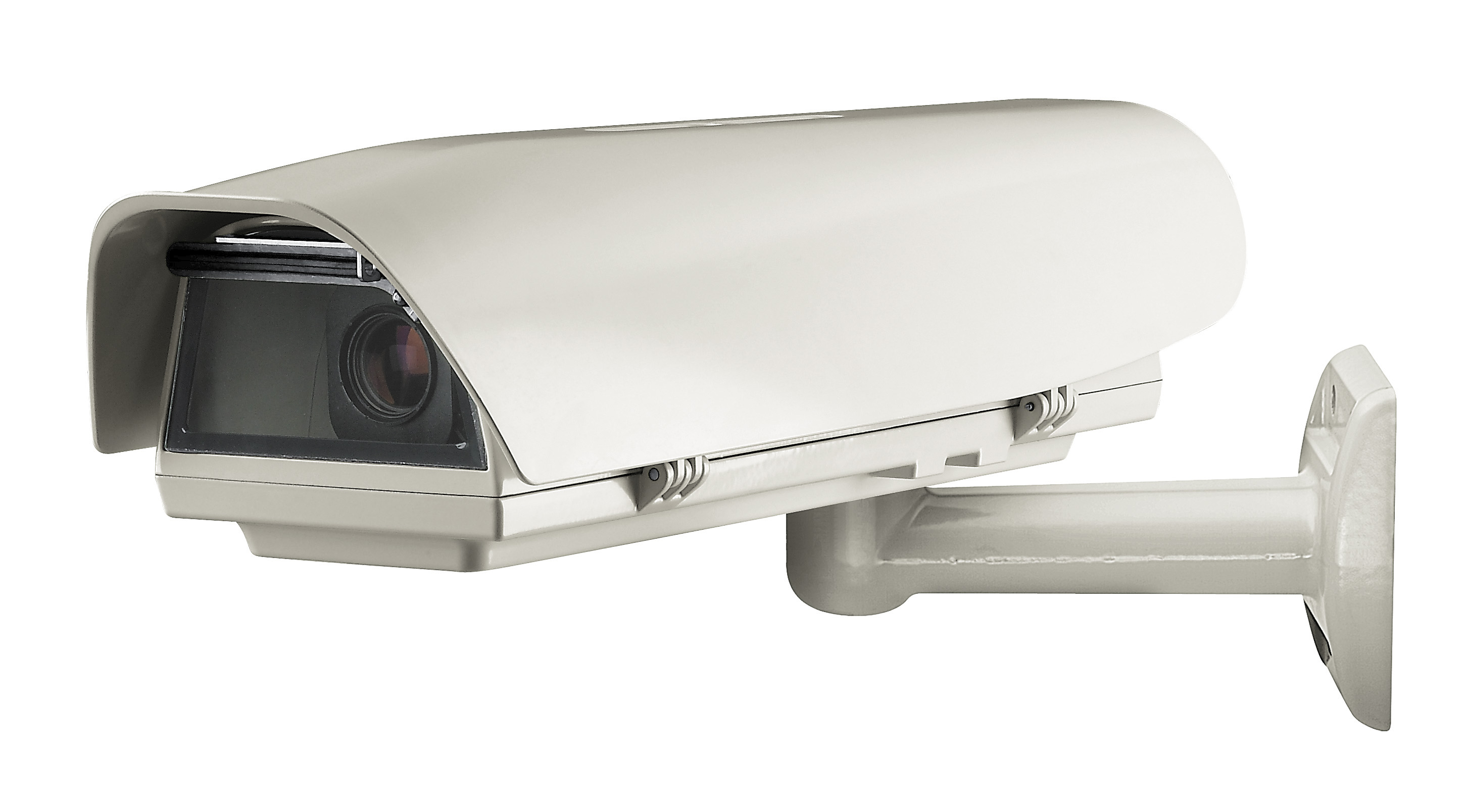

  • WBOVA2 Wall bracket with internal cable channel
  • WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3
  • WCM3A Ceiling bracket with ball joint
  • WCM5A Ceiling bracket with ball joint
  • WCM4A2 Ceiling bracket with internal cable channel
  • WFWCA Column bracket with joint
    Related products
  • PTH300 Horizontal/vertical Pan & Tilt
  • PTH300 Horizontal/vertical Pan & Tilt
Spare parts
  • OHOVS32A000 Sunshield
  • OHOV32SUP Complete upper body

AVAILABLE MODELS

Model Number

Sunshield

Heater   120Vac/230Vac

Heater   12Vdc/24Vac

12Vdc fan with double air exchange filter

24Vac fan with double air exchange filter

PS 100/240Vac IN, OUT 12Vdc, 1A for fan, with double air exchange filter

Wiper kit 24Vac

Wiper kit 230Vac

IK10 protection degree

Max consumption

HOV32K1A000   1

40W

HOV32K1A018

44W

HOV32K1A100

47W

HOV32K2A000   1

20W

HOV32K2A016

2

24W

HOV32K2A017

2

24W

HOV32K2A147

2

31W

HOV32K2A200   1

2

27W

HOV32K1A084   1

N/A   3

N/A   3

40W

HOV32K2A084   1

N/A   3

N/A   3

20W

1   cULus Listed

2   The housing must be powered as the same way as the fan and/or wiper

3   Not available
