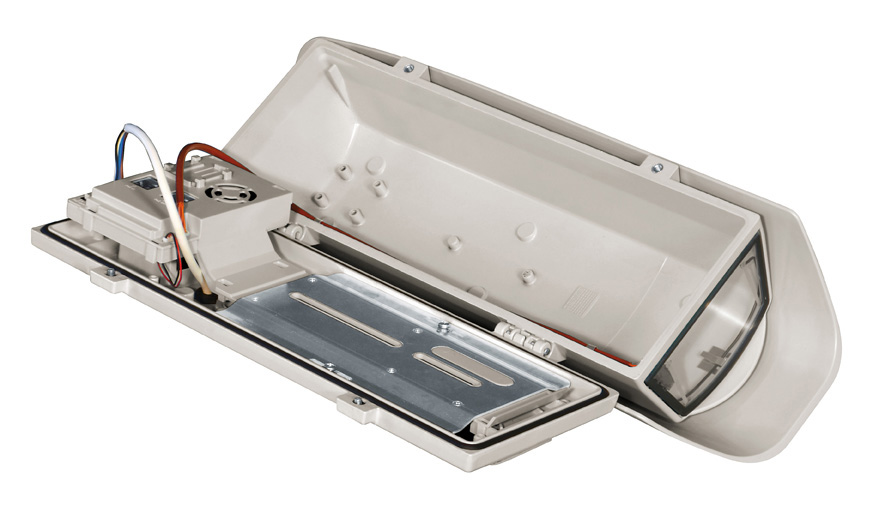

HOV Hi-PoE IPMAluminium housing with IPM technology for IP cameras

HOV Hi-PoE IPM Intelligent Power Management

MARKETS

DESCRIPTION

The HOV Hi-PoE IPM housing optimally operates with POE and Hi-POE technology, using the power supplied by the Ethernet cable as the sole source of power for all connected devices, thus ensuring maximum efficiency and flexibility of the network system as well as user-friendly installation and low costs.

KEY FEATURES

Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus

PoE/Hi-PoE power supply for heating, demisting, illuminator, fan and PoE network camera

Special cable gland for a fast Ethernet connection/disconnection without cutting the RJ45 connector

Version with fan with double air filter

Version with anti-icing heated glass

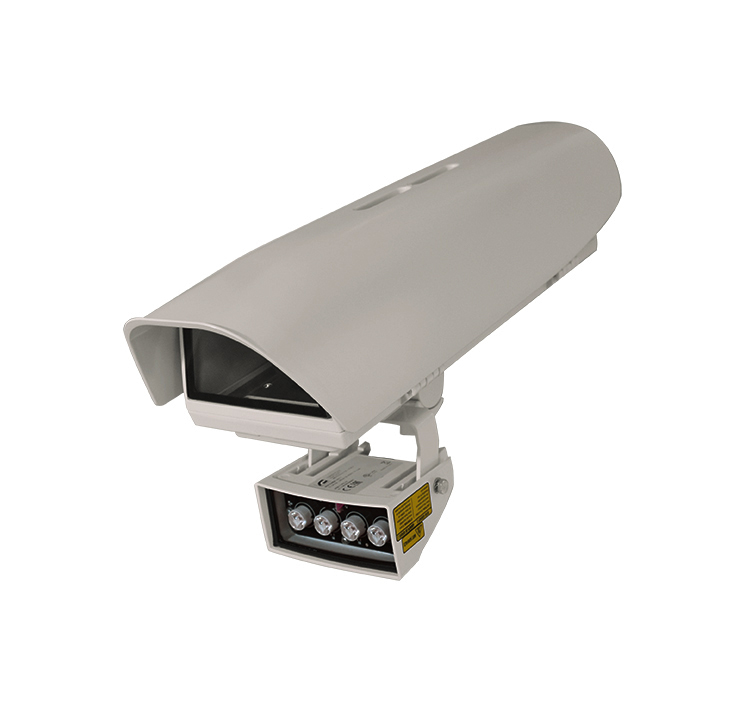

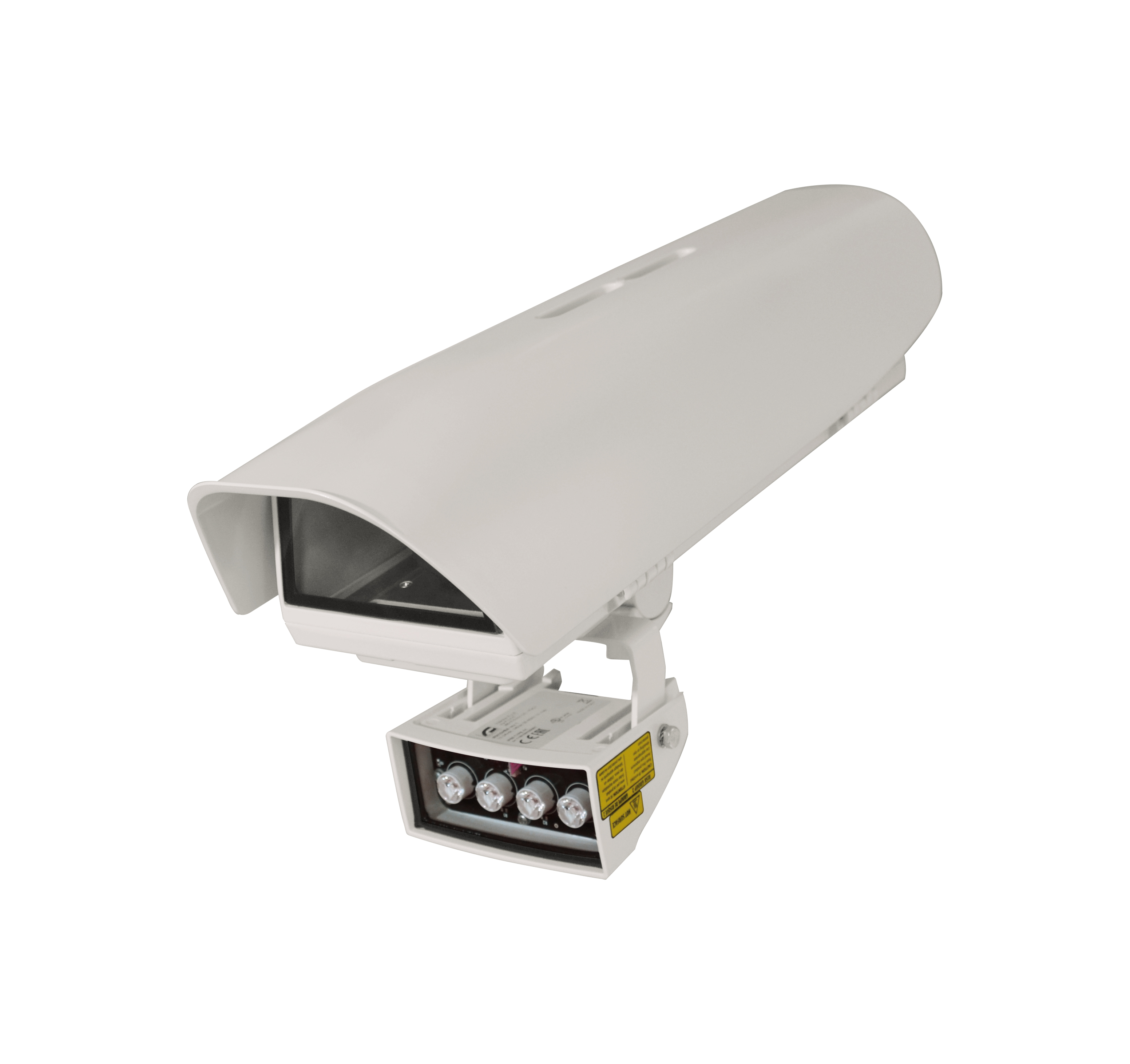

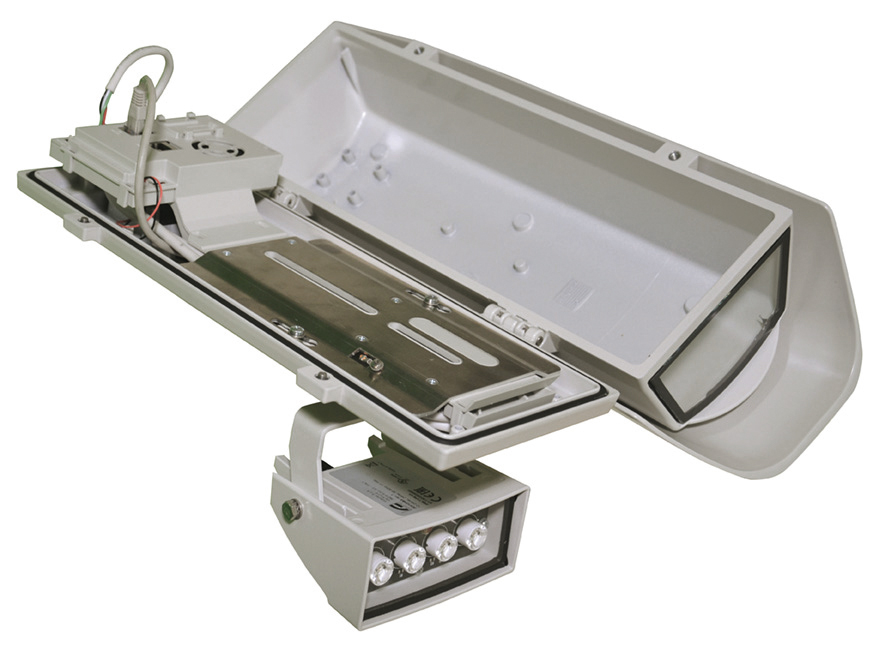

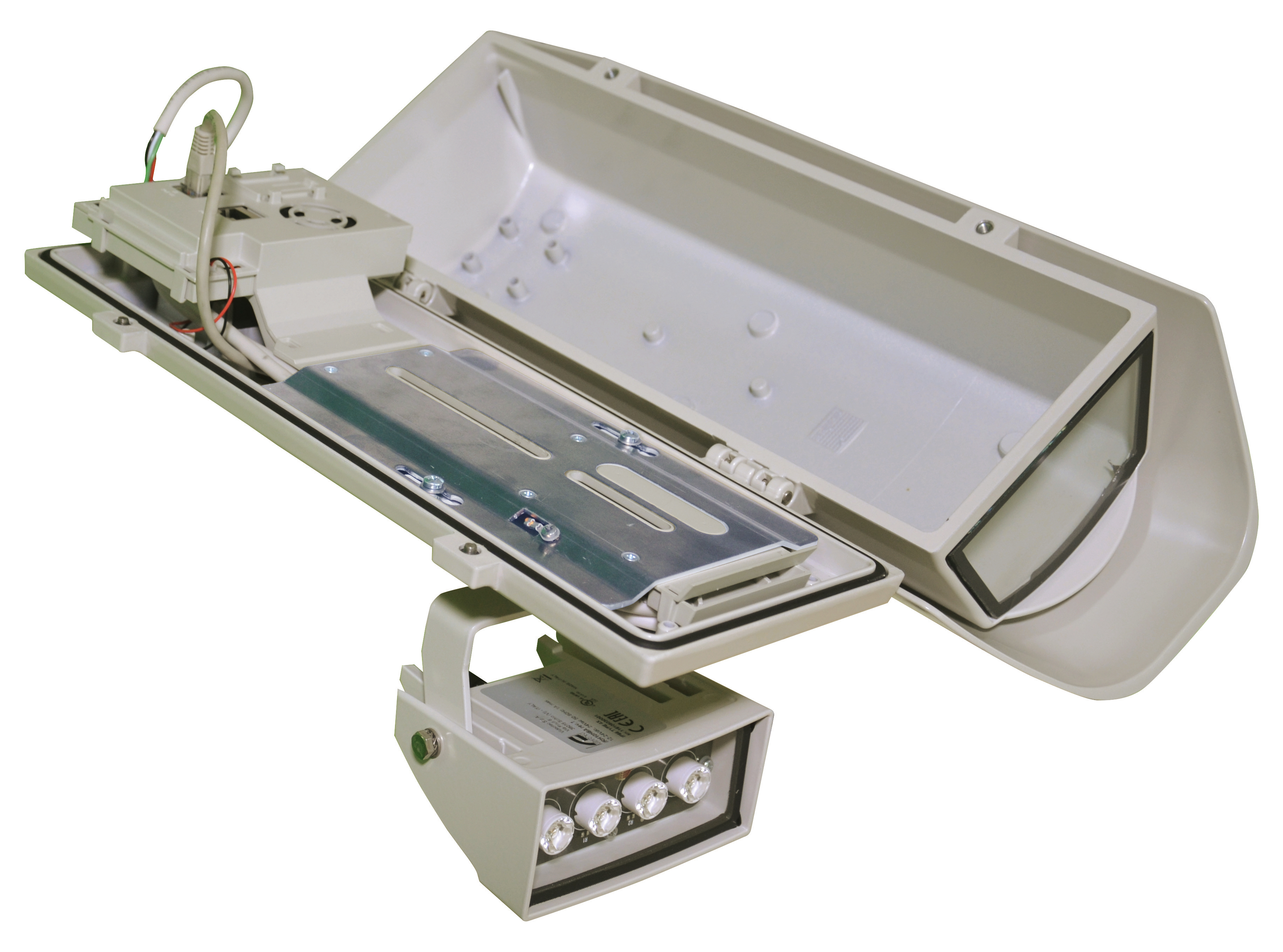

Pre-arranged to supply a GEKO IRH illuminator

TECHNICAL DATA

General
  • Constructed from aluminium
  • Sunshield in ABS
  • Epoxypolyester powder painting,ᅠ ᅠRAL9002 colour
  • Stainless steel external screws
Mechanical
  • Cable glands:ᅠ ᅠ1xM12,ᅠ ᅠ1xM16,ᅠ ᅠ1xM20
  • Glass windowᅠ ᅠ(WxH):ᅠ ᅠ118x75mm (4.6x2.7in)
  • Internal usable areaᅠ ᅠ(WxHxL):ᅠ ᅠ100x70x250mm (3.9x2.7x9.8in)
  • Unit weight:ᅠ ᅠ3.1kg (6.6lb)
Electrical
  • Power absorbed in input:ᅠ ᅠPoE class 3 (13W) or Hi-PoE class 4 (25W) selectable from dip switch
  • Available power for cameraᅠ ᅠ(PoE IN class 3):ᅠ ᅠPoE Class 2 (7W)
  • Available power for cameraᅠ ᅠ(Hi-PoE IN class 4):ᅠ ᅠPoE class 3 (13W) with Ton -10°C ±2°C “cold start” function
  • Data line:ᅠ ᅠ10/100Base-T
  • Illuminator GEKO IRH, low power:ᅠ ᅠ6W
  • Heater:ᅠ ᅠ8W,ᅠ ᅠelectronically controlled,ᅠ ᅠTon 20°C±2°C (68°F±4°F),ᅠ ᅠToff 23°C±2°C (73.4°F±4°F)
  • Fan with thermostat for camera cooling for versions with double air filter:ᅠ ᅠTon 35°C±2°C (95°F±4°F),ᅠ ᅠToff 32°C±2°C (89.6°F±4°F)
  • Demisting with forced hot air:ᅠ ᅠ5W
  • Anti-icing heated glass:ᅠ ᅠ5W,ᅠ ᅠTon 30°C±2°C (86°F±4°F),ᅠ ᅠToff 33°C±2°C (91.4°F±4°F)
  • Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus
  • Compatible with the Power Injectorᅠ ᅠ(OHEPOWINJ:ᅠ ᅠVIDEOTEC optional accessory)
Environment
  • For installation indoors and outdoors
  • Operating temperature:ᅠ ᅠFromᅠ ᅠ-10°C (14°F)ᅠ ᅠup toᅠ ᅠ+60°C (140°F)
  • Operating temperatureᅠ ᅠ(with heater):ᅠ ᅠFromᅠ ᅠ-30°C (-22°F )ᅠ ᅠup toᅠ ᅠ+60°C (140°F)
Certifications
  • Electrical safetyᅠ ᅠ(CE):ᅠ ᅠEN60950-1,ᅠ ᅠIEC60950-1
  • Electromagnetic compatibilityᅠ ᅠ(CE):ᅠ ᅠEN50130-4,ᅠ ᅠEN61000-6-3,ᅠ ᅠEN55022 Classe B,ᅠ ᅠFCC Part. 15 Class B
  • Outdoor installationᅠ ᅠ(CE):ᅠ ᅠEN60950-22,ᅠ ᅠIEC 60950-22
  • IP protection degree:ᅠ ᅠEN60529
  • IP66/IP67ᅠ ᅠ(with cable glands)
  • IP66/IP67ᅠ ᅠ(with sealing rings and an internal cable channel)
  • IP55ᅠ ᅠ(with bracket with internal cable channel)
  • IP44ᅠ ᅠ(for models with double filter for ventilation)
  • Salty fog resistance:ᅠ ᅠISO9227,ᅠ ᅠto 1000 hours
  • UL certification:ᅠ ᅠcULus Listed,TYPE 4Xᅠ ᅠ(except for version with double filter for the air exchange, HOV32K2A716)
  • EAC certification
Accessories
  • OHEPOWINJ Hi-PoE Power Injector, 1 channel
  • OWBIP3 Sealing rings kit (1xM12 - 1xM16 - 1xM20) IP66/IP67 for WBOVA2 and WCM4A2 brackets for VERSO Hi-PoE IPM and HOV Hi-PoE IPM housings
  • OHEGBB Weatherproof junction box
  • OSUPPIR Support for 1 GEKO IRH illuminator under the housing ᅠ ( Not compatible with WBOVA2 wall bracket )
Brackets and adaptors
  • WBJA Wall mount bracket
  • WBOVA2 Wall bracket with internal cable channel
  • WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3
  • WCM3A Ceiling bracket with ball joint
  • WCM5A Ceiling bracket with ball joint
  • WCM4A2 Ceiling bracket with internal cable channel
  • WFWCA Column bracket with joint
Related products
  • PTH300 Horizontal/vertical Pan & Tilt
  • IRH10L8A LED Illuminator, 10°, 850nm, 24Vac - 12/24Vdc
  • IRH30L8A LED Illuminator, 30°, 850nm, 24Vac - 12/24Vdc
  • IRH60L8A LED Illuminator, 60°, 850nm, 24Vac - 12/24Vdc
Spare parts

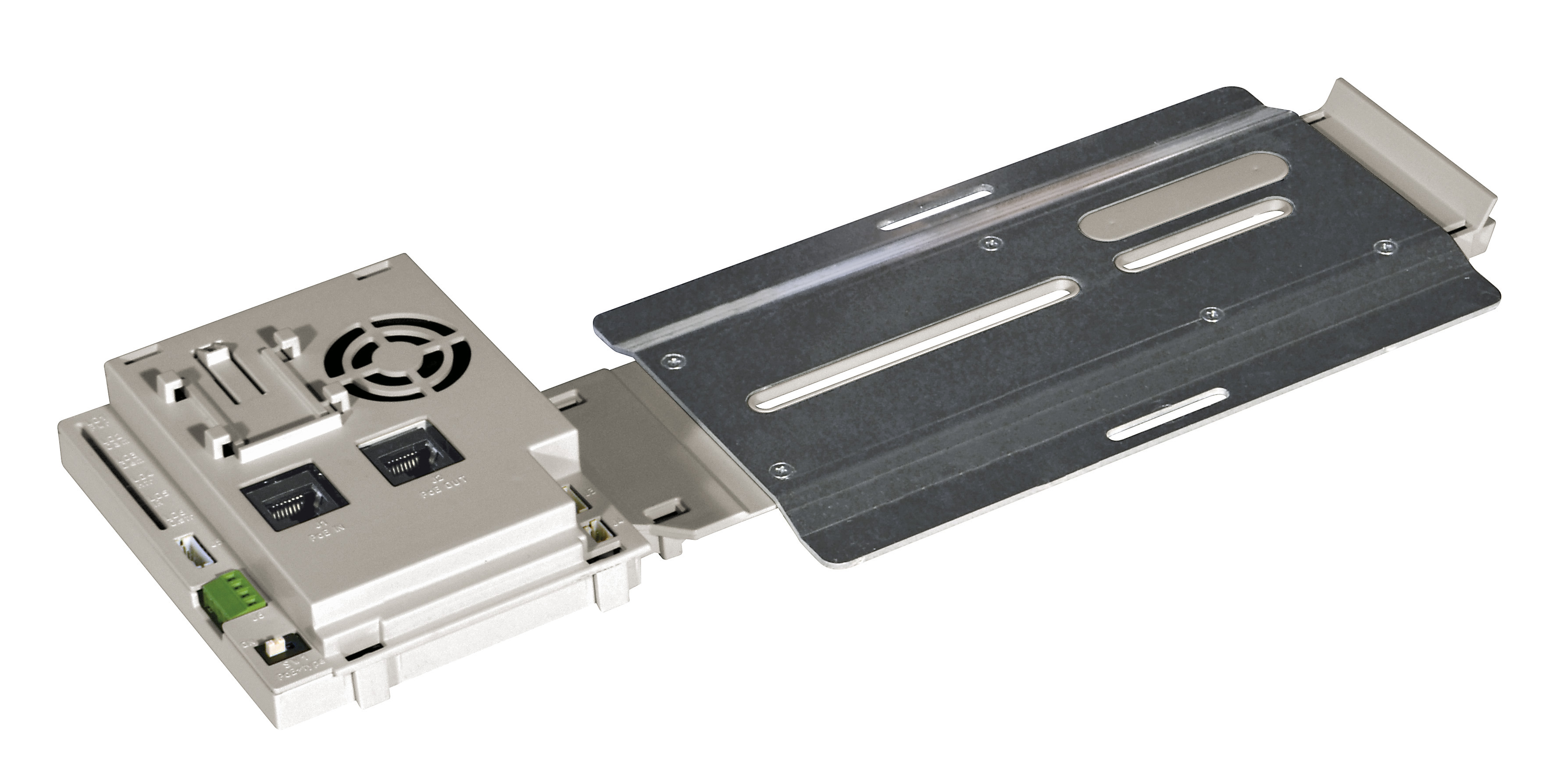

  • OHOVPOEIPM Maintenance/retrofit kit for HOV and HOV HI-POE IPM housings
  • OHOV32SUP Complete upper body

AVAILABLE MODELS AND FEATURES

Operating temperature

Injector

Camera

Demisting system

Illuminator

Heater

Anti-icing heated glass

Fan with double air filter

Model Number

Fromᅠ ᅠ-10°C (14°F)ᅠ ᅠup toᅠ ᅠ+60°C (140°F)

PoE class 3 (13W)

PoE max. class 2 (7W)

HOV32K2A716

Hi-PoE class 4 (25W)

PoE max. class 3 (13W)

HOV32K2A716

Fromᅠ ᅠ-10°C (14°F)ᅠ ᅠup toᅠ ᅠ+60°C (140°F)

PoE class 3 (13W)

PoE max. class 2 (7W)

HOV32K2A700

Hi-PoE class 4 (25W)

PoE max. class 3 (13W)

HOV32K2A700

Fromᅠ ᅠ-30°C (-22°F )ᅠ ᅠup toᅠ ᅠ+60°C (140°F)

Hi-PoE class 4 (25W)

PoE max. class 3 (13W)

HOV32K2A700

Hi-PoE class 4 (25W)

PoE max. class 3 (13W)

HOV32K2A720
