VERSO POLARCamera housing for extremely low temperature
MARKETS
DESCRIPTION
Sturdy, tamper-proof housing designed to simplify installation and service and guarantee total protection against all environmental conditions.
This housing is provided with a high performance heating system which it will continue working at even the most severe temperatures, right down to-55°C (-67°F).
KEY FEATURES
High-performance operation, down to -55°C (-67°F)
Vandal-proof protection (IK10)

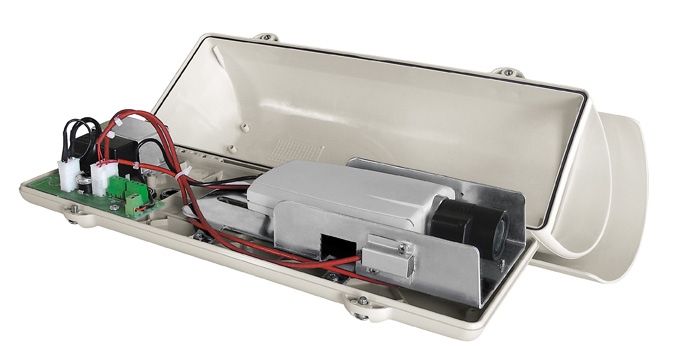

Full access to camera, lens and all internal connections
TECHNICAL DATA
General
- Made of strong technopolymer (polycarbonate)
- Sunshield in ABS
- RAL9002 Colour
- Stainless steel external screws
Mechanical

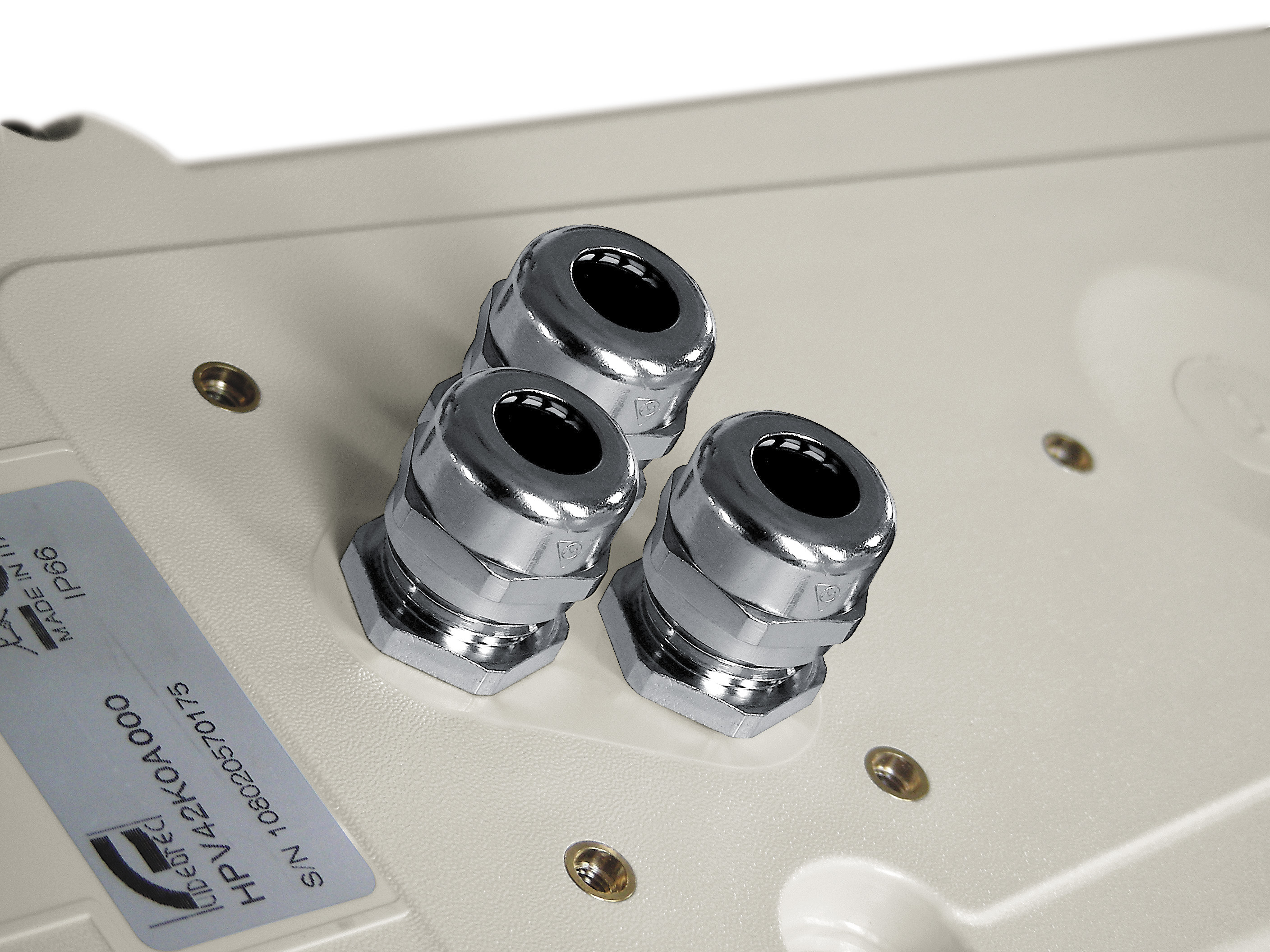

- Cable glands:ﾠ ﾠ3xM16ﾠ ﾠ(nickel-plated brass for external connections)
- Polycarbonate windowﾠ ﾠ(WxH):ﾠ ﾠ105x64mm (4.1x2.5in)
- Internal usable areaﾠ ﾠ(WxH):ﾠ ﾠ70x70mm (2.7x2.7in)
- Internal usable lengthﾠ ﾠ(with or without accessories):ﾠ ﾠ270mm (10.6in)
- Unit weight:ﾠ ﾠ1.5kg (3.3lb)
Electrical
- Supply voltage/Current consumptionﾠ ﾠ(version with heater,ﾠ ﾠTon 15°C±3°C (59°F ±5°F),ﾠ ﾠToff 22°C±3°C (72°F±5°F)):
- Fromﾠ ﾠ12Vdcﾠ ﾠup toﾠ ﾠ24Vdc,ﾠ ﾠ5Aﾠ ﾠmax
- Fromﾠ ﾠ12Vacﾠ ﾠup toﾠ ﾠ24Vac,ﾠ ﾠ5Aﾠ ﾠmax,ﾠ ﾠ50/60Hz
- Fromﾠ ﾠ120Vacﾠ ﾠup toﾠ ﾠ230Vac,ﾠ ﾠ700mAﾠ ﾠmax,ﾠ ﾠ50/60Hz
- Camera power supply:
- IN 100-240Vac, 50/60Hz - OUT 12Vdc, 1.25A
- IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA
Environment
- For installation indoors and outdoors
- Operating temperatureﾠ ﾠ(with heater):ﾠ ﾠFromﾠ ﾠ-55°C (-67°F)ﾠ ﾠup toﾠ ﾠ+60°C (140°F)
- Chemical agents resistance
- High resistance:ﾠ ﾠbasics,ﾠ ﾠalcohols,ﾠ ﾠgas,ﾠ ﾠhydrocarbon
- Good resistance:ﾠ ﾠOrganic acids,ﾠ ﾠinorganic acids,ﾠ ﾠoils
- Low resistance:ﾠ ﾠSolvents
Certifications
- Electrical safetyﾠ ﾠ(CE):ﾠ ﾠEN60950-1,ﾠ ﾠIEC60950-1
- Electromagnetic compatibilityﾠ ﾠ(CE):ﾠ ﾠEN50130-4,ﾠ ﾠEN61000-6-3,ﾠ ﾠEN55022 Classe B
- Outdoor installationﾠ ﾠ(CE):ﾠ ﾠEN60950-22,ﾠ ﾠIEC 60950-22
- IP protection degree:ﾠ ﾠEN60529
- IP66ﾠ ﾠ(with cable glands)
- IP66ﾠ ﾠ(with bracket with internal cable channel,ﾠ ﾠwith sealing rings)
- IP55ﾠ ﾠ(with bracket with internal cable channel)
- IK protection degree:ﾠ ﾠEN62262,ﾠ ﾠIK10
- UL certification:
- cULus Listed,ﾠ ﾠTYPE 4X
- UL94,ﾠ ﾠV1ﾠ ﾠ(fire-self extinguish)
- EAC certification
Accessories
- OHEPS19B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for VERSO, VERSO POLAR, VERSO COMPACT, HEG, HTG housings
- OHEPS20 Camera power supply IN 230Vac - OUT 24Vac, 10VA, for VERSO, VERSO POLAR, VERSO COMPACT, HEG, HTG housings
- OHEGBPS1B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, in weatherproof box, for VERSO, VERSO POLAR, HEG, HTG housings
- OHEGBPS2B Camera power supply IN 230Vac - OUT 24Vac in weatherproof box, 10VA, for VERSO, VERSO POLAR, HEG, HTG housings
- OWBIP2 Sealing rings kit (3xM16) IP66/IP67 for WBOVA2 and WCM4A2 brackets for PUNTO, HOV, HTV, HTC, VERSO, VERSO POLAR, VERSO COMPACT, HEB, HEK housings
- OHEGBB Weatherproof junction box
- OSUPPIR Support for 1 GEKO IRH illuminator under the housing ﾠ ( Not compatible with WBOVA2 wall bracket )
Brackets and adaptors
- WBJA Wall mount bracket
- WBOVA2 Wall bracket with internal cable channel
- WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3
- WCM3A Ceiling bracket with ball joint
- WCM5A Ceiling bracket with ball joint
- WCM4A2 Ceiling bracket with internal cable channel
- WFWCA Column bracket with joint
Spare parts
- OHPVS42A000 Sunshield
- DOTHPV04 Cable glands, screws and spacers for camera and lens
- OHPV42CS04 Complete upper body
AVAILABLE MODELS
Available models | ||||
|---|---|---|---|---|
Model Number | Sunshield | Heaterﾠ ﾠ120Vac/230Vac | Heaterﾠ ﾠ12Vdc/24Vac | Max consumption |
HPV42K1A160 | ● | ● | – | 120W |
HPV42K2A160 | ● | – | ● | 60W |
