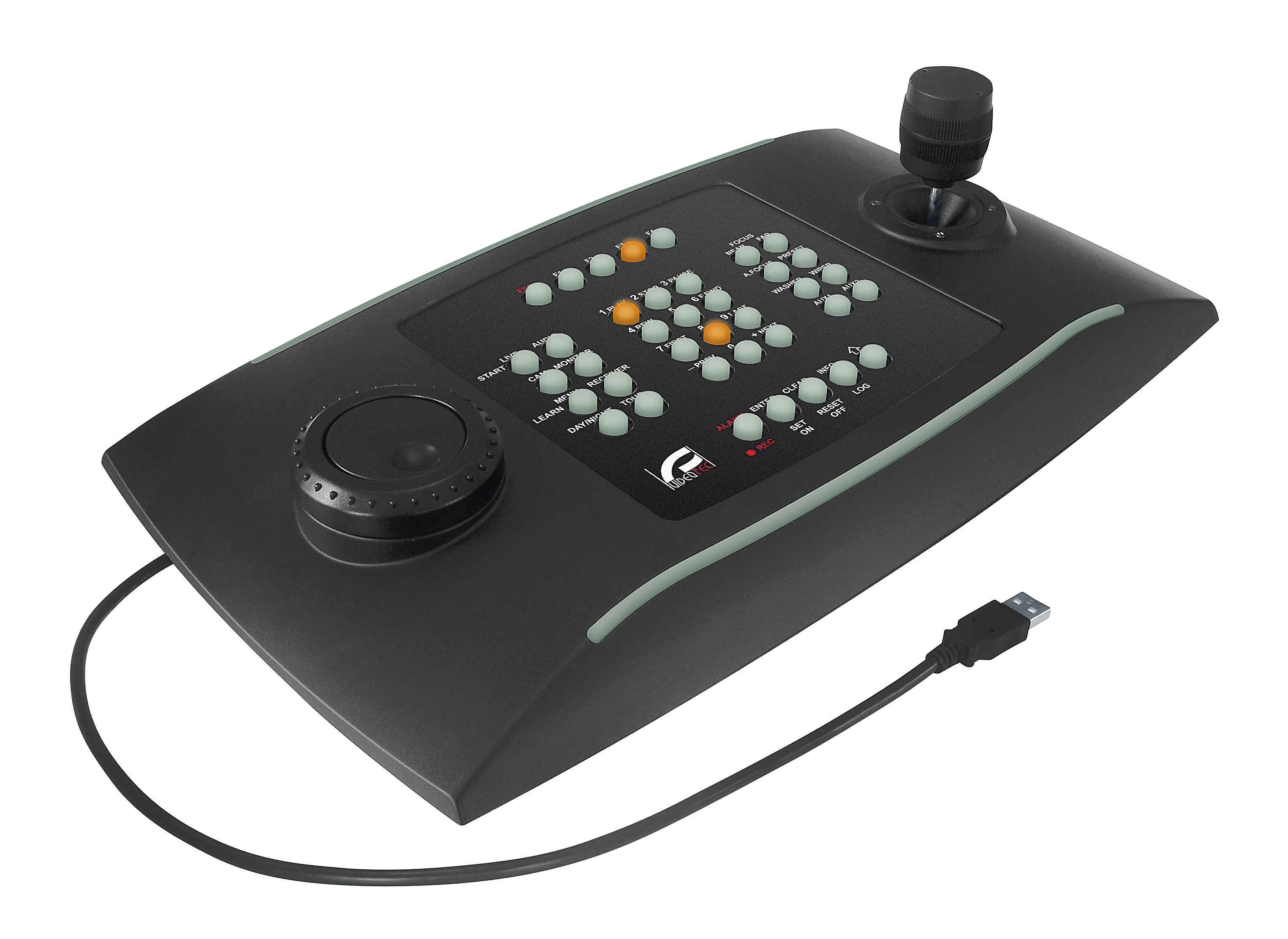

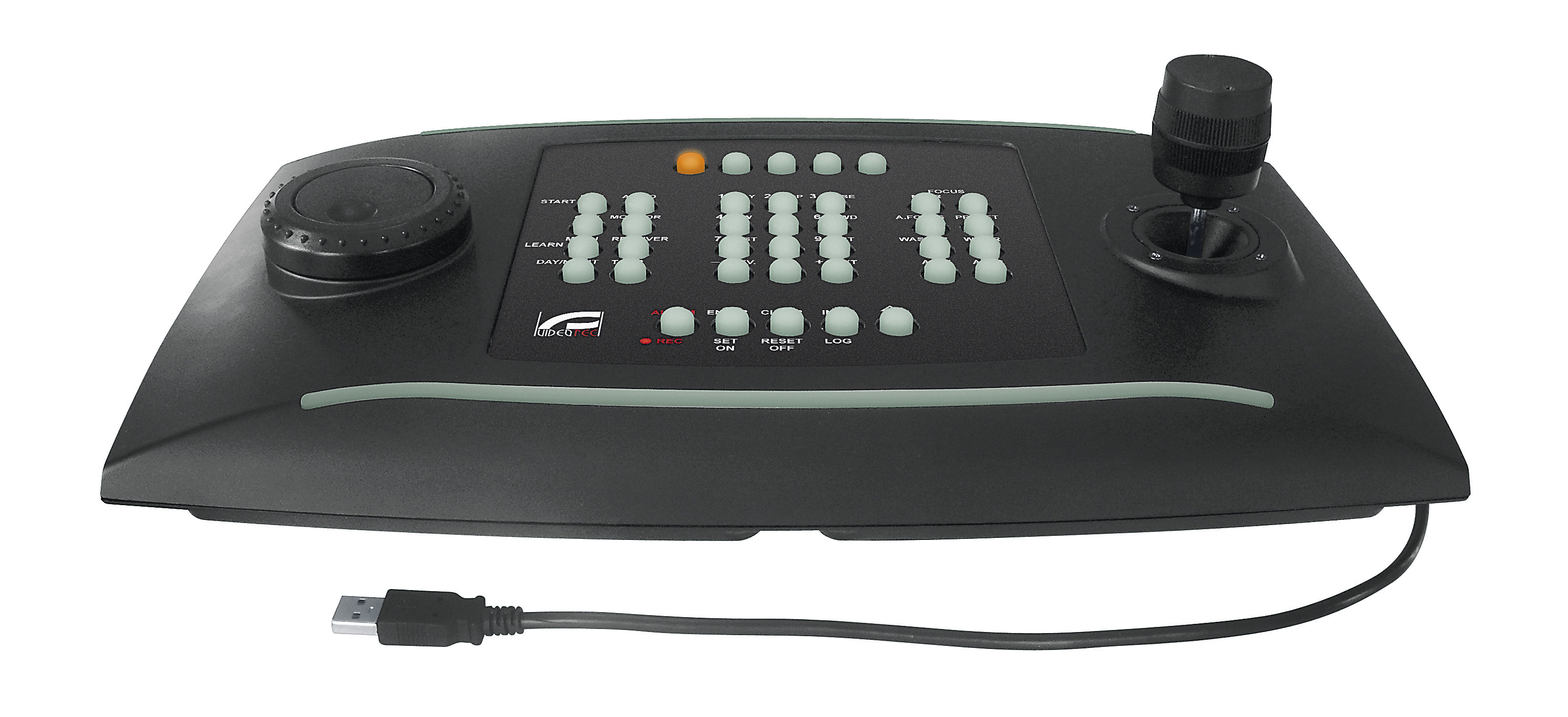

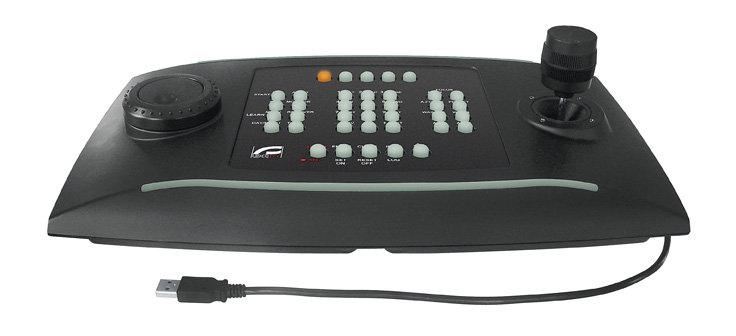

DCZUniversal keyboard for managing CCTV applications from PC

DESCRIPTION

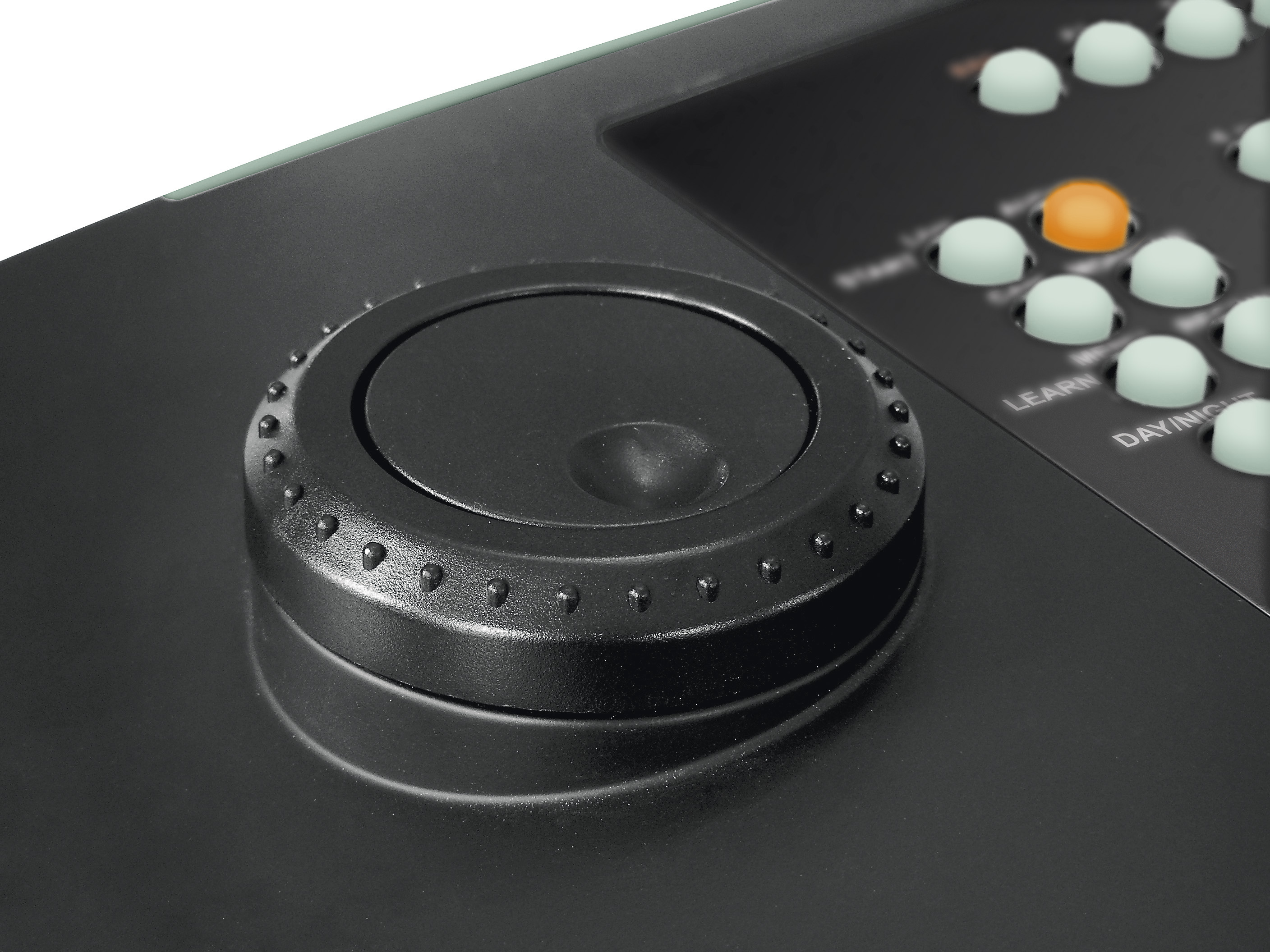

The DCZ keyboard comes with jog shuttle, joystick 38 backlit keys, alarm buzzer, and allows the management of CCTV applications from a PC, via USB connection.

It can be easily integrated with control systems using basic programming techniques without an SDK.

The keys are recognized in any combination configured by the programmer: the application receives an event message whenever a key is pressed or released.

KEY FEATURES

USB keyboard for managing CCTV applications, with joystick and jog shuttle

Functions determined by the controlled application

Customizable features

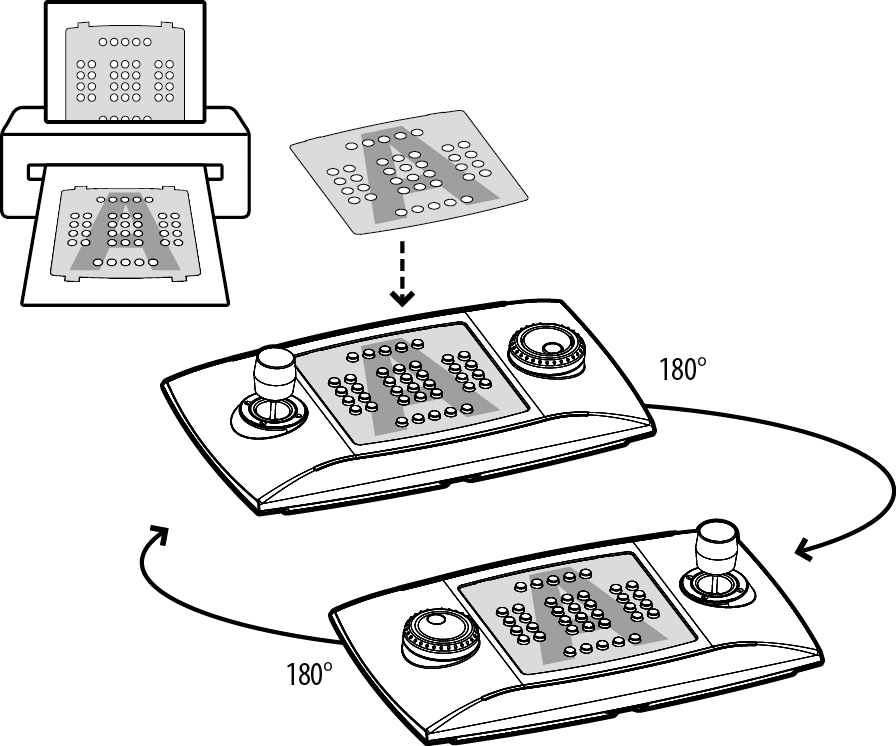

The user can easily personalize and print several pre-cut sheets supplied for this purpose

HID Game Controller emulation for the use with the most important VMS (Avigilon Control Center, Ganz-VsoIP, Exacq Vision, Milestone XProtect®, Genetec Omnicast 4.2, Mirasys-DVMS, Seetec ProBox, Sony-Real Shot Manager, Luxriot DVR)*

TECHNICAL DATA

General
  • Backlit rubber keys
  • Alarm buzzer
Mechanical
  • Dimensions:ᅠ ᅠ379x89x224mm (15x3.5x8.8in)
  • Unit weight:ᅠ ᅠ1.4kg (3lb)
Electrical
  • USB powered
  • Consumption:ᅠ ᅠ350mAᅠ ᅠmax
Communications
  • USB 2.0
Protocols
  • Dedicated Virtual Com Port protocol
  • Joystick HID 4-axis 40 keys emulation
Operating system
  • Windows® compatibleᅠ ᅠ(drivers available on www.videotec.com/DCZ):ᅠ ᅠWindows® 2000,ᅠ ᅠWindows® XP,ᅠ ᅠWindows® Server,ᅠ ᅠWindows® Vista,ᅠ ᅠWindows® 7,ᅠ ᅠWindows® 8
  • Linux® compatible
Environment
  • Indoor
  • Operating temperature:ᅠ ᅠ0°C (32°F)/+45°C (+113°F)
Certifications
  • Electrical safetyᅠ ᅠ(CE):ᅠ ᅠEN60950-1
  • Electromagnetic compatibilityᅠ ᅠ(CE):ᅠ ᅠEN50130-4,ᅠ ᅠEN55022ᅠ ᅠ(Class B),EN61000-6-3,ᅠ ᅠFCC Part 15ᅠ ᅠ(Class B)
  • UL certification:ᅠ ᅠcULus Listed
  • EAC certification
Accessories
  • ODCZKIT38 Pre-cut sheets for printing customized masks and protective transparent plastic layer
