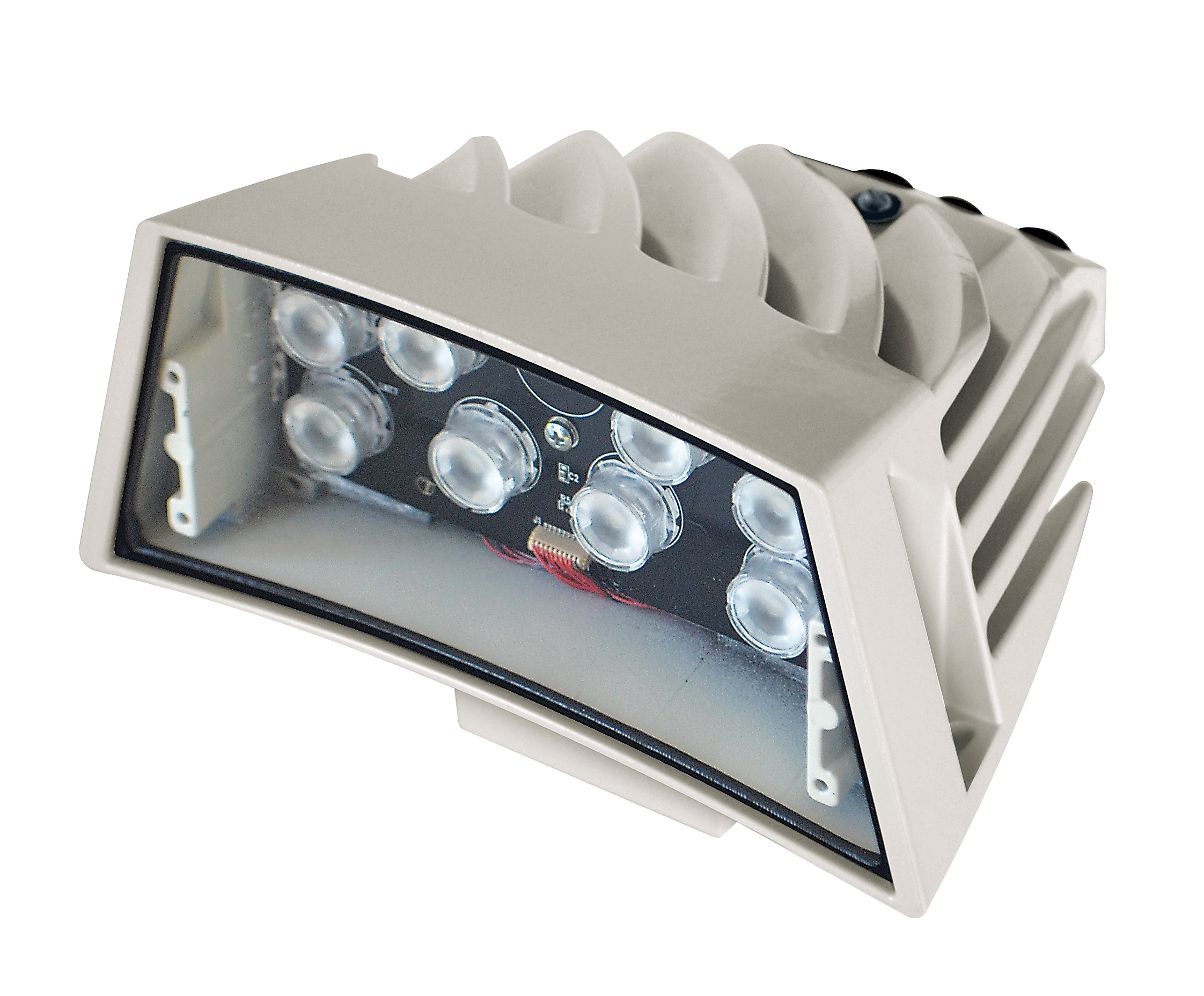

GEKO IRNLED illuminator

MARKETS

DESCRIPTION

The GEKO lights the entire scene evenly, eliminating hotspots and underexposures, for unbeatable night-time images and secure surveillance of the area.

The illuminators are protected against electrostatic discharges.

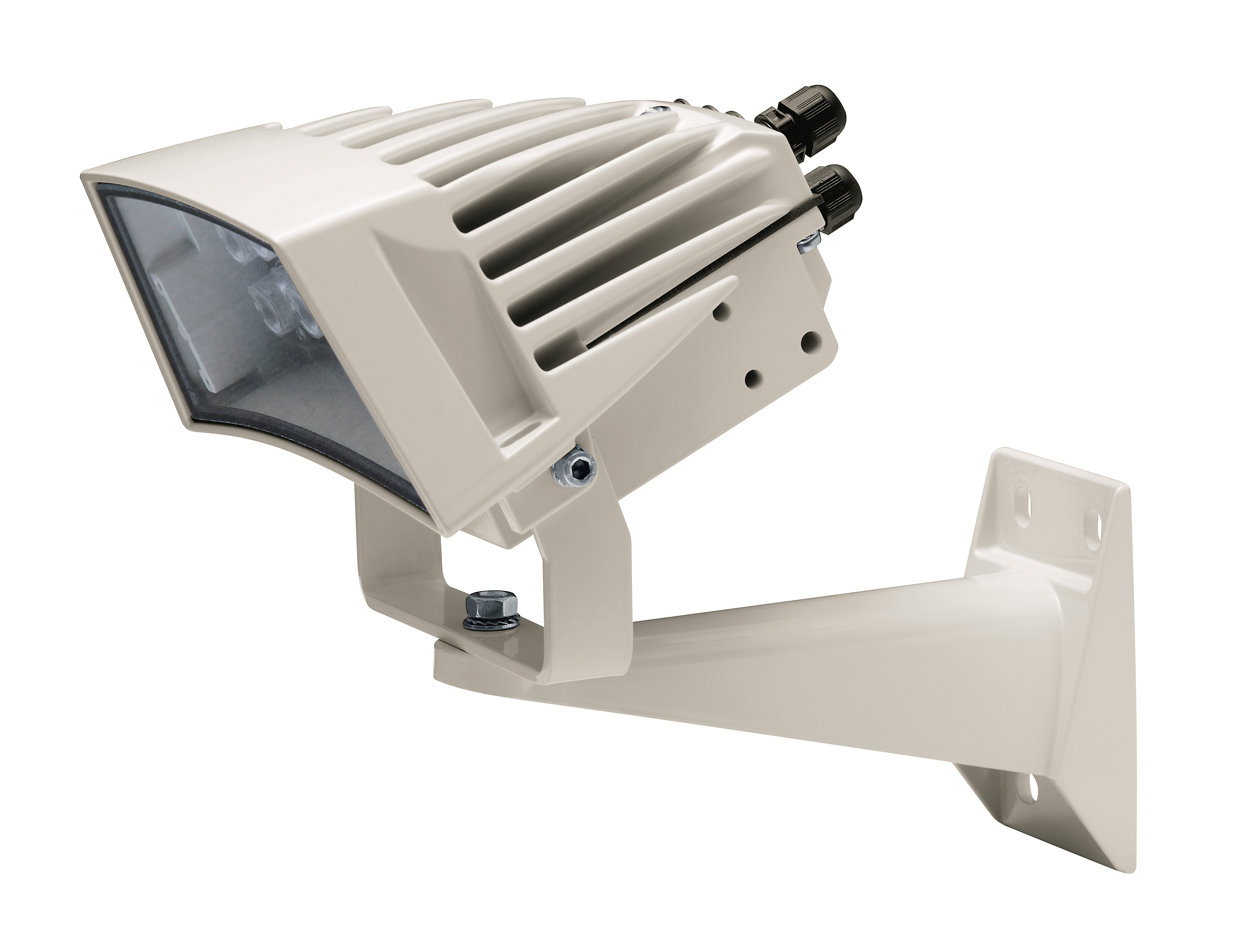

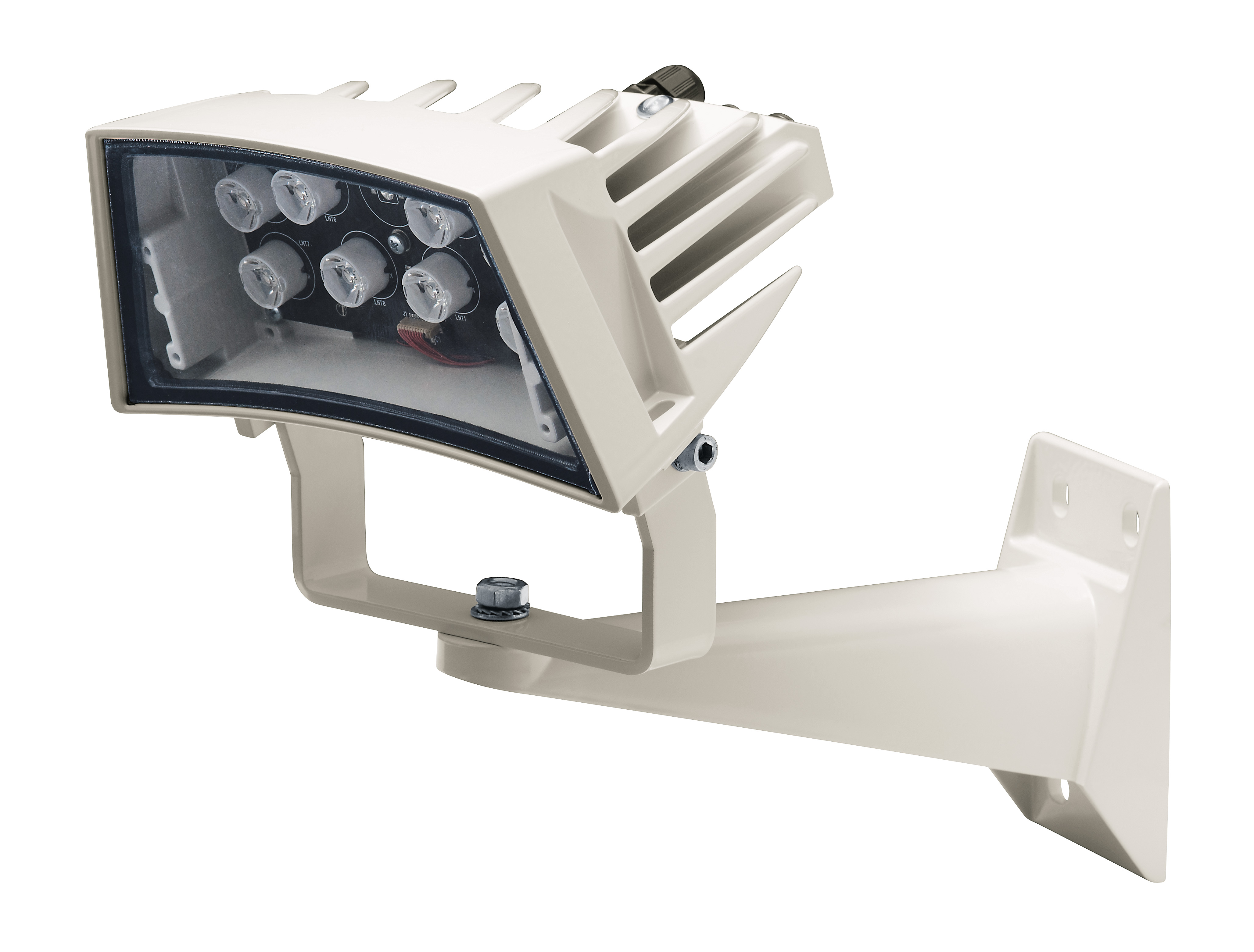

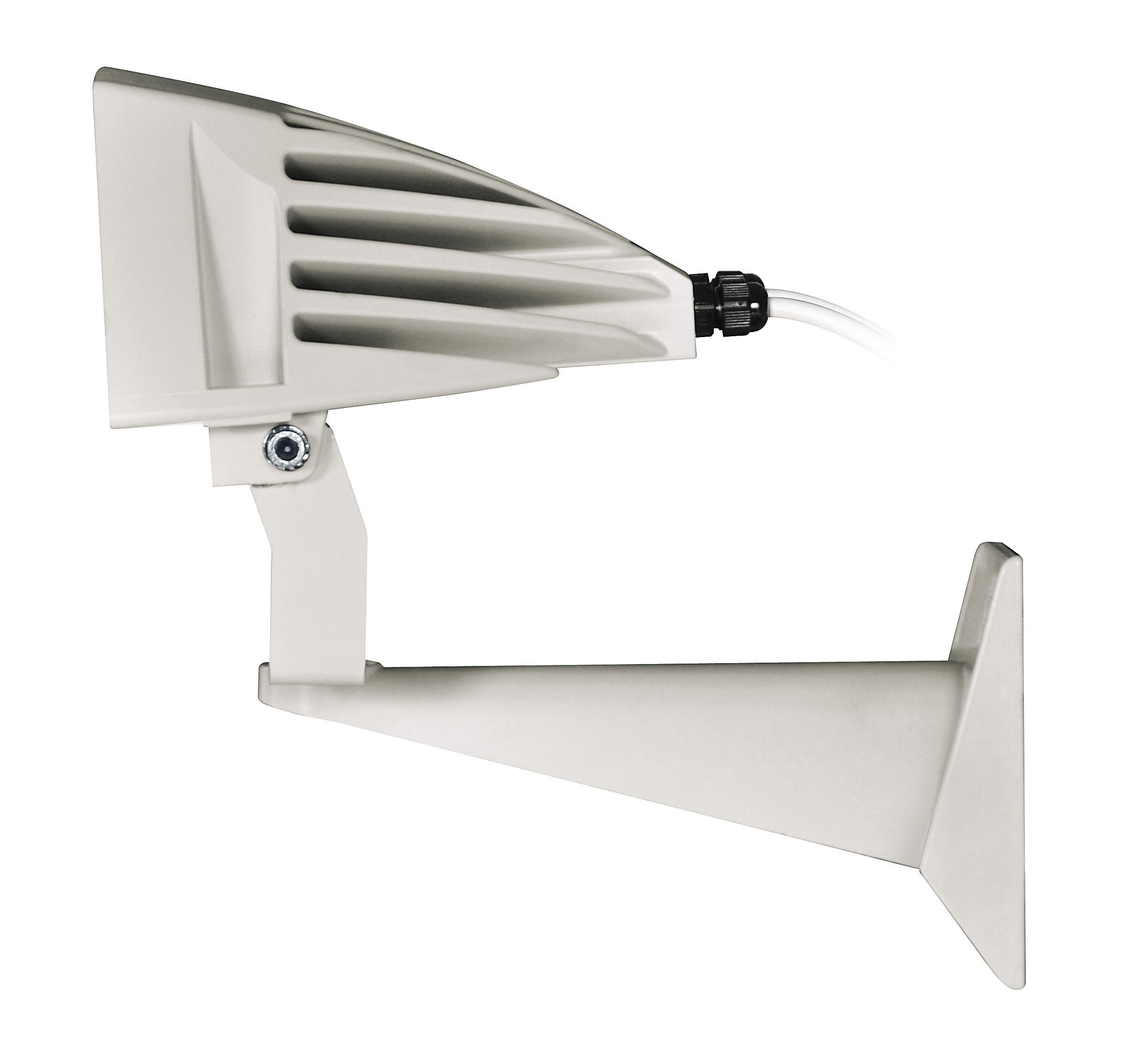

GEKO is supplied with a wall-mount bracket that rotates horizontally and vertically.

KEY FEATURES

Clear night vision up to 240m (787ft) in indoor or outdoor environment

Vandal-proof protection (IK10)

Beam pattern: 10°, 30°, 60°

Wavelengths: 850nm, 940nm, white light

VOLT free relay output for Day/Night camera

Consumption: 30W

Supplied with a wall-mount bracket

TECHNICAL DATA

General
  • Supplied complete with support
  • Adjustable built-in twilight sensor for automatic activation and deactivation
  • LED SMD
Mechanical
  • Die cast aluminum body
  • Dimensions: 187x251x242mm (7.4x9.9x9.5in)
  • Unit weight:
  • 1.7kg (3.7lb) (from 12Vdc up to 24Vdc, 24Vac)
  • 2.2kg (4.8lb) (from 100Vac up to 240Vac)
Electrical
  • Supply voltage/Current consumption:
  • from 12Vdc up to 24Vdc, 2.5A max
  • 24Vac, 2.5A max, 50/60Hz
  • from 100Vac up to 240Vac, 1.5A max, 50/60Hz
  • Power supply voltages permitted tolerance:
  • from 100Vac up to 240Vac: ±10%
  • 24Vac or 24Vdc: ±10%
  • 12Vdc: ±5%
  • Input for activation by means of external dry contact
  • Dry contact output (Follow)
  • Multipolar cable L: 2m (6.56ft)
  • Control: 4x0.34mm² (22AWG)
  • Power supply from 12Vdc up to 24Vdc, 24Vac: 2x0.75mm² (18AWG)
  • Power supply from 100Vac up to 240Vac: 3x0.75mm² (18AWG)
Environment
  • For indoors and outdoors installation
  • Operating temperature: from -40°C (-40°F) up to +60°C (140°F)
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN50130-4, EN55032 (Class A), EN61000-6-4
  • Electromagnetic compatibility (North America): FCC part 15 (Class A), ICES-003 (Class A)
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • Photobiological safety (CE): EN62471, IEC62471
  • IP protection degree (EN60529): IP66, IP67
  • IK protection degree : IK10
  • UL certification (UL60950-1, CAN/CSA C22.2 No. 60950-1-07): cULus Listed
  • Level of protection Type (UL50E): 4X
  • EAC certification
  • Restriction of Hazardous Substances (RoHS), Directive 2011/65/EU
  • Waste Electrical and Electronic Equipment (WEEE), Directive 2012/19/EU

CONFIGURATION OPTIONS

Beam patterns

Power supply

Wavelength

Version

IRN

10
Narrow

A
90-240Vac

8
850nm

A

S
Single illuminator

00

30
Medium

B
12-24Vdc, 24Vac

9
940nm

60
Wide

W
White light
