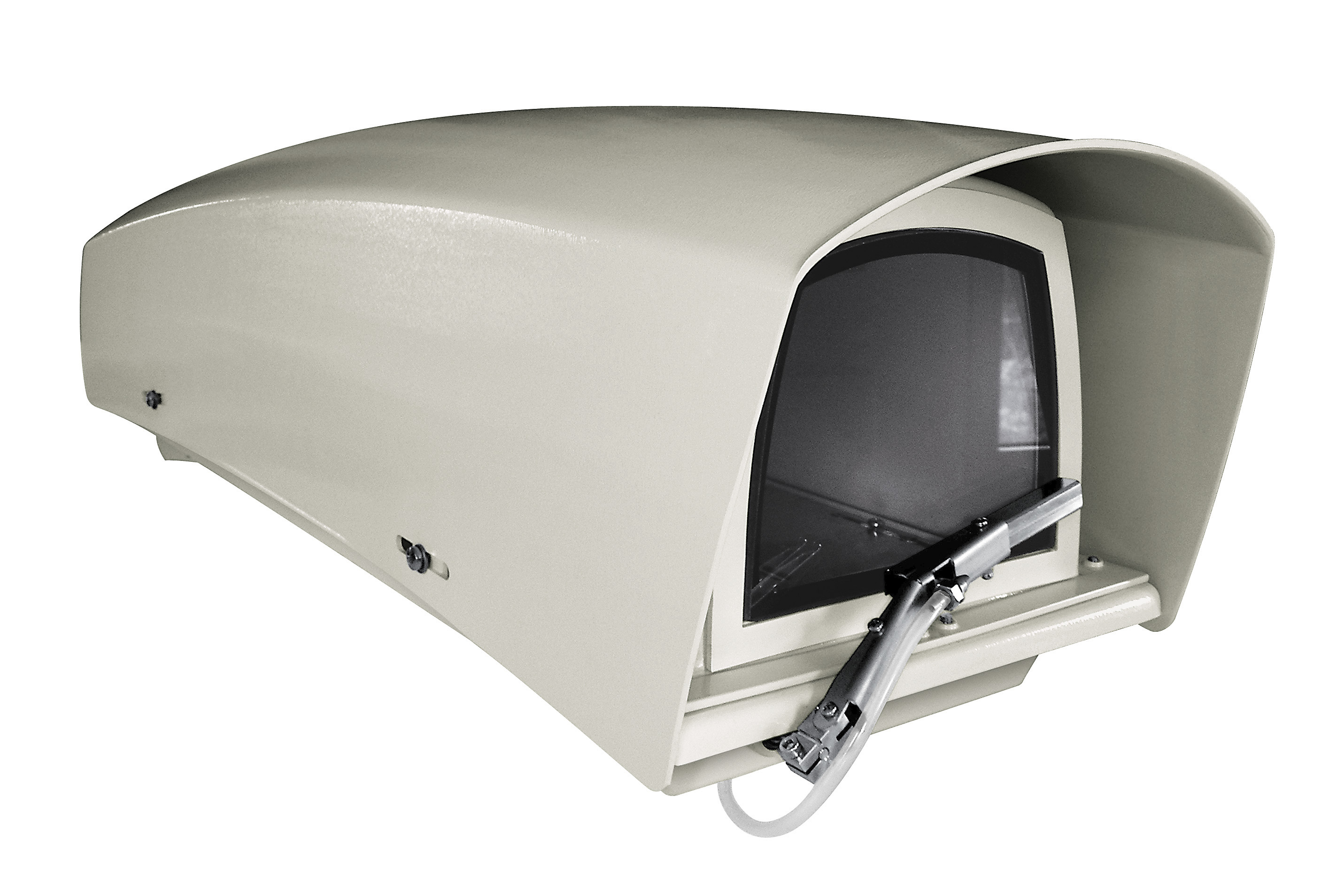

HGVExtra large-sized camera housing

MARKETS

DESCRIPTION

The HGV housing is ideal for outdoor monitoring of great distances for applications in public safety, environmental monitoring and border surveillance or at harbours, along coastlines and at airports.

KEY FEATURES

Extra-large dimensions to fit the largest motorised zoom lenses

Removable top body with safety cord

Supplied with wiper, camera power supply and reinforced triple heater with two continuous-duty fans

TECHNICAL DATA

General
  • Base in aluminium, epoxypolyester powder painting, RAL9002 colour
  • Upper body and sunshield in ABS
  • Stainless steel external screws
Mechanical
  • Internal usable area:ᅠ ᅠSee drawing
  • Cable glands:ᅠ ᅠ4xM16ᅠ ᅠ(on plate)
  • Stainless steel plate without customised holes
  • Housing window
  • Material:ᅠ ᅠExtra clear glass
  • Dimensionsᅠ ᅠ(WxH):ᅠ ᅠSee drawing
  • Unit weight:ᅠ ᅠ9.2kg (20.3lb)
Electrical
  • Supply voltage/Current consumptionᅠ ᅠ(version with triple heater,ᅠ ᅠcontinuous cycle fans,ᅠ ᅠTon 15°C±3°C (59°F ±5°F),ᅠ ᅠToff 22°C±3°C (72°F±5°F)):
  • 24Vac,ᅠ ᅠ3.35Aᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • 230Vac,ᅠ ᅠ0.66Aᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • Supply voltage/Current consumptionᅠ ᅠ(integrated wiper):
  • 24Vac,ᅠ ᅠ0.3Aᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • 230Vac,ᅠ ᅠ32mAᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • Camera power supply
  • INᅠ ᅠfromᅠ ᅠ100Vacᅠ ᅠup toᅠ ᅠ240Vac,ᅠ ᅠ50/60Hzᅠ ᅠ-ᅠ ᅠOUT 12Vdc, 1.25Aᅠ ᅠ(already installed in the 230Vac version)
Environment
  • For installation indoors and outdoors
  • Operating temperature with heating:ᅠ ᅠfromᅠ ᅠ-20°C (-4°F)ᅠ ᅠup toᅠ ᅠ+60°C (140°F)
Certifications
  • Electrical safetyᅠ ᅠ(CE):ᅠ ᅠEN60950-1
  • Electromagnetic compatibilityᅠ ᅠ(CE):ᅠ ᅠEN50130-4,ᅠ ᅠEN61000-6-3
  • IP protection degree:ᅠ ᅠEN60529ᅠ ᅠ(IP66/IP67,ᅠ ᅠwith cable glands)
  • EAC certification
Accessories
  • WAS0V5L5M00 Water tank 5l (1 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WAS0V23L5M00 Water tank 23l (6 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WAS0V23L11M00 Water tank 23l (6 gal), pump with delivery up to 11m (36ft), IN 230Vac-24Vac-120Vac
  • WAS1V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
  • WAS3V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
  • WASPT0V5L5M00 Water tank 5l (1 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L5M00 Water tank 23l (6 gal), pump with delivery up to 5m (16ft), IN 230Vac-24Vac-120Vac
  • WASPT0V23L11M00 Water tank 23l (6 gal), pump with delivery up to 11m (36ft) with water floating, IN 230Vac-24Vac-120Vac
  • WASPT1V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 230Vac
  • WASPT3V23L30M00 Water tank 23l (6 gal), pump with delivery up to 30m (98ft) with water floating, IN 120Vac
  • DTWRX Data receiver for remote control of the wiper and WASPT range pumps in stand-alone housings
Brackets and adaptors
  • WBLA Bracket and ball joint in solid anticorodal aluminium construction, RAL9002
