VERSO Hi-PoE IPMPolycarbonate housing with IPM technology for IP cameras

Hi-PoE IPM Technology

MARKETS

DESCRIPTION

The VERSO Hi-PoE IPM housing optimally exploits POE and Hi-POE technology, using the power supplied by the Ethernet cable as the sole source of power for all the devices connected, thus ensuring the maximum efficiency and flexibility of the network system as well as user-friendly installation and low costs.

KEY FEATURES

Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus

PoE/Hi-PoE power supply for heating, demisting, illuminator, fan and PoE network camera

Vandal-proof protection (IK10)

Special cable gland for a fast Ethernet connection/disconnection without cutting the RJ45 connector

Version with fan with double air filter

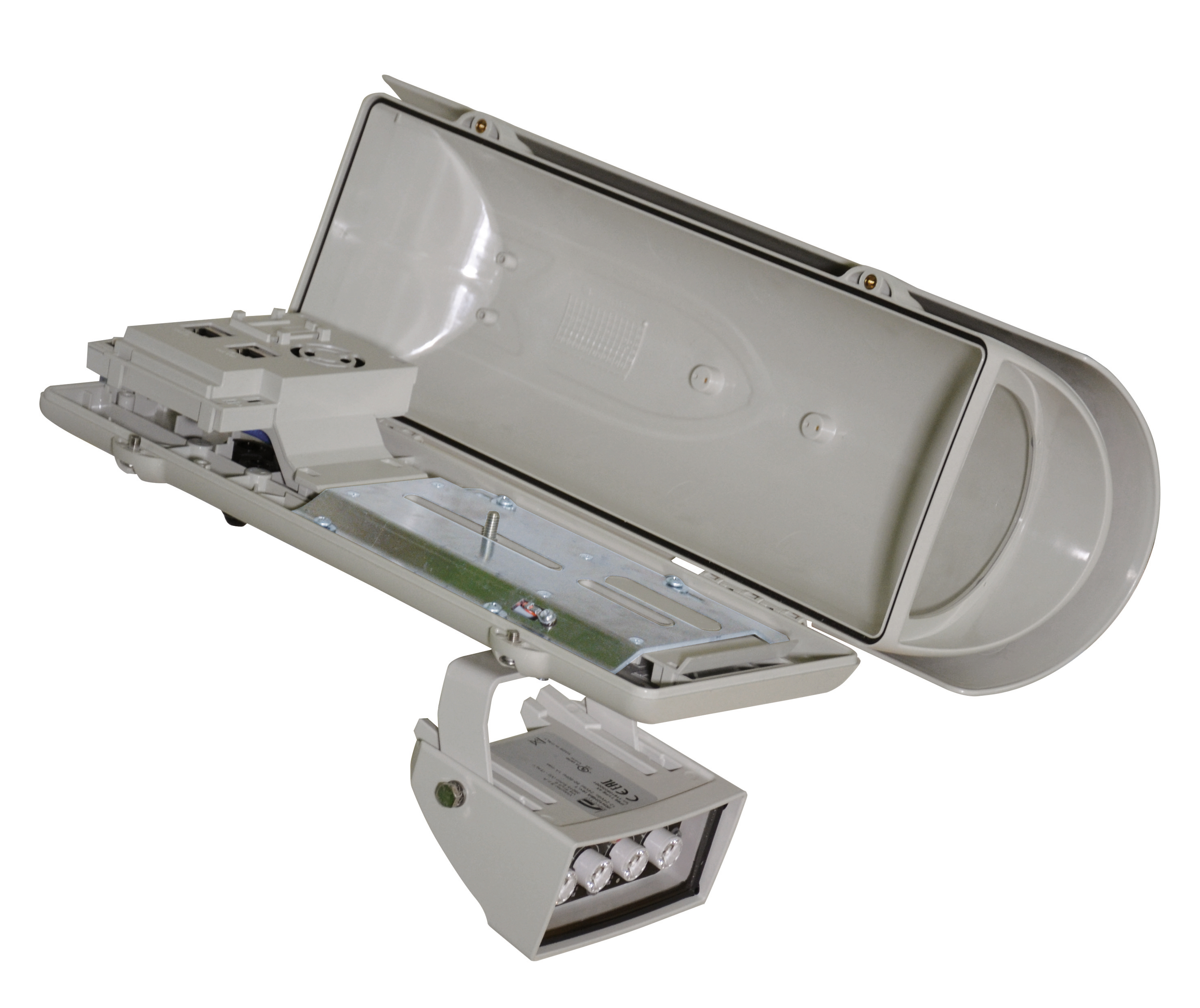

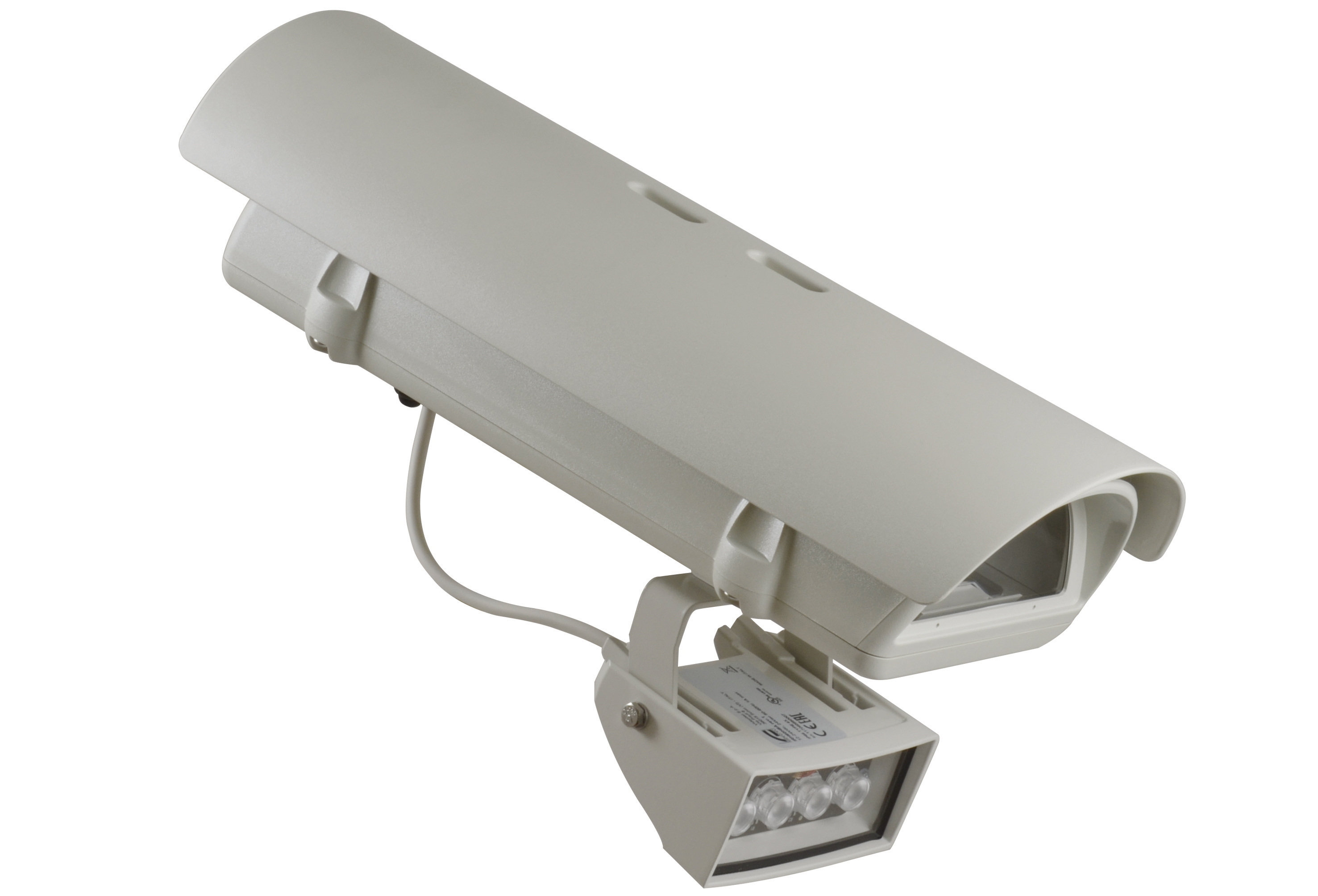

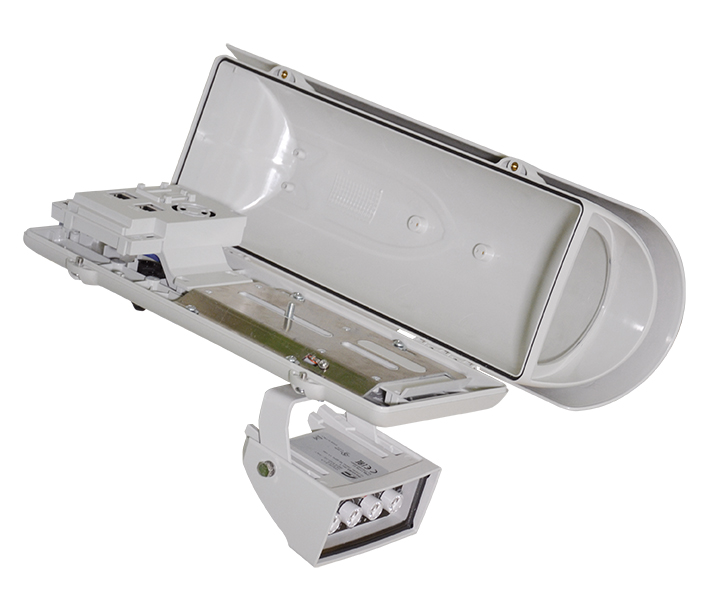

Pre-arranged to supply a GEKO IRH illuminator

TECHNICAL DATA

Mechanical
  • Made of strong technopolymer (polycarbonate), RAL9002 colour
  • Sunshield in ABS
  • Epoxypolyester powder painting,ᅠ ᅠRAL9002 colour
  • Stainless steel external screws
  • Internal usable areaᅠ ᅠ(WxHxL):ᅠ ᅠ70x70x230mm (2.7x2.7x9.0in)
  • Cable glands:ᅠ ᅠ1xM12,ᅠ ᅠ1xM16,ᅠ ᅠ1xM20
  • Polycarbonate windowᅠ ᅠ(WxH):ᅠ ᅠ105x64mm (4.1x2.5in)
  • Unit weight:ᅠ ᅠ1.6kg (3.5lb)
Electrical
  • Power absorbed in input:ᅠ ᅠPoE class 3 (13W) or Hi-PoE class 4 (25W) selectable with dip switch
  • Available power for cameraᅠ ᅠ(PoE IN class 3):ᅠ ᅠPoE Class 2 (7W)
  • Available power for cameraᅠ ᅠ(Hi-PoE IN class 4):ᅠ ᅠPoE class 3 (13W) with Ton -10°C ±2°C “cold start” function
  • Data line:ᅠ ᅠ10/100Base-T
  • Illuminator GEKO IRH, low power:ᅠ ᅠ6W
  • Heater:ᅠ ᅠ8W,ᅠ ᅠelectronically controlled,ᅠ ᅠTon 20°C±2°C (68°F±4°F),ᅠ ᅠToff 23°C±2°C (73.4°F±4°F)
  • Fan with thermostat for camera cooling for versions with double air filter:ᅠ ᅠTon 35°C±2°C (95°F±4°F),ᅠ ᅠToff 32°C±2°C (89.6°F±4°F)
  • Demisting with forced hot air:ᅠ ᅠ5W
  • Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus
  • Compatible with the Power Injectorᅠ ᅠ(OHEPOWINJ:ᅠ ᅠVIDEOTEC optional accessory)
Environment
  • For installation indoors and outdoors
  • Operating temperature:ᅠ ᅠFromᅠ ᅠ-10°C (14°F)ᅠ ᅠup toᅠ ᅠ+60°C (140°F)
  • Operating temperatureᅠ ᅠ(with heater):ᅠ ᅠFromᅠ ᅠ-30°C (-22°F )ᅠ ᅠup toᅠ ᅠ+60°C (140°F)
  • Chemical agents resistance
  • High resistance:ᅠ ᅠbasics,ᅠ ᅠalcohols,ᅠ ᅠgas,ᅠ ᅠhydrocarbon
  • Good resistance:ᅠ ᅠOrganic acids,ᅠ ᅠinorganic acids,ᅠ ᅠoils
  • Low resistance:ᅠ ᅠSolvents
Certifications
  • Electrical safetyᅠ ᅠ(CE):ᅠ ᅠEN60950-1,ᅠ ᅠIEC60950-1
  • Electromagnetic compatibilityᅠ ᅠ(CE):ᅠ ᅠEN50130-4,ᅠ ᅠEN61000-6-3,ᅠ ᅠEN55022 Classe B,ᅠ ᅠFCC Part. 15 Class B
  • Outdoor installationᅠ ᅠ(CE):ᅠ ᅠEN60950-22,ᅠ ᅠIEC 60950-22
  • IP protection degree:ᅠ ᅠEN60529
  • IP66/IP67ᅠ ᅠ(with cable glands)
  • IP66/IP67ᅠ ᅠ(with sealing rings and an internal cable channel)
  • IP55ᅠ ᅠ(with bracket with internal cable channel)
  • IP44ᅠ ᅠ(for models with double filter for ventilation)
  • IK protection degree:ᅠ ᅠEN62262,ᅠ ᅠIK10
  • UL certification:
  • cULus Listed,ᅠ ᅠTYPE 4Xᅠ ᅠ(except for versions with double filter for the air exchange)
  • UL94,ᅠ ᅠV1ᅠ ᅠ(fire-self extinguish)
  • EAC certification
Certifications
  • Electrical safetyᅠ ᅠ(CE):ᅠ ᅠEN60950-1,ᅠ ᅠIEC60950-1
  • Electromagnetic compatibilityᅠ ᅠ(CE):ᅠ ᅠEN50130-4,ᅠ ᅠEN61000-6-3,ᅠ ᅠEN55022 Classe B,ᅠ ᅠFCC Part. 15 Class B
  • Outdoor installationᅠ ᅠ(CE):ᅠ ᅠEN60950-22,ᅠ ᅠIEC 60950-22
  • IP protection degree:ᅠ ᅠEN60529
  • IP66/IP67ᅠ ᅠ(with cable glands)
  • IP66/IP67ᅠ ᅠ(with sealing rings and an internal cable channel)
  • IP55ᅠ ᅠ(with bracket with internal cable channel)
  • IP44ᅠ ᅠ(for models with double filter for ventilation)
  • IK protection degree:ᅠ ᅠEN62262,ᅠ ᅠIK10
  • UL certification:
  • cULus Listed,ᅠ ᅠTYPE 4Xᅠ ᅠ(except for versions with double filter for the air exchange)
  • UL94,ᅠ ᅠV1ᅠ ᅠ(fire-self extinguish)
  • EAC certification
Accessories
  • OHEPOWINJ Hi-PoE Power Injector, 1 channel
  • OWBIP3 Sealing rings kit (1xM12 - 1xM16 - 1xM20) IP66/IP67 for WBOVA2 and WCM4A2 brackets for VERSO Hi-PoE IPM and HOV Hi-PoE IPM housings
  • OHEGBB Weatherproof junction box
  • OSUPPIR Support for 1 GEKO IRH illuminator under the housing ᅠ ( Not compatible with WBOVA2 wall bracket )
Brackets and adaptors
  • WBJA Wall mount bracket
  • WBOVA2 Wall bracket with internal cable channel
  • WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3
  • WCM3A Ceiling bracket with ball joint
  • WCM5A Ceiling bracket with ball joint
  • WCM4A2 Ceiling bracket with internal cable channel
  • WFWCA Column bracket with joint
Related products
  • PTH300 Horizontal/vertical Pan & Tilt
  • IRH10L8A LED Illuminator, 10°, 850nm, 24Vac - 12/24Vdc
  • IRH30L8A LED Illuminator, 30°, 850nm, 24Vac - 12/24Vdc
  • IRH60L8A LED Illuminator, 60°, 850nm, 24Vac - 12/24Vdc
Spare parts
  • OHPVPOEIPM Maintenance/retrofit kit for VERSO and VERSO Hi-PoE IPM housings
  • OHOV32SUP Complete upper body

AVAILABLE MODELS AND FEATURES

Operating temperature

Injector

Camera

Demisting system

Illuminator

Heater

Fan with double air filter

Model Number

Fromᅠ ᅠ-10°C (14°F)ᅠ ᅠup toᅠ ᅠ+60°C (140°F)

PoE class 3 (13W)

PoE max. class 2 (7W)

HPV42K2A716

Hi-PoE class 4 (25W)

PoE max. class 3 (13W)

HPV42K2A716

Fromᅠ ᅠ-10°C (14°F)ᅠ ᅠup toᅠ ᅠ+60°C (140°F)

PoE class 3 (13W)

PoE max. class 2 (7W)

HPV42K2A700

Hi-PoE class 4 (25W)

PoE max. class 3 (13W)

HPV42K2A700

Fromᅠ ᅠ-30°C (-22°F )ᅠ ᅠup toᅠ ᅠ+60°C (140°F)

Hi-PoE class 4 (25W)

PoE max. class 3 (13W)

HPV42K2A700
