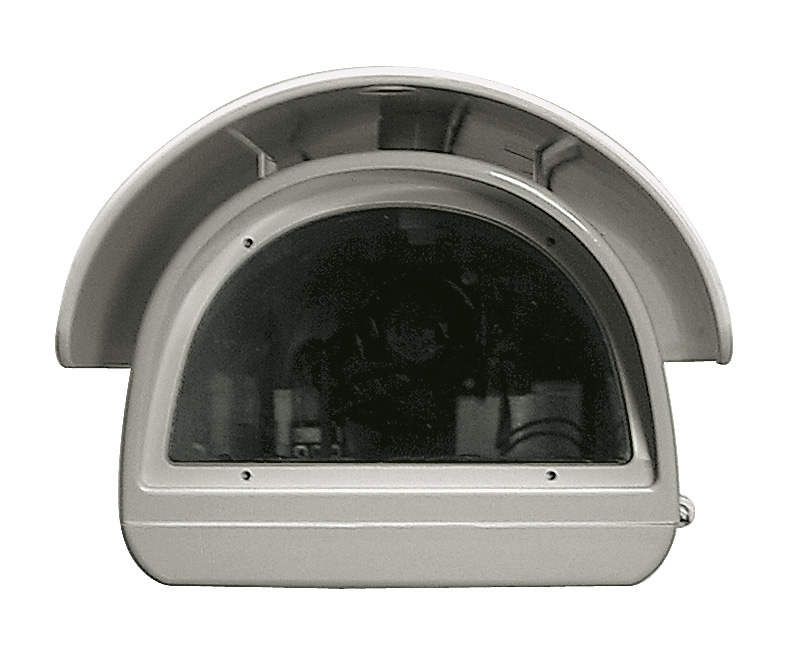

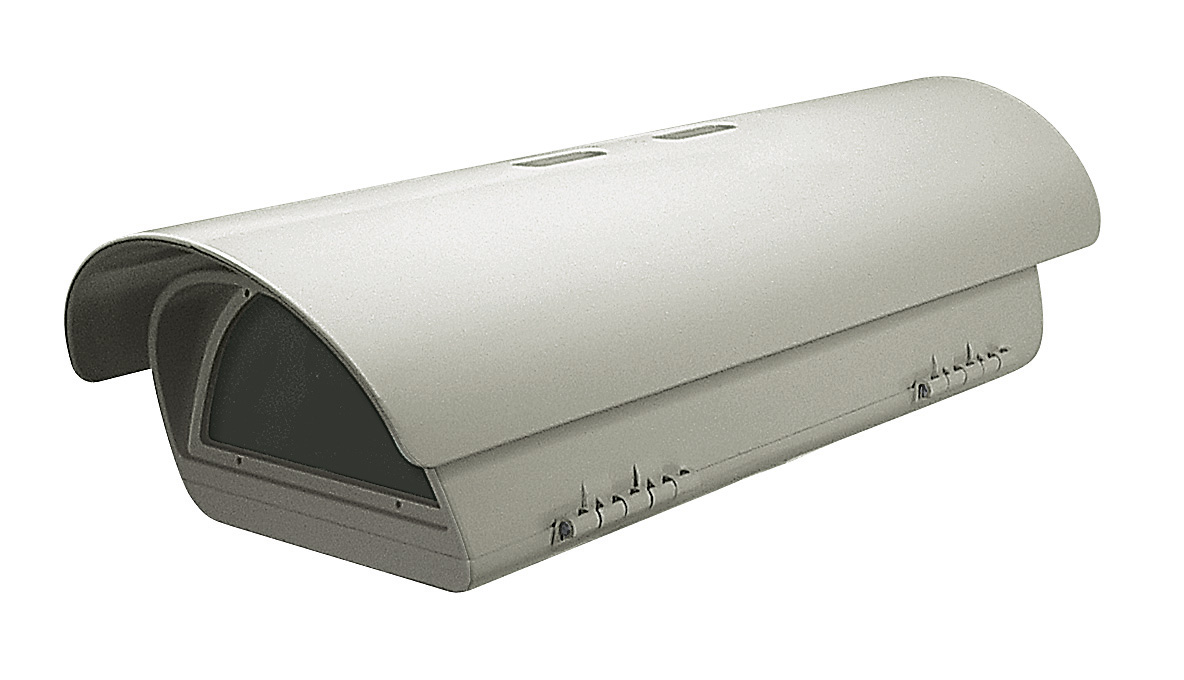

VERSO COMPACTCompact side-opening polycarbonate camera housing

MARKETS

DESCRIPTION

Sturdy, tamper-proof housing designed to simplify installation and service and guarantee total protection against all environmental conditions.

Entirely constructed from technopolymer, it guarantees high impact resistance andhigh weather protection from external agents and UV rays.

KEY FEATURES

Vandal-proof protection (IK10)

Pre-arranged to supply a GEKO IRH illuminator

Pre-arranged for internal cable management bracket

TECHNICAL DATA

General
  • Made of strong technopolymer (polycarbonate)
  • Sunshield in ABS
  • RAL9002 Colour
  • Stainless steel external screws
Mechanical
  • Cable glands:ᅠ ᅠ2xM16
  • Polycarbonate windowᅠ ᅠ(WxH):ᅠ ᅠ98x55mm (3.9x2.2in)
  • Internal usable areaᅠ ᅠ(WxH):ᅠ ᅠ63x63mm (2.5x2.5in)
  • Internal usable lengthᅠ ᅠ(with or without accessories):ᅠ ᅠ210mm (8.3in)
  • Unit weight:ᅠ ᅠ1.1kg (2.2lb)
Electrical
  • Supply voltage/Current consumptionᅠ ᅠ(empty version):
  • Fromᅠ ᅠ12Vdcᅠ ᅠup toᅠ ᅠ24Vdc,ᅠ ᅠ1Aᅠ ᅠmax
  • Fromᅠ ᅠ12Vacᅠ ᅠup toᅠ ᅠ24Vac,ᅠ ᅠ1Aᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • Fromᅠ ᅠ120Vacᅠ ᅠup toᅠ ᅠ230Vac,ᅠ ᅠ400mAᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • Supply voltage/Current consumptionᅠ ᅠ(version with heater,ᅠ ᅠTon 15°C±3°C (59°F ±5°F),ᅠ ᅠToff 22°C±3°C (72°F±5°F)):
  • Fromᅠ ᅠ12Vdcᅠ ᅠup toᅠ ᅠ24Vdc,ᅠ ᅠ5Aᅠ ᅠmax
  • Fromᅠ ᅠ12Vacᅠ ᅠup toᅠ ᅠ24Vac,ᅠ ᅠ5Aᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • Fromᅠ ᅠ120Vacᅠ ᅠup toᅠ ᅠ230Vac,ᅠ ᅠ700mAᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • Supply voltage/Current consumptionᅠ ᅠ(version with heater fan assistant, continuous duty):
  • 12Vdc,ᅠ ᅠ400mAᅠ ᅠmax
  • 24Vac,ᅠ ᅠ200mAᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • Fromᅠ ᅠ100Vacᅠ ᅠup toᅠ ᅠ240Vac,ᅠ ᅠ40mAᅠ ᅠmax,ᅠ ᅠ50/60Hzᅠ ᅠ(with wide-range power supply)
  • Camera power supply:
  • IN 100-240Vac, 50/60Hz - OUT 12Vdc, 1.25A
  • IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA
Environment
  • For installation indoors and outdoors
  • Operating temperatureᅠ ᅠ(with heater):ᅠ ᅠfromᅠ ᅠ-20°C (-4°F)ᅠ ᅠup toᅠ ᅠ+60°C (140°F)
  • Chemical agents resistance
  • High resistance:ᅠ ᅠbasics,ᅠ ᅠalcohols,ᅠ ᅠgas,ᅠ ᅠhydrocarbon
  • Good resistance:ᅠ ᅠOrganic acids,ᅠ ᅠinorganic acids,ᅠ ᅠoils
  • Low resistance:ᅠ ᅠSolvents
Certifications
  • Electrical safetyᅠ ᅠ(CE):ᅠ ᅠEN60950-1,ᅠ ᅠIEC60950-1
  • Electromagnetic compatibilityᅠ ᅠ(CE):ᅠ ᅠEN50130-4,ᅠ ᅠEN61000-6-3,ᅠ ᅠEN55022 Classe B
  • Outdoor installationᅠ ᅠ(CE):ᅠ ᅠEN60950-22,ᅠ ᅠIEC 60950-22
  • IP protection degree:ᅠ ᅠEN60529
  • IP66ᅠ ᅠ(with cable glands)
  • IP66ᅠ ᅠ(with bracket with internal cable channel,ᅠ ᅠwith sealing rings)
  • IK protection degree:ᅠ ᅠEN62262,ᅠ ᅠIK10
  • UL certification:
  • cULus Listed,ᅠ ᅠTYPE 4X
  • UL94,ᅠ ᅠV1ᅠ ᅠ(fire-self extinguish)
  • EAC certification
Accessories
  • OHEH26 Heater 120Vac/230Vac for HOV, HTV, VERSO, VERSO COMPACT housings
  • OHEH27 Heating 12Vdc/24Vac for HOV, HTV, HTC, VERSO and VERSO COMPACT housings

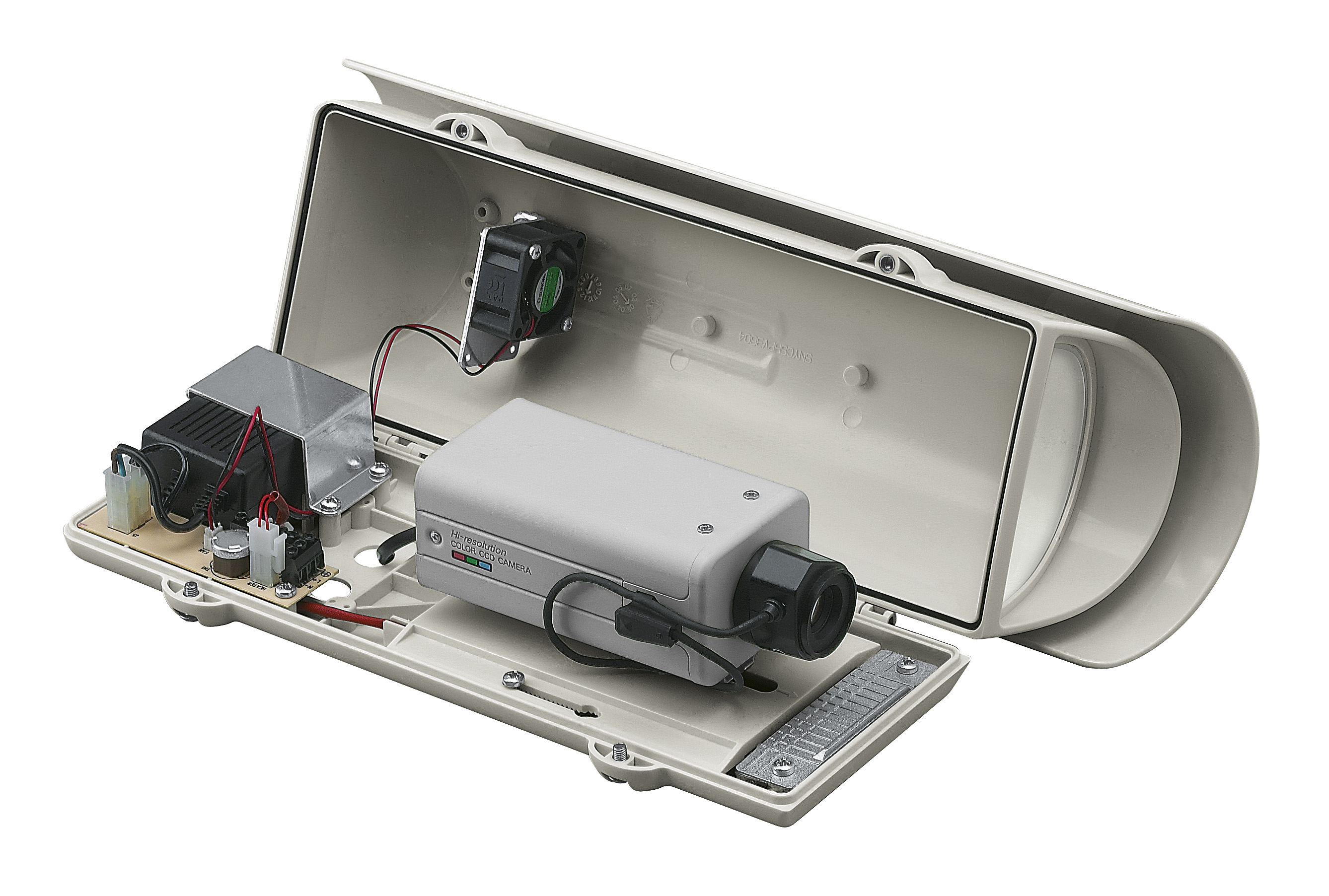

  • OHPVV1 Heater fan assistant, continuous duty, IN 12Vdc, for VERSO and VERSO COMPACT housings
  • OHPVV2 Heater fan assistant, continuous duty, IN 24Vac, for VERSO and VERSO COMPACT housings
  • OHPVV3 Heater fan assistant, continuous duty, IN 100-240Vac, for VERSO and VERSO COMPACT housings
  • OHEPS19B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for VERSO, VERSO POLAR, VERSO COMPACT, HEG, HTG housings
  • OHEPS20 Camera power supply IN 230Vac - OUT 24Vac, 10VA, for VERSO, VERSO POLAR, VERSO COMPACT, HEG, HTG housings
  • OWBIP2 Sealing rings kit (3xM16) IP66/IP67 for WBOVA2 and WCM4A2 brackets for PUNTO, HOV, HTV, HTC, VERSO, VERSO POLAR, VERSO COMPACT, HEB, HEK housings
  • OHEGBB Weatherproof junction box
  • OSUPPIR Support for 1 GEKO IRH illuminator under the housing ᅠ ( Not compatible with WBOVA2 wall bracket )
Brackets and adaptors

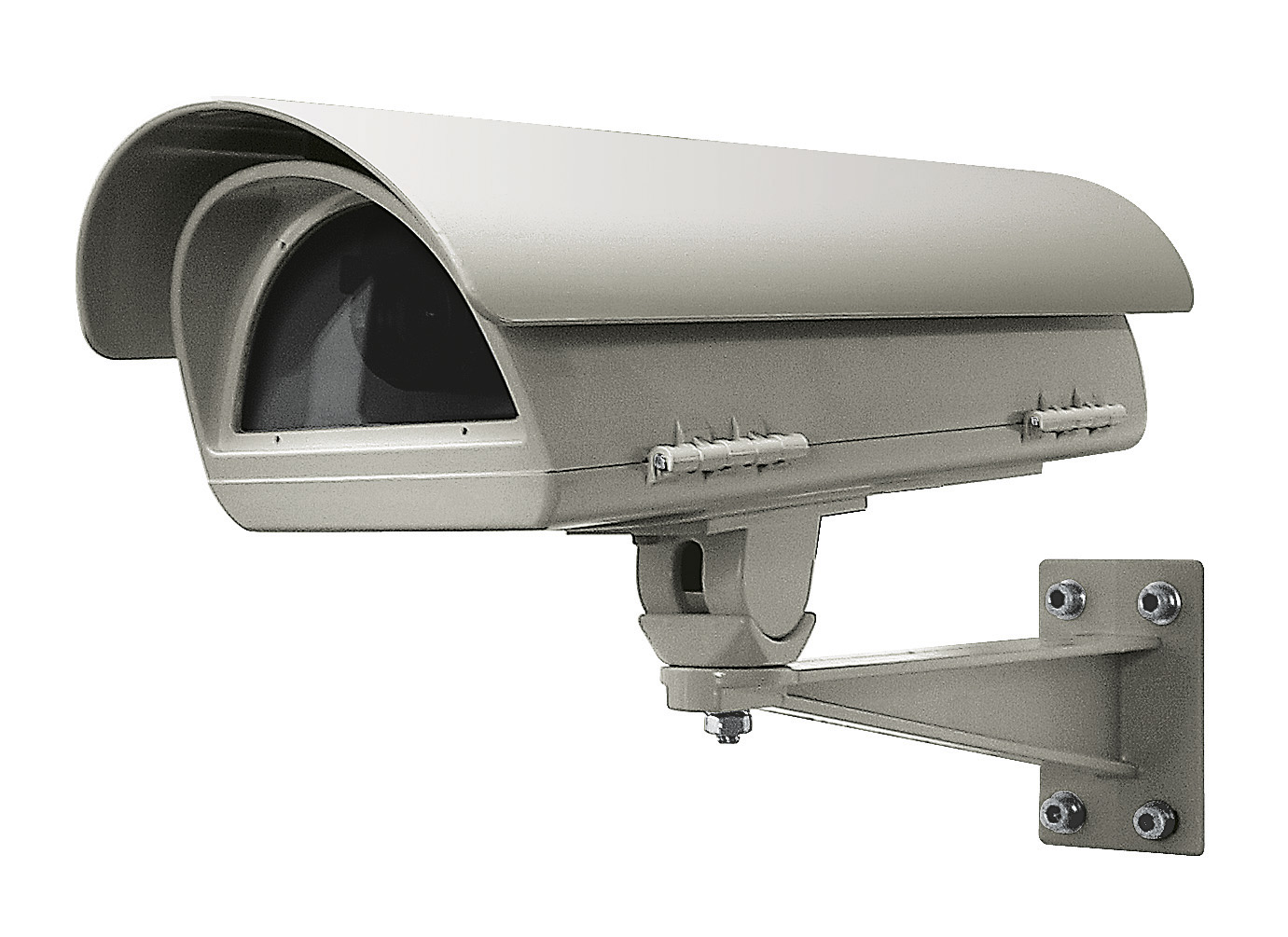

  • WBJA Wall mount bracket
  • WBMA Wall bracket with ball joint

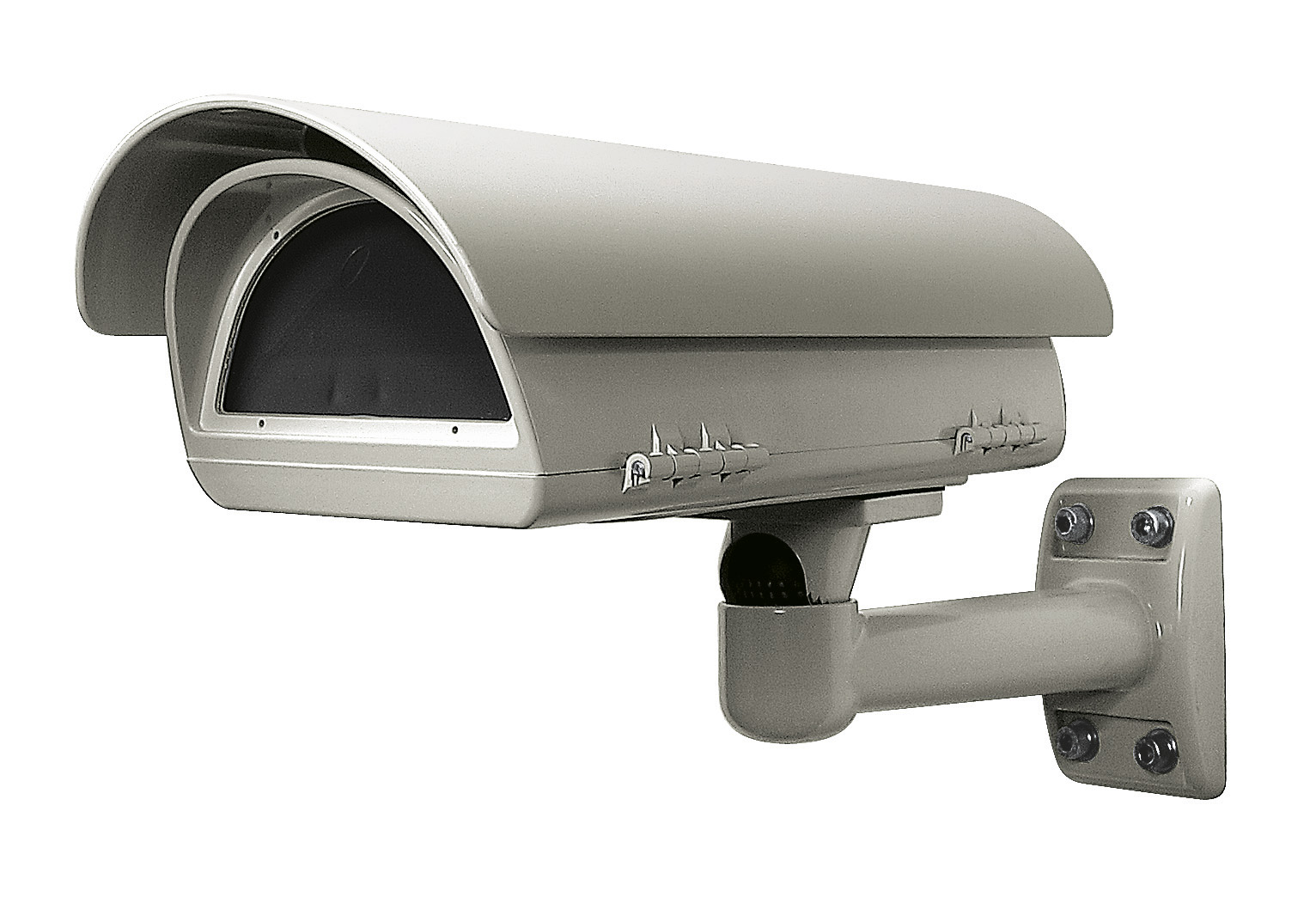

  • WBOVA2 Wall bracket with internal cable channel
  • WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3
  • WCM3A Ceiling bracket with ball joint
  • WCM5A Ceiling bracket with ball joint
  • WCM4A2 Ceiling bracket with internal cable channel
  • WFWCA Column bracket with joint
Related products
  • PTH300 Horizontal/vertical Pan & Tilt
Spare parts
  • OHPVS36A000 Sunshield
  • DOTHPV02 Cable glands, screws and spacers for camera and lens
  • OHPV36CS04 Complete upper body

AVAILABLE MODELS

Model Number

Sunshield

Heaterᅠ ᅠ120Vac/230Vac

Heaterᅠ ᅠ12Vdc/24Vac

Heater 24Vac fan assisted

Max consumption

HPV36D0A000B

HPV36K0A000B

HPV36K1A000B

40W

HPV36K2A000B

20W

HPV36K2A015B

24W
