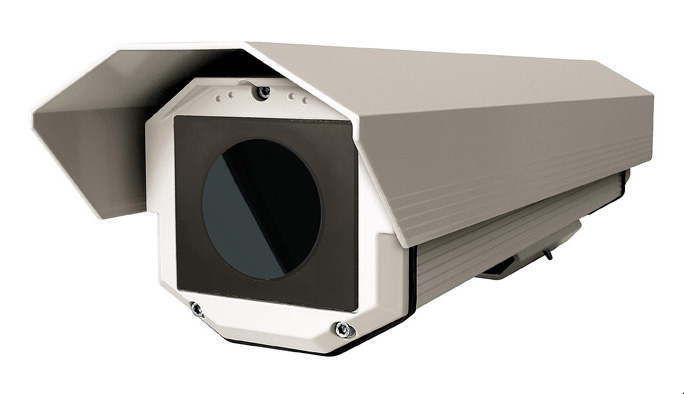

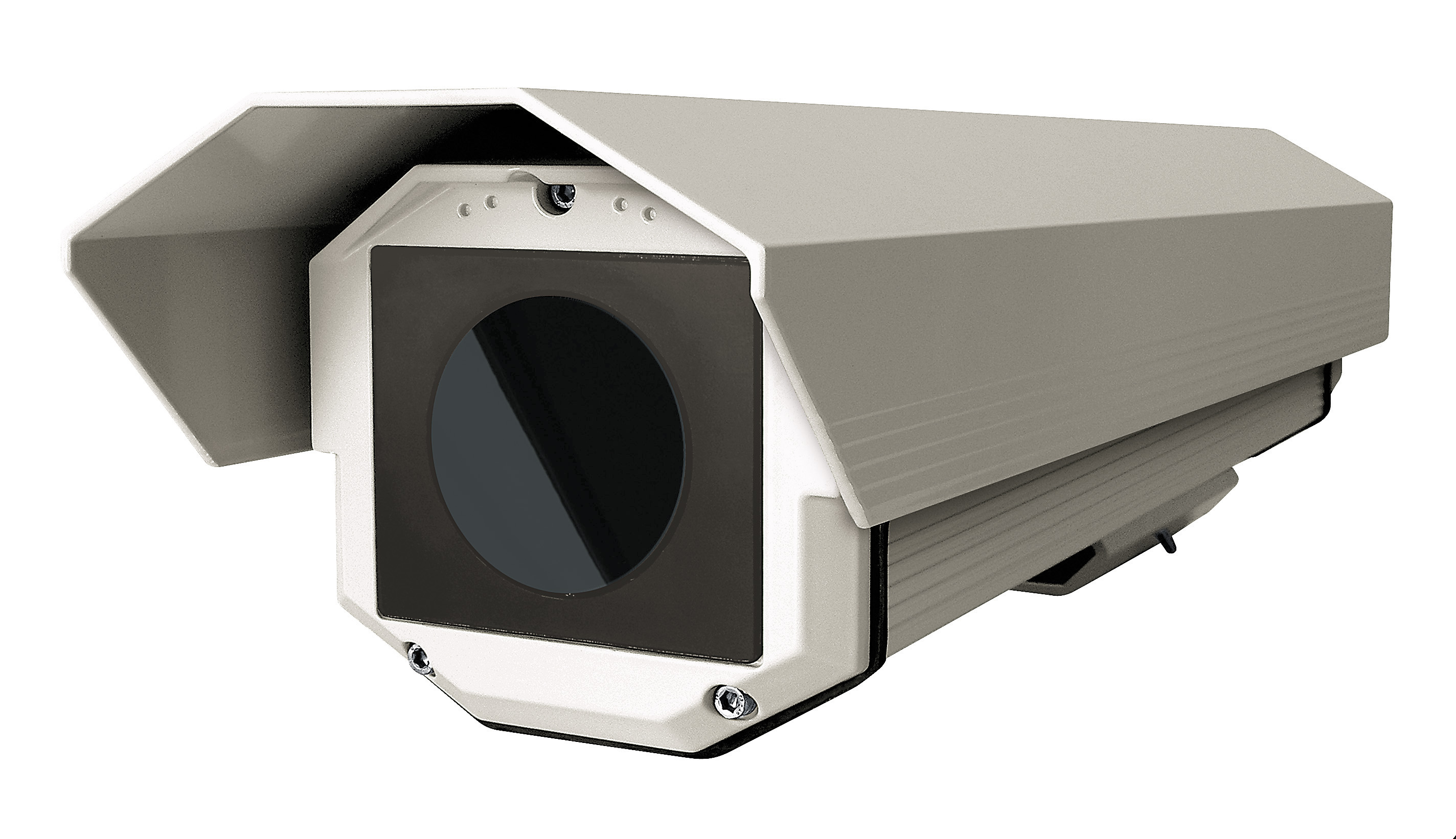

HTGLarge housing for thermal cameras

MARKETS

DESCRIPTION

This housing has been designed to fit thermal cameras with large lenses for vision even in total darkness, fog, rain and smoke, or for long distances.

It can be used for a wide range of day/night surveillance systems, such as monitoring and rescue in the event of a fire, public safety or airport, industrial and environmental surveillance.

KEY FEATURES

Effective monitoring even in complete darkness or in extreme environmental conditions, fog, rain or smoke

For large lenses

Germanium window

Integrated heater

TECHNICAL DATA

General
  • Die-cast aluminium back and front cover plates
  • Extruded aluminium body and external slide
  • Epoxypolyester powder painting, RAL9002 colour
  • Stainless steel external screws
Mechanical
  • Internal usable areaᅠ ᅠ(WxH):ᅠ ᅠ134x88mm (5.1x3.5in)
  • Internal usable lengthᅠ ᅠ(with or without accessories):ᅠ ᅠ273mm (10.7in)
  • Cable glands:ᅠ ᅠ3xM16
  • Unit weight:ᅠ ᅠ4.1kg (9lb)
Electrical
  • Supply voltage/Current consumptionᅠ ᅠ(version with heater,ᅠ ᅠTon 15°C±3°C (59°F ±5°F),ᅠ ᅠToff 22°C±3°C (72°F±5°F)):
  • 12Vdc,ᅠ ᅠ1.6Aᅠ ᅠmax
  • 24Vac,ᅠ ᅠ0.85Aᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • 120Vac,ᅠ ᅠ0.35Aᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • 230Vac,ᅠ ᅠ0.18Aᅠ ᅠmax,ᅠ ᅠ50/60Hz
  • Camera power supply
  • INᅠ ᅠfromᅠ ᅠ100Vacᅠ ᅠup toᅠ ᅠ240Vac,ᅠ ᅠ50/60Hzᅠ ᅠ-ᅠ ᅠOUT 12Vdc, 1.25A
  • IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA
Environment
  • For installation indoors and outdoors
  • Operating temperature with heating:ᅠ ᅠfromᅠ ᅠ-20°C (-4°F)ᅠ ᅠup toᅠ ᅠ+60°C (140°F)
Certifications
  • Electrical safetyᅠ ᅠ(CE):ᅠ ᅠEN60065
  • Electromagnetic compatibilityᅠ ᅠ(CE):ᅠ ᅠEN50130-4,ᅠ ᅠEN61000-6-3
  • IP protection degree:ᅠ ᅠEN60529ᅠ ᅠ(IP66/IP67,ᅠ ᅠwith cable glands)
  • EAC certification
Accessories
  • OHEPS19B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for VERSO, VERSO POLAR, VERSO COMPACT, HEG, HTG housings
  • OHEPS20 Camera power supply IN 230Vac - OUT 24Vac, 10VA, for VERSO, VERSO POLAR, VERSO COMPACT, HEG, HTG housings
  • OHEGBPS1B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, in weatherproof box, for VERSO, VERSO POLAR, HEG, HTG housings
  • OHEGBPS2B Camera power supply IN 230Vac - OUT 24Vac in weatherproof box, 10VA, for VERSO, VERSO POLAR, HEG, HTG housings
  • OHEGBB Weatherproof junction box
Brackets and adaptors
  • WBJA Wall mount bracket
  • WCM5A Ceiling bracket with ball joint
  • WFWCA Column bracket with joint
Related products
  • PTH900 Horizontal/vertical Pan & Tilt
Spare parts
  • OHEH24B Heater 120/230Vac for HEG, HTG housings
  • OHEH25B Heater 12Vdc/24Vac for HEG, HTG housings
  • DOTHE01 Spacers for camera and lens
  • OHEGNMAN Cable glands, gaskets and screws
  • OHEGFPN04 Back cover with cable glands, gaskets and screws
  • OHTGFA Front cover with germanium window
