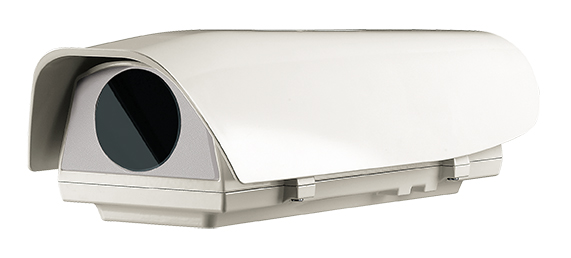

HTVAluminium housing for thermal cameras

MARKETS

DESCRIPTION

This housing has been designed to fit thermal cameras with compact lenses for vision even in total darkness.

It can be used for a wide range of day/night surveillance systems, such as monitoring and rescue in the event of a fire, public safety or airport, industrial and environmental surveillance.

KEY FEATURES

Side opening, easy camera servicing

Germanium window

Pre-arranged for internal cable management bracket

IP66/IP67 (with cable glands or optional sealing rings)

TECHNICAL DATA

General
  • Constructed from aluminium
  • Sunshield in ABS
  • Epoxypolyester powder painting, RAL9002 colour
  • Stainless steel external screws
Mechanical
  • Dimensions   (WxHxL):   176x160x514mm (6.9x6.3x20.2in)
  • Cable glands:   3xM16
  • Unit weight:   4kg (8.8lb)
Electrical
  • Supply voltage/Current consumption   (empty version):
  • From   12Vdc   up to   24Vdc,   1A   max
  • From   12Vac   up to   24Vac,   1A   max,   50/60Hz
  • From   120Vac   up to   230Vac,   400mA   max,   50/60Hz
  • Supply voltage/Current consumption   (version with heater,   Ton 15°C±3°C (59°F ±5°F),   Toff 22°C±3°C (72°F±5°F)):
  • From   12Vdc   up to   24Vdc,   3A   max
  • From   12Vac   up to   24Vac,   3A   max,   50/60Hz
  • From   120Vac   up to   230Vac,   400mA   max,   50/60Hz
  • Camera power supply:
  • IN   from   100Vac   up to   240Vac,   50/60Hz   -   OUT 12Vdc, 1.25A
  • IN 230Vac, 50Hz - OUT 24Vac, 50Hz, 400mA
Housing's window
  • Germanium window
  • Usable diameter:   55mm (2.1in)
  • Thick:2mm (0.08in)
  • External treatment:   antiscratch   (Hard Carbon Coating - DLC),   antireflection
  • Internal treatment:   antireflection
  • Spectral range:   from   7.5μm   up to   14μm
  • Medium transmittance   (from   7.5μm   up to   11.5μm):   90%
  • Medium transmittance   (from   11.5μm   up to   14μm):   77%
Environment
  • For installation indoors and outdoors
  • Operating temperature   (with heater):   from   -20°C (-4°F)   up to   +60°C (140°F)
Certifications
  • Electrical safety   (CE):   EN60950-1
  • Electromagnetic compatibility   (CE):   EN50130-4,   EN61000-6-3,   EN55032   Class B,   FCC Part. 15   Class B,   ICES-003   Class B
  • IP protection degree   (EN60529):
  • IP66/IP67   (with cable glands)
  • IP66/IP67   (with bracket with internal cable channel,   with sealing rings)
  • IP55   (with bracket with internal cable channel)
  • IP44   (with double filter for air renewal)
  • EAC certification
Accessories
  • OHEH26 Heater 120Vac/230Vac for HOV, HTV, VERSO, VERSO COMPACT housings
  • OHEH27 Heating 12Vdc/24Vac for HOV, HTV, HTC, VERSO and VERSO COMPACT housings
  • OHOVPS1B Wide range camera power supply IN 100-240Vac - OUT 12Vdc, 1.25A, for HOV and HTV housing
  • OHOVPS2B Camera power supply IN 230Vac - OUT 24Vac, 10VA, for HOV and HTV housings
  • OHOVTA1 Tamper switch on board with tamper proof screws and key for HOV housing
  • OHEGBB Weatherproof junction box
  • OWBIP2 Sealing rings kit (3xM16) IP66/IP67 for WBOVA2 and WCM4A2 brackets for PUNTO, HOV, HTV, HTC, VERSO, VERSO POLAR, VERSO COMPACT, HEB, HEK housings
Brackets and adaptors
  • WBJA Wall mount bracket
  • WBOVA2 Wall bracket with internal cable channel
  • WBOV3A2 Wall bracket with internal cable channel, counterplate and support box, not compatible with OHEBVF1, OHEBVF2 and OHEBVF3
  • WCM3A Ceiling bracket with ball joint
  • WCM5A Ceiling bracket with ball joint
  • WCM4A2 Ceiling bracket with internal cable channel
  • WFWCA Column bracket with joint
Related products
  • PTH300 Horizontal/vertical Pan & Tilt
Spare parts
  • OHTV32SUP Complete upper body

AVAILABLE MODELS

Model Number

Housing sunshield

Power supply 230Vac

Power supply 24Vac

Ø germanium window

HTV32K1A000

50mm

HTV32K2A000

50mm

TOP
