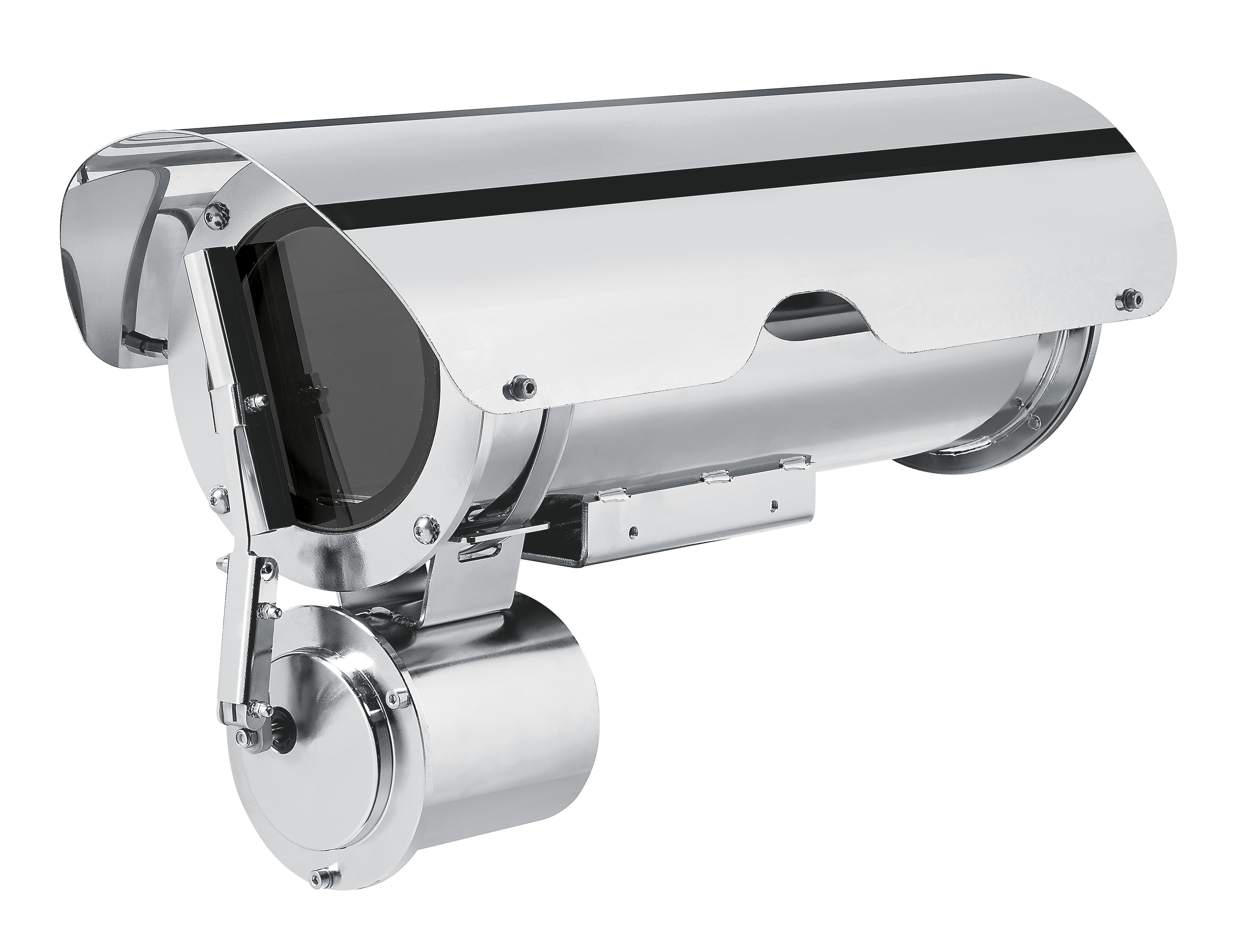

NXM36Camera housing for installation in aggressive environments

MARKETS

CERTIFICATIONS

DESCRIPTION

The NXM36 housing has been developed for installations in highly corrosive areas such as industrial chemical, petrochemical, marine, naval and offshore platforms; entirely made from electropolished and passivated AISI 316L stainless steel for maximum protection against deterioration.

KEY FEATURES

  • Made of AISI 316L electropolished stainless steel
  • Cylindrical body enclosed by two 6mm(0.24in)-thick circular flanges
  • 2 PG13.5 cable glands in nickel-plated brass for external connections
  • IP66/IP67/IP68/IP69
  • Marine Certification: Lloyd's Register Marine Type Approval
  • Available accessories: heater and double heater (for temperatures down to -40°C (-40°F), camera power supply, wiper and washer pump

TECHNICAL DATA

General
  • Housing manufactured in polished stainless steel (austenitic stainless alloy steel resistant to corrosion and heat):
  • AISI 316L
  • UNI 6900-71: X 2 Cr Ni Mo 17 12 2
  • DIN 17006: X 2 Cr Ni Mo 17 13 2
  • N° werkstoff: 1.4404
  • AFNOR: Z2 CND 17-12
  • BSI: 316S11
  • The screws utilised are in austenitic alloy stainless steel, corrosion and heat resistant according to the following standards:
  • ISO: 7380
  • AISI: 316
  • ISO quality: A4
  • Resistance class ISO: from 50 to 70
Mechanical
  • Approximate useful internal dimensions:
  • Standard versions (WxH): 88x86mm (3.5x3.4in)
  • Dual heating version (WxH): 55x86mm
  • Internal usable length:
  • Standard versions: 334mm (13.1in)
  • Versions with heating and/or power supply: 245mm (9.6in)
  • External dimensions (ØxL): 154x358mm
  • Cable glands: 2xPG13.5 (nickel-plated brass for external connections)
  • Flange thickness: 6mm (0.24in) (front/back)
  • Gaskets: High sealing O-ring
  • Housing window
  • Material: Tempered extra clear glass
  • Usable diameter: 97mm (3.8in)
  • Thick: 4mm (0.16in)
  • Unit weight: 5kg (11lb)
Electrical

    Standard version

  • Supply voltage/Current consumption (version with heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)):
  • 12Vdc, 1.6A max
  • 24Vac, 0.85A max, 50/60Hz
  • 120Vac, 0.35A max, 50/60Hz
  • 230Vac, 0.18A max, 50/60Hz
  • Version with double heater

  • Supply voltage/Current consumption (version with double heater, Ton 15°C±3°C (59°F ±5°F), Toff 22°C±3°C (72°F±5°F)):
  • 120Vac, 0.7A max, 50/60Hz
  • 230Vac, 0.35A max, 50/60Hz
Environment
  • For indoors and outdoors installation
  • Submersible: up to -40m (-130ft) (pressure: 4bar)
  • Operating temperature (with heater): from -20°C (-4°F) up to +60°C (140°F)
  • Operating temperature (with double heater): from -40°C (-40°F) up to +60°C (140°F)
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1, EN62368-1
  • Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3
  • IP protection degree (EN60529): IP66, IP67, IP68, IP69
  • EAC certification
Certifications - Marine applications
  • Lloyd's Register Marine Type Approval certification:
  • Test Specification Number 1 (ENV1, ENV2, ENV3, ENV5)
  • Electromagnetic compatibility: EN60945
  • Salty fog resistance: EN60068-2-52
  • Tested at 70°C (158°F) for 16 hours in compliance with EN60068-2-2
