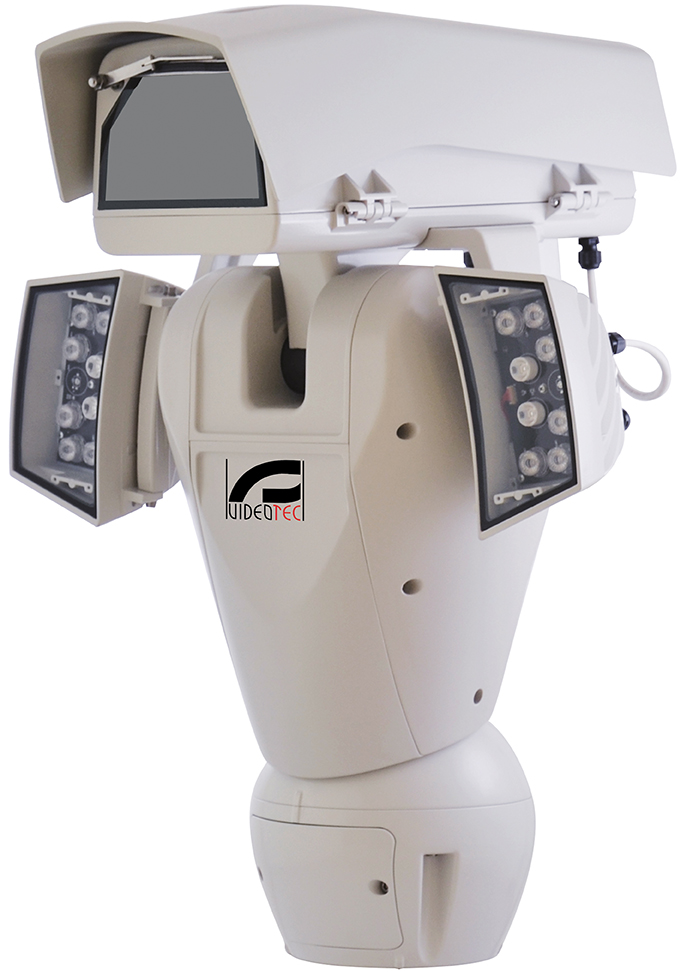

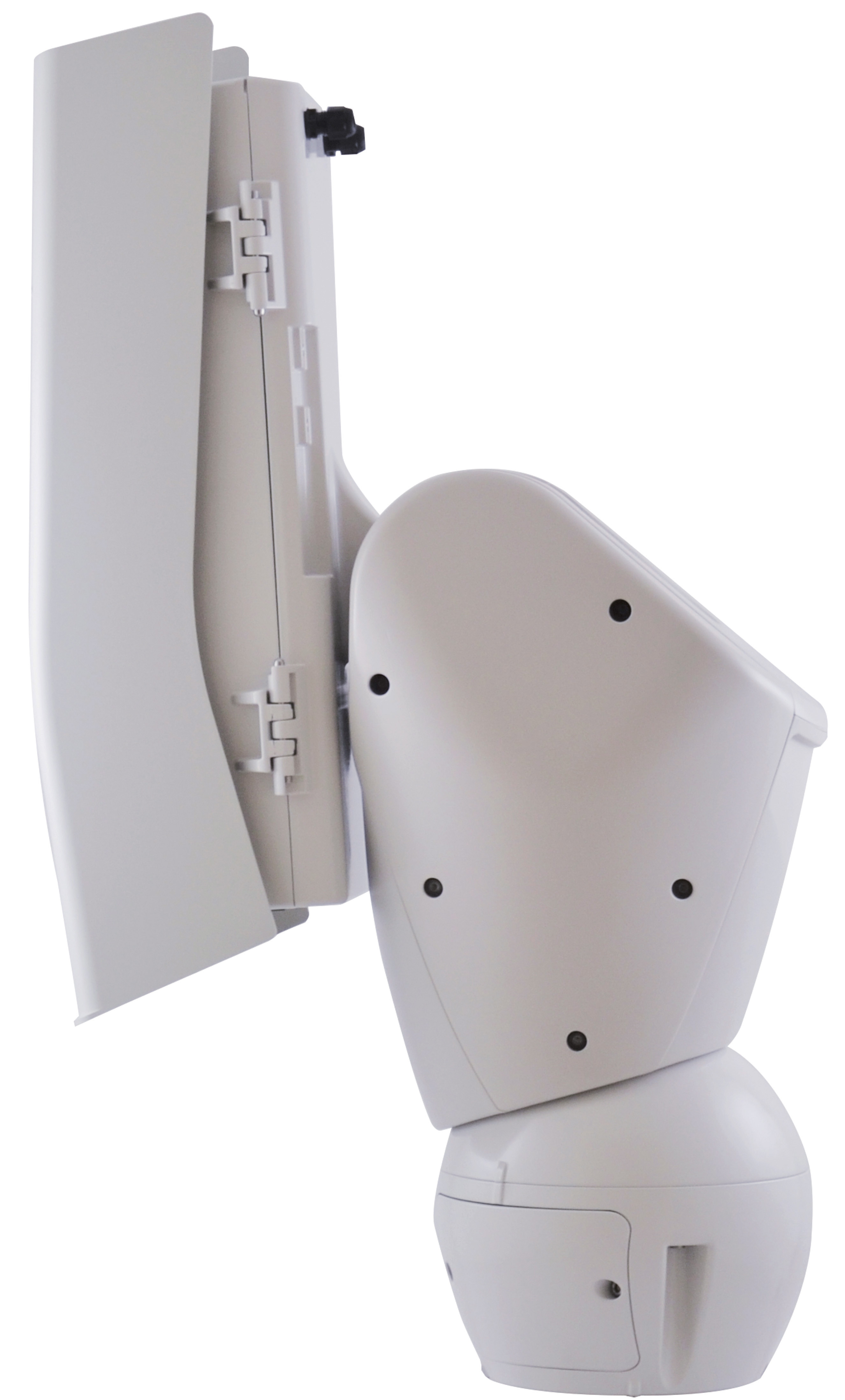

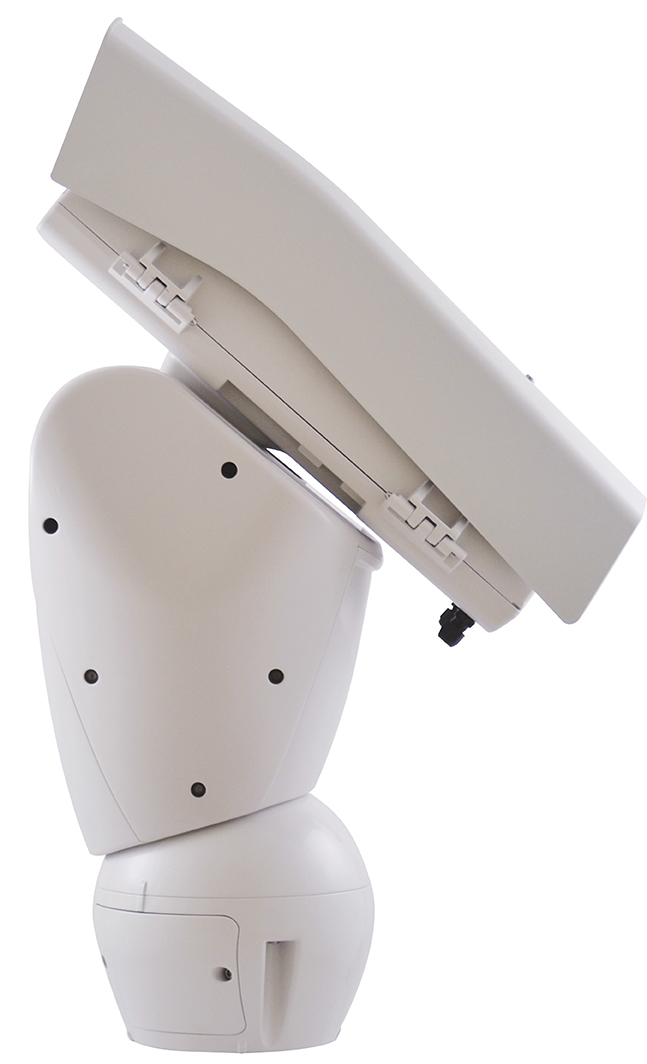

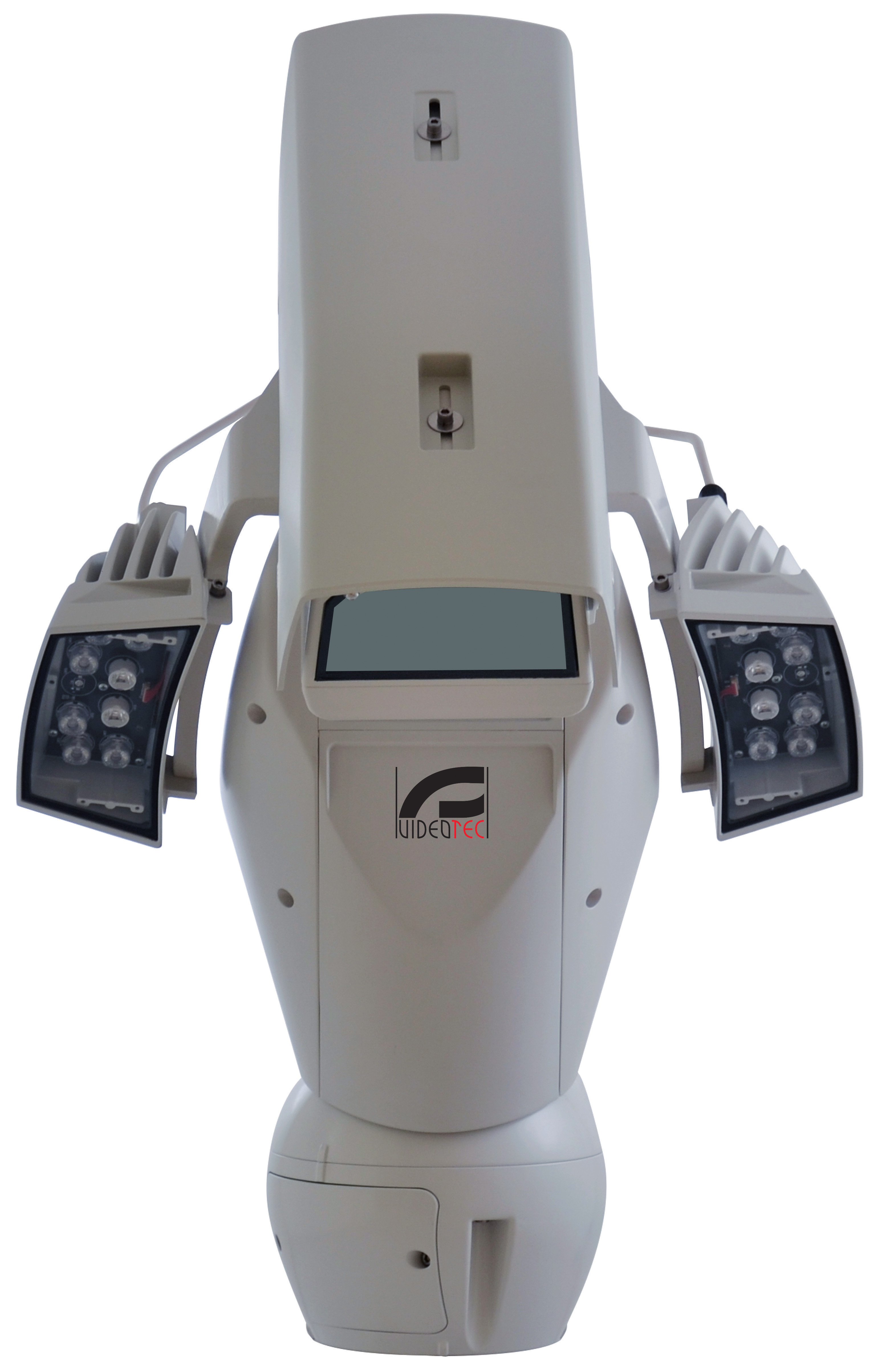

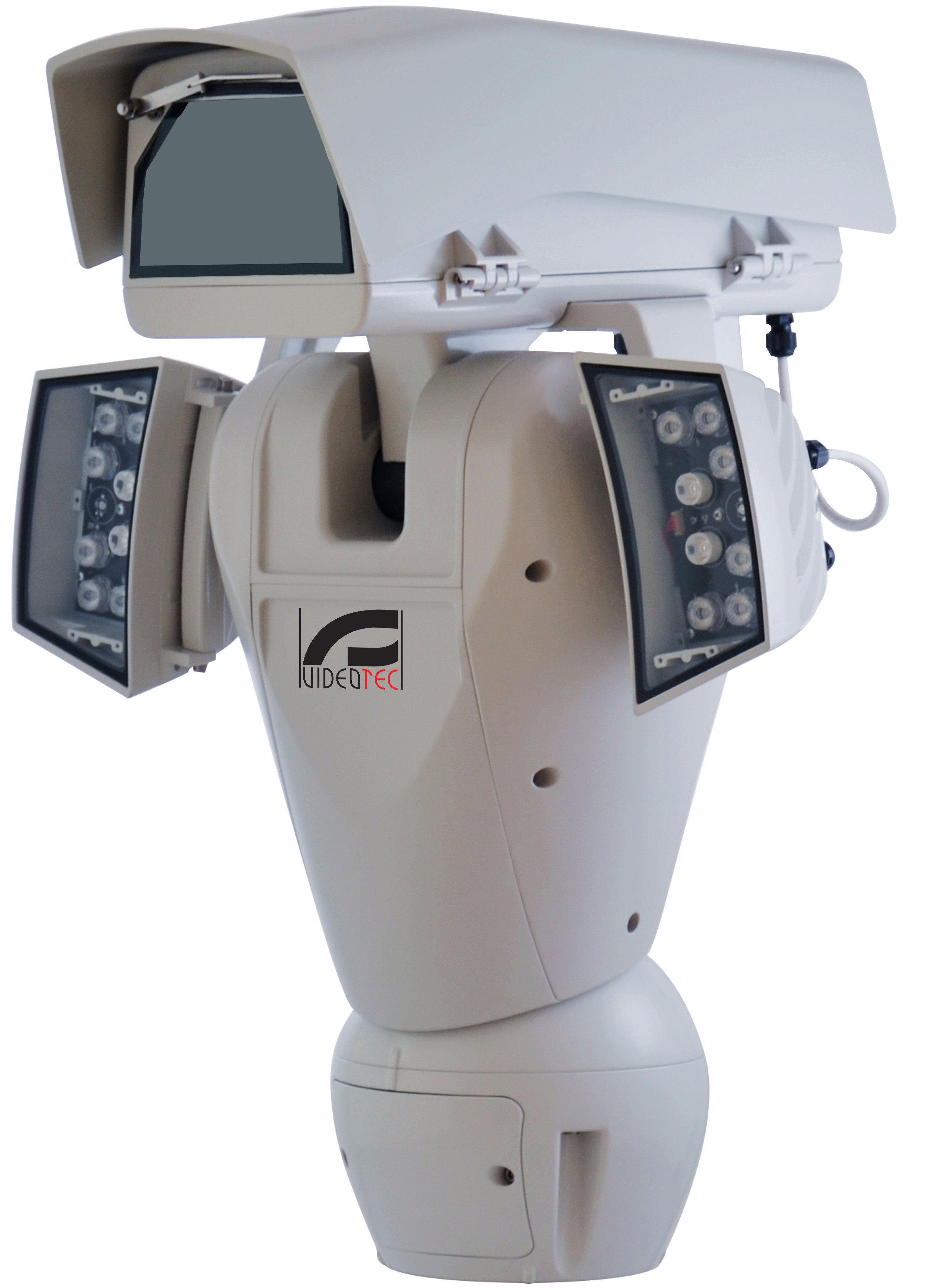

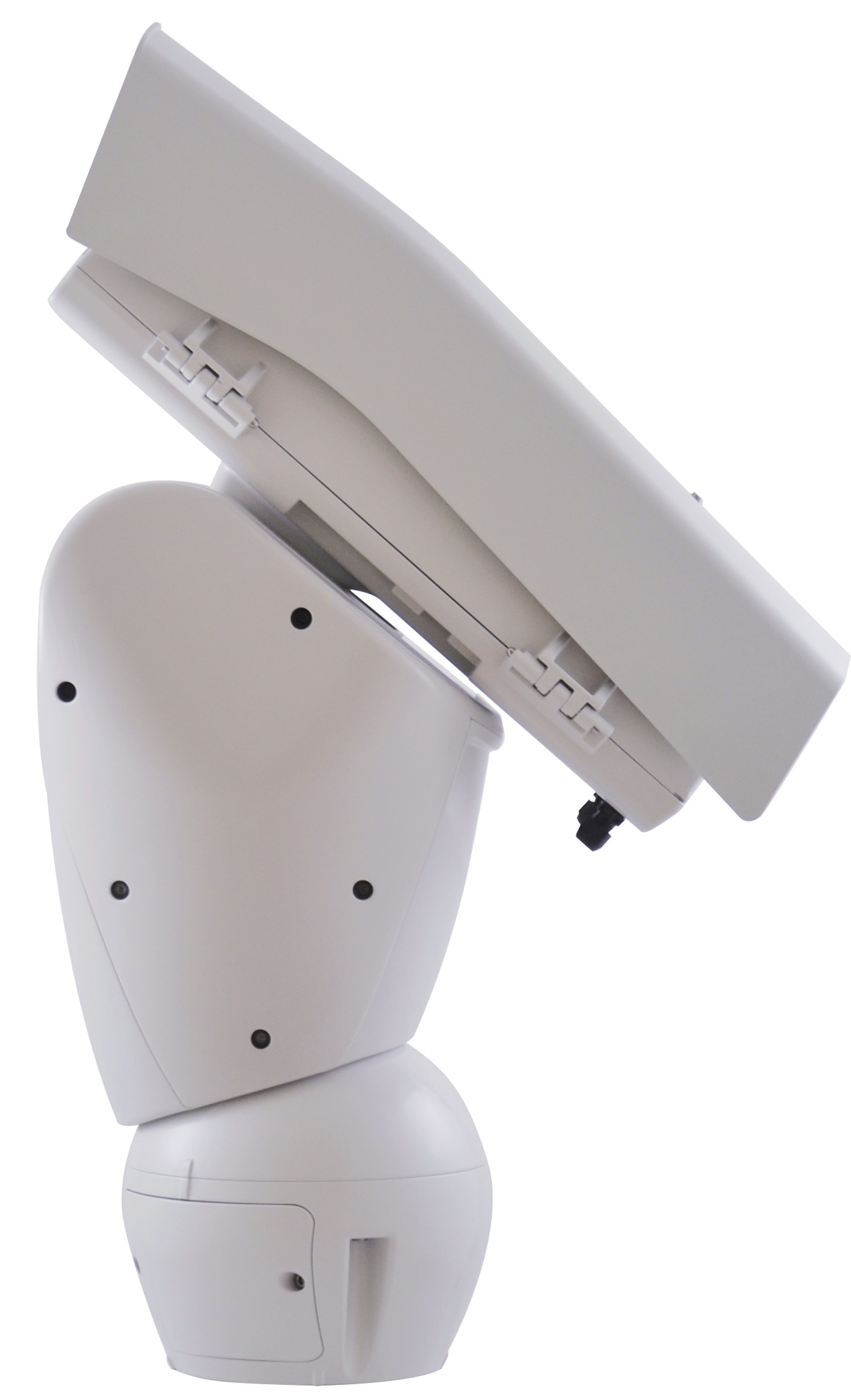

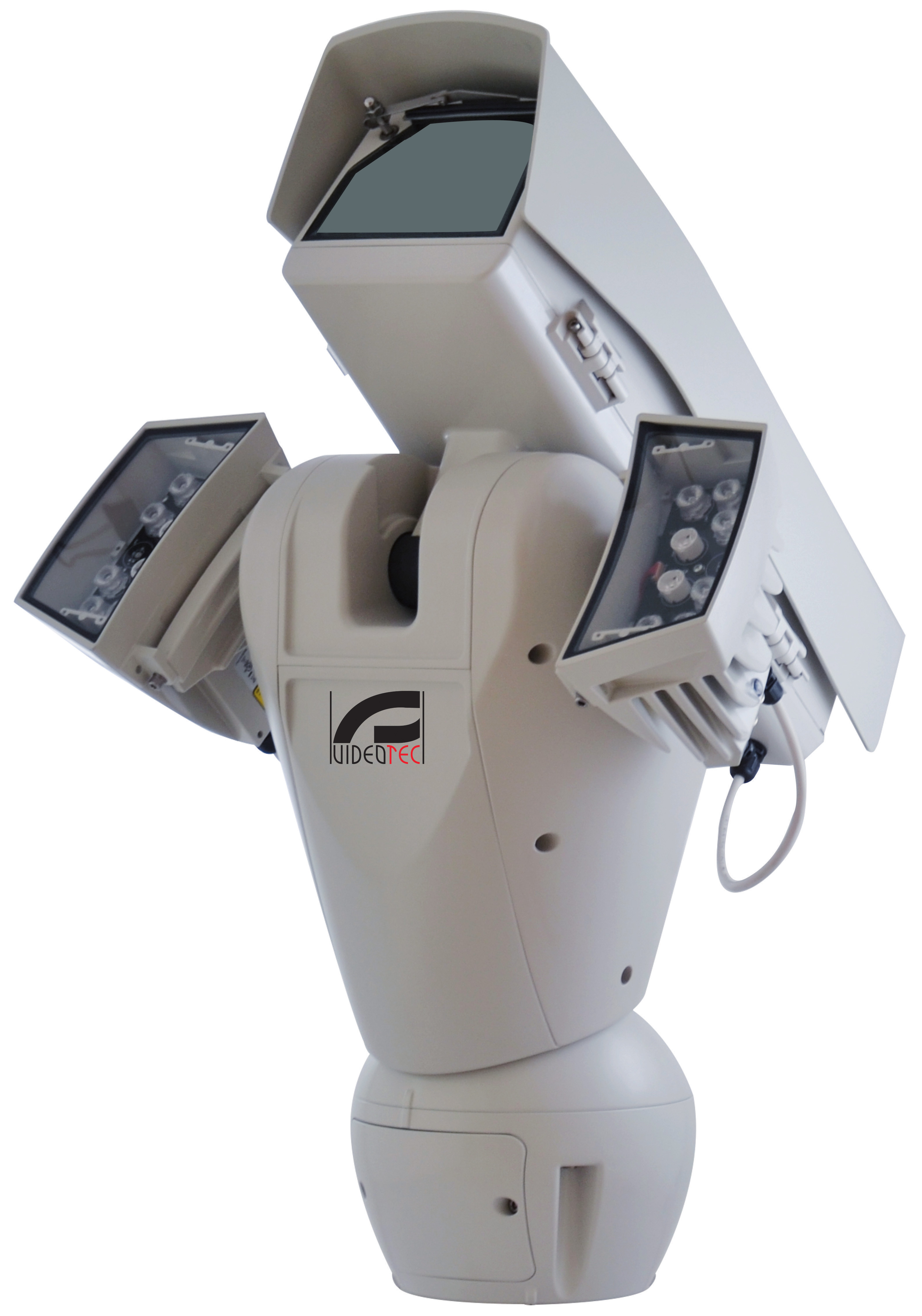

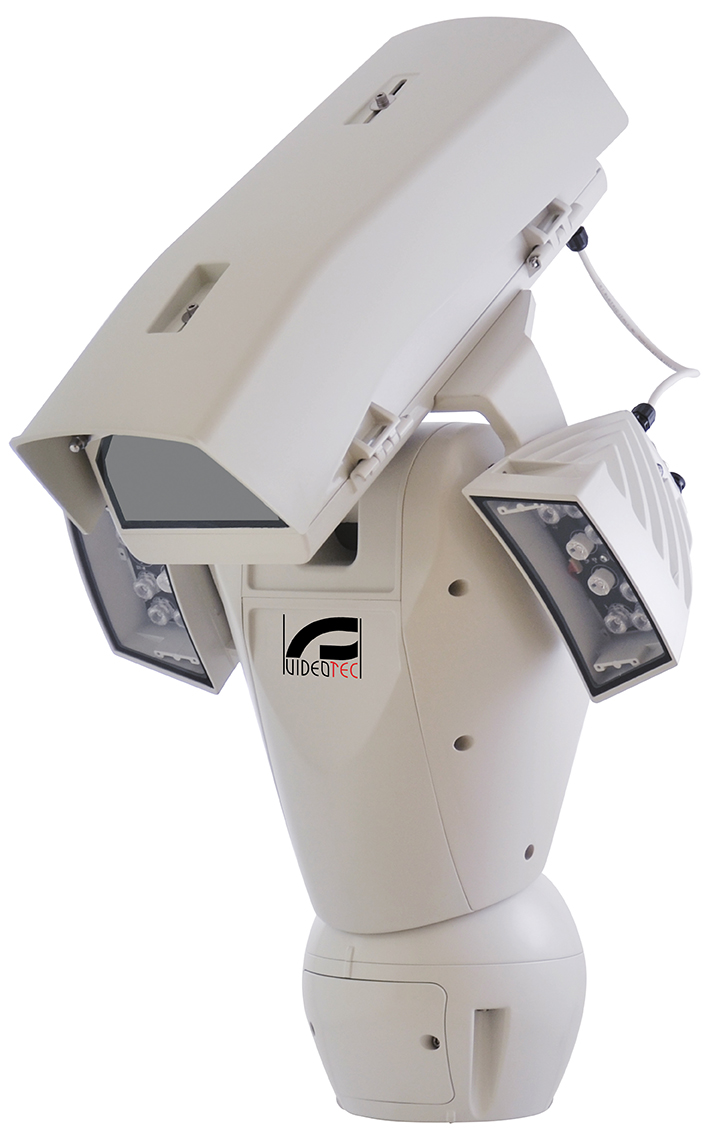

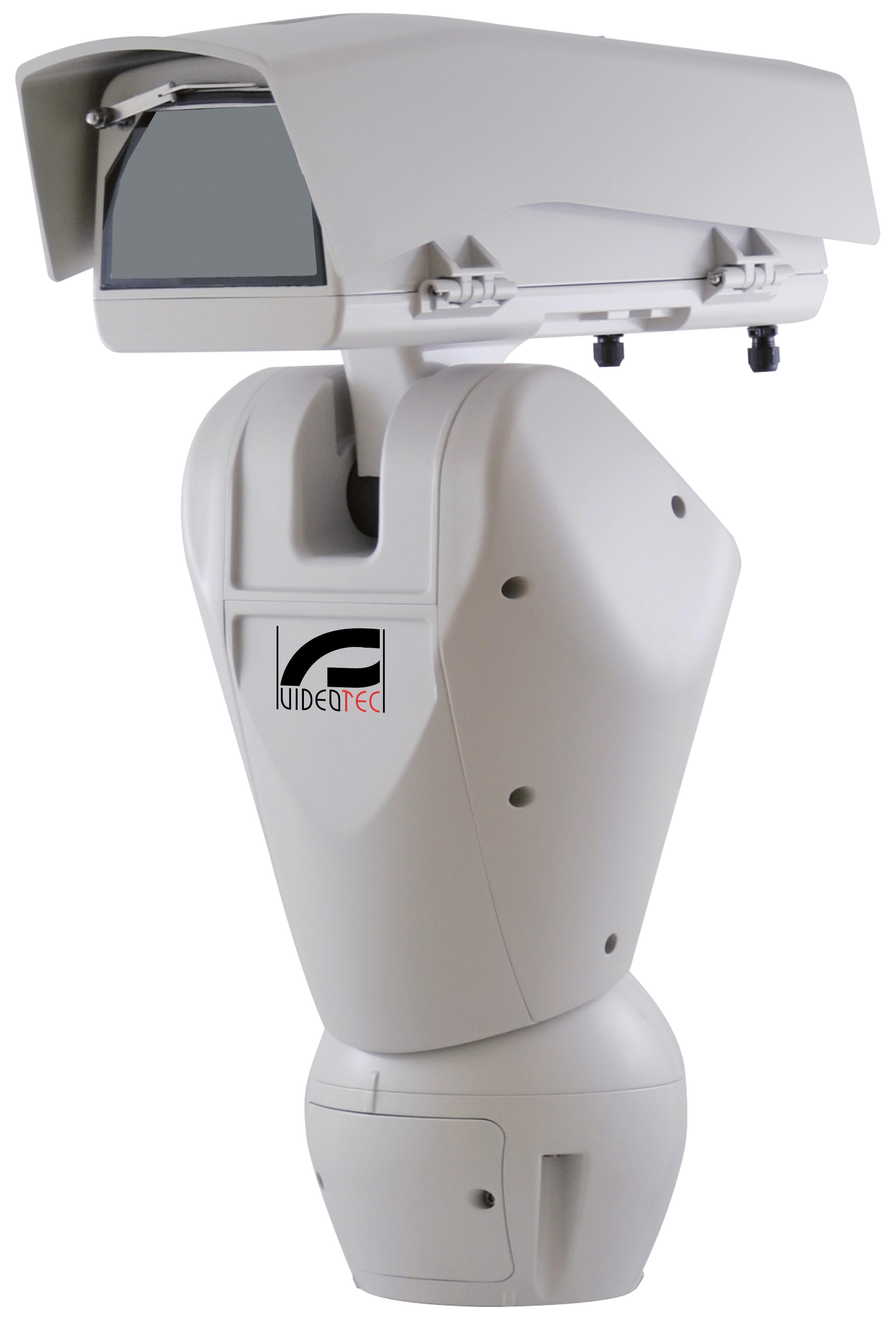

ULISSE2Universal Full IP PTZ for IP cameras

Config link




ULISSE2 is an outdoor full IP PTZ unit for control and management of all third-party IP cameras and thermal imaging cameras (ONVIF-S or those equipped with an RS485 serial port), with direct access via a browser to the camera's interface for setup and diagnostics.

Thanks to ONVIF-S protocols, the Full IP connectivity of the ULISSE2 allows you to network-control P&T plus all camera functions, including the wiper, washer pump, pre-sets, illuminator activation and setup, using the most popular VMS' on the market.

The advanced protection technology used has allowed certain characteristics of the new PTZ to be enhanced, such as the temperature range of -40°C (-40°F) to +65°C (+149°F). The unit can be demisted with forced air and the temperature is constantly controlled, thus preventing condensation and guaranteeing an ideal operating temperature range for the camera.


Full IP PTZ unit for complete management and control of IP ONVIF-S cameras

60 Mbit/s video stream for 4K cameras

Direct access to third-party cameras via a browser, for setup and diagnostics as a single IP address

Tested and certified from -40°C to +65°C (-40°F to +149°F), IP66 and NEMA TYPE 4X

Sophisticated temperature control and demisting system


  • Installation made easier with a single hex key and captive screws
  • Top mount
  • Extremely smooth movement
  • Transmission through toothed belt with zero backlash
  • Reading via ONVIF of the pan/tilt/zoom position
  • Slip-ring
  • Electronic limit switches
  • Integrated wiper

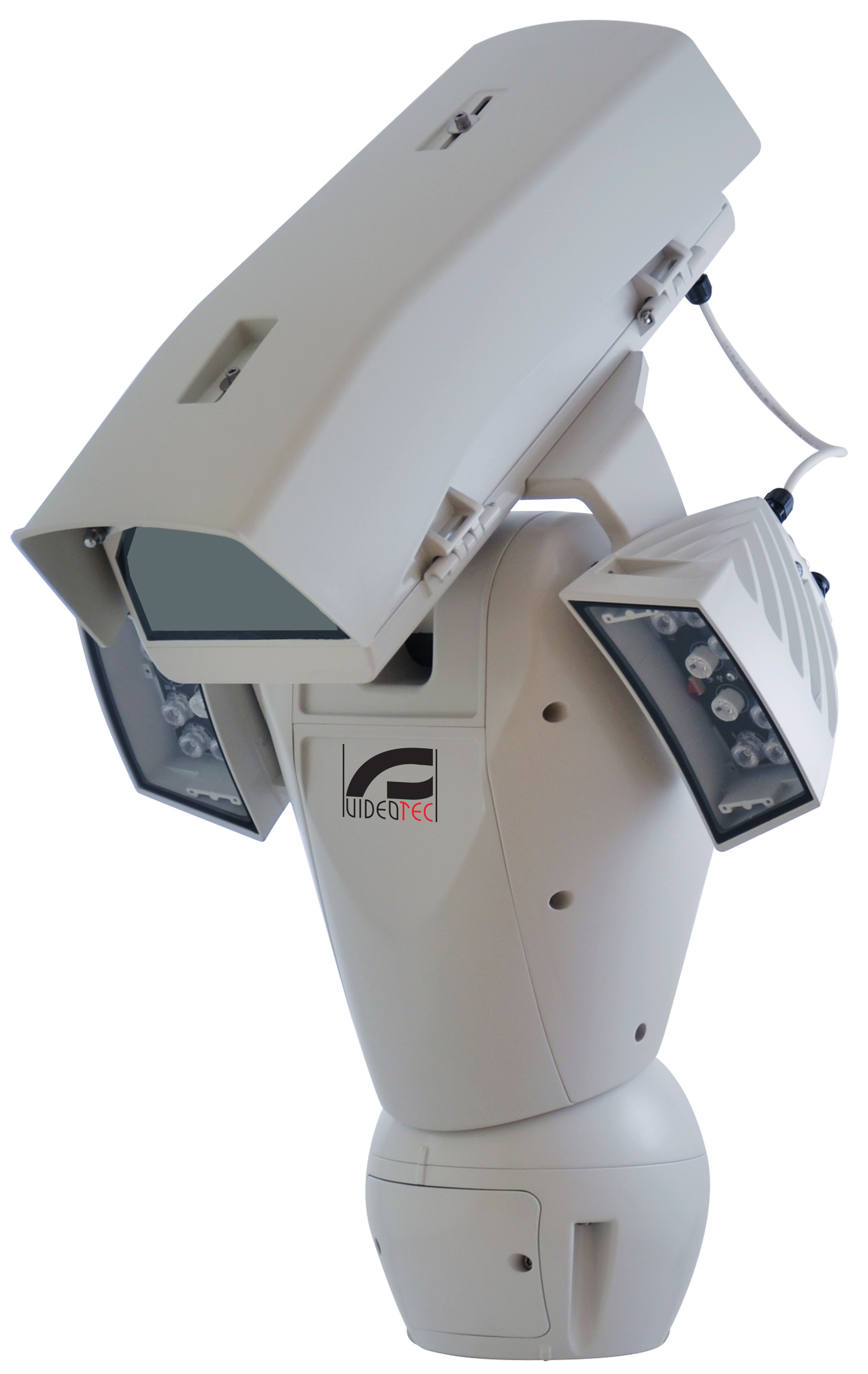

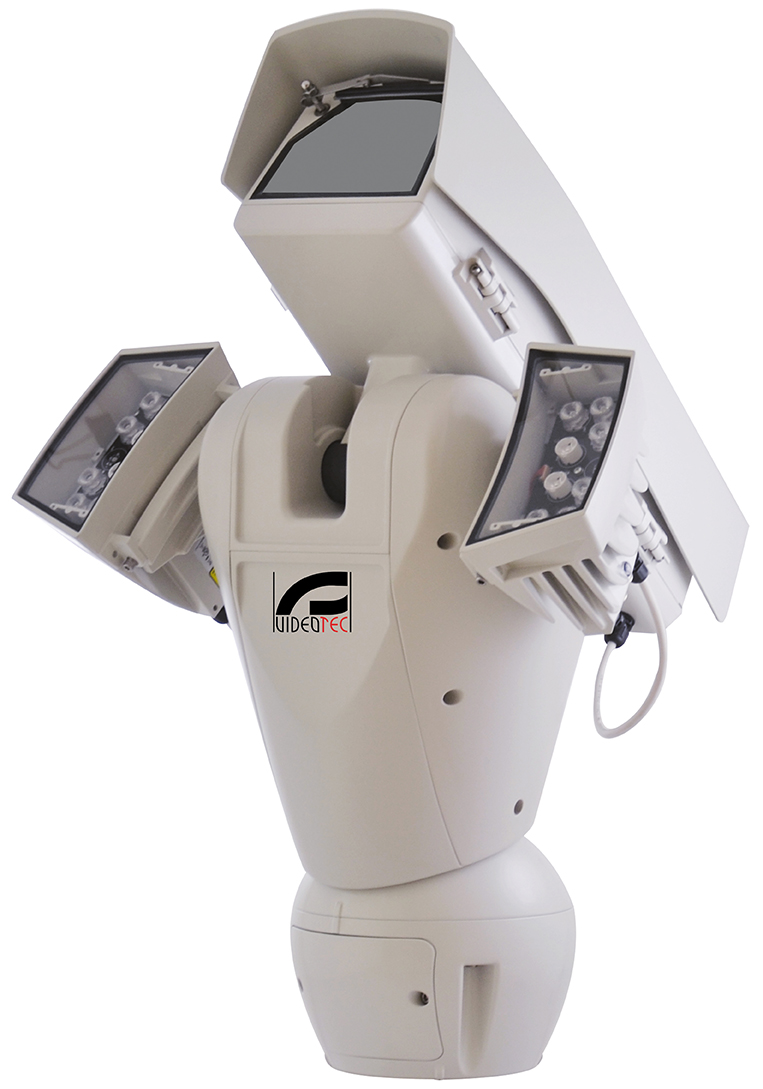

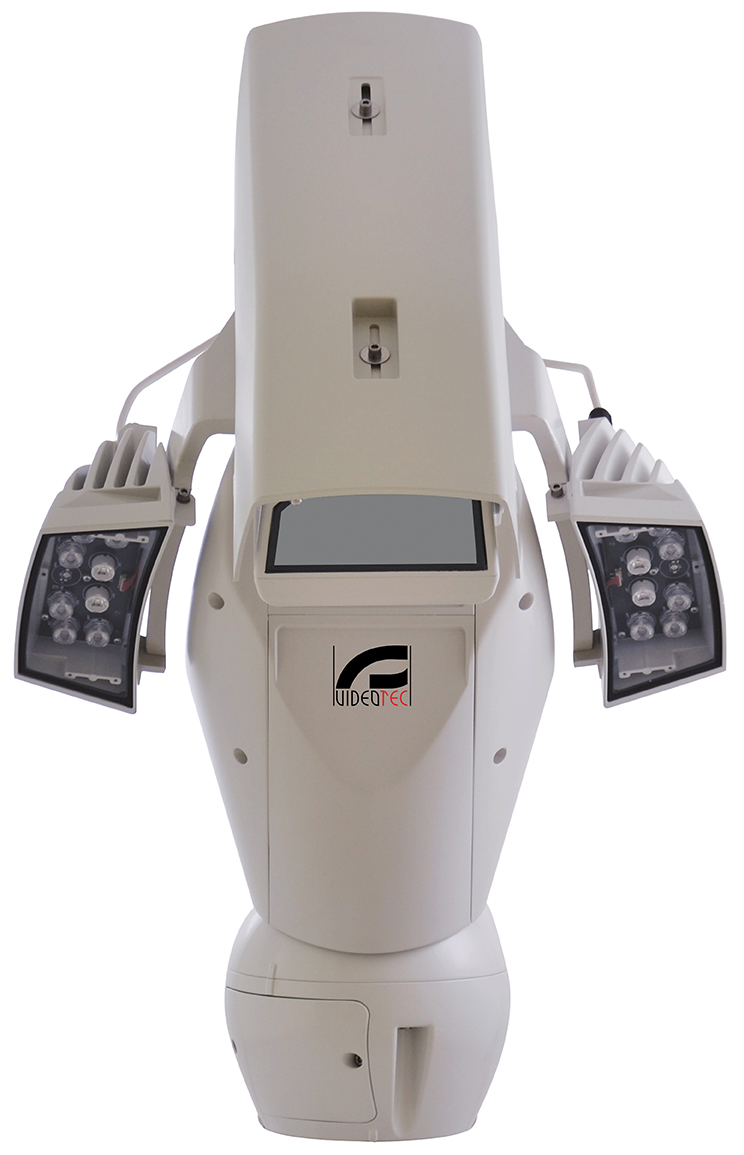

  • Optional illuminators. The second illuminator can be turned on at certain zoom parameters, pre-set positions or manually
  • Micro SD slot for configuration and log storage
  • Housing equipped with forced-air ventilation
  • Zero compensation on mechanical horizontal axis (pan offset)
  • User configurable electronically limits for vertical and horizontal axis
  • Constructed from aluminium and technopolymer
  • Epoxypolyester powder painting, RAL9002 colour
  • Horizontal rotation: 360°, continuous rotation
  • Vertical rotation: from -40° up to +90°
  • Horizontal speed (variable): from 0.02°/s up to 100°/s (from 0.02°/s up to 50°/s with illuminators)
  • Tilt speed (variable): from 0.02°/s up to 50°/s (from 0.02°/s up to 50°/s with illuminators)
  • The unit automatically reduces the speed according to zoom with Add-on camera and motorised lenses with potentiometer
  • Accuracy of preset positions: 0.02°
  • Internal usable dimensions (WxHxL): 100x100/60x414mm (3.9x3.9/2.4x16.3in) (See drawings)
  • Cable glands: 2xM20 + 1xM16 + special gasket for RJ45 cables
  • Unit weight: 20.4kg (45lb)
  • Housing with side-opening
Housing's window
  • Extra clear glass window:
  • Dimensions (WxH): 125x91mm (4.9x3.6in)
  • Germanium window (usable diameter: 61mm (2.4in))
  • Thick: 2mm (0.08in)
  • External treatment: antiscratch (Hard Carbon Coating - DLC)
  • Internal treatment: antireflection
  • Spectral range: from 7.5μm up to 14μm
  • Medium transmittance (from 7.5μm up to 11.5μm): 90%
  • Medium transmittance (from 11.5μm up to 14μm): 77%
  • Germanium window (usable diameter: 66 mm (2.6in))
  • Thick: 4mm (0.16in)
  • External treatment: antiscratch (Hard Carbon Coating - DLC)
  • Internal treatment: antireflection
  • Spectral range: from 7.5μm up to 14μm
  • Medium transmittance (from 7.5μm up to 11.5μm): 88.1%
  • Medium transmittance (from 11.5μm up to 14μm): 77.7%
  • Supply voltage/Current consumption:
  • 230Vac ±10%, 1.1A, 50/60Hz
  • 24Vac ±10%, 10A, 50/60Hz
  • 120Vac ±10%, 2A, 50/60Hz
  • Power consumption:
  • 27W, P&T static, heating switched off, without camera
  • 34W, P&T static, heating switched off, 30x camera
  • 49W, P&T in motion, heating switched off, 30x camera
  • 97W, P&T in motion, heating switched on, illuminators off
  • 157W, P&T in motion, heating switched on, illuminators on, 30x camera
  • Signal cable section: from 0.5mm² (20AWG) up to 1.5mm² (16AWG)
  • Self-powered alarm inputs: 4
  • Relay outputs: 2 (1 A, 30 Vac/dc max)
  • Temperature-controlled forced air creates an anti-condensation system for the window
  • De-icing system with self-heating glass, 7W max (optional)
  • Ethernet connection: 100 Base-TX
  • Network protocols: IPv4, HTTP, Bonjour, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, ONVIF profile S
  • Supported protection systems: password protection (digest-authentication and ws-security)

    Specifications of the cameras that can be installed

  • Possible Modes of communication with the IP camera:
  • camera controlled by P&T via ONVIF-S (PTZ Master)
  • P&T controlled by camera via RS485 serial port (Camera Master)
  • Selection of the communication mode with the IP camera: via dip-switch
  • Nominal bitrate of the video stream (total of the whole camera stream) 60 Mbit/s, 4K ready
  • IP camera configuration via direct connection to the camera's web page
  • PTZ control (only with Camera Master mode)
  • Serial line: RS485
  • Protocol: Pelco-D, MACRO
  • Baud rate: 2400baud, 4800baud, 9600baud
  • Camera power supply: 12Vdc, 1.5A max with de-icing function
  • Lens motor power supply: 6-9-12-15 Vdc, 200 mA max
  • Lens potentiometer power supply: 5 V, 15 mA max
  • Lens control: common ZF line, separate ZF line or RS485
  • Autofocus motorised lens trigger: relay
  • Autofocus lens trigger management: 500 m/s pulse, 15 s pulse, normally open, normally closed
  • Day/Night camera synchronisation: ONVIF or relay
  • Camera I/O export: 1 self-powered input, 1 relay output
  • Maximum weight of camera + lens: 2.3 kg

    Optional VIDEOTEC camera add-on (Code CAMHD30X)

    Day/Night Full HD 30x

  • Resolution: Full HD 1080p (1920x1080pixel)
  • Image Sensor: 1/2.8 type Exmor™ CMOS sensor
  • Effective Pixels: approx. 2.38 Megapixels
  • Minimum Illumination, colour (ICR-OFF):
  • 1.4lx, 1/30s, 50 IRE (Normal mode)
  • 0.35lx, 1/30s, 50 IRE (High sensitivity mode)
  • 0.19lx, 1/3s, 50 IRE (Normal mode)
  • 0.05lx, 1/3s, 50 IRE (High sensitivity mode)
  • Minimum Illumination, B/W (ICR-ON):
  • 0.05lx, 1/30s, 50 IRE (Normal mode)
  • 0.013lx, 1/30s, 50 IRE (High sensitivity mode)
  • 0.002lx, 1/3s, 30 IRE (High sensitivity mode)
  • Lens: f=4.3 mm (wide) ~ 129.0 mm (tele), from F1.6 to F4.7
  • Zoom: 30x (360x with digital zoom)
  • Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end)
  • Minimum object distance: from 10mm (wide) up to 1200mm (tele)
  • Shutter speed: 1/1 to 1/10000 s, 22 steps
  • White balance: Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium vapor lamp (Fix, Auto, Outdoor Auto), One-push, Manual
  • Gain: Auto, Manual, Gain Limit (from 3dB up to 43dB, steps: 3dB)
  • Wide Dynamic Range: On/Off/Visibility enhancer, Light level, Brightness Compensation selection, Compensation level
  • Focus System: Auto (Sensitivity: Normal, Low), One-push AF, Manual, Focus compensation with ICR On, Interval AF, Zoom trigger AF
  • Picture Effects: E-flip, Mirror image, Colour enhancement
  • Exposure Control: Auto, EV Compensation, Manual, Priority (Shutter priority, Iris priority), Brightness, Slow AE
  • S/N Ratio: more than 50dB
  • Wide-D (wide dynamic range): Yes (130dB)
  • De-fog: Yes (On/Off)
  • Backlight Compensation: Yes
  • For indoors and outdoors installation
  • Operating temperature: from -40°C (-40°F) up to +65°C (149°F)
  • De-icing function intervention: from -40°C (-40°F) up to -10°C (14°F)
  • Wind resistance
  • P&T static: 220km/h (136mph) max
  • P&T in motion, at the maximum speed, with LED illuminators: 140km/h (87mph) max
  • Relative humidity: from 10% up to 95% (no condensation)
  • Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
  • Electromagnetic compatibility (CE): EN50130-4, EN61000-6-4, EN55022 (Class A), EN55032 (Class A), FCC Part 15 (Class A)
  • Outdoor installation (CE): EN60950-22, IEC60950-22
  • IP protection degree (EN60529):
  • IP66
  • Salty fog resistance: EN50130-5, EN60068-2-52
  • UL certification: cULus Listed,TYPE 4X (Only 24 Vac and 120 Vac versions)
  • EAC certification
  • Vibration test: EN50130-5 Cl. 22, Cl. 23 (EN60068-2-6)
