WASNXWasher pump with solenoid valve for stainless steel products

MARKETS

DESCRIPTION

The WASNX washer pump is an important element for effective video surveillance because it guarantees sharp images in all environmental conditions and reduces the need for maintenance.

The WASNX system is designed for operate in special environments such as marine, industrial, chemical and where the external conditions are highly corrosive.

The wash system is also compatible with third-party products.

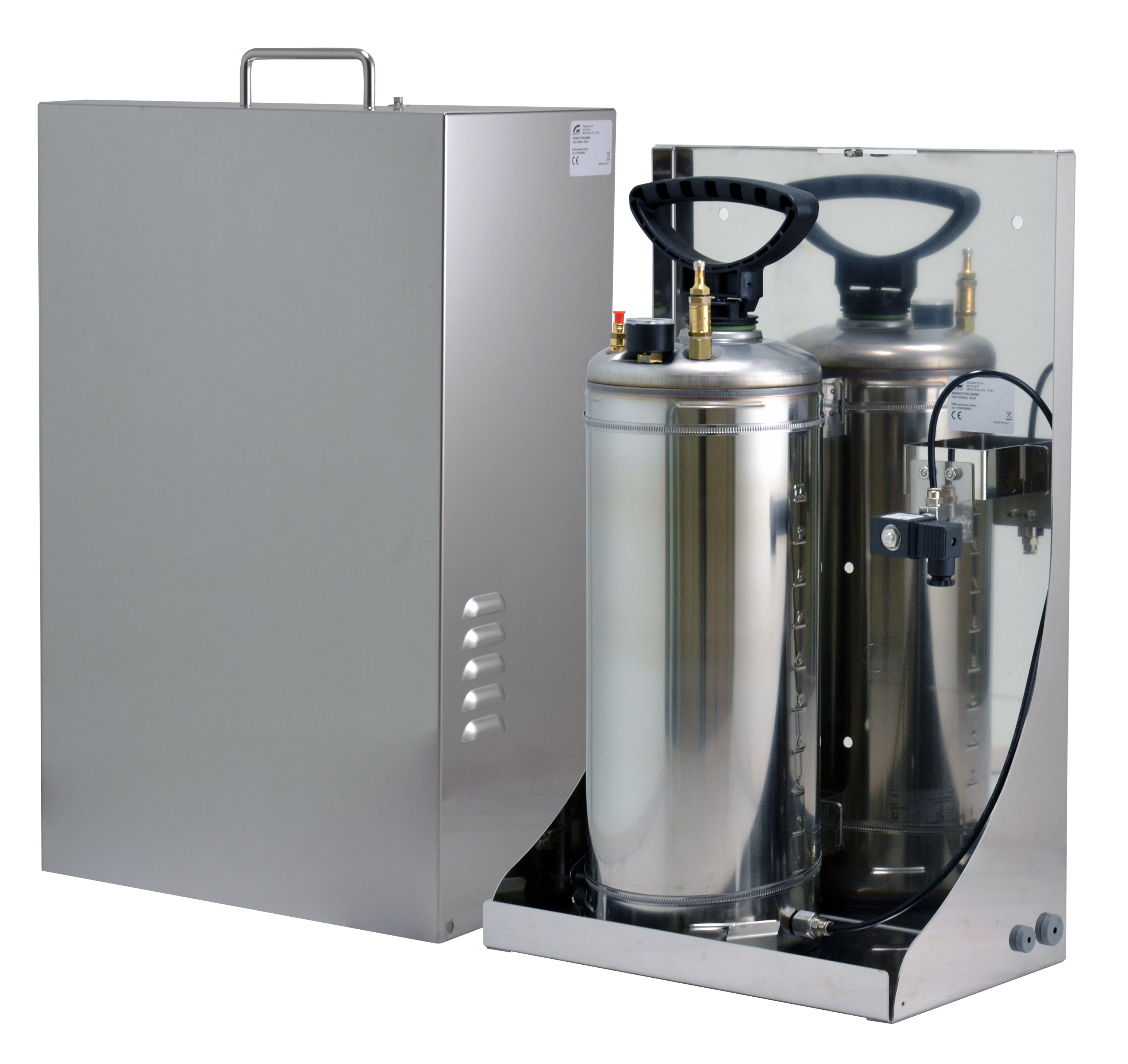

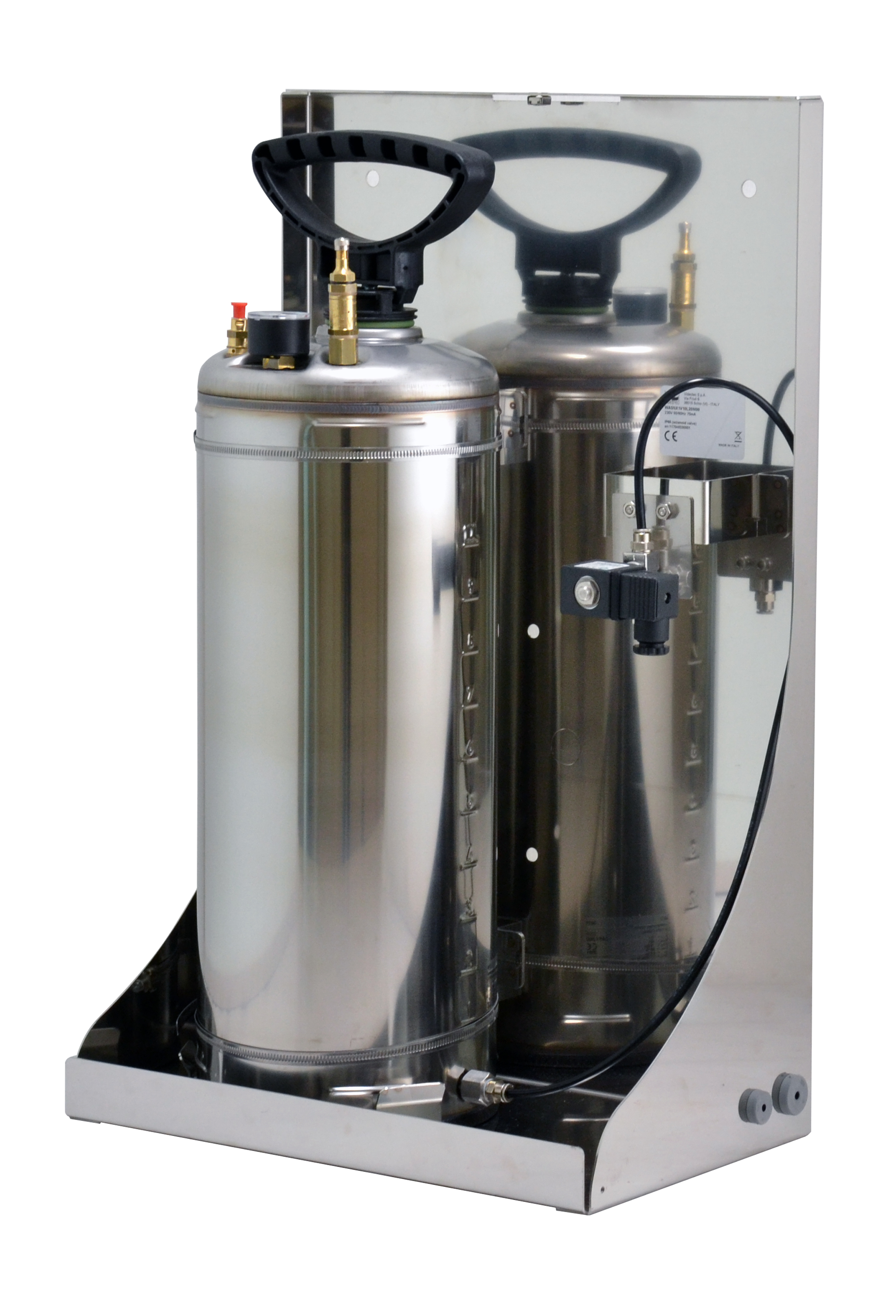

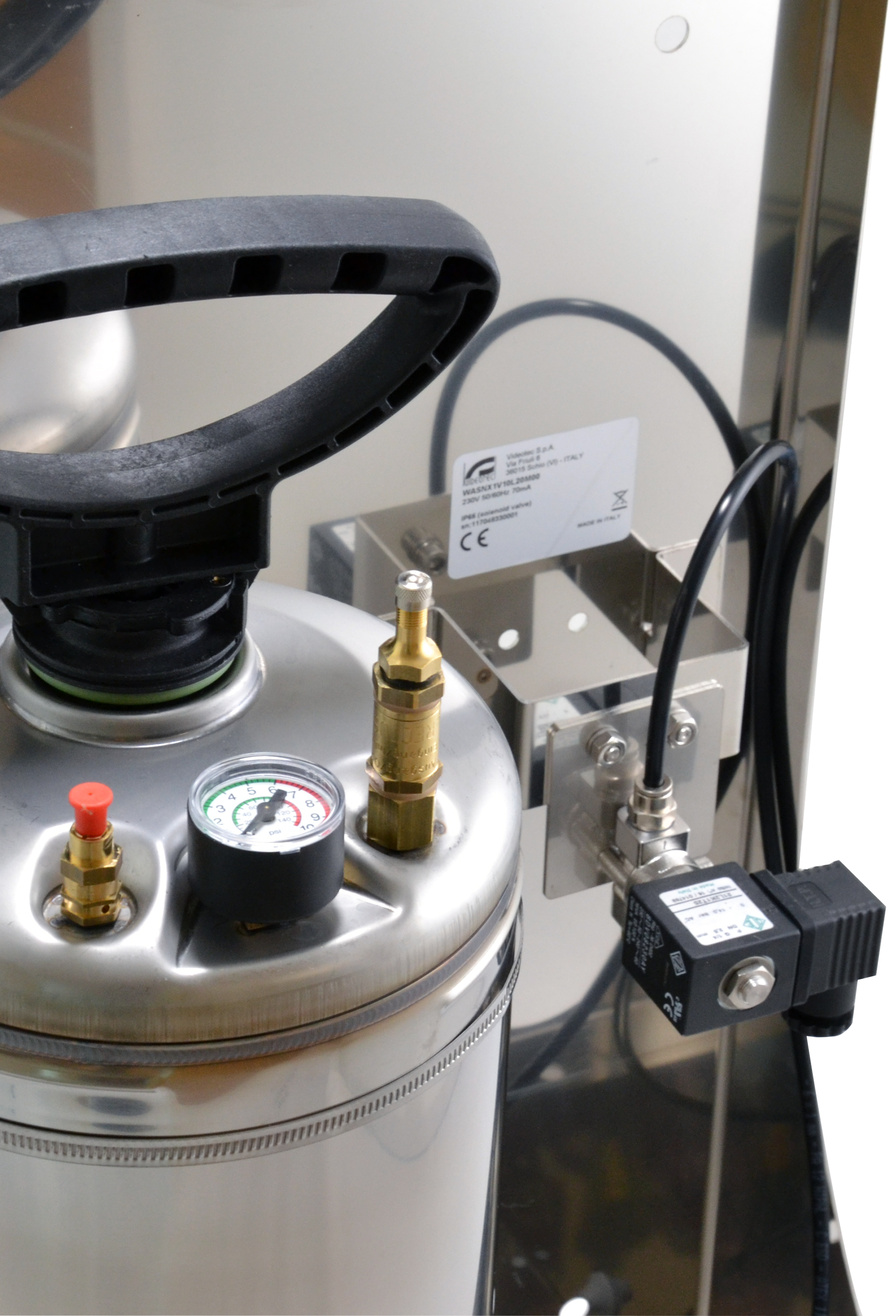

The kit includes a stainless steel 10-litre tank with solenoid valve.

KEY FEATURES

  • Enclosure made of stainless steel AISI 316L
  • Delivery head: 20m (66ft) or 30m (98ft)
  • Water tank capacity: 10l (2.6gal)
  • Suitable for Videotec products or with third-party products
  • Operating temperature: from -20°C (-4°F) up to +60°C (140°F)
  • Available voltages: 230Vac, 120Vac, 24Vac
  • IP protection degree (EN60529): IP65 (solenoid valve only, enclosure not rated)

TECHNICAL DATA

Mechanical
  • Materials
  • External enclosure: Stainless steel AISI 316L
  • Antistatic delivery water pipe: Antistatic plastic
  • Antistatic delivery water pipe (supplied)
  • Length: 20m (66ft)
  • Pressure: 6bar max
  • Delivery head
  • 20m (66ft), 4bar
  • 30m (98ft), 6bar (with accessory tube, WEXTUB30)
  • Water tank capacity: 10l (2.6gal)
  • Dimensions (WxHxL): 429x697x255mm (16.9x27.4x10in)
  • Unit weight: 18kg (40lb)
Electrical
  • Supply voltage/Current consumption
  • 230Vac, 0.07A, 50/60Hz
  • 120Vac, 0.13A, 50/60Hz
  • 24Vac, 0.7A, 50/60Hz
Environment
  • For indoors and outdoors installation
  • Operating temperature of solenoid valve: from -20°C (-4°F) up to +60°C (140°F)
  • Operating temperature of device: depending on the solidification temperature of the liquid
  • Relative humidity: from 5% up to 95%
Certifications
  • Electrical safety (CE): EN60950-1
  • Electromagnetic compatibility (CE): EN61000-6-2, EN61000-6-3
  • Outdoor installation (CE): EN60950-22
  • IP protection degree (EN60529):
  • IP65 (solenoid valve only, enclosure not rated)
  • EAC certification
Accessories
  • WEXTUB30 Antistatic delivery water pipe , 30m (98ft)
  • Brackets and adaptors
  • NXCOL AISI 316L stainless steel pole adapter module
  • NXCW AISI 316L stainless steel corner adapter module
